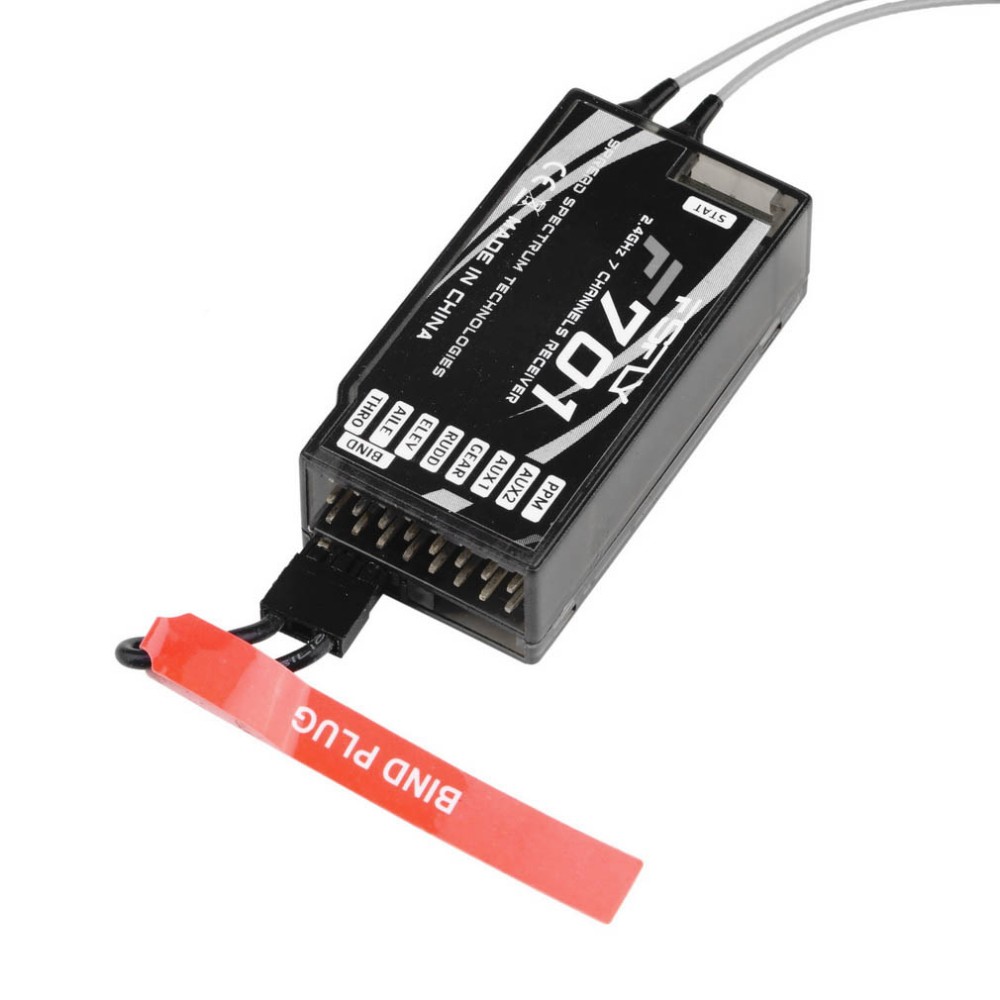

High Quality F701 Digital Spread Modulation 7CH Receiver FOR JR RC Helicopter Plane

Features:
FSFLY Series receiver uses DSSS-2 ? andDSSS-X ? technology， compatible with for remote control system， including JR12X， 11X， X9503， X9303， DX10t， DX8， DX7s， DX7se， DX6i，
DX5e etc.， with built-in19db amplifier and 2db antenna， the device has a good quality and stable signals even in long distance.
Separate outputs PPM
With external small satellite.

Specifications:
Channel (ch): 7ch
Operating Voltage (V): 4.8V-8.4V
Air distance (M): 1500M + / full
Dimensions (mm): 46 * 14 * 24
Weight: 10g
Specification: DSSS-2 / DSSS-X

Matching(Code)

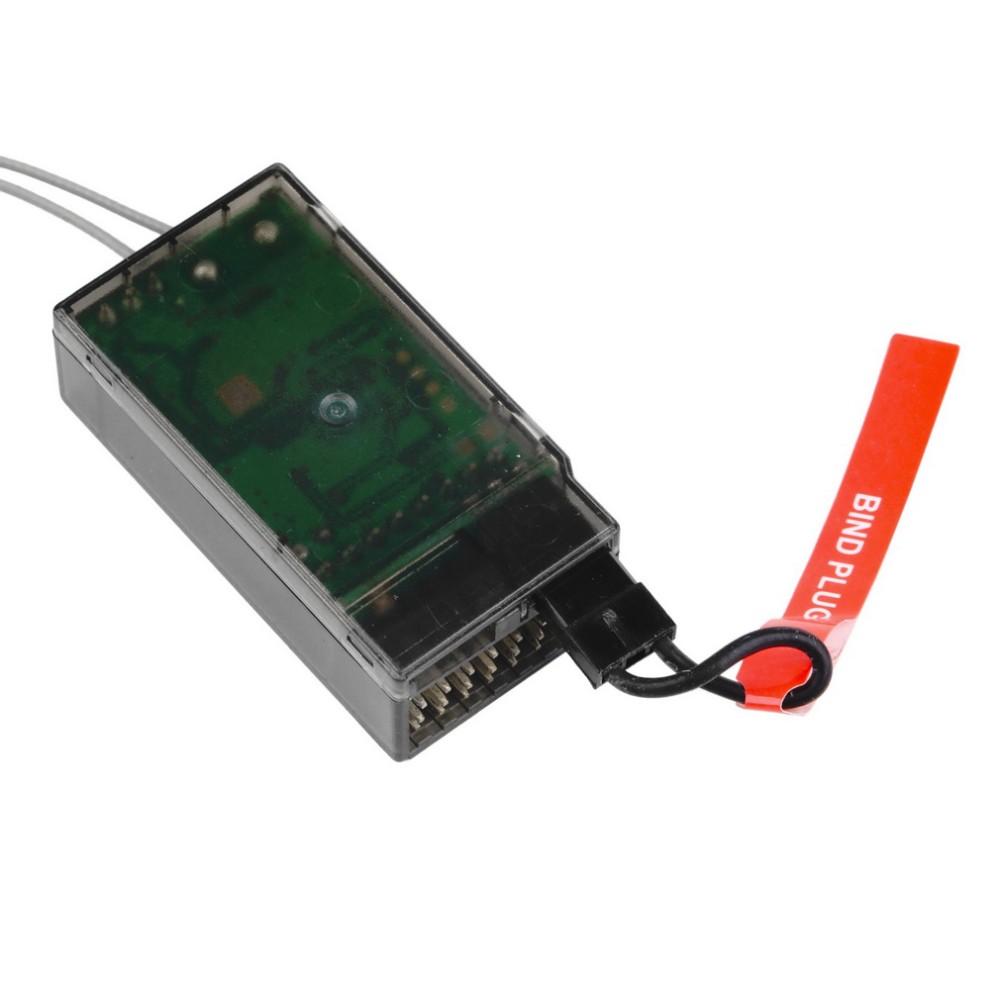

a: Insert the code strip to the BIND jack of the receiver;
b: switch on the power supply to the receiver
c: Press and hold the switch on the transmitter
d: Observe the LED on the receiver， if find that the LED is flash to Always， that means successful Matched.
e: Take out the code strip.

Package includes:
1 x F701 Receiver
