Item Descriptions:

size:

1 + 2

Receiving frequency: 433 MHz

Installation recommendation location: indoor

Ring sound: 52 kinds

Ring sound: 52 kinds

Volume: (25 - 103 db) Four levels of adjustment possible

Power source: AC type (AC 90 - 260 V 50 Hz 0.13 W)

Power supply: 150 mAh lithium polymer battery (solar charge)

Receiver function:

1. Since the front LED lights up in blue together with the sound, the receiver notifies you with sound and light.

2. With sensor function: At night, when it becomes a dark place, the two LED bulbs at the bottom of the receiver automatically light up.

It is saved for the night travel.

3. Adjustable in 4 levels from 25 db to 103 db at loud sound, safe in a wide house!

4.52 types You can choose according to your mood and scene with the call sound you can choose from the music!

5. The receiver notifies you with sound and light as the front LED lights up in blue together with the sound.

With blinking LED light you can check visitors' arrival with eyes (We recommend to those with hearing impairment)

Transmitter size: 90 × 35 × 18 mm

Transmitter weight: 31 g

Installation location: Recommended for outdoor use.

Waterproof level: IP65

Power supply: 150 mAh lithium polymer battery (solar charge)

Transmitter function:

1. Transmitter is made of ABS plastic chip, there is no worry about heat generation.

2. Because it is rainproof / splash-proof type it can be used outdoors or in a kitchen or bathroom.

(But be careful not to be soaked in water and use it.)

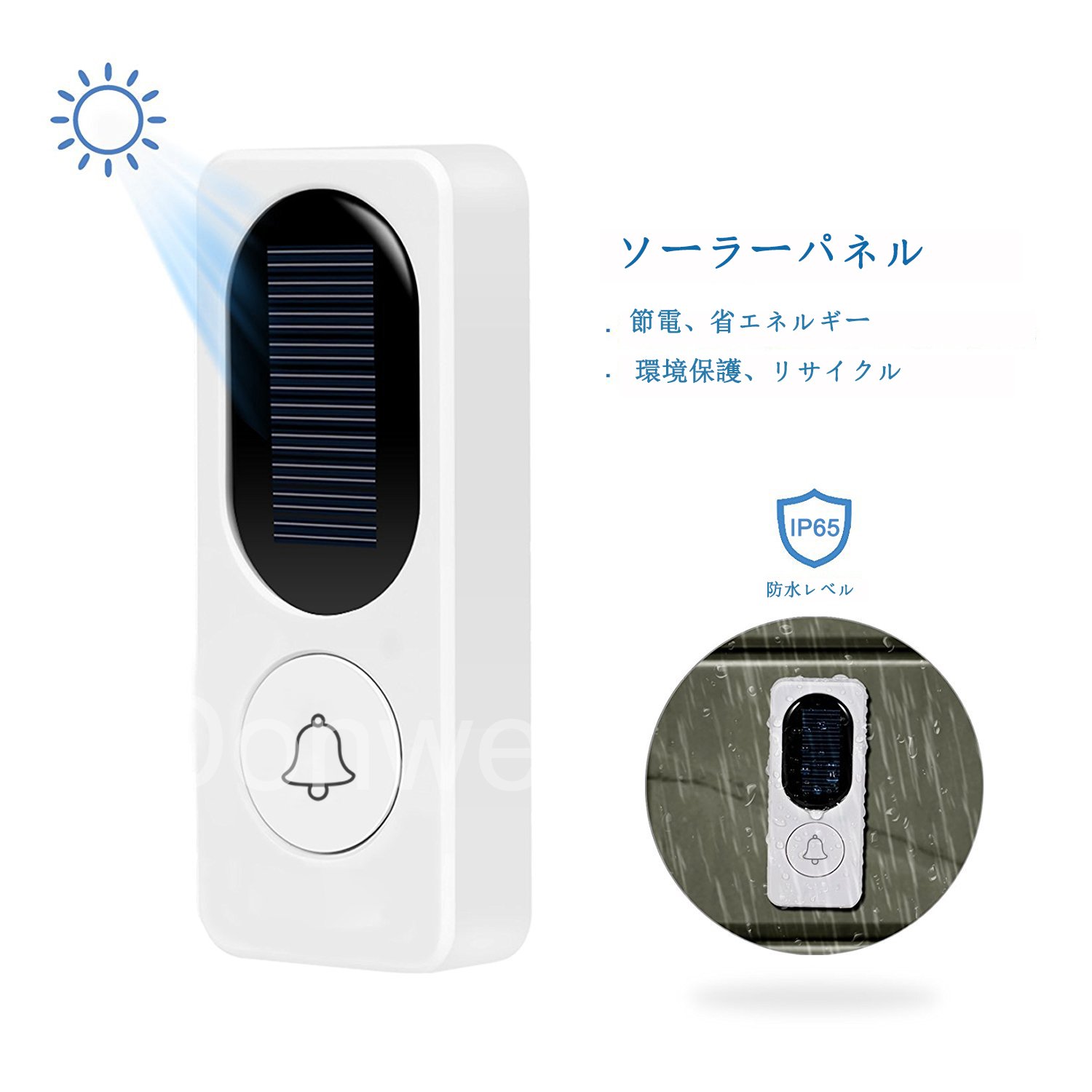

3. Solar panel installed, there is no worry that the battery will run out!

If batteries are not in use, solar energy can directly supply power to the transmitter.

4. Pushbutton design: If you push it five times a day on average, you can use it for 15 consecutive years.

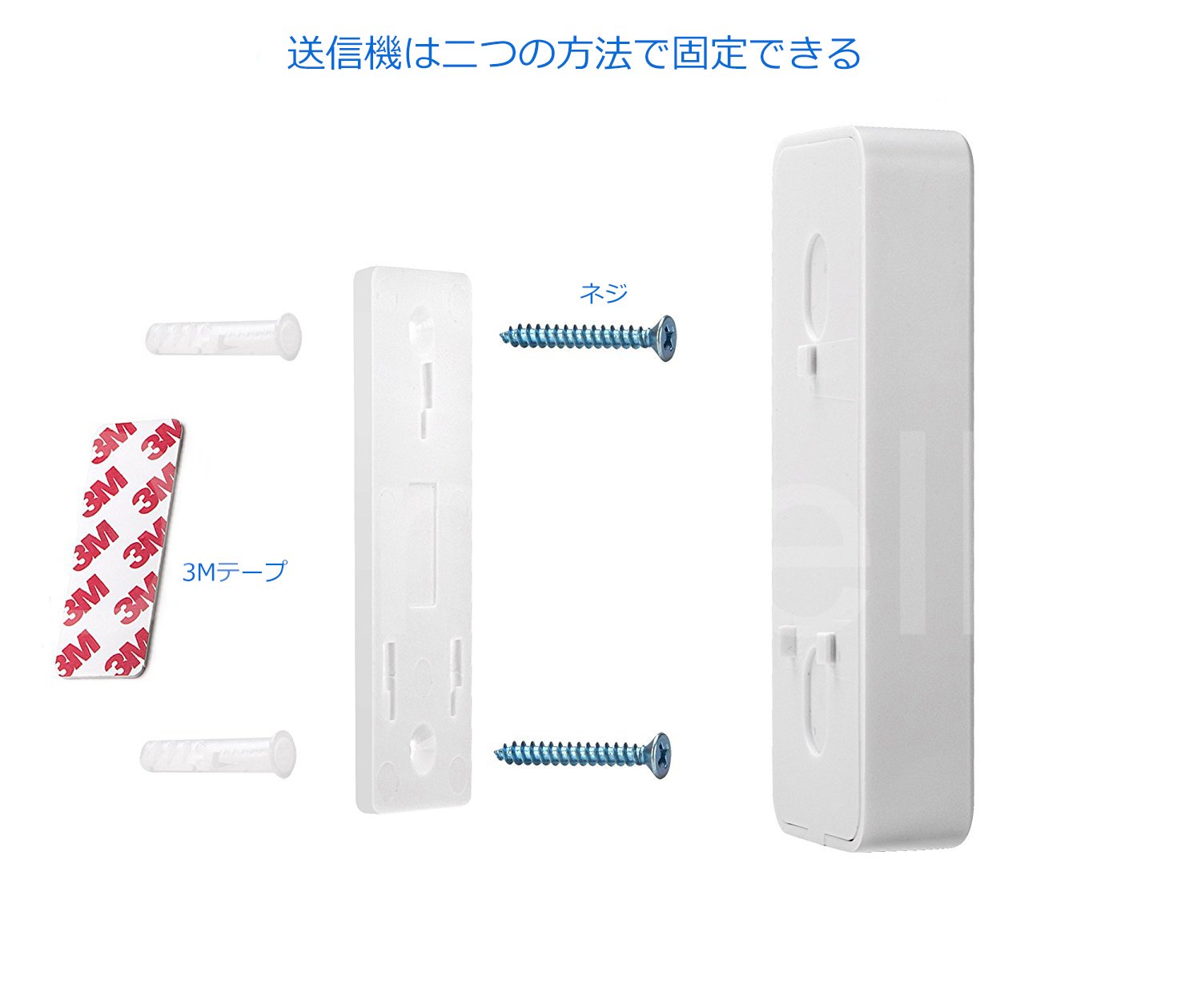

installation method:

In case of wall hanging, the transmitter's rear cover has a position indicator for screws.

Please make a hole so that the screw passes and attach the transmitter to the desired position of the wall.

In case

2. It is okay to paste on the back of the transmitter with a 3M adhesive sticker.

Please peel off the outside of the tape, attach the transmitter to the desired position on the wall, and press it strongly for 30 seconds.

In case

3. When installation of the receiver is completed, press it and test it.

If it is correctly installed, the chime will ring.

In case

Note: The reach of radio waves is up to 100 m with outdoor observation, but the distance changes depending on the equipment and environment to be used.

Connection method of transmitter and receiver:

First of all, the transmitter: the transmitter sticks a 3M sticker in a clean situation and it can operate normally after sticking it on the wall

Please push down the light holding button of the transmitter with a response time of 0.5 seconds.

Insert it into the outlet of the receiver, press it for 6 seconds, when the blue LED light continues, press the send button.

If the receiver becomes a blue LED flash, it means a successful match.

If it is not completed within 6 seconds, it means mating in failure.

* Set your favorite music

1. First insert the receptacle, press the song in front of the receiver and the next song button, and select the sound of your choice.

2. Press and hold the volume control button for 3 seconds, the LED light of the receiver blinks, press the transmitter, the selected sound will sound, the setting will succeed.

3. Press the transmitter button again to see if the current ring tone is the ring tone set.

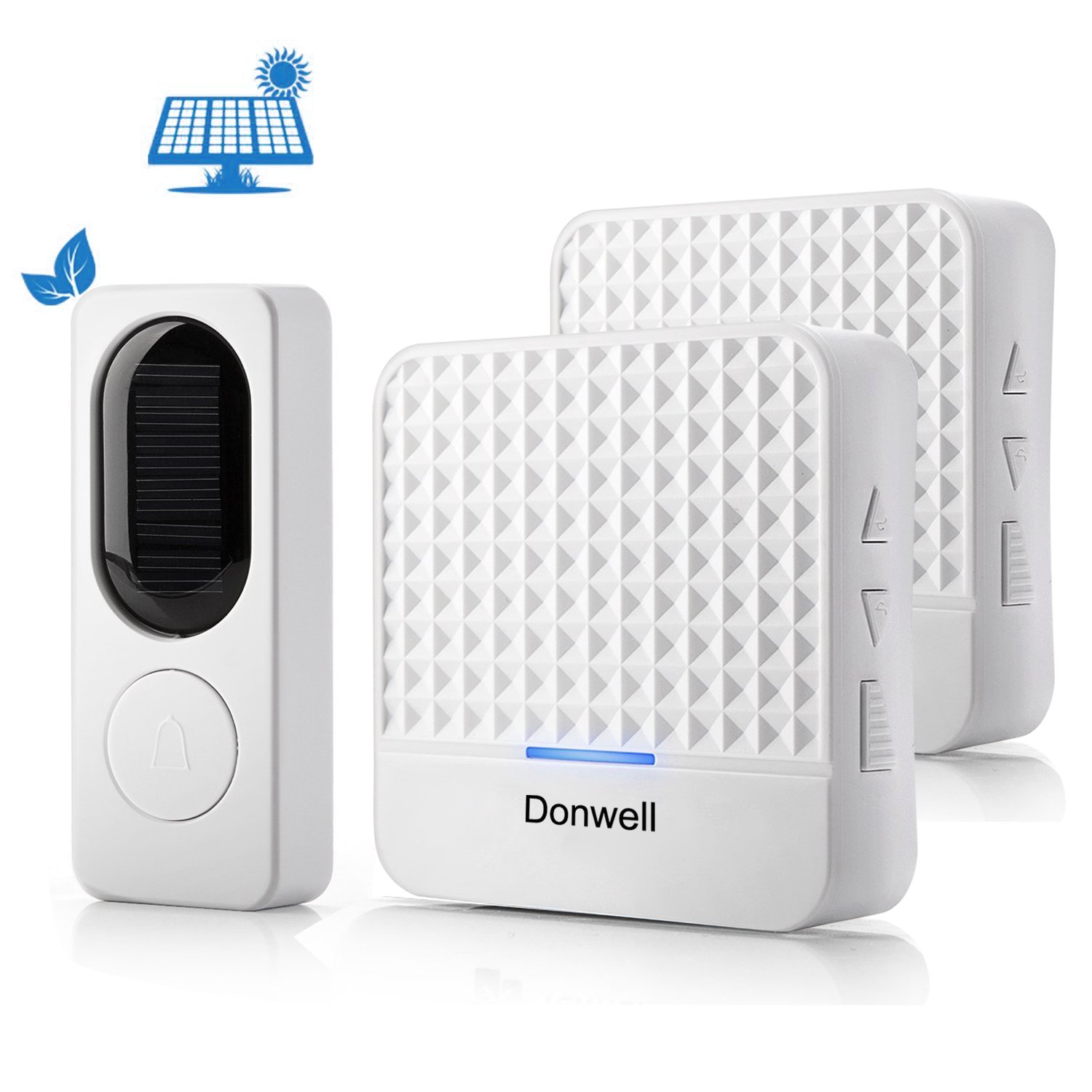

Package contents:

Transmitter * 1

Receiver * 2

Screw * 2

Scale of screws * 2

English Instruction Manual * 1

Japanese Owner's Manual * 1

3 M tape * 1

Features:

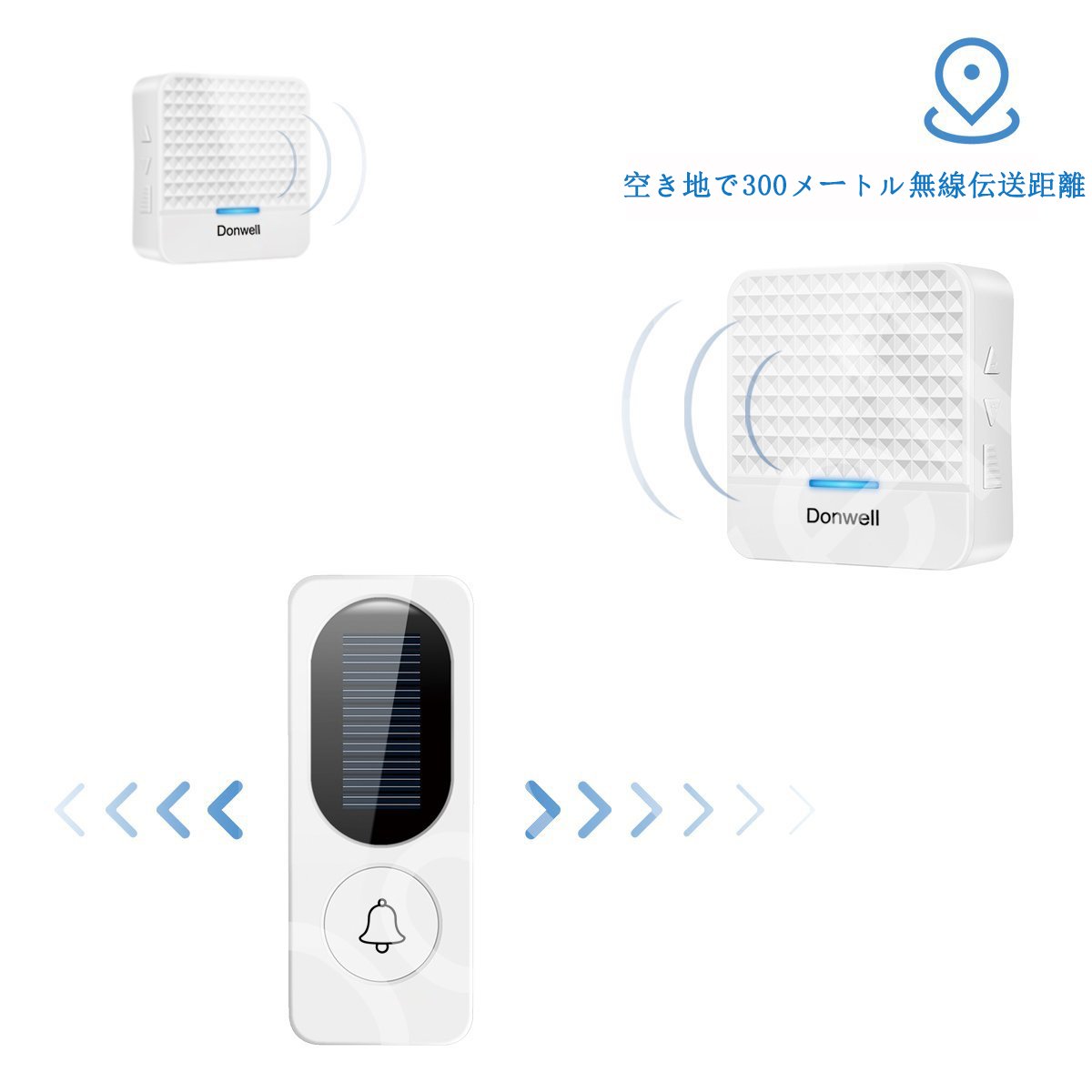

• * High sensitivity reception: By adopting a high sensitivity receiver, the distance of radio waves is outdoor prospect, supporting the radio range of 300 meters.

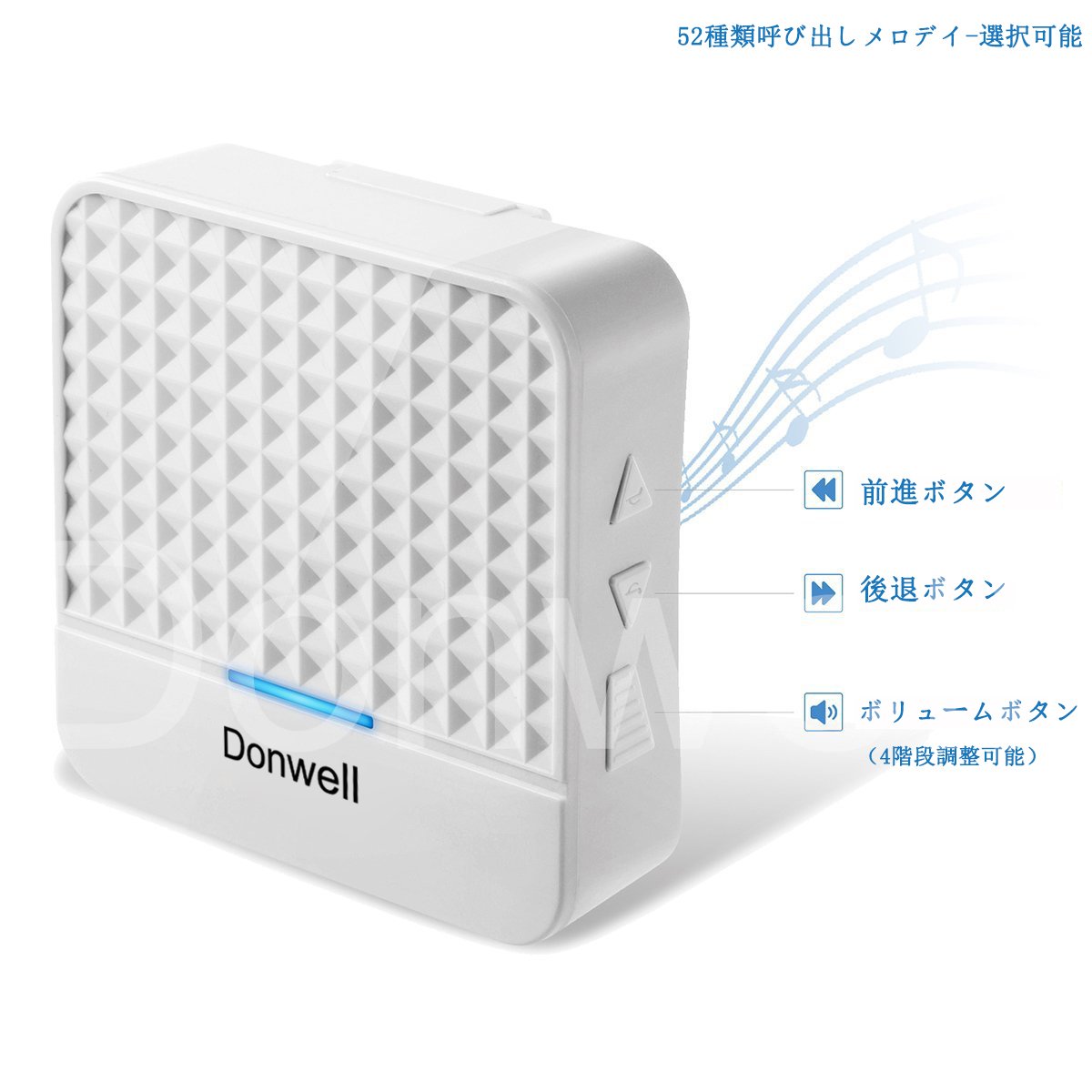

• * Multi-function device: 52 types of melody can be selected, and you can select music of your choice by pressing the music selection button.
• Also at the bottom of the receiver with night light function, when it gets dark, automatic lighting and safe for evening traveling!
• Since it is transmitter waterproof specification (IP66), we recommend you use it outdoors.
• It can also supply power directly to the transmitter, with solar panel installed.
• There is no worry that the battery will run out!
• * Equipment 简单: The receiver is easy to install with a sticking type.
• Because it is a rainproof type, it can be used outdoors.
• * Ultra low power design: With a sophisticated design, the blue LED light glows to announce, and it is easy to understand.
• It saves energy by saving energy.
• It can be used sustainably.
• * Extension possibility and protection system: You can add additional settings for receiver and transmitter.
• Up to eight transmitters can be added to one receiver.
• Easy to install: The transmitter can be easily installed if it is near the door with the double sided tape or screws included.
• The thermostat circuit design, there is no fever during use.
• It is safe at the time of emergency.
• It is a wireless chime that can be laid without any wiring as a call chime in front door chimes, guest chimes, nurse calls, nursing care shop warehouses etc that can be announced with sound and light.
• Receiver: It is necessary to insert it into an outlet.
• (Note: The method of setting music is written with detailed information.)

Product information:

Shipping Weight: 299 g

Package Dimensions: 7.70 x 10.01 x 19.81 cm
