Item Descriptions:

color:

blue

please note:

If the store name is not "official shop of EACHINE", please click "new item listing" and choose "official shop of EACHINE"!

1.


Pilot the drones according to.

2. Before takeoff, to ensure a stable flight, place the drone on a flat horizontal surface

Proofreading

need to do it.

3. To avoid danger, high speed rotation

Please keep a distance from the propeller

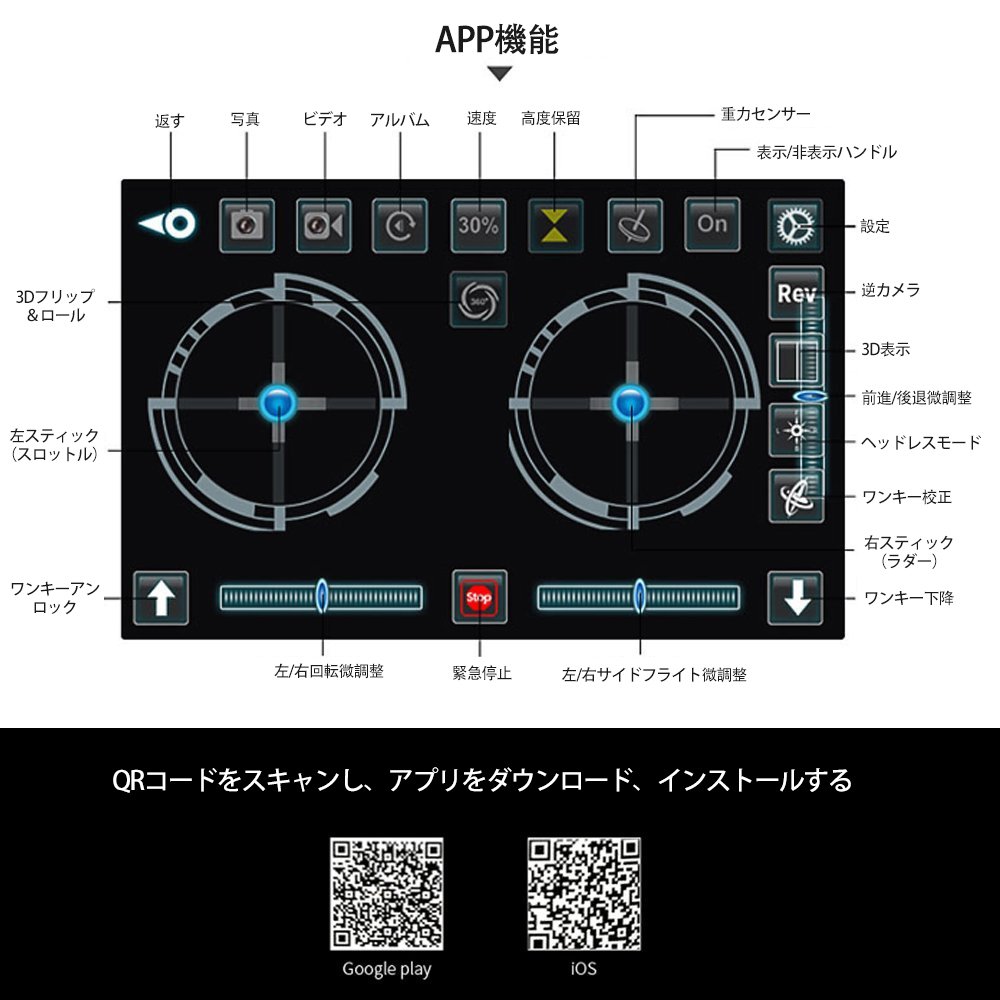

4. On the application control screen

Altitude maintenance button

If you do not press, you will not let the drone fly.

5. If you can not fly stable,

bind

Propeller mounting error

,Also

Battery power shortage

Please note that the cause is possible.

6.

Beginner

In case of, please slowly raise the throttle to avoid sudden rise.

Since the drone maneuvering is difficult, there are a few

practice

I need time.

7.

Controller battery

: AA type * 4 pieces (

Sold separately

8. The battery case lid screws behind the controller are nothing.

9.EACHINE

Brand new

We sell only.

Please do not worry if it turns out that the tape of the box fell when receiving the goods.

We tested the product before shipment so that the goods are kept in good condition.

If you are not satisfied with the product, for exchange or refund

Please contact after-sales service

If you have any questions, please

Please feel free to contact us

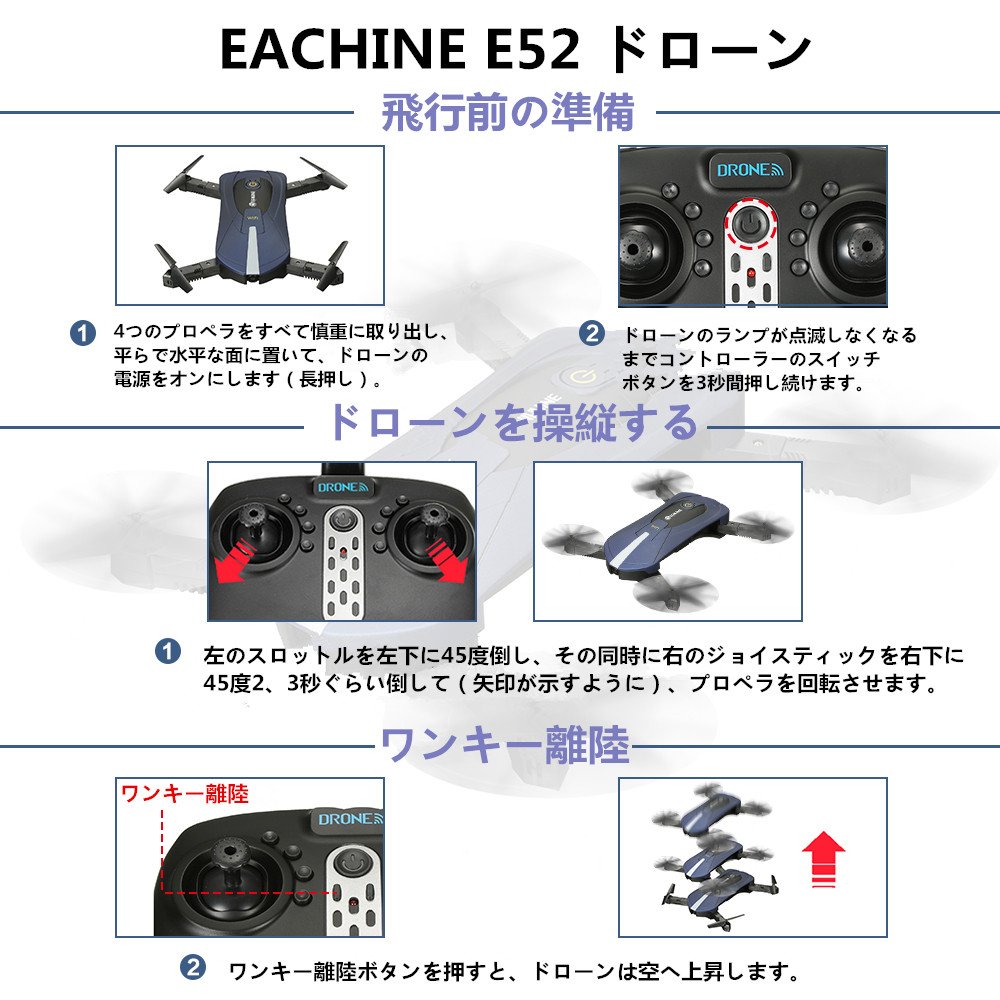

Procedure to start piloting the drone

1. Turn on the power of the drones, turn on the power of the remote control, and wait about 3 seconds until the droning instruction lamp stops blinking.

2. Tilt the left throttle 45 degrees to the lower left, at the same time rotate the propeller by tilting the right joystick 45 degrees to the lower right.

3. You can start drone by pressing the one-key takeoff button.

Installing the propeller

(Caution:

If you do not install it correctly, you will not let the drone fly

Upper left and lower right:

Top right and lower left:

Common Problem:

F: The propeller rotates but the drone can not take off.

Q: Cause: The propeller has been deformed.

Also the battery of the drone is insufficient power.

Measures: 1. Replace the propeller.

2. Charge the battery to full charge, or replace with a charged battery.

F: While hovering, the drones will still fly forward.

Q: Cause: The gyroscope midpoint does not match.

Solution: Adjust the controller to automatic calibration mode, or restart it and perform decoding again.

specification:

Frequency: 2.4G

Channel: 4ch

Gyro: 6 axes

Product Battery: 3.7 V 500 mAh (included)

Controller battery: AA size * 4 (optional)

Charging time: 60 - 70 minutes

Flight time: 8 - 10 minutes

Steerable distance: 80 to 100 meters

Camera: 2.0 MP

Three speed levels: 40%, 60%, 100% (switch on speed is default 40%)

Material: Electronic parts, plastic

Quad size: 25.5 x 25.5 x 3.5 cm (Arm is not folded)

15.5 x 6.5 x 3.5 cm (the arm is folded)

Package size: 17.2 x 9.2 x 6 cm

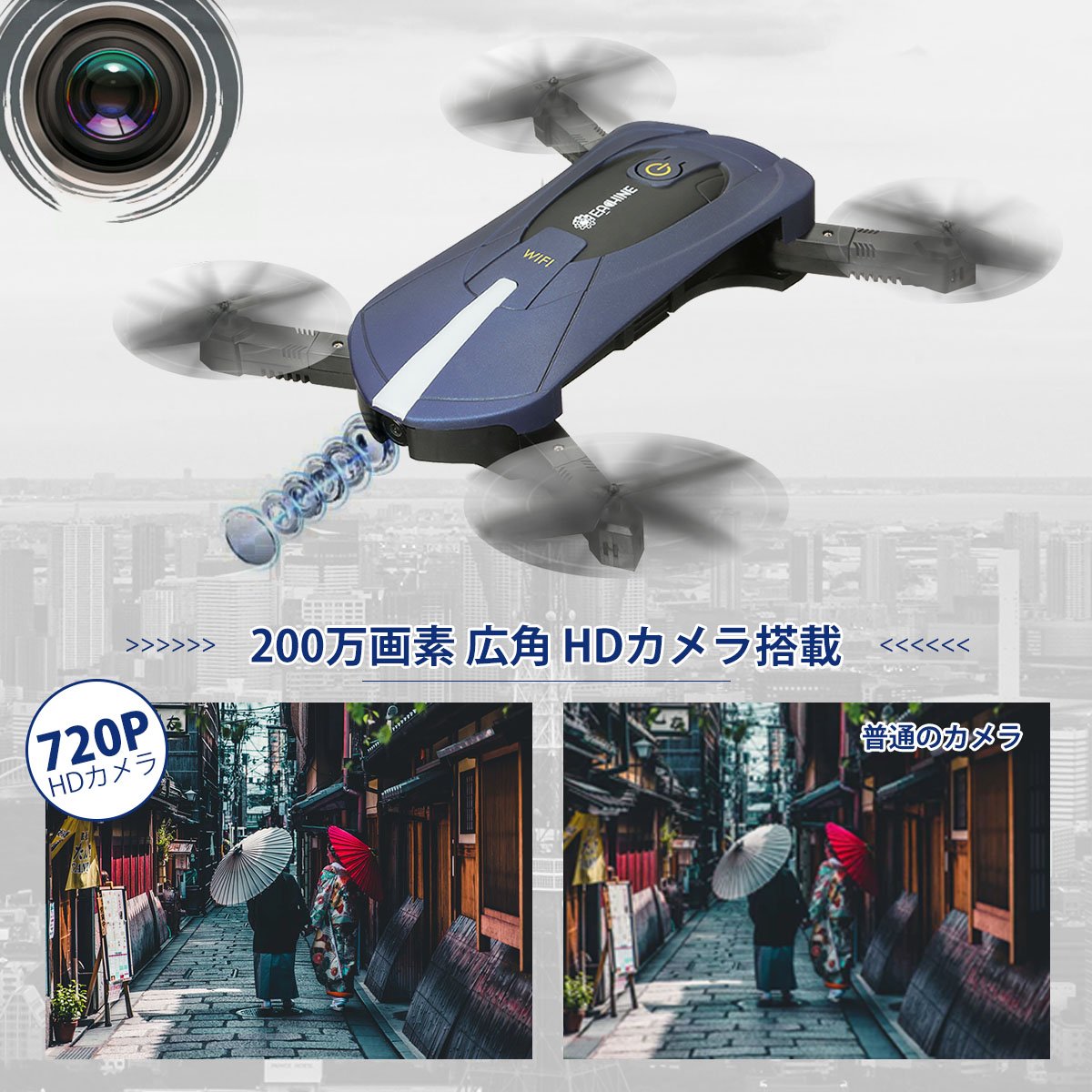

2.0 MP HD wide-angle camera

A 2 megapixel wide-angle HD camera captures stunning photos and videos from the sky.

Maintain altitude

mode

With this feature, novice can fly super durable, more stable drones, control wind, stabilize aerial photographs.

One key return

With the built-in positioning system, the drone can automatically locate the controller and return to the controller's position simply by pressing the one-key return button.

Headless mode

Drone changes the direction of flight as the direction of remote control changes.

It will be much confident for beginners.

Package list:

1 x Drone

1 x 3.7 V 500 MAH Battery (Built-in)

1 x USB charger

4 x propeller

1 x Instructions

1 x Controller

1 x smartphone holder

1 x Driver

Features:

• [Cell feed loan] It is a self-drawn doll that is pocketed.
• [High image quality] 2 million pixels 120 degree wide angle HD camera built in!
• 【WiFi FPV】 Real-time navigation with smartphone is possible!
• You can enjoy both smartphone maneuvering and propo maneuvering!
• [One - handed operation] With one - key operation, takeoff and landing are easy, beginner optimum training machine!
• [Advanced maintenance function] In addition to the advanced maintenance function by atmospheric pressure sensor, automatic hovering control can be realized.
• 【Popular Toys】 Halloween, Christmas, Birthday, Gifts, Gifts, Children, Recommended for beginners!

Product information:

Shipping Weight: 449 g

Package Dimensions: 7.80 x 18.69 x 23.01 cm
