Item Descriptions:

type:

System set

Product introduction

GLX-D guitar pedal digital wireless system combined innovative LINKFREQ frequency automatic management function, rechargeable battery, unrivaled Shure design and structure.

The GLXD 6 guitar pedal receiver with strobe type and needle type guitar tuner installed can be easily attached to the pedal board, providing high clarity digital audio and seamless operability

From Amazon

Product description

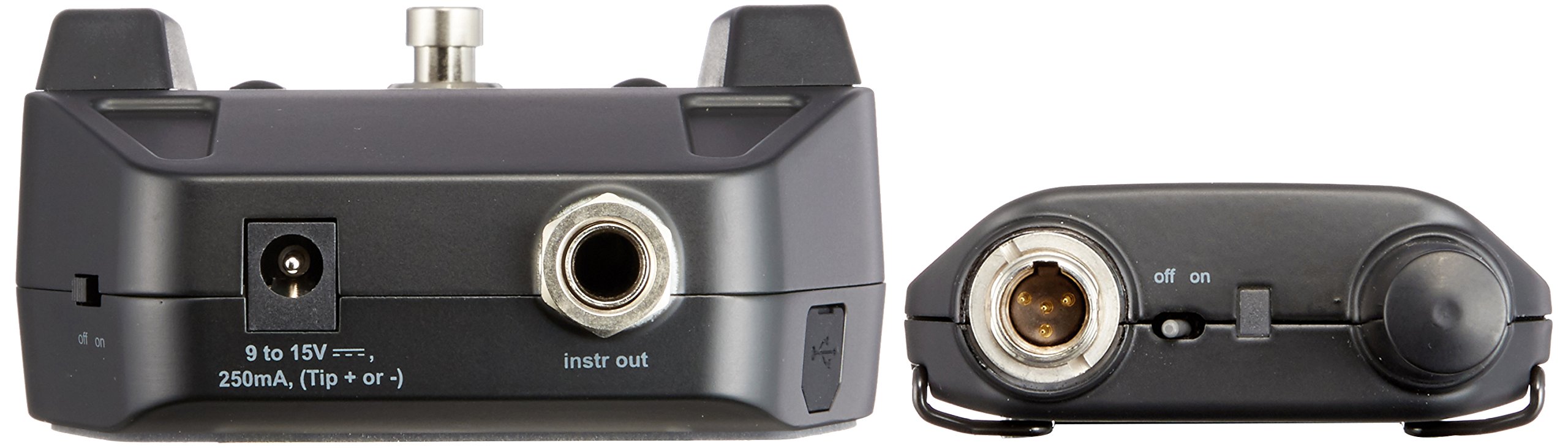

GLXD 1 Body-pack transmitter and set of GLXD 6 receiver.

GLXD 6 can be installed on the guitar or base pedalboard, and it can be used with 9 VDC.

Product features

The Shure GLX-D wireless system provides reliability unique to Sure even in the 2.4 GHz band where clear sound quality unique to digital and various radio waves such as WiFi flies.

The lithium-ion battery used for part of the high-end wireless system is adopted as a battery.

It can be used for 16 hours with full charge and 1.5 hours with fast charge for 15 minutes.

- Adopt the 2.4 GHz band which does not require a license or use application.

· Digital wireless that provides more clear legendary sound of Shure.

The dynamic range achieved 120 dB.

· Shure microphone / head that is trusted by musicians for more than 80 years.

· The newly developed LINKFREQ function continues to monitor surrounding radio wave conditions and shifts to the frequency band with the best radio wave condition in real time.

· Adopted the same lithium-ion battery as Shure high-end · wireless used for concerts and broadcasting.

· Continuous use time at full charge achieves maximum 16 hours.

Besides the receiver dock, the dedicated battery can also be charged with USB.

Maximum reachable distance 60 m.

· Up to 8 waves can be used simultaneously.

A robust structure that always provides reliable performance.

Product Specification

※ GLXD 1 Body pack type transmitter ※

Material: Black Powder Coat · Cast Metal

Transmission output: 10 mW

Distance traveled: maximum about 60 m (※ varying from country to country)

Antenna type: built-in monopole

Input impedance: 900 kΩ

Maximum input level: +8.4 dBV (7.5 Vp - p)

Connector: Switchcraft TA 4 M, unbalanced

Power supply: Li-ion battery exclusive for SB902

Battery life: About 16 hours (* When fully charged. It varies depending on usage environment.)

Dimension · Weight: Width 90.4 x High 64.5 x Length 22.9 mm, 139 g (※ Battery, SB902 Li-ion Battery is 47 g)

Accessory: Belt clip, SB902 lithium ion battery

※ GLXD 6 pedal type diversity receiver ※

Gain adjustment range: -20 to 40 dB (1 dB steps)

Material: Cast Metal

Antenna: PIFA antenna

Antenna input: Implementation impedance 50 Ω

Antenna input level: -20 dBm

Audio output: Unbalanced: phone, output impedance: 50 Ω, level: 8.5 dBV (3 kΩ load)

Power supply: DC 9 to 15 V (250 to 400 mA)

Dimension · Weight: Width 95 x High 46 x Length 133 mm, 504 g

Brand introduction

Since its founding in 1925, SHURE has been selected as a musician and music lover all over the world for its overwhelming sound and high reliability on products for its performance.

Over the past 40 years, SHURE "SM58" is the most popular vocal microphone in the world recognized its natural sound and durability.

Our wireless microphone combines innovative technology and reliability.

Also, a number of award-winning earphones continue to redefine the audio experiences of deaf listeners.

To vocals, for speech and for performance.

SHURE will continue to contribute to the creation and collection of that sound.

SHURE offers a variety of products to deliver sound from microphone to cartridge and even to wireless system.

Please let SHURE know about products.

And please concentrate on your own sound without hesitation.

Features:

• Please enter model number Confirm this is compatible:
• GLX-D guitar pedal digital wireless system combined innovative LINKFREQ frequency automatic management function, rechargeable battery, unrivaled Shure design and structure.
• The GLXD 6 guitar pedal receiver with the strobe type and needle type guitar tuner can be easily attached to the pedal board, providing high clarity digital audio and seamless operability.

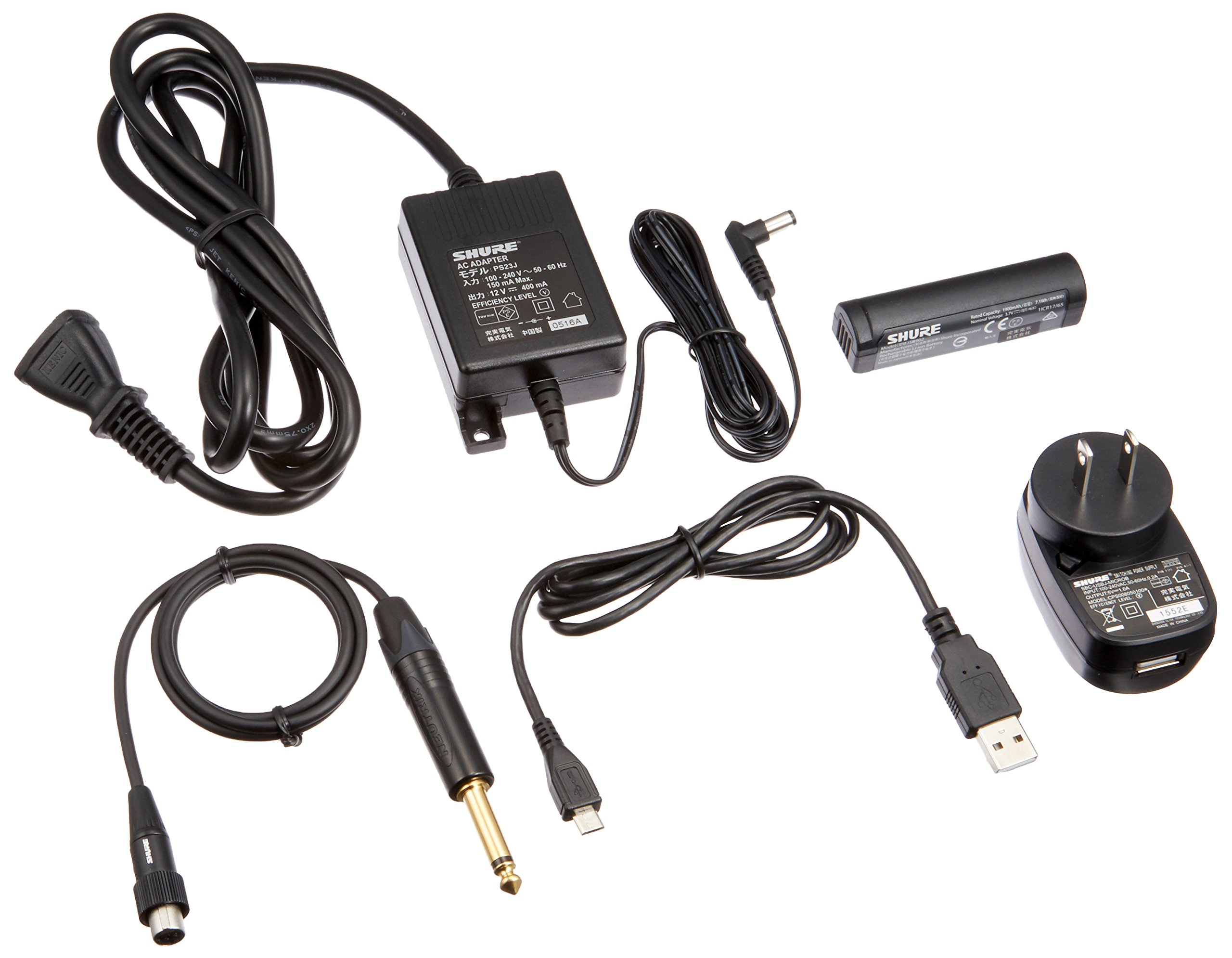

• Contents: GLXD 6 wireless guitar pedal receiver, GLXD 1 body pack type transmitter, WA 305 premium locking thread guitar cable, SB 902 lithium ion rechargeable battery, USB charging cable.

Product information:

Shipping Weight: 2245 g

Package Dimensions: 11.00 x 32.79 x 46.81 cm
