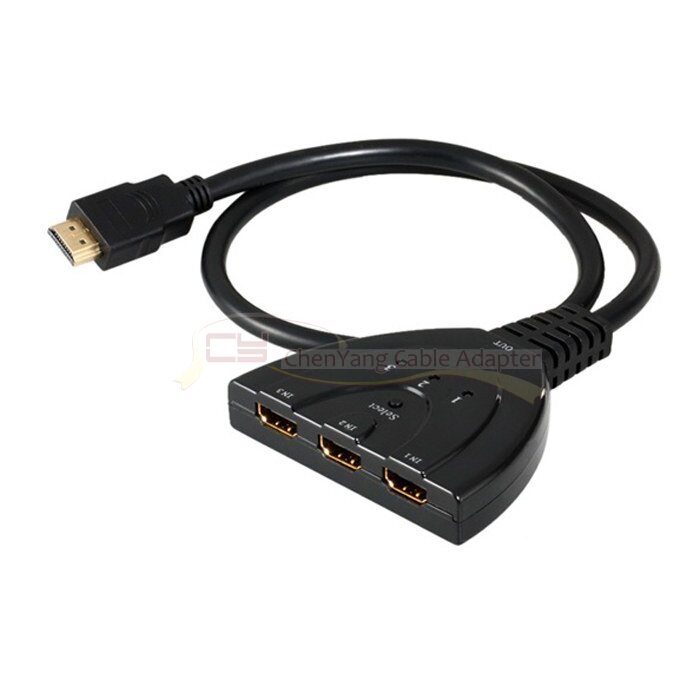

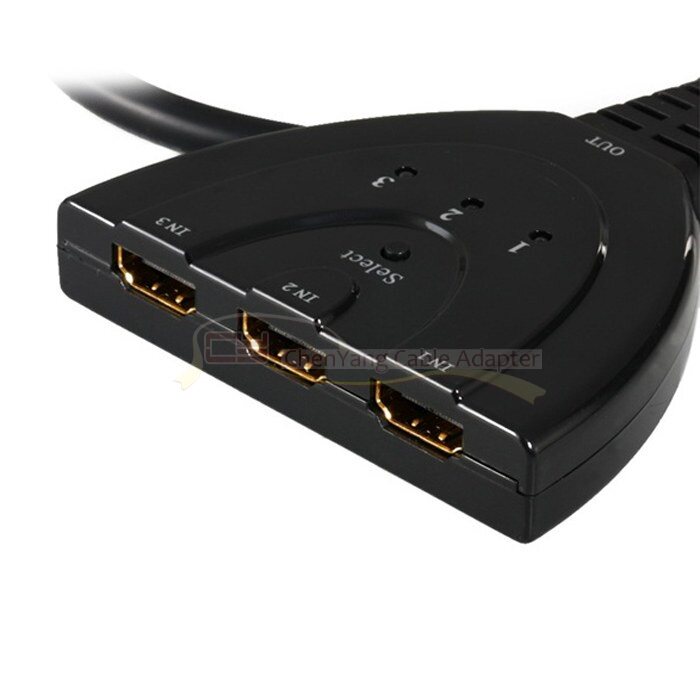

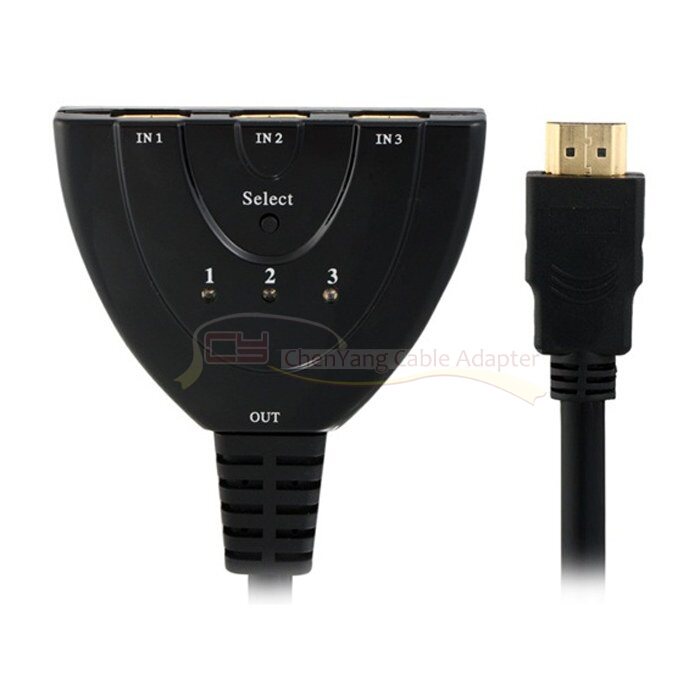

宝贝名称：HDMI三进一出切换器带线  HD-080

产品介绍：

此款HDMI三进一出切换器，它能够非常方便的将三个信号源切换至一个显示器，并且同时拥有按键转换功能和智能功能。采用固定的自带HDMI线，不仅为您带来实惠，而且也节省了您的时间。
这款HDMI切换器能够发送从任意一个信号源端口到显示器的高清晰视频（1080p）和数字音频的传输。所有输入设备的信号源端口都能同时与高清视频的端口相匹配，与HD-DVD,SKY-STB,PS3,Xbox6 etc.兼容。切换器输出端口能够传送高清晰的音频/视频信号到高清晰显示器上。
产品规格
*输入视频信号：0.5-1.0 volts p-p
*输入DDC信号：5 volts p-p (TTL)
*单路连接信号最大范围：1920X1200, 1080P
*输出视频信号：HDMI1.3b+HDCP1.0/1.1
*场频：50/60Hz
*视频放大带宽：2.5Gpbs/250MHz
*输入端HDMI线最大支持长度：15米
*输出端HDMI线最大支持长度：15米
Baby Name: HDMI three-in-one switch with cable HD-080

product description:

This section of the HDMI three-in-one switch, it can be very convenient to switch the three signal sources to a display, and both key conversion and smart features. Using a fixed built-in HDMI cable, not only for your benefits, but also save you time.
The HDMI switcher sends high definition video (1080p) and digital audio from any source port to the monitor. All input device's source port can match HD video port at the same time, compatible with HD-DVD, SKY-STB, PS3, Xbox6 etc. Switcher output port to send high-definition audio / video signals to the high-definition display.
Product specifications
* Input video signal: 0.5-1.0 volts p-p
* Input DDC signal: 5 volts p-p (TTL)
* Single connection signal maximum range: 1920X1200, 1080P
* Output video signal: HDMI1.3b + HDCP1.0 / 1.1
* Field frequency: 50 / 60Hz
* Video amplification bandwidth: 2.5Gpbs / 250MHz
* HDMI input cable maximum support length: 15 meters
* Output HDMI cable maximum support length: 15 meters
