Product Description

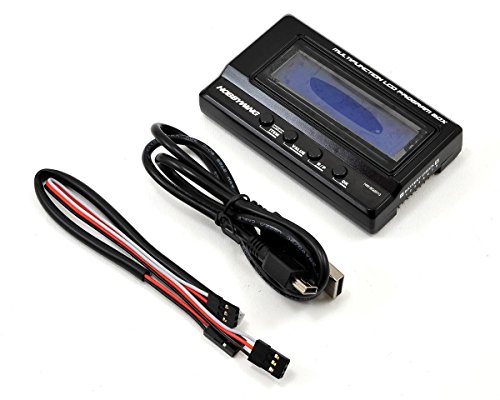

1 Working Modes 1.1 Works as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen. 1.2 Works as an USB adapter to link the ESC with a PC to update the firmware of the ESC or set the ESC by HOBBYWING USB LINK SOFTWARE . 1.3 Works as a Lipo battery voltmeter to measure the voltage of the whole battery pack or each cell. 2 Specifications 2.1 Size: 90mm (L) * 51mm (W) * 17mm (H) 2.2 Weight: 65g 2.3 Input Voltage: 4.5-12.6V (If the ESC hasn’t a built-in BEC, you must use an additional battery pack to supply the program box) 2.4 Displayer: 16*2 characters LCD. 2.5 Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)Feature
Works as an individual device to set the ESC
