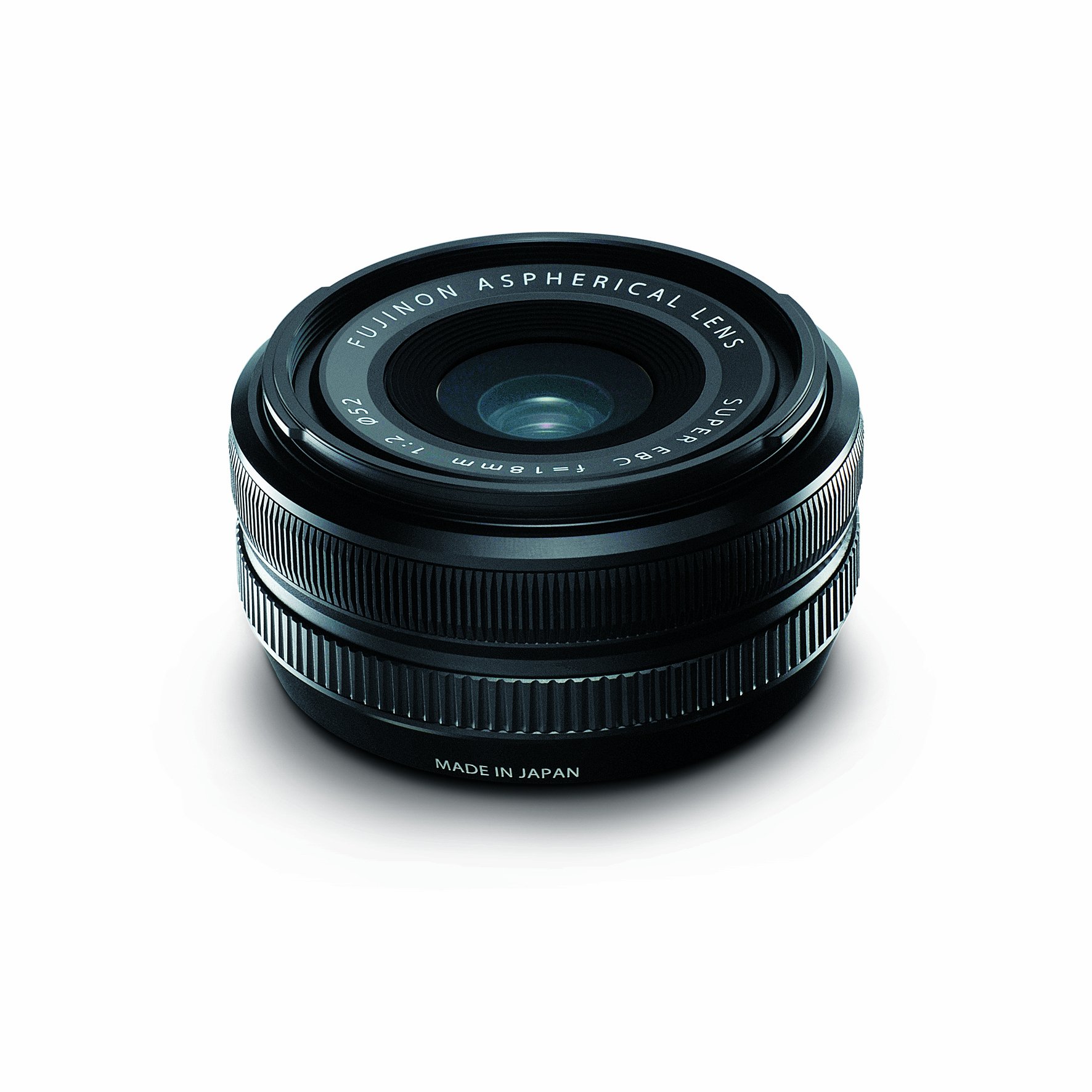

Product introduction

It consists of 7 lenses 8 lenses and 7 diaphragm blades, and the 5th and 7th lenses adopt glass mold aspheric lenses.

It contributes to a bright opening value and thinning of the lens, and it is a compact wide angle lens equivalent to 27 mm equivalent in 35 mm film, realizing a high resolution feeling to the periphery of the screen.

From Amazon

Product features

The fifth lens and the seventh lens adopt glass mold aspherical lens.

The fifth lens is effective in lightening the open F value and the seventh lens is effective in thinning the lens.

The final lens close to the sensor to the very last minute reduces the angle of incidence of light on the sensor and reduces the peripheral light intensity and color shading while reducing the thickness of the lens.

Main Specifications

· Model number: XF 18 mm F 2 R

· Lens construction: 7 groups 8 pieces (2 aspheric lenses)

· Focal length: f = 18 mm (converted to 35 mm equivalent: 27 mm equivalent)

· Field of View: 76.5 °

· Maximum aperture ratio (open aperture): F 2.0

· Minimum aperture: F16

· Aperture type: 7 blades (circular stop) / step step 1/3 step (all 19 steps)

· Shooting distance range: [Standard] 0.8 m - ∞ (all zoom range) / [Macro] 18 cm - 2.0 m (zoom all area)

Maximum magnification: 0.14 (Tele end)

· Dimensions ※ From the tip to the mount reference plane [Maximum diameter × length (approx.)]: Ø 64.5 mm × 33.7 mm

- Mass (approx) * Lens cap - Hood not included: 116 g

· Filter size: ø 52 mm

· Abbreviation: F XF 18 MMF 2 R

Show all product descriptions

Features:

• Please enter model number Confirm this is compatible:
• 16240743

Product information:

Shipping Weight: 975 g

Package Dimensions: 14.50 x 19.10 x 22.61 cm
