Where to have it?

How long will the waterproof performance last? I am only worried about that. For the time being, the fuse is put on, but whatever the backlight turns on when it remains on, it is annoying to the following car.

Huge, awesome

Although it is mounted on a motorcycle, the minutes to operate over the glove while driving are exactly right at this level.

Besides the switch part, the box part was completely waterproofed, quality-oriented high-function toggle switch ♪

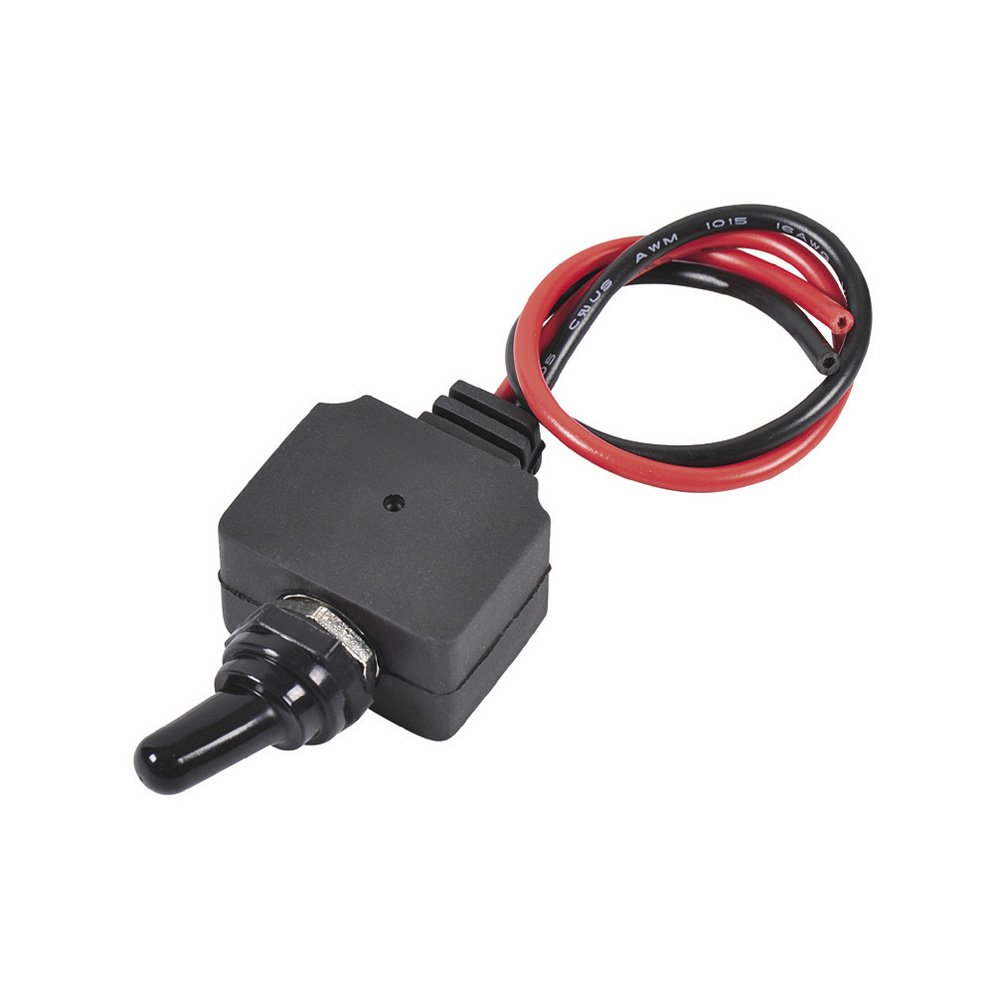

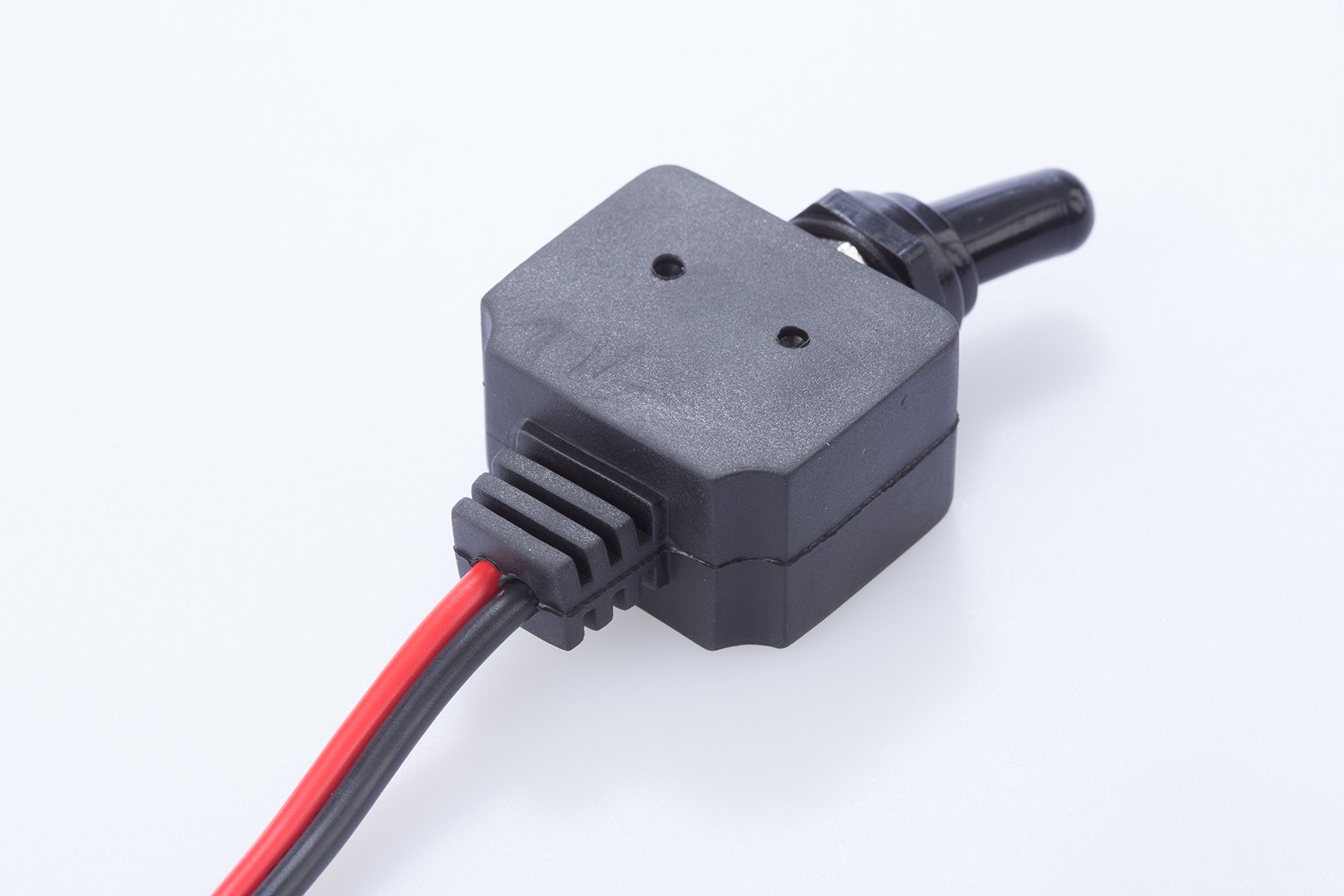

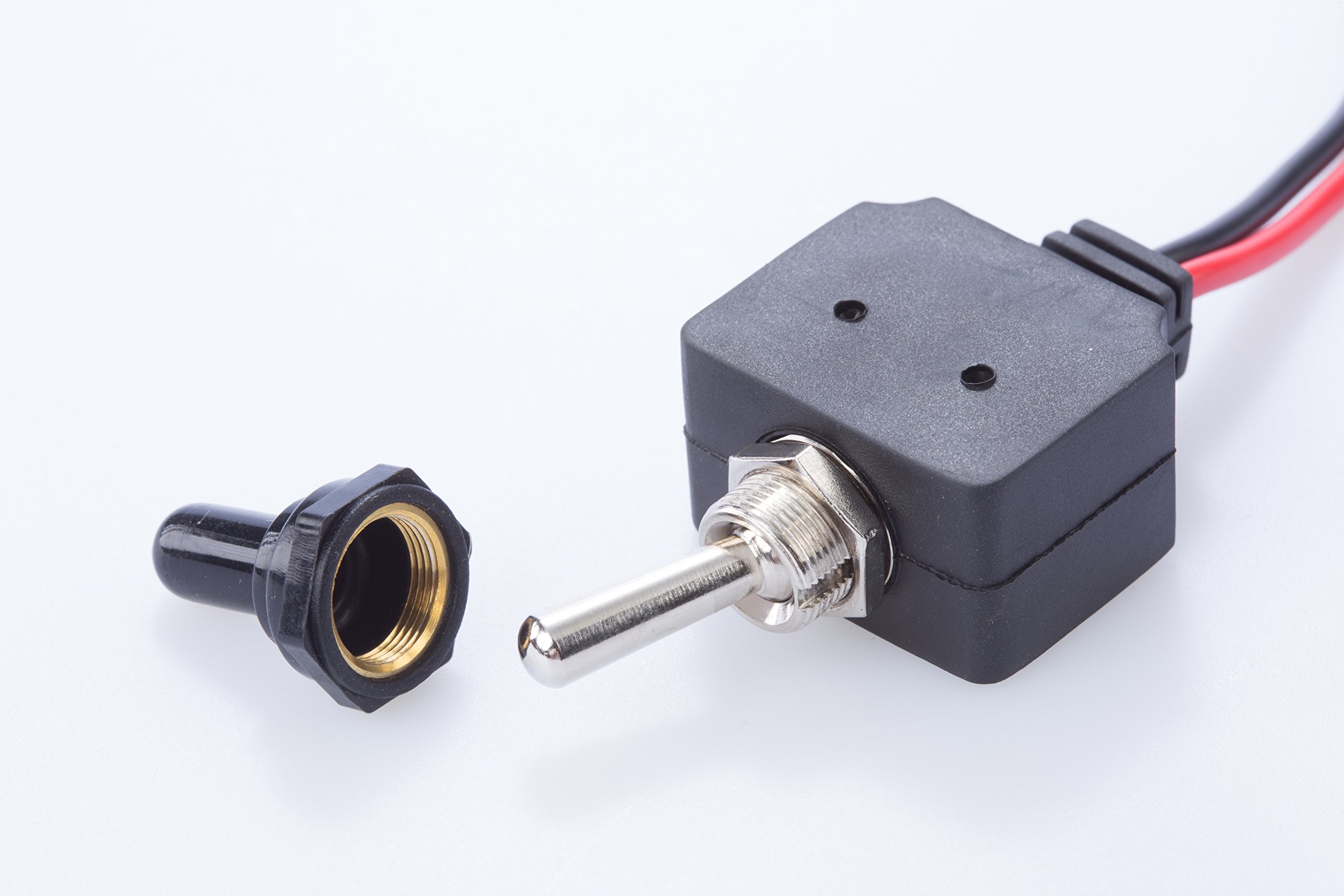

This is a toggle type switch for automotive electrical components sold by [Aemon Industries] of Hyogo prefecture, assuming use in the engine room, and it is waterproof specification. The overview is a 2-position toggle type switch, which can clearly hear "switching" and switching sound even from a waterproof process. The rod shaped switch is covered with a silicone waterproof cap, the root is also firmly fixed with a nut, and the entire box is also covered with rubber (TPR), so the [IPX 4] standard is fully satisfied. Since the thickness of the cord of this product is 1.25 sq, it is 12 V / 10 A (24 V / 5 A), and when it is used for electrical components of standard exceeding it, it is necessary to incorporate a relay device in the middle of the circuit Yes. The cord is clearly colored with red & black, the length is about 15 cm, and the connecting part is also in rubber, so it is possible to prevent flooding if it is about watering. For installation, it is assumed that installation on a board surface with 12 Φ holes opened is planned, and in case of installing on a wall, it is recommended to jointly use the company [switch panel]. Although the stopper is sufficient with the attached nut, it is a double nut structure which is virtually okay with manual tightening as shown in PV, but it is safe to have a wrench for precaution just in case. If you mention a difficult point, if you mention a difficult point, when you work with a silicone waterproof cap, the rod switch is always in an oblique position because it is in 2 positions instead of 3 positions, and the fixing nut was difficult to turn a little. Later, since the whole is covered with rubber, the size increases by just that much, and it has become squat plain body, but since it is unified with black in design, it is used for the place to be exposed There is no disagreeable either. In general, although it is a price setting feels expensive as a waterproof specification, waterproofness is not only at the base of the switch, it protects the entire box and covers up to the root of the code, and can be declared as a thing that emphasizes quality rather than price I will. If you restrict it to original use, saying that you put this product naked in the engine room, it is a construction with considerable gap and I feel that it will be worthy of high evaluation even if high price points are taken into consideration.

A little bigger.

Our house has completed all the lighting to LED, now, I am trying to change various parts of the car myself. Among the cars owned by two cars, I have already experimented with bB, which has become very old, like a big plastic model, first replacing the batteries with powerful Panasonic oneself and steadily progressing LEDization. Among them, Eimon's tools and devices are wonderful for users who think they want to tinker with themselves. This product seems to assume inside the engine room, and it has waterproof capability equivalent to IPX 4. Because it is waterproof specification, I think it is well done though it is slightly larger. It is recommended.

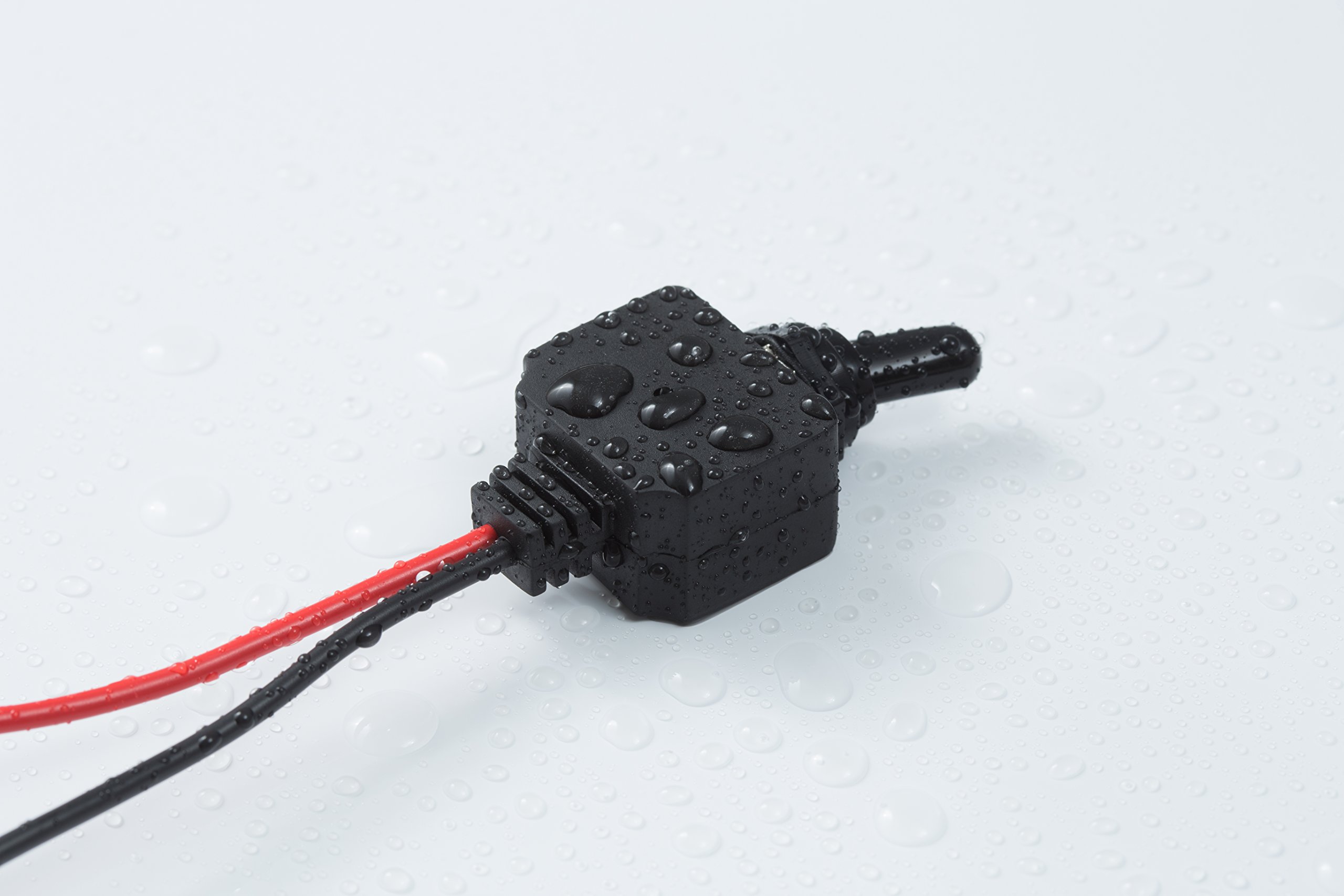

It is waterproof to the wire side!

I often see a toggle switch with a waterproof cap, but it is waterproof to wiring side. It is truly. I put it in the backdoor plastic parts together with the LED light and made it as a lighting switch to illuminate the luggage room. Since the power supply took from the interior light, it can be lit regardless of ACC. Although it will be an eavesdropping on rainy days, it is safe to have waterproofing exactly as it gets wet a little by involving rain. Emon also has a waterproof Giboshi terminal so I also used it.

Used for 24 V cars

Since I sold it to a home center in the neighborhood I used a good point 12v ~ 24v so it covers up to the wiring part which can be used from motorcycle to truck so it is Φ12 with high waterproofing so it can be used as it is because the bad point of the aemon can be used as it is We installed the work lamp outside the car so that the work lamp with limited location is attached to the dump, but this is a product that seems to be safe

Waterproof toggle switch that can operate well and conveniently

Toggle switch for ON / OFF switching of waterproof specification equivalent to IPX4. It can be installed by passing a switch panel (option) etc. with a hole diameter of 12 mm under the nut of the switch part. Conformity plate thickness is 0.5 - 2.0 mm. Two cords of about 18 cm in length are out, and the tip of the cord is left uncut. The usable power is 10 A at 12 VDC and 5 A at 24 V DC. Switching operation feeling is also good, it is a waterproof toggle switch which can be used conveniently.

If you are attaching a plate for mounting ...

Toggle switch that moves comfortably and pleasantly. Although it may be used as a single unit, if it is not easy to forget to forget it is still best to combine with a relay. Basically there is no hole etc for sticking to something like the case of this toggle switch, so clamp the plate with 12 mm hole in the screw of the switch part and fix it. Although it is Gotsui in size, I feel secure in the sense that it is firmly waterproof.
