Item Descriptions:

Product introduction

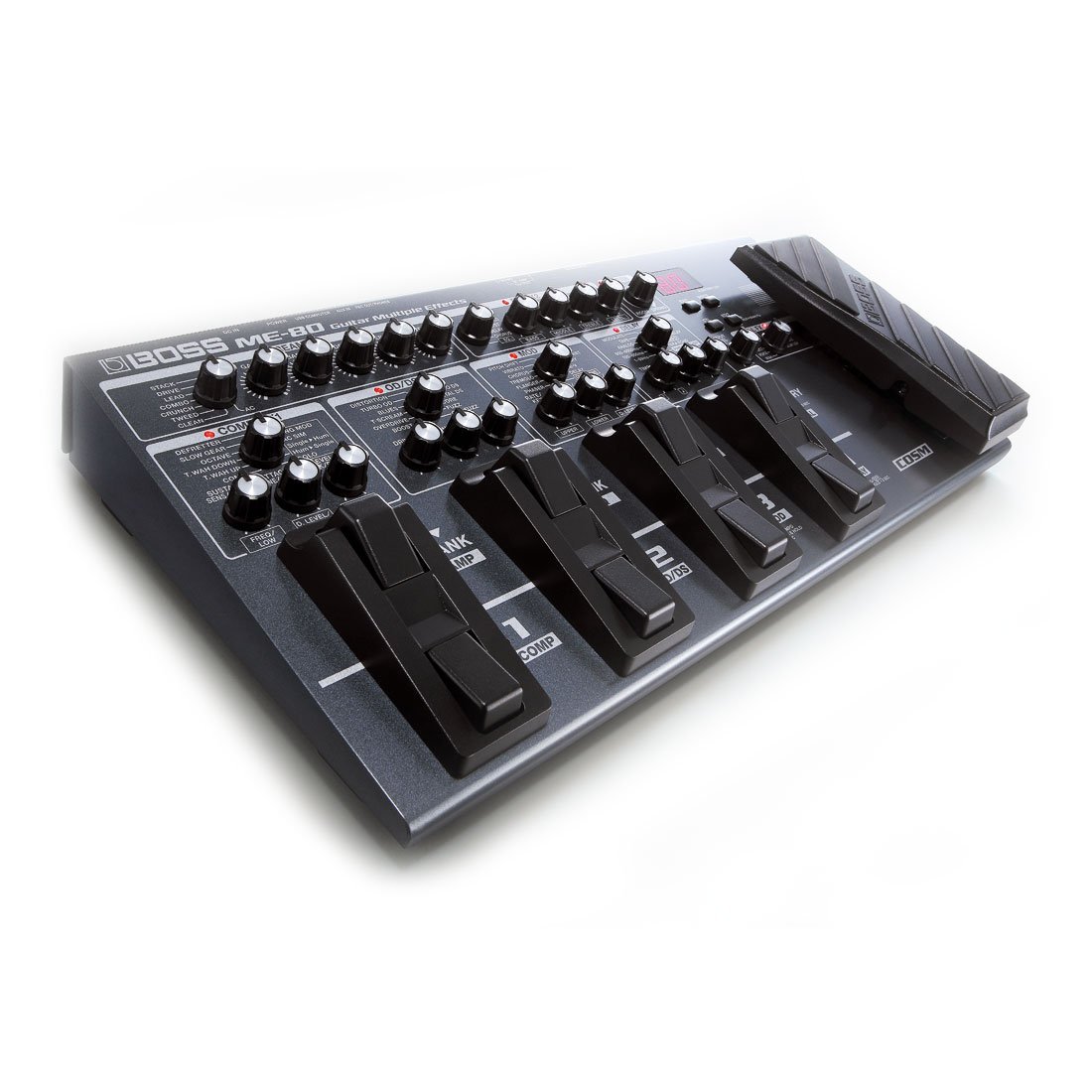

New flagship model of ME series which further brushed up sound, ease of use, contents.

Stress-free live performance is possible with a simple and intuitive user interface such as intuitive knobs and 8 pedals / switches.

Equipped with a carefully selected sound for actual war.

From Amazon

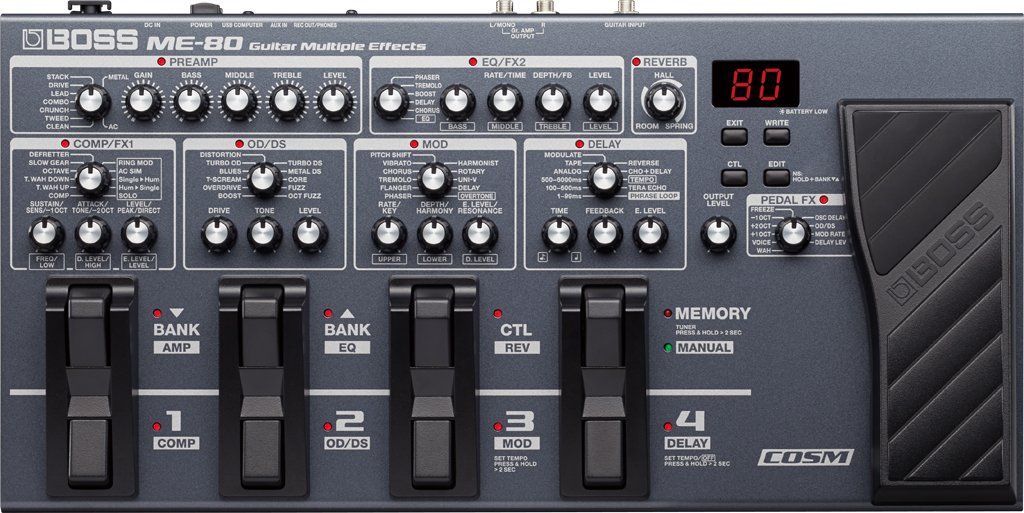

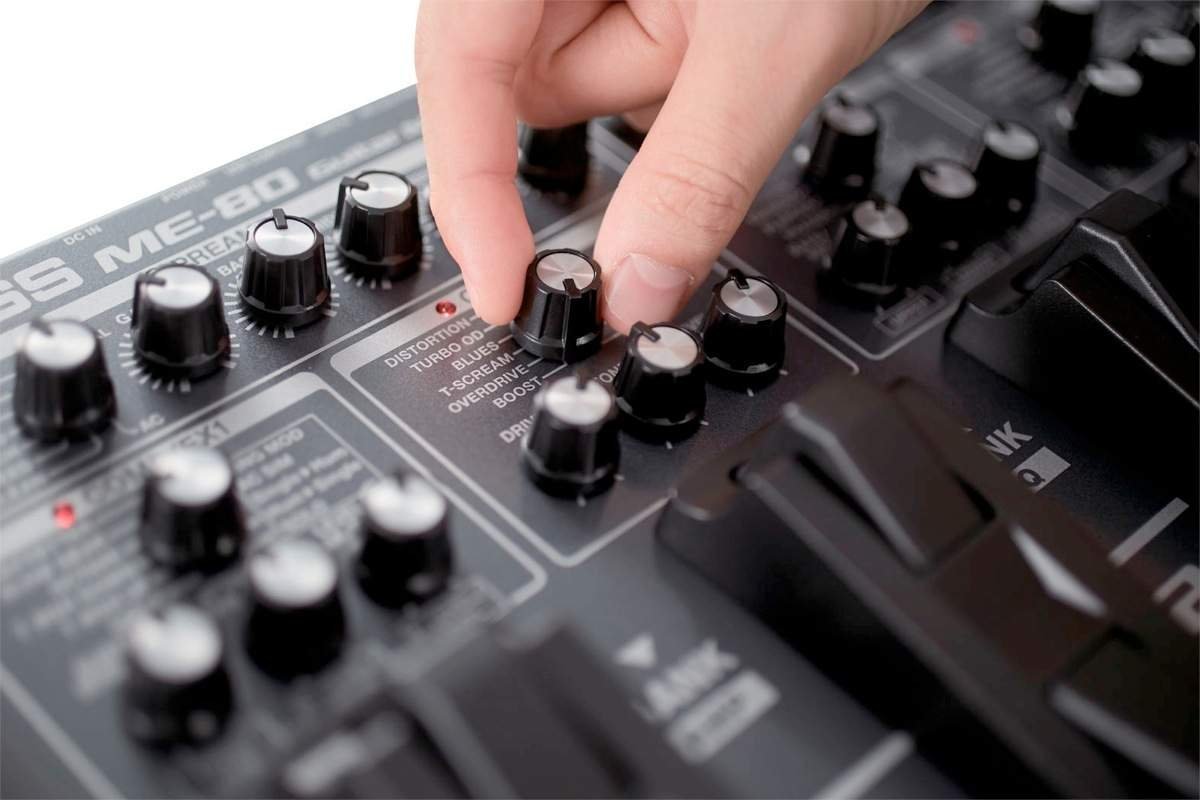

User interface with intuitive and easy-to-understand knob unique to ME.

The ME - 80 has direct control of all parameters with knobs.

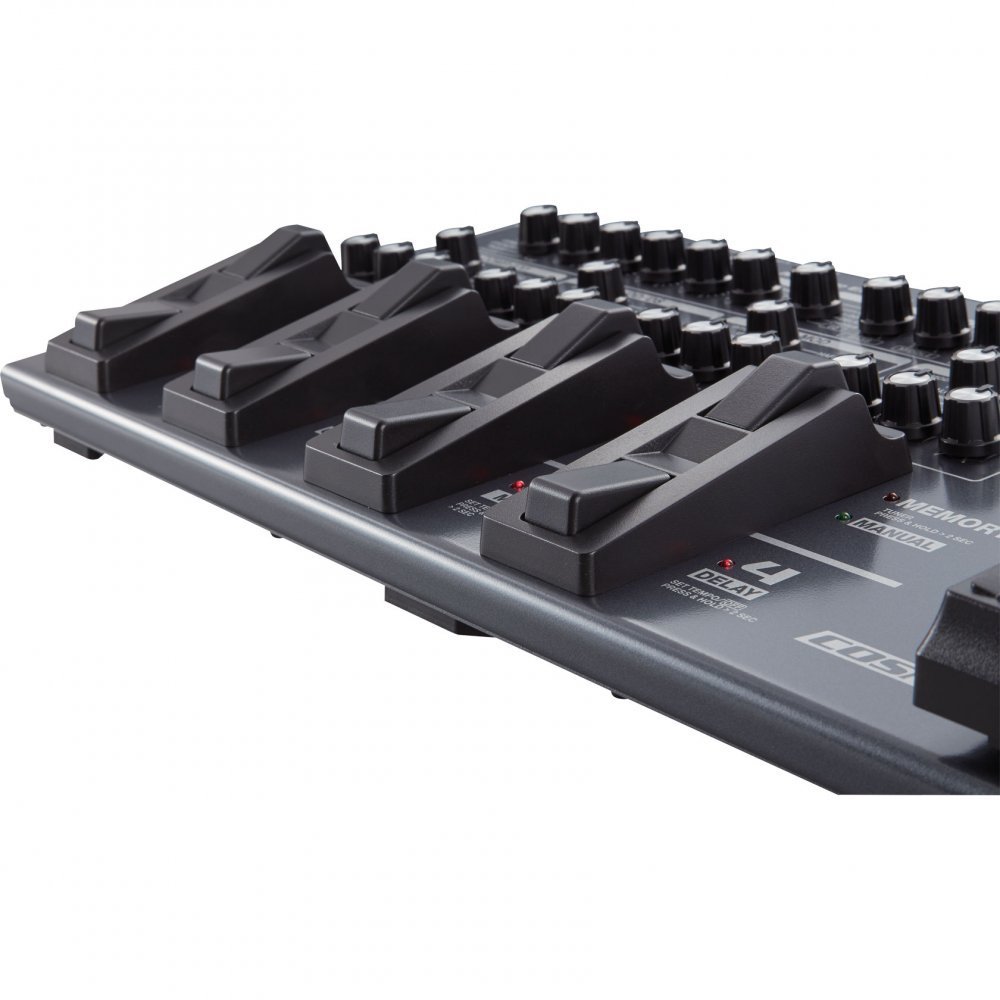

With 8 pedal switches installed, you can switch on / off each effect as if you were operating a compact effecter side by side (COMP, OD / DS, MOD, DELAY, AMP, EQ

, REV can be turned on and off directly), memory mode to switch sounds with one action, intuitive operation that turns the knob on the panel in both modes can now adjust the parameters of each effect

By installing BANK UP / DOWN pedal, more speedy patch / select can be done only with the main body.

In the CONTROL pedal, it is possible to call various control information directly, and to operate parameters in real time.

Furthermore, it realizes speedy tone change with almost no sound break at patch change time.

Equipped with the latest amplifier and sound by the evolving COSM technology.

9 types of latest COSM amplifier such as METAL · CRUNCH · DRIVE newly brushed up for ME-80 are installed.

Crunch sound that faithfully reflects picking nuance, including amp sound that realistically reproduced the sound quality and playing comfort of vintage amp, playing sound that is easy to use in a wide range of situations from backing to leads, expression power of existing amplifiers

To innovative amp sounds beyond that, we have a carefully selected lineup that can correspond widely to any scene.

Moreover, with the GAIN, BASS, MIDDLE, and TREBLE knobs, it is possible to create a precise sound with the sense of operating the actual amplifier.

Equipped with carefully selected effects from vintage to latest effects for combat effects.

From the distortion type compact / effector name machine OD - 1 and DS - 1 that have been used in stage and recording for many artists, the real effects of the BOSS highest quality effects from the latest effects TERA ECHO, OVERTONE which introduced advanced technology

For brush up, carefully selected for mounting.

Also equipped with familiar PHRASE LOOP in the popular RC series.

Loop performance of maximum 38 seconds is possible.

Together with the acoustic simulator, instantly to acoustic guitar sound.

With the addition of the FX 2 section, simultaneous use of two modulation effects and simultaneous use of delay can be possible.

It also features a pedal effect that extends the live performance expression such as a pitch bend that is possible up to 2 octaves, a freeze to sustain the chord played.

A patch download site that spreads the charm of ME-80 infinitely.

ME-80 can access directly to the tone color library BOSS TONE CENTRAL using the dedicated software BOSS TONE STUDIO.

You can easily get the special patch created by professional musicians and the sound of famous favorite tunes at no cost, plenty of content such as preview of each tone and artist videos, and the corresponding products will also increase in the future

.

Here's the latest sound that strongly supports live performance and music production.

Strengthen cooperation with personal computers.

The ME - 80 has a USB audio interface function.

You can connect directly to PC / Mac via USB cable, and you can create songs in cooperation with DAW software.

Furthermore, BOSS TONE STUDIO dedicated software combining direct access to BOSS TONE CENTRAL, editor, and librarian function is also in standby.

Capture the latest patch directly from BOSS TONE CENTRAL, place it freely with librarian function, instantly call with one action.

You can also customize to your favorite sound with the editor function.

Performance is possible anywhere such as live house and street.

The ME-80 adopts a battery-powered system (6 AA batteries × 6) and an AC adapter 2 power supply system.

You can take out anywhere easily, such as a street where it is difficult to secure power supply, and you can play.

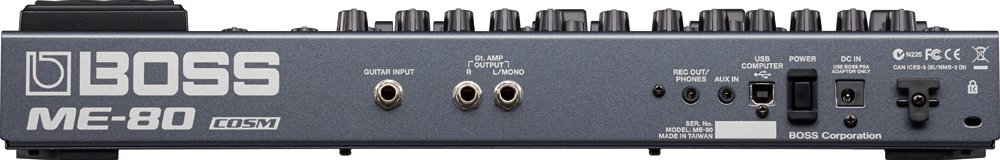

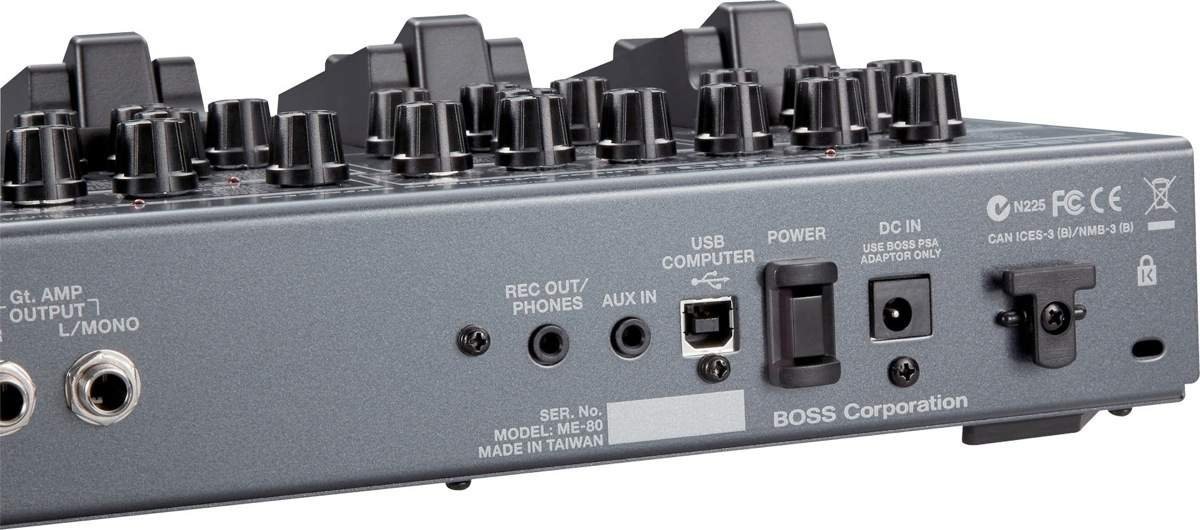

Rear panel

Main Specifications

AD conversion

24 bit + AF method * The AF method (Adaptive Focus method) is a proprietary method of Roland / Bos that dramatically improves the SN ratio of the AD converter.

DA conversion

24 bits

Sampling frequency

44.1 kHz

Patch

36 (user) + 36 (preset)

Pedals

Pedal switch × 8, expression pedal × 1

Specified input level

GUITAR INPUT = -10 dBu, AUX IN = -20 dBu

Input impedance

GUITAR INPUT = 1 MΩ, AUX IN = 27 kΩ

Specified output level

Gt. AMP OUTPUT L / MONO, R = - 10 dBu, REC OUT / PHONES = - 10 dBu

Output impedance

Gt. AMP OUTPUT L / MONO, R = 2 kΩ, REC OUT / PHONES = 44 Ω

Recommended load impedance

Gt. AMP OUTPUT L / MONO, R = 10 kΩ or more, REC OUT / PHONES = 16 Ω or more

Connecting terminal

AUX IN terminal (stereo mini type), USB COMPUTER terminal (standard type), GT. AMP OUTPUT L / MONO, R terminal

(USB type B), DC IN terminal

display

7 segment 2 digit LED

Power supply

Alkaline batteries (AA size) × 6, Manganese batteries (AA type) × 6, or AC adapter

Current consumption

200 mA

Lifetime of battery during continuous use (varies depending on usage condition)

Alkaline battery = about 7 hours, manganese battery = about 2 hours

accessories

Instruction manual, alkaline battery (AA type) × 6, warranty card, Roland user registration card, "Please read me first" leaflet

Optional items

AC adapter (PSA - 100)

External dimensions / mass

Width (W)

447 mm

Depth (D)

231 mm

Height (H)

70 mm

mass

3.6 kg

External dimensions / mass (when pedal tilt is maximum)

Width (W)

447 mm

Depth (D)

231 mm

Height (H)

91 mm

mass

3.6 kg

Features:

• Please enter model number Confirm this is compatible:
• New flagship model of Boss ME series
• Equipped with the latest amplifier and sound by the evolving COSM technology
• User interface with intuitive and easy-to-understand knob
• Carefully selected from vintage to latest effects
• USB audio interface function installed

Product information:

Shipping Weight: 4490 g

Package Dimensions: 13.41 x 31.80 x 51.79 cm
