Item Descriptions:

color:

Monitor + 1 outdoor camera

Product description

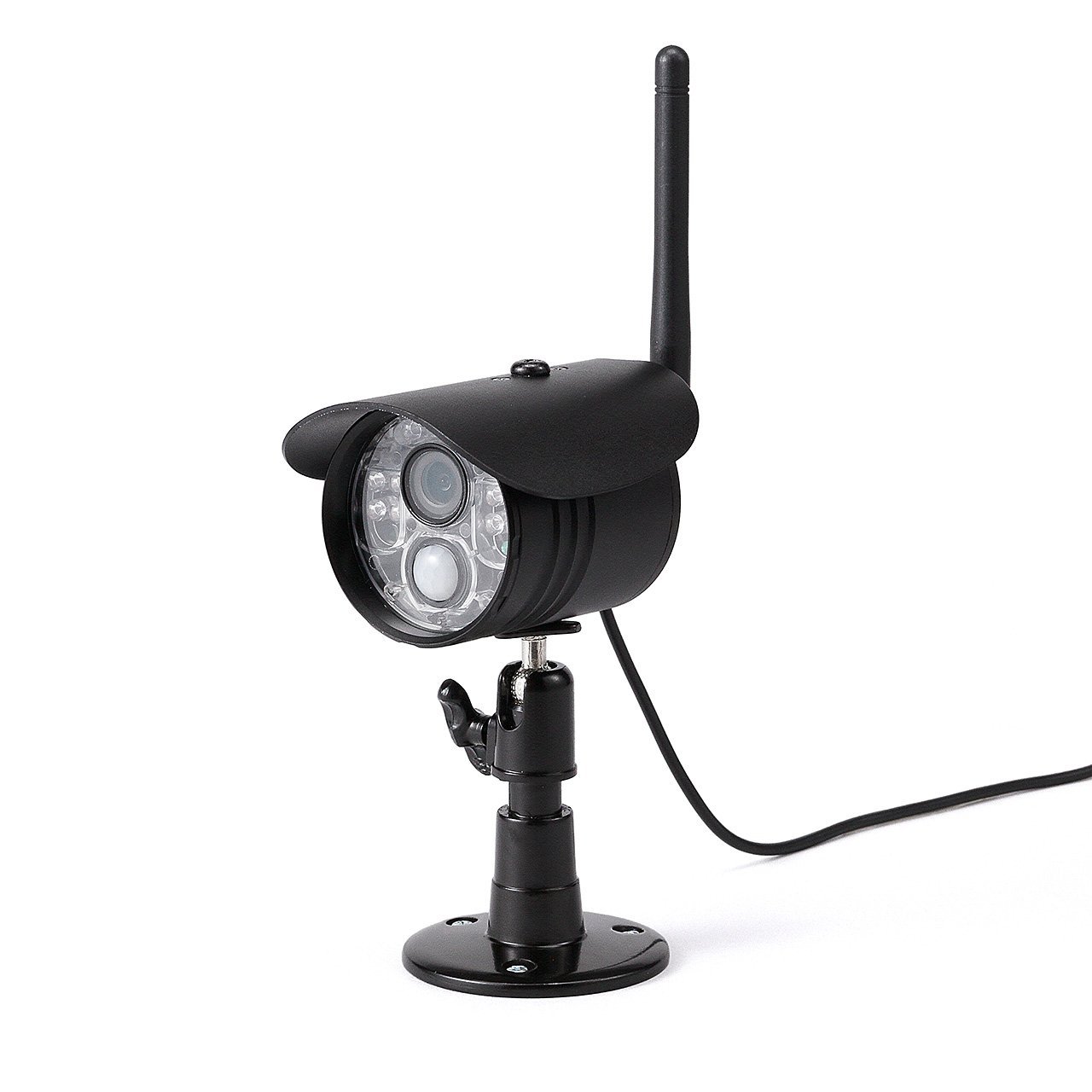

【Camera Specification】

■ Wireless system: 2.4 GHz

■ Image sensor: 1/5 inch CMOS sensor

Number of pixels: 300 thousand pixels

Video resolution: 656 × 488

■ Minimum illuminance: 0 Lux

■ Shooting range: 65 °

■ Power supply: Household AC100V (dedicated AC adapter included)

■ Infrared LED distance: Up to about 10 m

■ Waterproof standard: IP66

■ Size: W67 × D90 × H133 mm (※ including stand, no antenna included)

Weight ■: about 290 g

Body AC cable length: about 57 cm

■ AC adapter cable length: about 145 cm

【Monitor Specification】

■ Screen size: 7 inch LCD monitor

■ Monitor output: RCA terminal

Screen resolution: 800 × 480

Maximum recording resolution: 640 × 480

■ Monitor screen display: 1 screen / 4 divided screen

■ Video Resolution: CIF / VGA

■ Frame Rate: Up to 30 fps (※ Distance with the camera, it may be greatly reduced due to obstacles.)

■ Video format: AVI

■ Power supply: Household AC100V (dedicated AC adapter included)

■ Supported SD card: Up to 32GB SDHC (FAT32 only)

■ Supported USB memory: Up to 32GB (FAT32 only)

■ Compatible HDD: Up to 1 TB (FAT 32 · Self-powered only)

■ USB standard: USB 2.0

■ Size: W212 × D26 × H 122 mm (※ antenna not included)

Weight ■: about 430 g

■ AC adapter cable length: about 150 cm

Producing countries ■: China

■ Instruction Manual: Yes

■ Package: Overseas package (※ Optional items are also printed)

■ Warranty period: 6 months from date of purchase

○ It is a product that acquired "TELEC (technical standard conformity)" and obtained "technical mark" for technical certification conformity certification.

【please note】

* Walls and pillars between reinforced concrete buildings and cameras and receivers (monitors) may cause extremely short reach of radio waves.

Whether radio waves arrive at the actual use place, please check the operation before installation in advance.

If the radio waves are not received sufficiently, the picture may be frame advance.

※ ※ Outdoor camera body is not waterproof but waterproof.

Please do not use it in a place subject to heavy water.

※ Infrared shooting becomes black and white.

※ There is no recording function on the camera.

* Dynamic motion detection does not work in the dark.

* Recorded movies can not be played on Windows Media Player.

At our company we have confirmed the playback of the video with "VLC media player", "GOM Player".

* There is no recording function in the camera attached to 400 - CAM 055.

<Notes on Infrared Sensing Recording>

Be careful of the installation location of the camera when recording infrared sensing images.

Infrared detection may be impossible if it is installed near the outdoor unit of the air conditioner or where there is no temperature difference between the surface temperature of people such as summer and the surroundings.

Please note.

Brand introduction

About Sanwa Direct

You can see Sanwa Direct's recommended interior coordination

Established in 1923, PC personal computer maker "Sanwa Supply" founded in 1951.

Sanwa Direct is the brand that Sanwa Direct is developing on the Internet.

Because it is a long-established supply maker, we can improve and improve based on accumulated data · customer's voice, and we can deliver more convenient and high quality furniture.

Even now, we continue to launch new products every week, offering the latest furniture that meets the needs of the times.

From office to study and living, we will continue to do product development with full will to help you make your mobile environment comfortable.

Features:

• Please enter model number Confirm this is compatible:

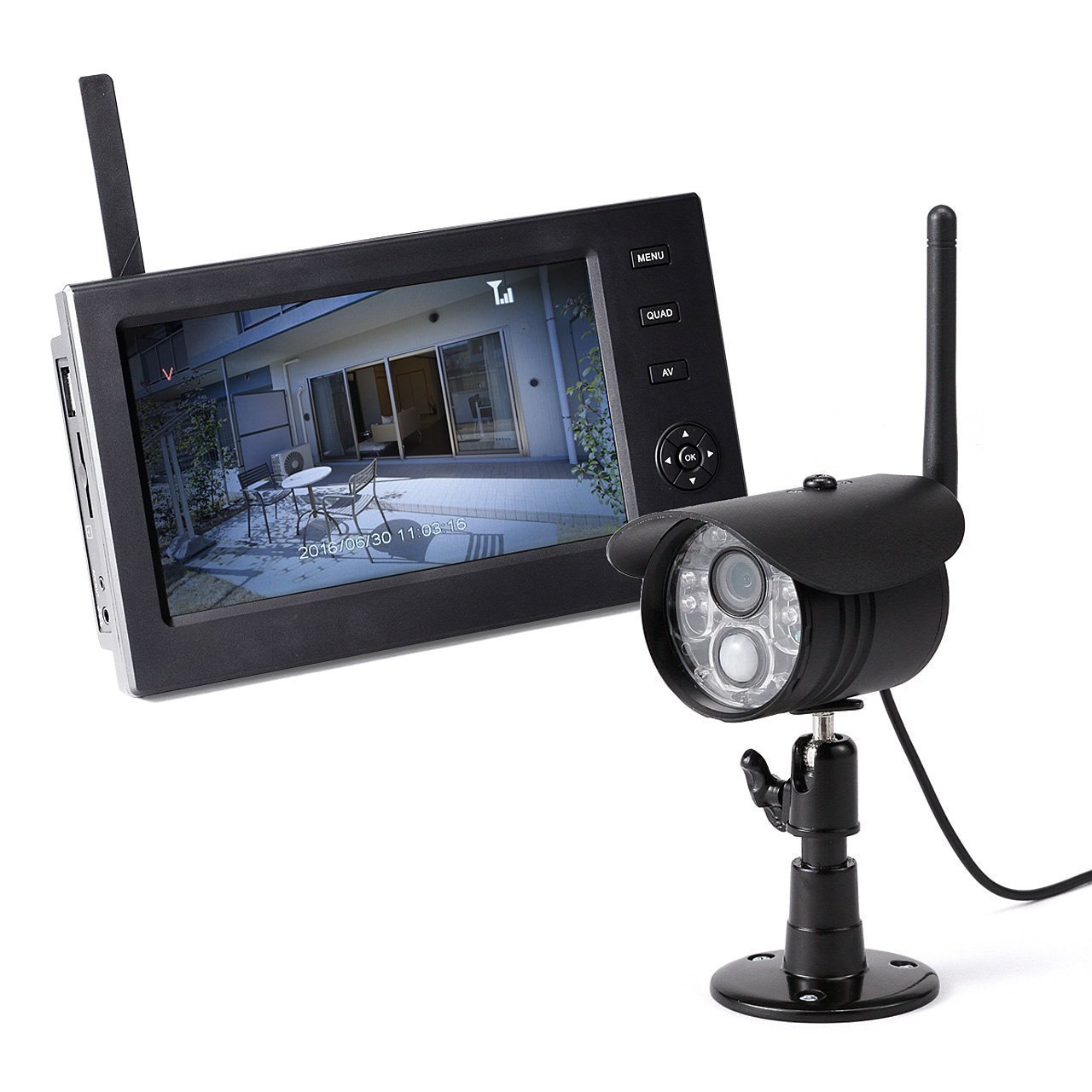

• It is a set of one camera and monitor that can be connected by digital wireless method.
• Since the connection between the monitor and the camera is wireless, difficult cable wiring is unnecessary.
• (* Camera power supply requires AC outlet connection)
• It is a digital wireless method that can connect up to about 50 m.

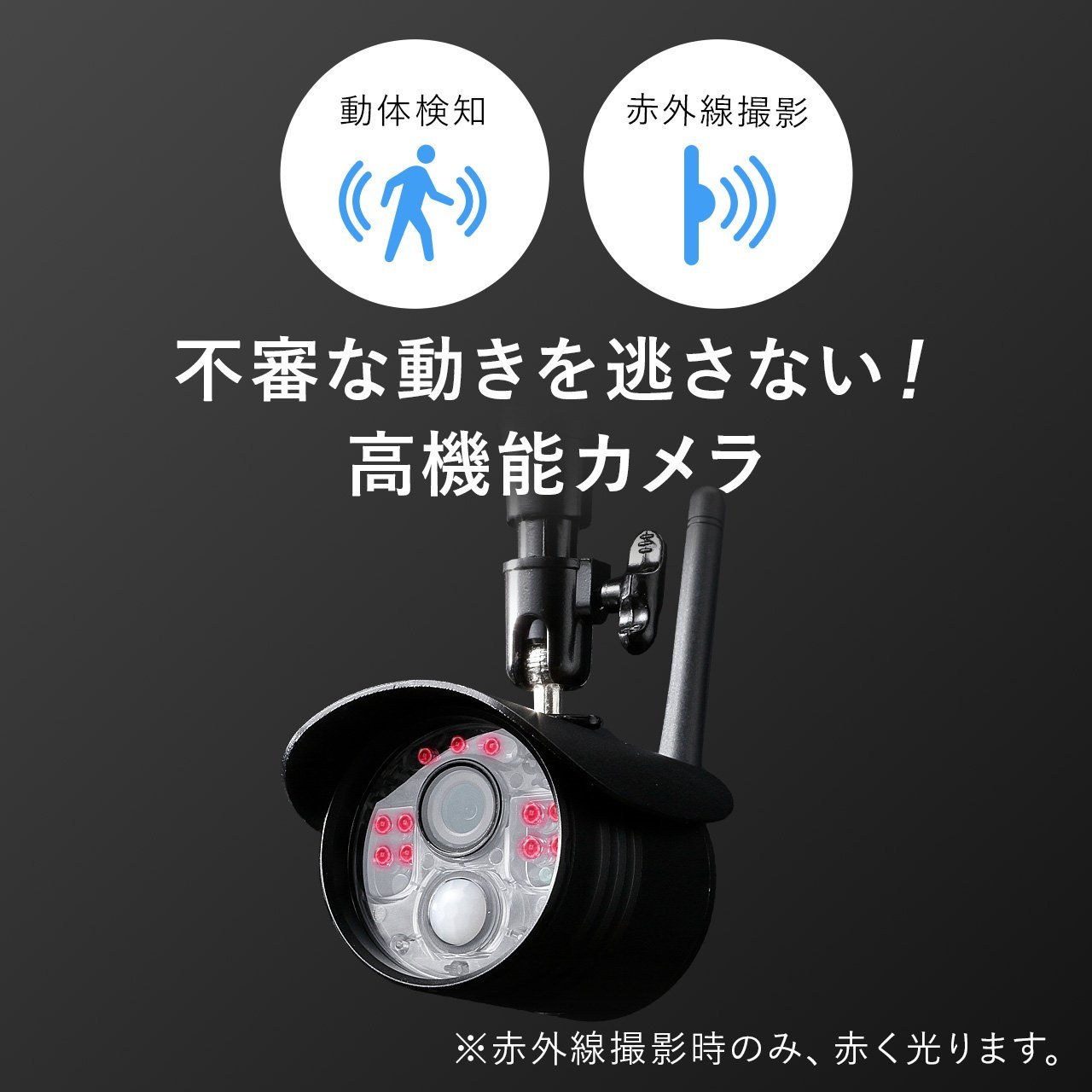

• Motion image shooting has an infrared sensing mode that enables automatic detection of motion in response to moving objects and photographing in the dark or at night.
• Video quality can be selected from two types, 7 Mbps and 2 Mbps.

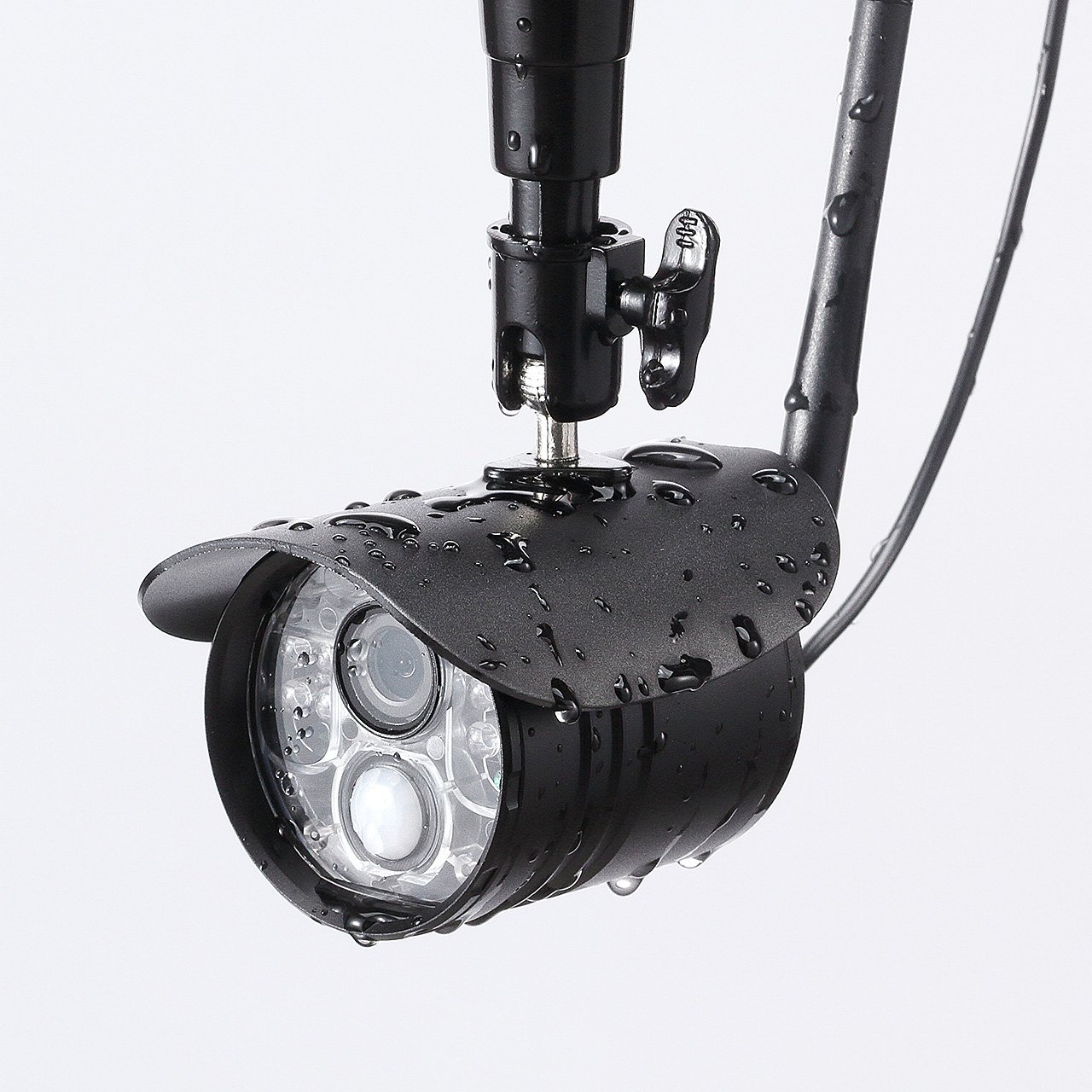

• The camera clears IP66 waterproof standard IP66 and works normally even in the rain.
• (* Connection part with AC adapter and AC adapter is not drip-proof specification.Please proof waterproof using AC adapter and connecting part with waterproof tape etc.)
• Built-in infrared sensor which can see video even in the dark.
• Shooting within 10 meters is possible even in the dark.
• (* You can shoot in the place where the infrared LED is irradiated. The sharpness will become faint as it goes farther.) Camera can be set for each camera such as constant recording / moving detection setting.
• Remote control is attached, and it is also possible to operate away.
• The monitor is a 7-inch large size TFT liquid crystal, it can be used with a cordless built-in battery.
• It is possible to display only one camera with a dedicated monitor, or split display if separately added.

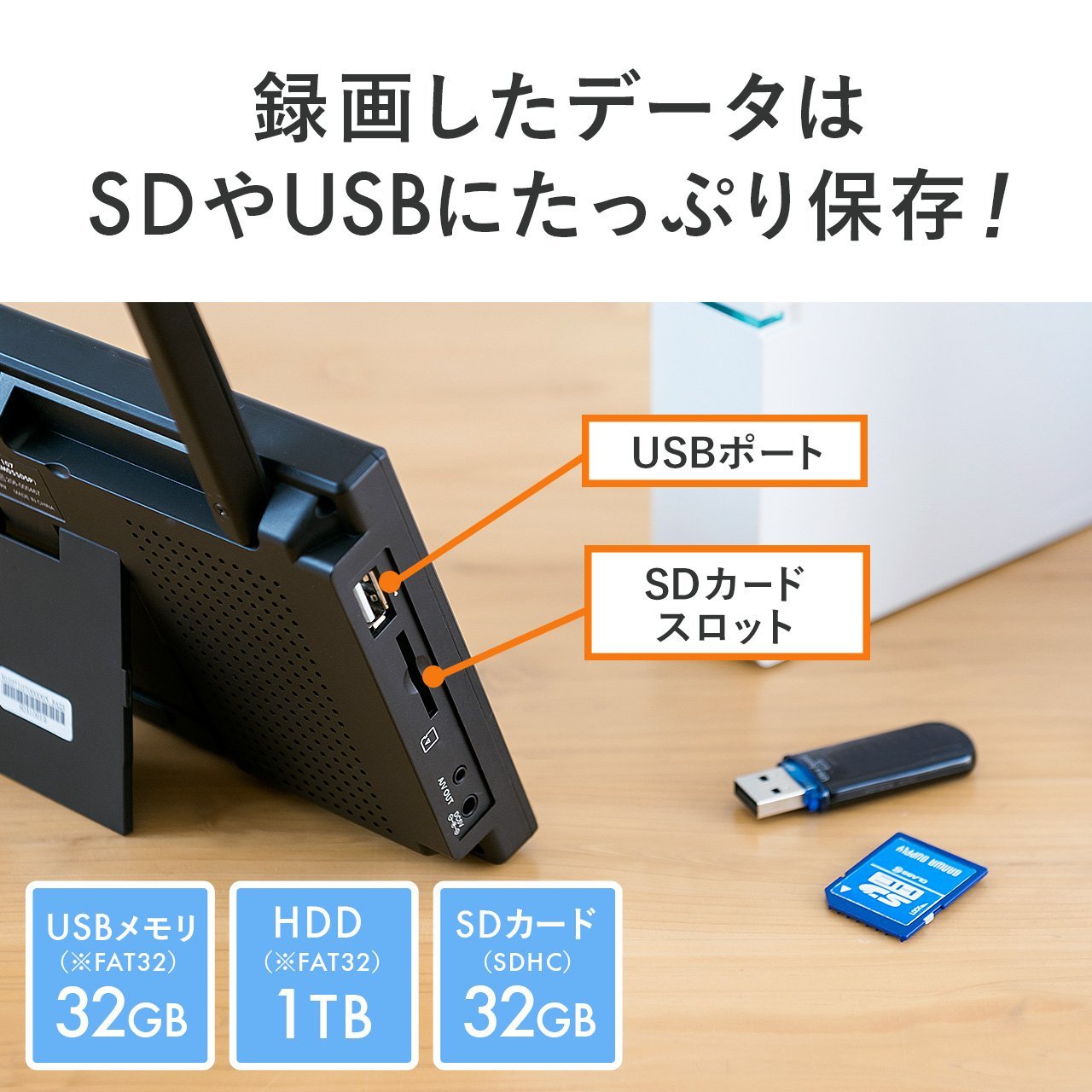

• Recording is possible by inserting an SD card or USB memory into the monitor.
• (※ SD card or USB memory sold separately)

Product information:

Shipping Weight: 1442 g

Package Dimensions: 11.61 x 27.10 x 37.21 cm
