Item Descriptions:

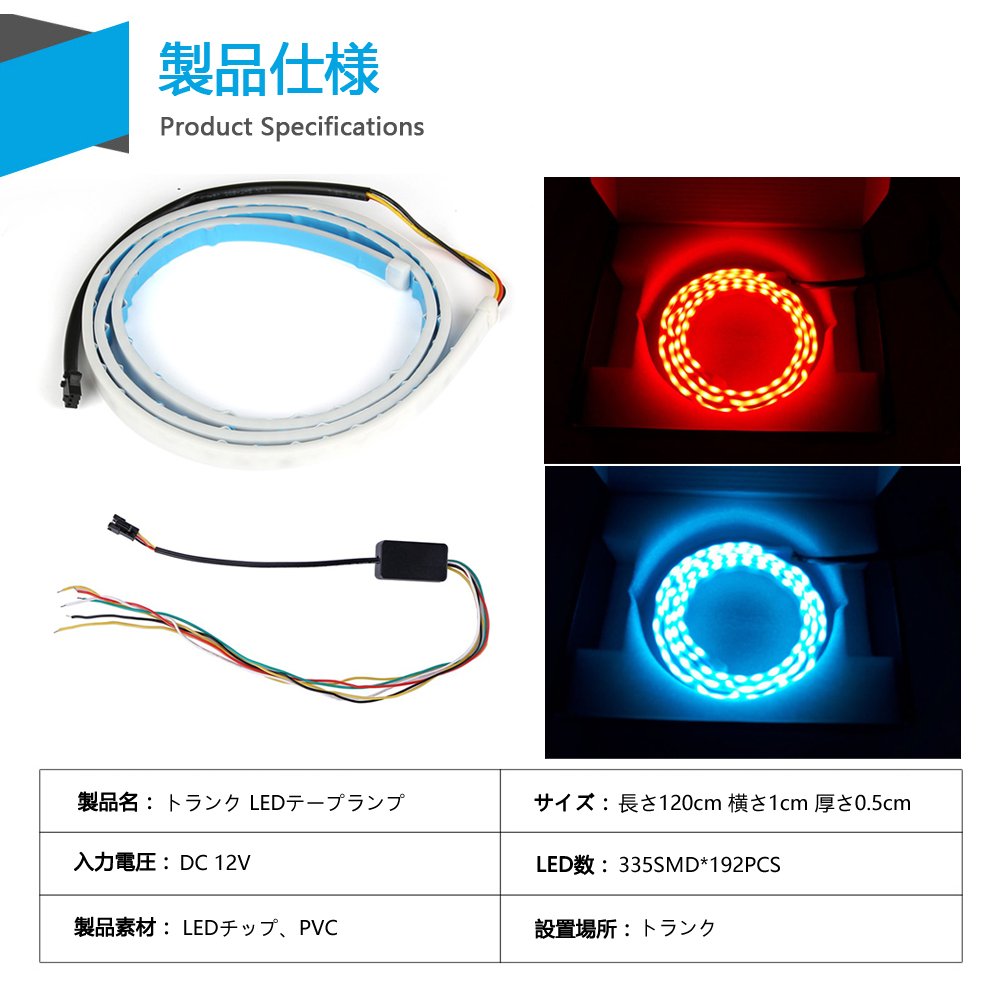

■ Product Specification

★ Length: about 120 cm (not cut)

★ Width: approx 1 cm

★ Thickness: about 0.5 cm

★ Wiring length: about 92 cm

★ Efficiency: 5W

★ Input voltage: DC 12V

★ Waterproof grade: IP 68 (also rainy day is safe)

★ Number of LEDs: 335SMD * 192PCS (The mounted LED is very bright, durable and powerful 335SMD.)

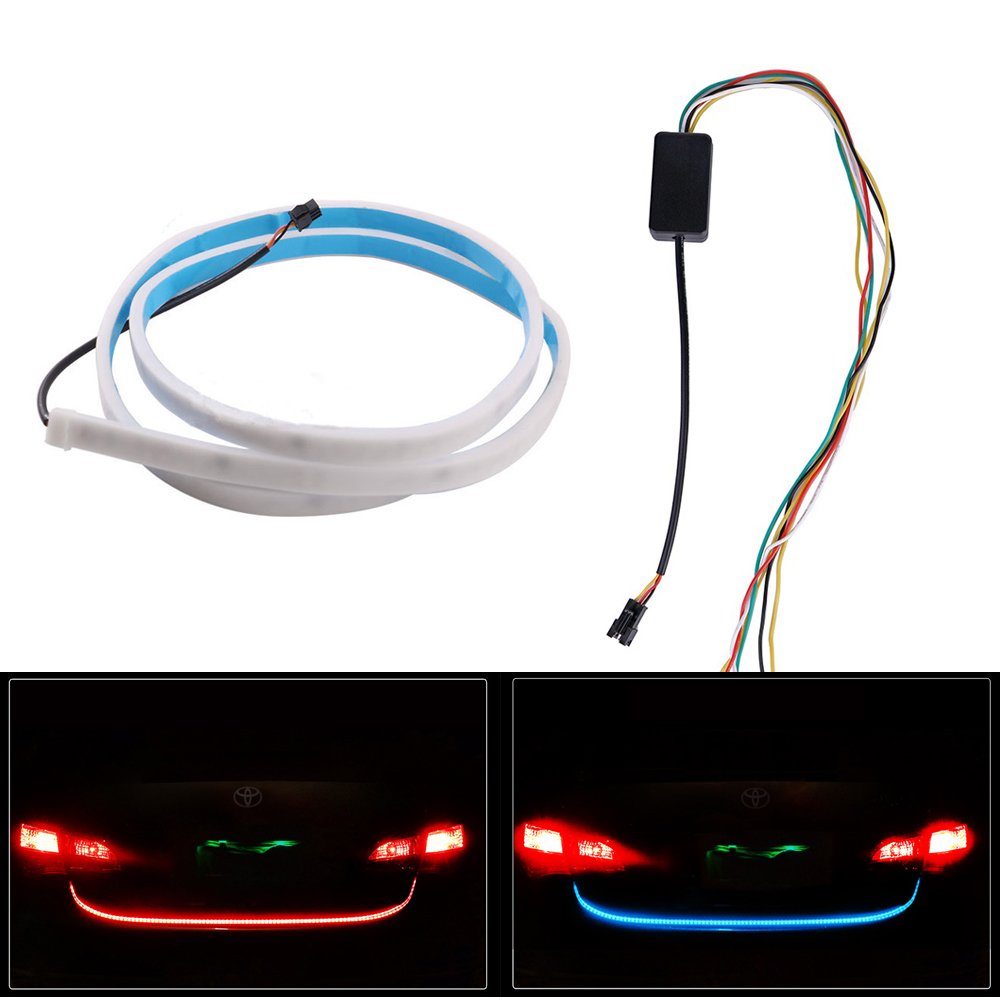

★ Includes: LED tape light, intelligent decoder x 1 (with double-sided tape, 6 wiring type.)

Product features

★ Light Color: Red, Blue

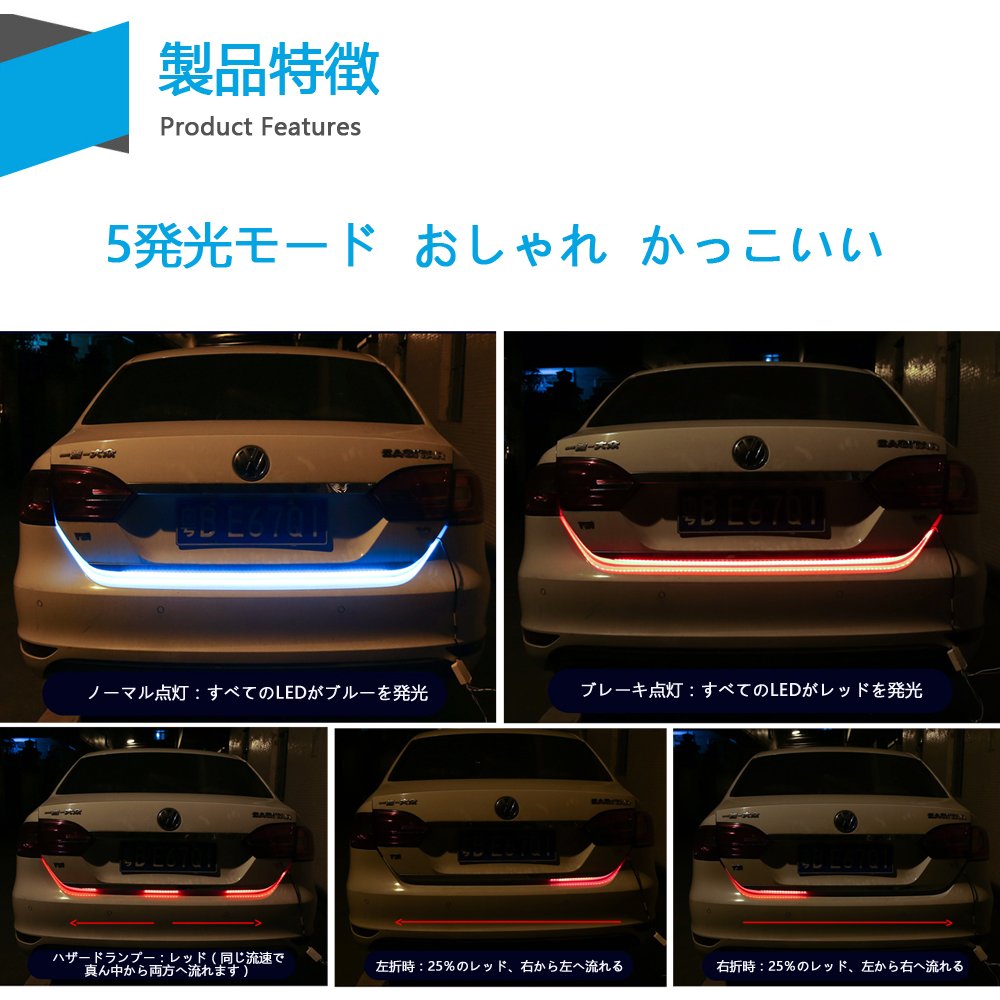

★ 5 Flash mode:

① Brake lamp: Red (luminescent color: 100% red)

② Turn signal: Red (25% red. When turning left turns from right to left, turning right turns from left to right.)

③ Hazard lamp: Red (It flows from the middle to both at the same flow velocity.)

④ Brake + turn signal: Red (100% red. When turning left turns it flows from right to left and turns right from left to right.)

⑤ Normal lighting: All LEDs emit blue light.

(When you connect the green wire to ACC, it glows blue.)

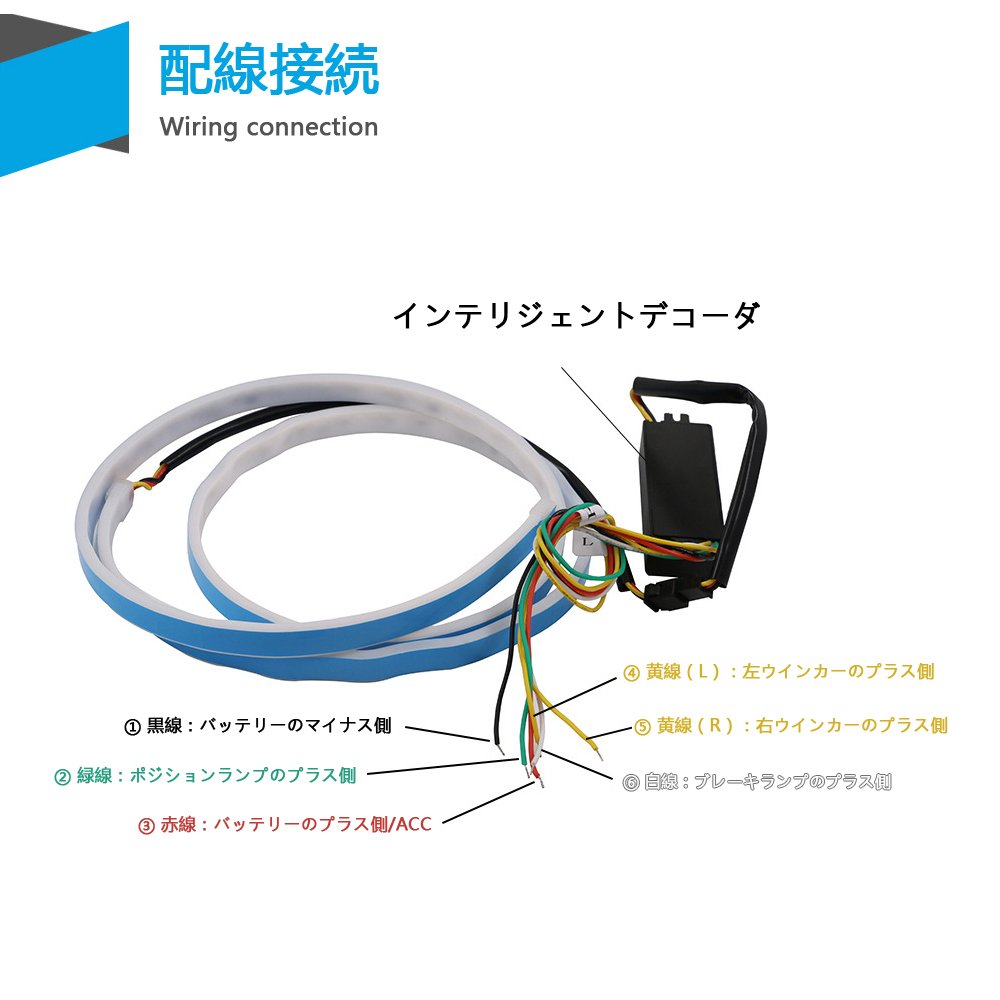

Wiring connection

① Black line: Minus side of battery

② Green line: Plus side of position lamp

③ Red wire: positive side of battery / ACC

④ Yellow line (R): Plus side yellow line (L) of the right turn indicator: Plus side of the left blinker

⑤ White line: The positive side of the brake lamp

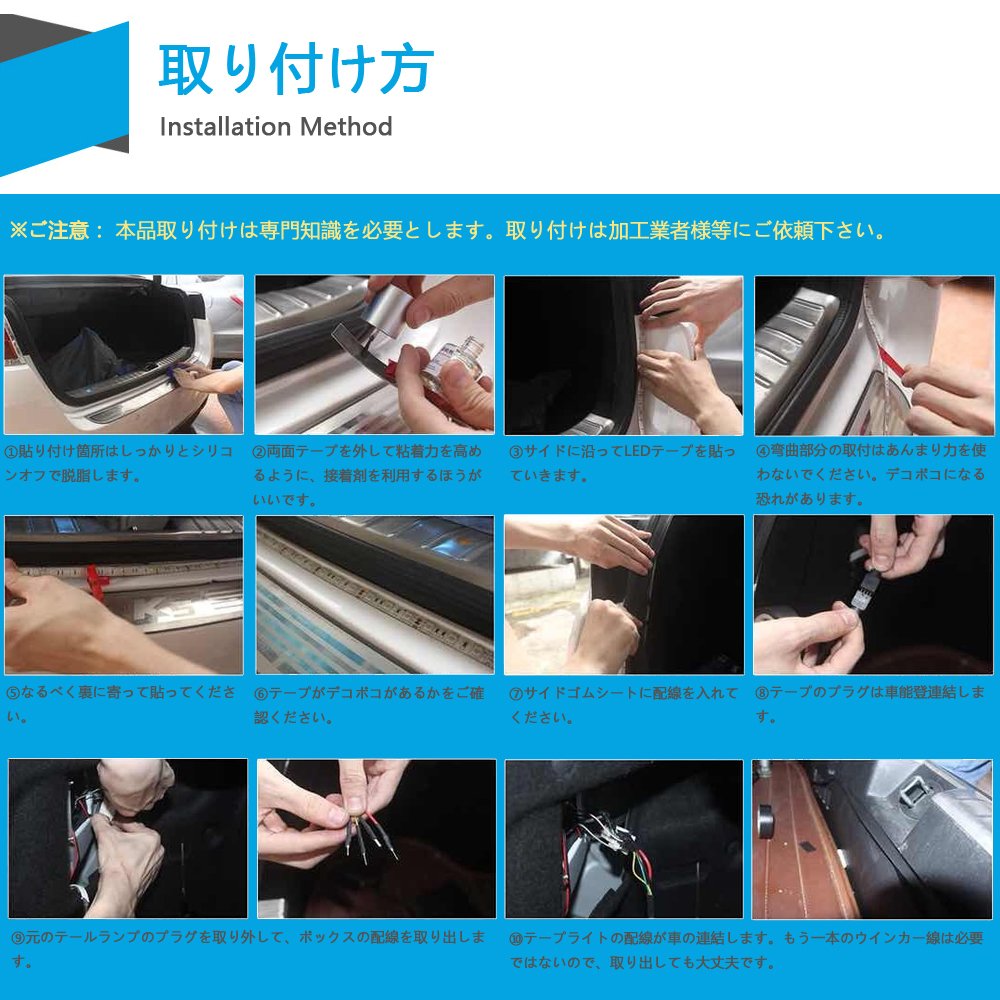

■ How to install

① Degreate parts securely with silicon off.

② It is better to use adhesive to remove adhesive double coated tape to increase adhesive strength.

③ We will stick the LED tape along the side.

④ Please do not use force much to install the curved part.

There is a danger of becoming decocted.

⑤ Please drop as far as possible and paste it.

⑥ Please check whether the tape has a decorative effect.

⑦ Put the wiring on the side rubber sheet.

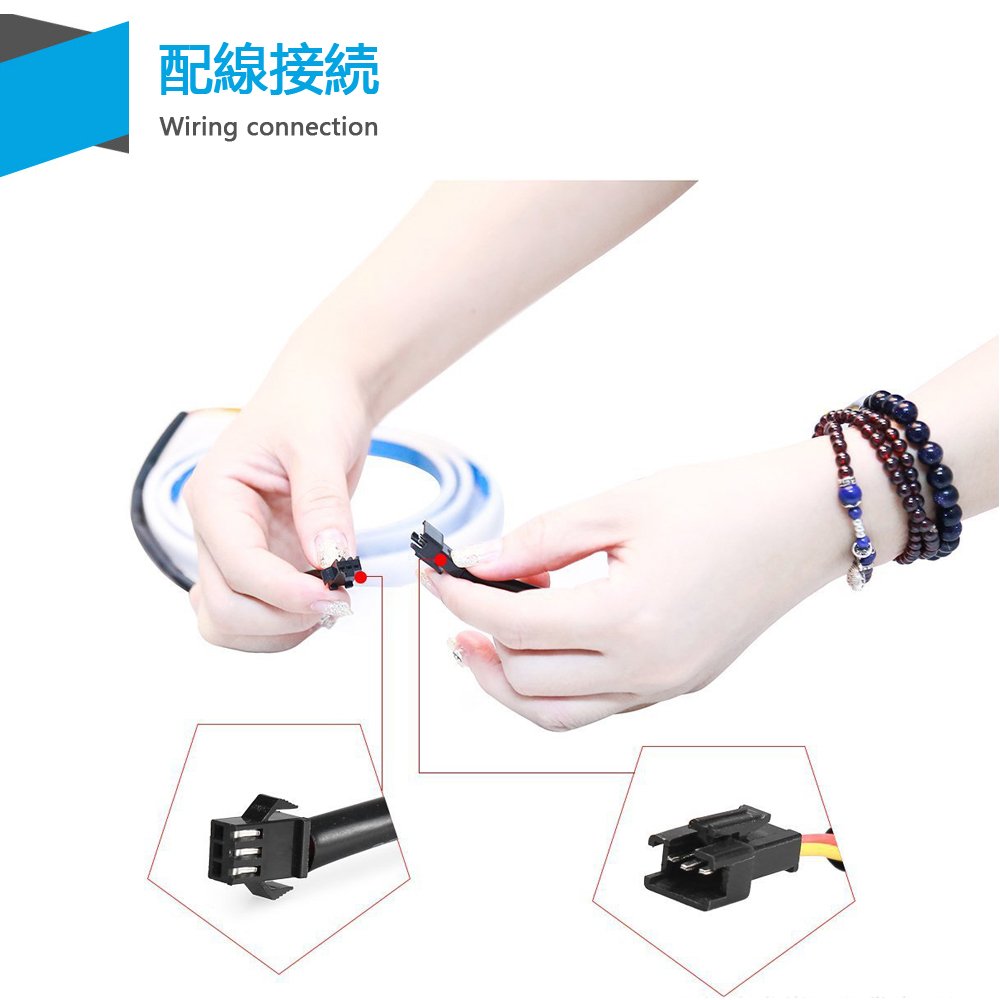

⑧ Connect the tape plug to the car noto.

⑨ Remove the plug of the original tail lamp and take out the wiring of the box.

⑩ Tape light wiring connects cars.

Another winker line is not necessary, so it is okay to remove it.

※please note※

① Before purchasing, please check the size for product attachment availability.

② Strength is stabilized in about 24 hours.

(Please refrain from car washing 2-3 days)

③ Installation of this product requires expert knowledge.

Please ask the processor etc for installation.

Features:

• ★ This one plays the role of tail lamp + brake light + winker lamp + hazard lamp.
• Because it has a flowing blinker function, it finishes pretty stylishly.

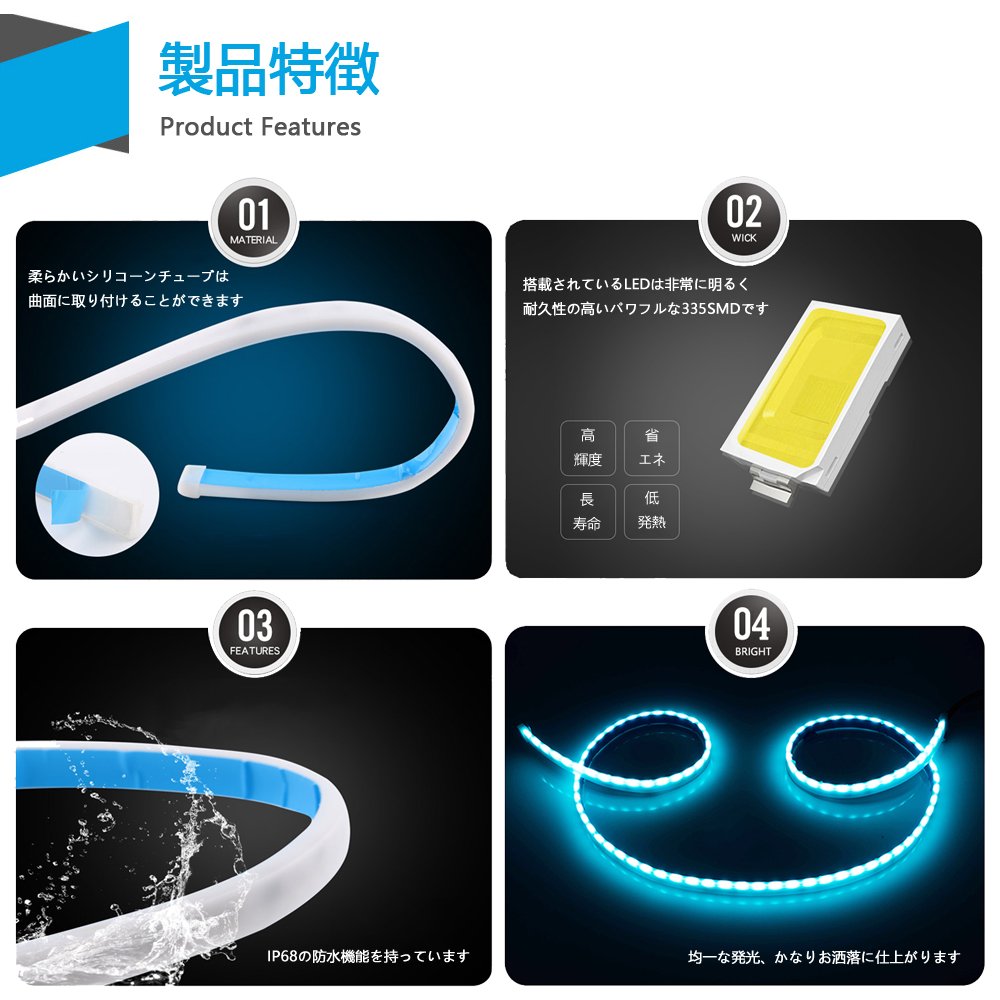

• ★ Because it is a soft silicone tube, it can be attached to a curved surface.
• It can be installed easily with double-sided tape attached to the back side.
• (* Please be sure to drop wax and oil content with degreasing agent before attaching.In addition, if weak adhesion, please reinforce with powerful double sided tape etc.)
• ★ Light Color: Red, Blue.
• 5 Flash mode: ① Brake lamp: Red (100% red) ② Turn signal: Red (25% red.
• : Red (flowing from the middle to both at the same flow rate) ④ Brake + blinker: Red (100% red, flowing from right to left when turning left, flowing from left to right when turning right) ⑤ Normal lighting:
• The LED will emit blue (it will glow blue when connecting the green wire to ACC)
• ★ IP68 has waterproof function.
• LED is mounted in tubular silicon which has been subjected to waterproof treatment.
• ★ # Product specification # length: 1.2 m (disconnectable) / efficiency: 5 W / input voltage: DC 12 V / LED number: 335 SMD * 192 PCS / double sided tape, 6 wiring type.

Product information:

Shipping Weight: 199 g

Package Dimensions: 4.90 x 17.80 x 22.61 cm
