Item Descriptions:

Conbrov HD multifunction hidden camera

☆ manufacturer's warranty

The manufacturer warranty period of 12 months from the date of purchase is attached.

If you have comments, please feel free to contact the manufacturer.

Japanese handling document, support by telephone and e - mail are provided.

☆ If the product has problems, please contact us

We await your comments / impressions with the aim of better store management ~

☆ Conbrov products are necessary and practical tools in the field of security, education, life etc. at home for the purpose of security and security for protecting important families and property.

Main function

【Main function】

■ [Nighttime LED infrared shooting] Night vision shooting is possible up to 5 m even in a dark room with night vision function.

LED Infrared adopts invisible type that does not shine red.

■ [Voice Activated Recording Shooting] It works when you sense the volume of 60 decibels that is generally touched by life such as "ordinary speech".

The voice detector detects the surrounding environment every 2 minutes.

■ [Normal mode shooting] file will be recorded every 5 minutes cycle.

■ [Loop recording]

① In the voice activated recording mode, the sound detector detects the environment every two minutes and the video is automatically saved on the memory card by cycle recording every 2 minutes of the video file.

② In normal mode, video is automatically saved on the SD card by cycle recording every 5 minutes.

■ [Shooting while charging] Con brov spy camera can shoot movies and shoot still images.

By recording, movies and sounds can be recorded at the same time.

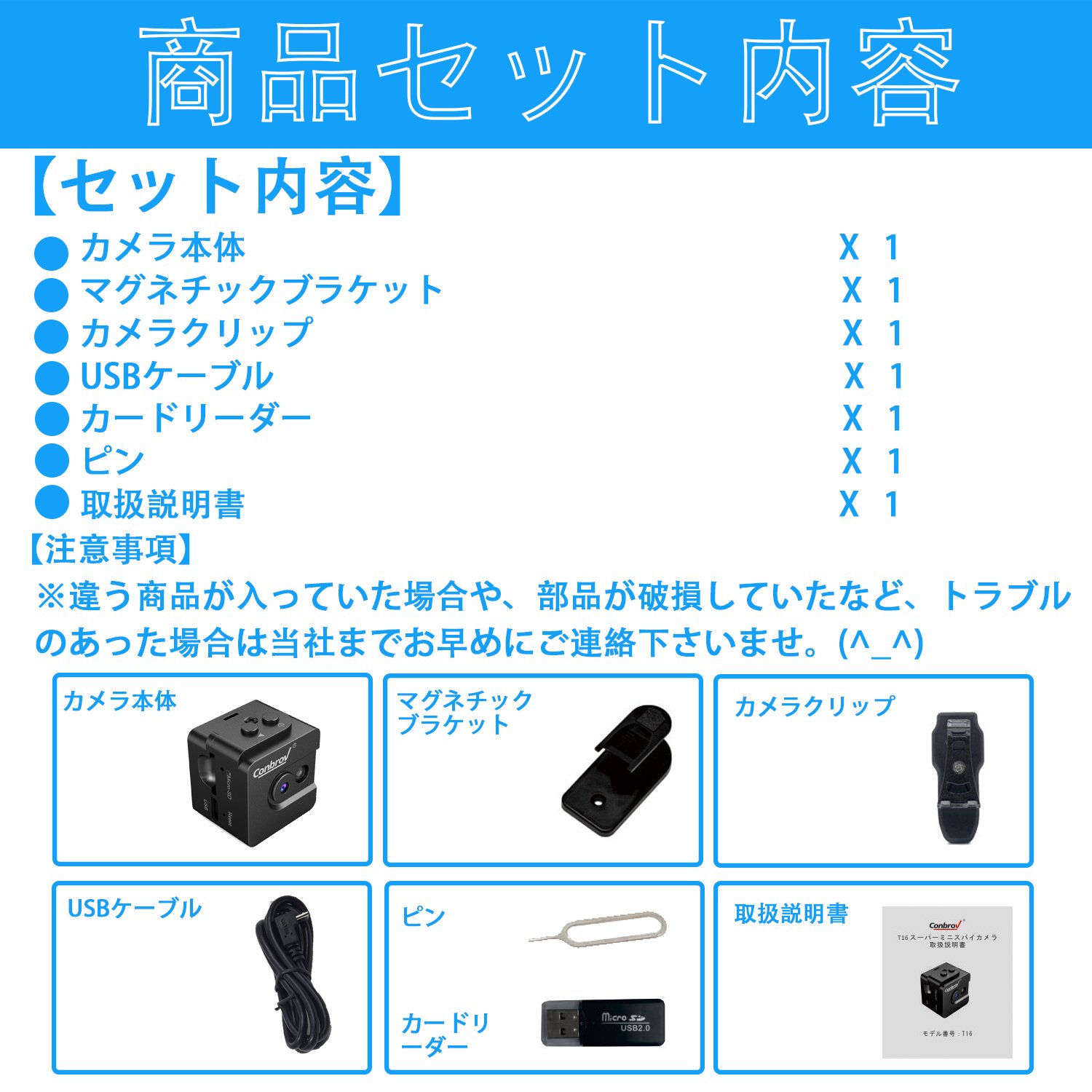

Bundled items

【FAQ】

1.

Q: I can not take infrared shots.

A: When the brightness of the light in the surrounding environment is 10 LUX or more, the infrared ray can not be operated.

Please take a picture in a black room for 20 minutes.

2.

Q: The power button does not turn off, the Record button does not respond.

A: Press the "reset" button for 10 seconds on the supplied pin to reset the camera.

3.

Q: Even if you operate according to the instruction manual after turning on the power after charging, it will be inoperable only with the blue light only for a long time.

A: First, format the micro SD card in FAT 32 format with windows PC beforehand.

"Please note that it applies only to Windows systems." Then reset the camera.

Four.

Q: I do not react to anything even if connected to a PC, but do not react because microSD is not put in?

A: Even if the power is turned on without inserting the SD card, it turns off automatically after a few seconds.

It is the same as connecting an empty card reader even if connecting with a personal computer without inserting microSD.

Five.

Q: I accidentally threw away the instructions.

Can you download anywhere else?

A: Send an e-mail to Conbrov's support center and we will send you a Japanese manual of PDF.

6.

Q: I inserted an SD card and recorded it, but I could not record it.

Why?

A: Be sure to format the MicroSD card in FAT32 format on your computer (Windows system) before use.

Caution:

Always, beforehand, windows system)

If you have any questions, please contact Conbrov 's e - mail address written in the manual.

Product Summary

【Utilization scenes】

【1】 Child watching in an answering machine / For senior citizen care / Telecommuting facilities

【2】 Pet observation / conference relay / conference, lecture, seminar recording / presence of fire

【3】 Established in the store / Monitoring of the entrance of the home entrance and parking lot

【4】 Evidence of criminal act / to evidence of sexual harassment / evidence of child abuse

【5】 Record lesson and review / Sports record watching and analysis

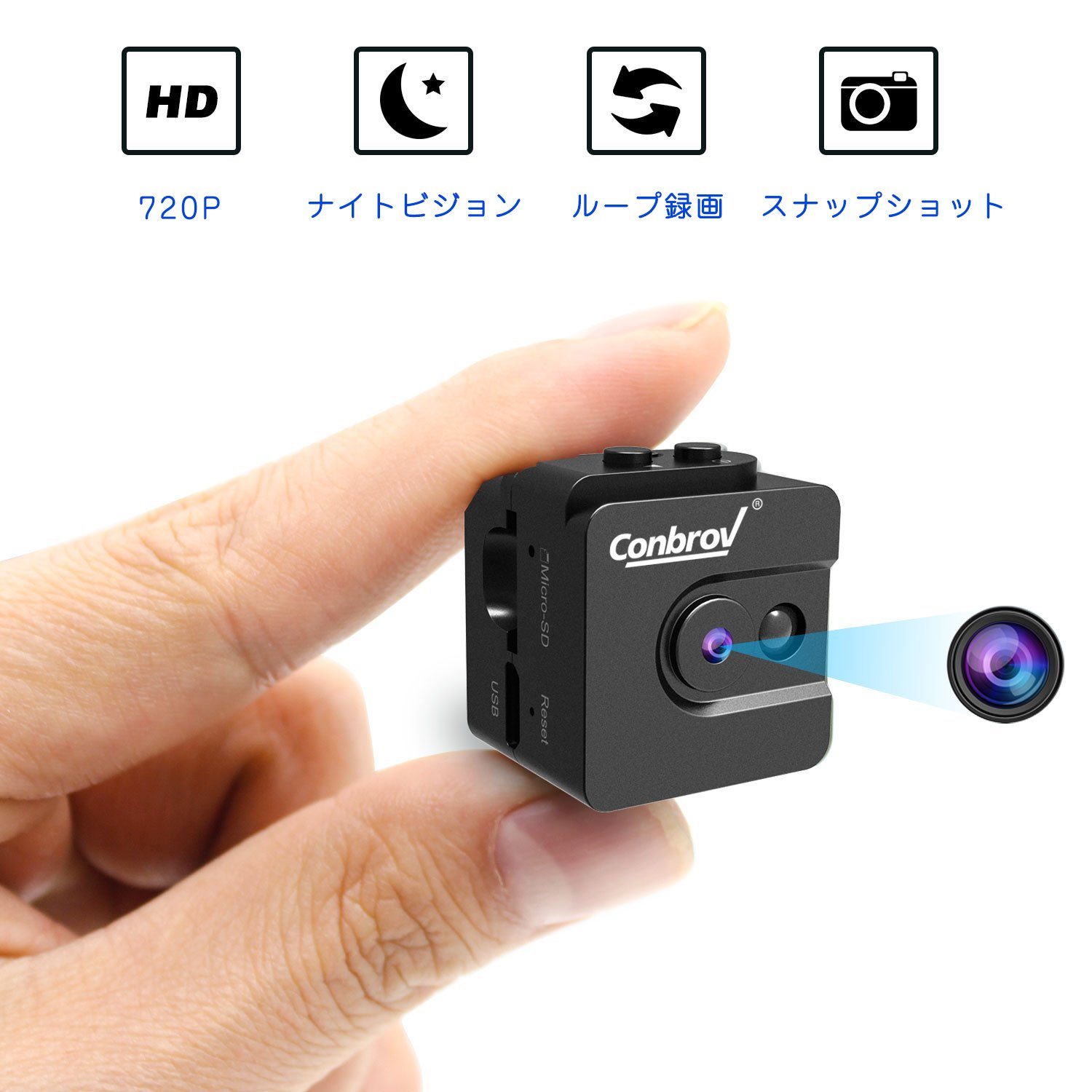

【Product Summary】

· HD 720P standard movie shooting

· HD 720P standard still image shooting

· Movie resolution: 1280 * 720P HD

· Audio detection recording function

· Infrared LED night vision shooting

· Repeat recording function

· Date function

· Video while charging

Please do the operation of this product after inserting Micro SD card / (TF card).

If you do not insert the MicroSD card / (TF card), the blue light blinks for a few seconds and then shut down.

【specification】

· Body weight: Approx 16 g

· Dimensions: 25 x 27 x 20 mm

· Movie format: AVI

· Video frame rate: 30 fps

· Nighttime image range: maximum 5M

Charging time: about 20 minutes

· Daytime continuous recording time: 45 minutes

· Continuous night time: 35 minutes

· Voice activation sensitivity: 60 dB

· Camera shooting angle: 75 °

· Supported SD card: 8G ~ 32G (※ sold separately)

Features:

• Please enter model number Confirm this is compatible:
• 【Night vision function】 Conbrov surveillance camera has night vision function and night vision shooting is possible up to 5 m even in a dark room.
• Since the LED infrared adopts an invisible type that does not shine red, the object to be photographed is not noticed.
• Recognizing the ambient brightness and switching to infrared shooting automatically when it becomes black.
• [Audio detection function] The sound detection function which the monitor starts automatically by the sound is installed, and recording exceeding 60 dB is detected and recording starts automatically.
• It is a security camera that can record video and audio at the same time by recording.
• You can shoot while charging.
• Micro SD card / TF card can support up to 32GB.
• [High Image Quality] High resolution in HD (1280 * 720 P), so sharp image shooting is possible in detail.
• While shooting in the dark, shooting will take place in monochrome (black and white).
• It is an ultra compact video camera that can shoot firmly even in a dark room after putting it aside.
• 【Utilization scene】 Conbrov spy camera can shoot movie and still picture.
• You can instantly record video in the fields of conference, business negotiation record, various business scenes, nursing care, monitoring of shops, lectures, accidents, crime records, crime prevention.
• It can be used as Mini drive recorder.
• 【Micro SD card (sold separately)】 Before using, be sure to format the icro SD card in FAT32 format on PC beforehand.
• Depending on the format of the card and the format of the file, it may not be recognized.

Product information:

Shipping Weight: 99 g

Package Dimensions: 4.90 x 8.00 x 11.40 cm
