Features:
This is a kind of high performance mini HDMI Switcher. It is compatible well for HD-DVD， for Sky-HD， for STV， for PS3， for Xbox 360， etc， which has not only key-press-switching function， but also has IR remote control and intelligent function.
Support HDMI 1.3b.
Full HD 1080P.
Support 12-bit deep color.
High performance up to 2.5Gbps.
IR extender receiver(included).
IR remote control(included).
No power needed(If the input equipment is standard， otherwise power needed).
Multifunction on switching: intelligent or mechanical.
Support uncompressed audio such as LPCM.
Support compressed audio such as DTS Digital， Dolby Digital.
It is compatible well for HD-DVD， for Sky-HD， for STV， for PS3， for Xbox 360， etc.
HDCP pass-through.
Specifications:
Input DDC Signal: 5 volts p-p(TTL)
Output Video: HDMI 1.3b
Maximum Single Link Range: 1920 * 1080p
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 2.5Gbps/250MHz
Resolutions: 480i， 480p， 576i， 576p， 720p， 1080i， 1080p
Operating Temperature: 0c to + 70c
Operating Humidity: 10% to 85% RH
Storage Temperature: -10c to + 80c
Storage Humidity: 5% to 90% RH
Consumption(Max): 5W
Item size: 8 * 5.8 * 1.8cm
Item weight: 90g
Package Included:

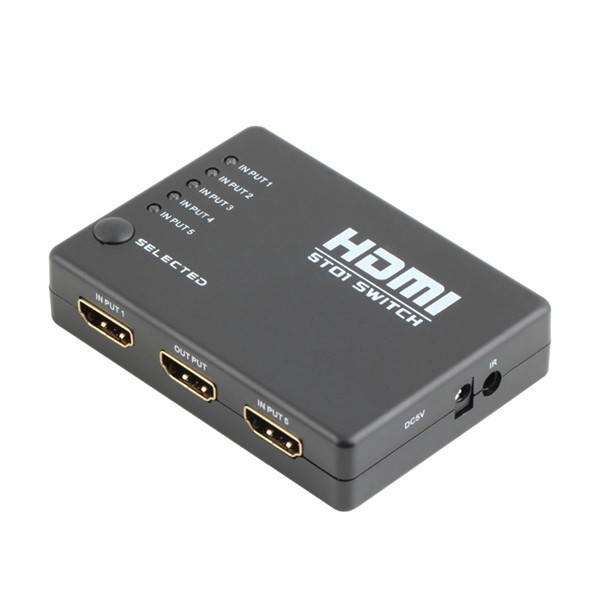

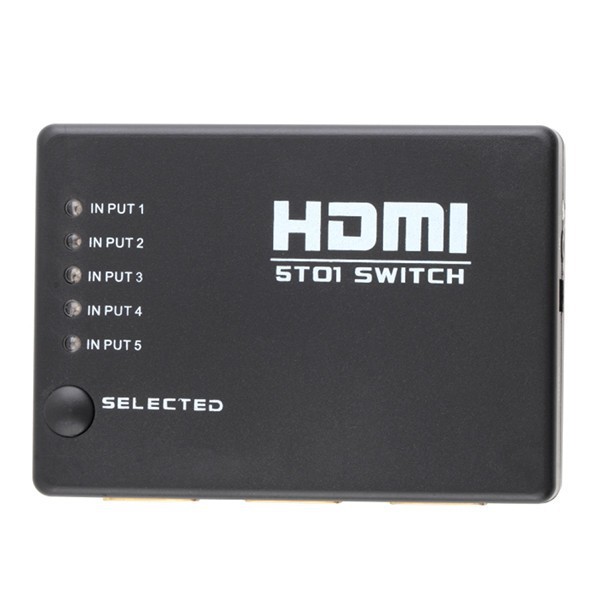

1 * HDMI Switcher

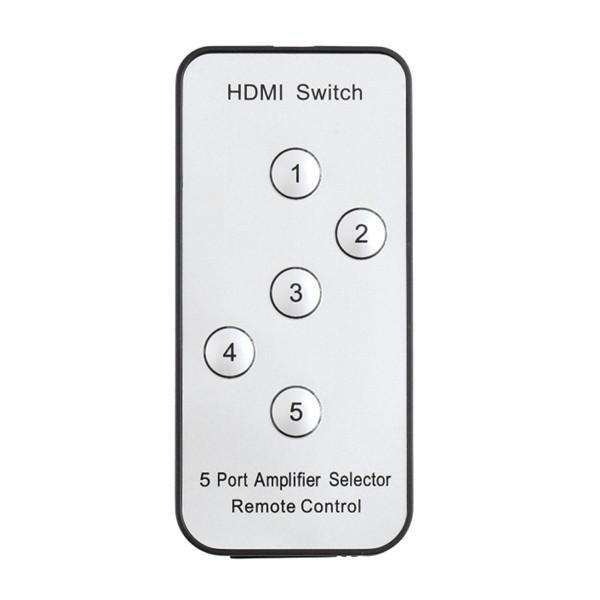

1 * Romote Control
1 * IR Extender Receiver
