Item Descriptions:

specification:

Bluetooth version: Bluetooth V4.1, CSR 8670 chipset, A2DP

Transmission range: within 10 m (no obstacle)

Support: Dual stream (TX mode); Multipoint (RX mode)

Codec: aptX Low Latency (aptX LL), aptX, SBC

Working time: about 8 hours

Charging time: 2 hours / DC 5V

Size: 46 * 33.2 * 9.7 mm

Product weight: about 14.5 g

please note:

Since TROND BT - DUO does not have built - in microphone, hands - free calling is not supported.

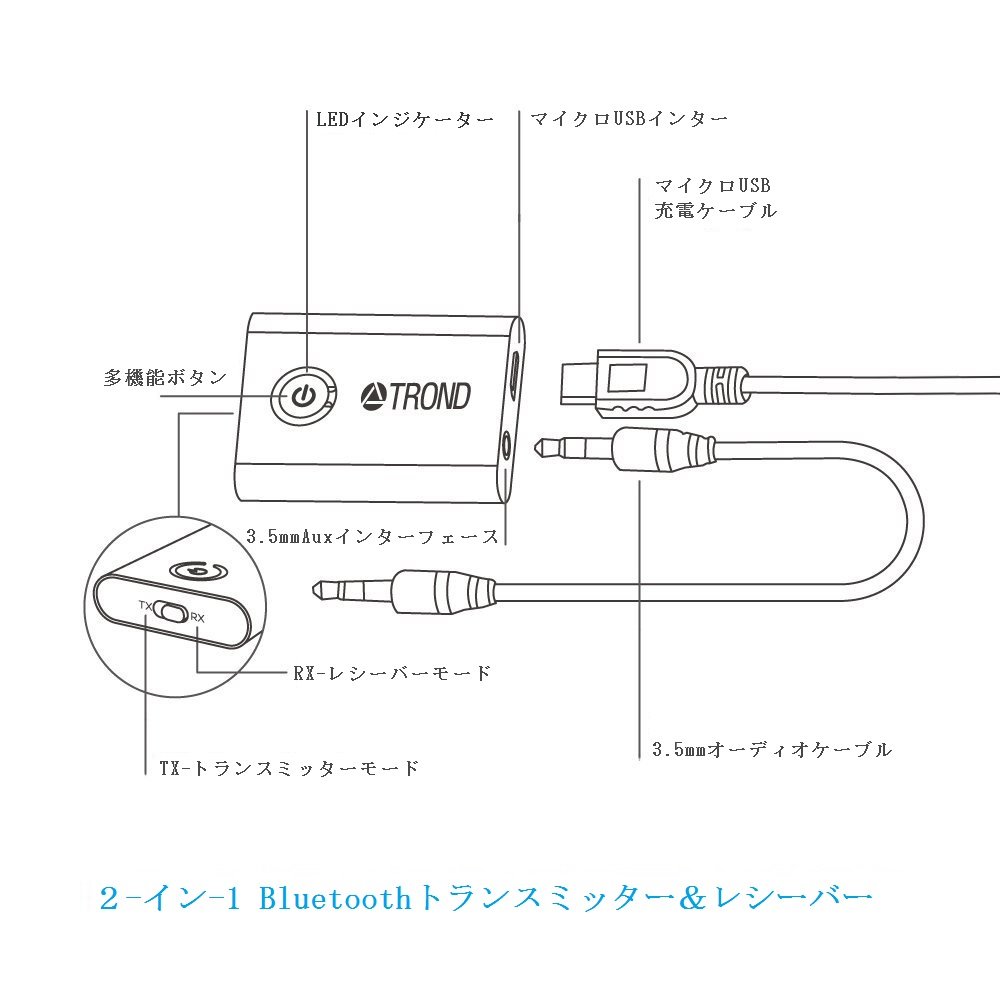

TROND BT-DUO can be used as both transmitter and receiver.

Transmission and reception can not be used at the same time.

In order to use aptX and aptX Low Latency, your Bluetooth headphones and speakers need to have aptX and aptX Low latency function.

Otherwise, codec will automatically be aptX or SBC.

Even with a latency of 40 ms than aptX Low Latency, use of instruments etc is not accepted yet.

Even though Bluetooth technology is aptX LL, it may not meet your requirements.

Please be aware of musicians.

If TROND BT - DUO does not operate and all the buttons do not function properly, connect and disconnect the USB charger by holding down the MFB multi function button and shut down the BT - DUO.

Please note that this operation will not delete the previous pairing record.

If you want to delete all pairing records, please reset BT-DUO.

When used inside the car, when starting the engine, you can not turn on the receiver automatically.

It must be manually turned on again.

If your TV has only the optical digital (TOSLINK) terminal, you need a digital / analog audio converter to set up the connection.

Alternatively,

TROND BT-DUO X

Please purchase, 3.5 mm and digital both digital optical terminals are supported.

There is a Japanese manual for electronic version, we will send you an email after purchasing the item.

If you do not receive mail, please feel free to contact us if you wish.

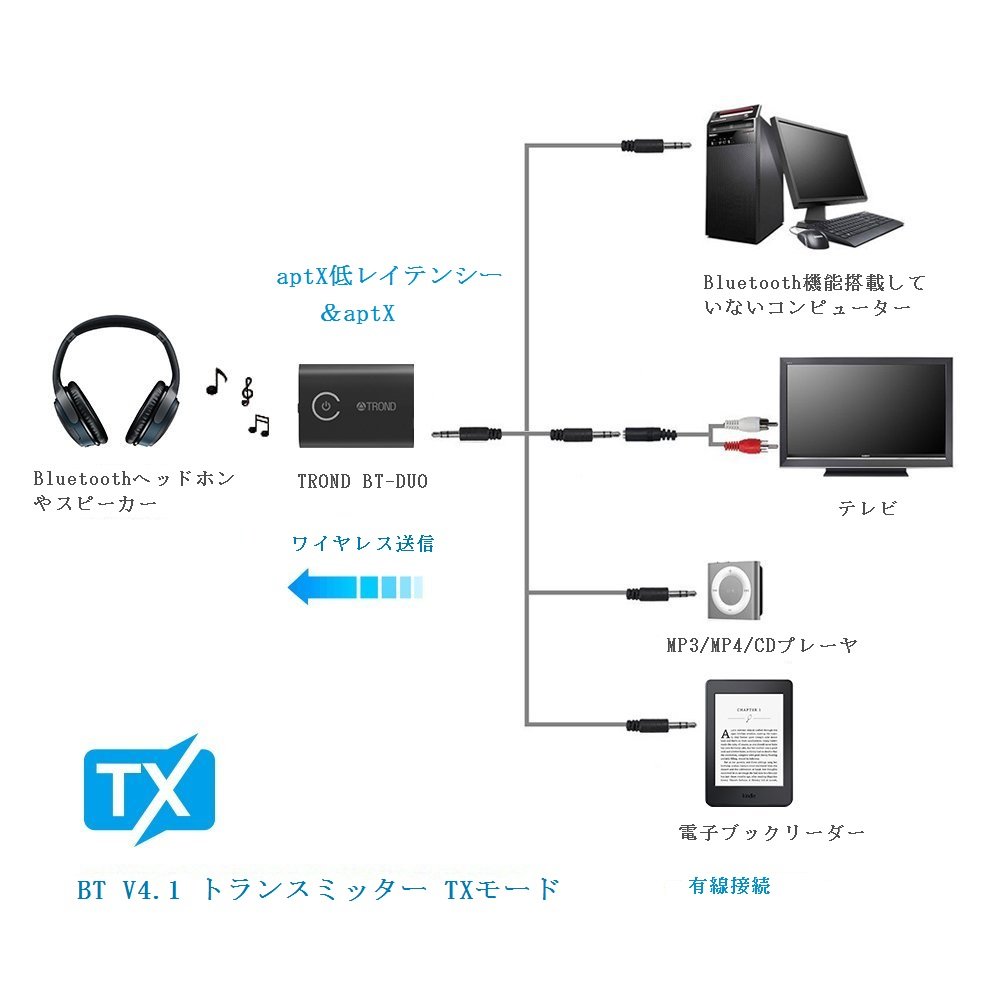

Bluetooth transmitter (TX) mode

Transmitter (TX) mode:

Switch the operation mode to "TX".

Connect to the audio OUT port of an audio source not compatible with Bluetooth, such as TV, iPod, CD player, e-book reader, Nintendo Switch / 3DS, and pair with Bluetooth headphones.

In this way, you can enjoy nighttime TV, games and music, not becoming a trouble for your family.

Children are studying in the surroundings It is very useful.

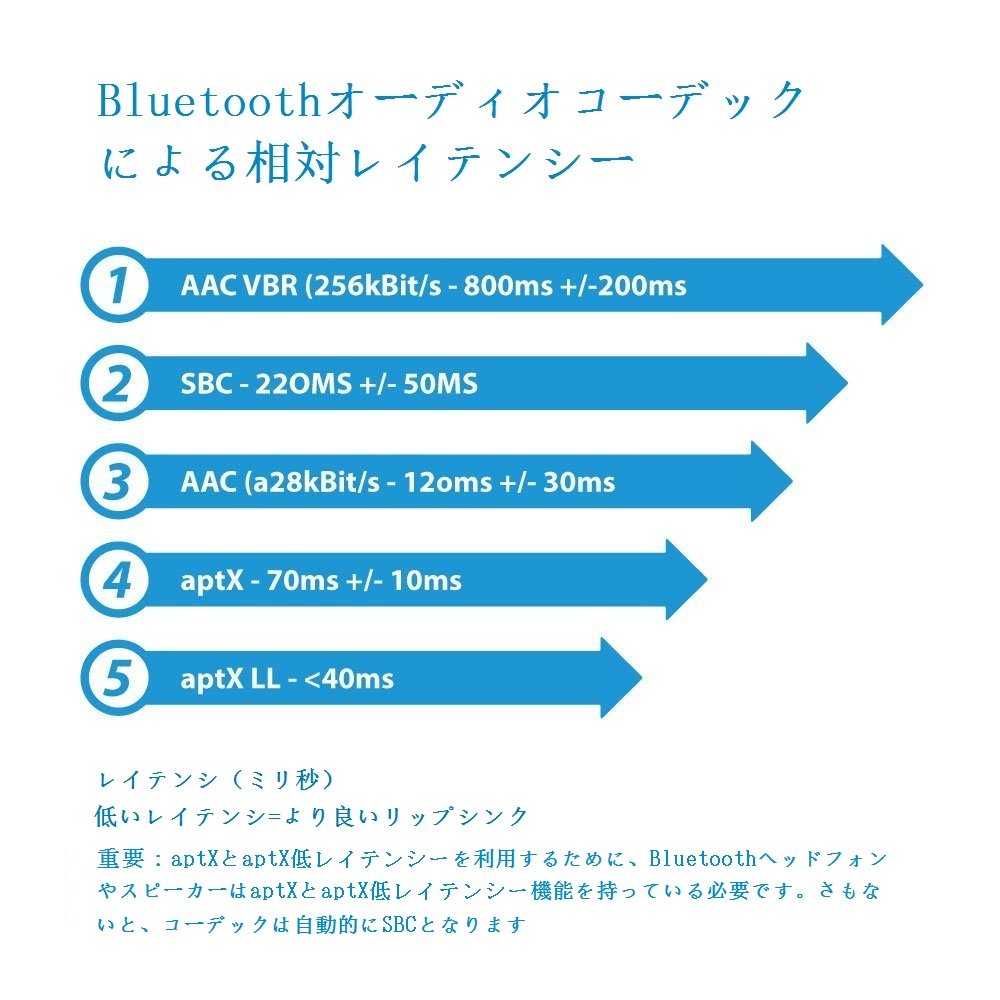

With AptX Low Latency installed without voice delay

By adopting aptX LL, you can limit the audio delay to a small limit effectively, and you can comfortably watch wireless audio and video without delay.

In order to take full advantage of low delay performance (aptX LL)

TROND TD - BH 01 Bluetooth V 4.2 headphones (aptX LL compatible)

Please purchase.

Dual stream (2 simultaneous connection possible)

TROND BT-DUO is capable of pairing with two Bluetooth headphones and speakers, and it can output audio simultaneously to two Bluetooth devices.

In this case, the codec is automatically downgraded to SBC from aptX LL.

To support aptX LL for two Bluetooth headphones,

TROND BT-DUO II

Please use.

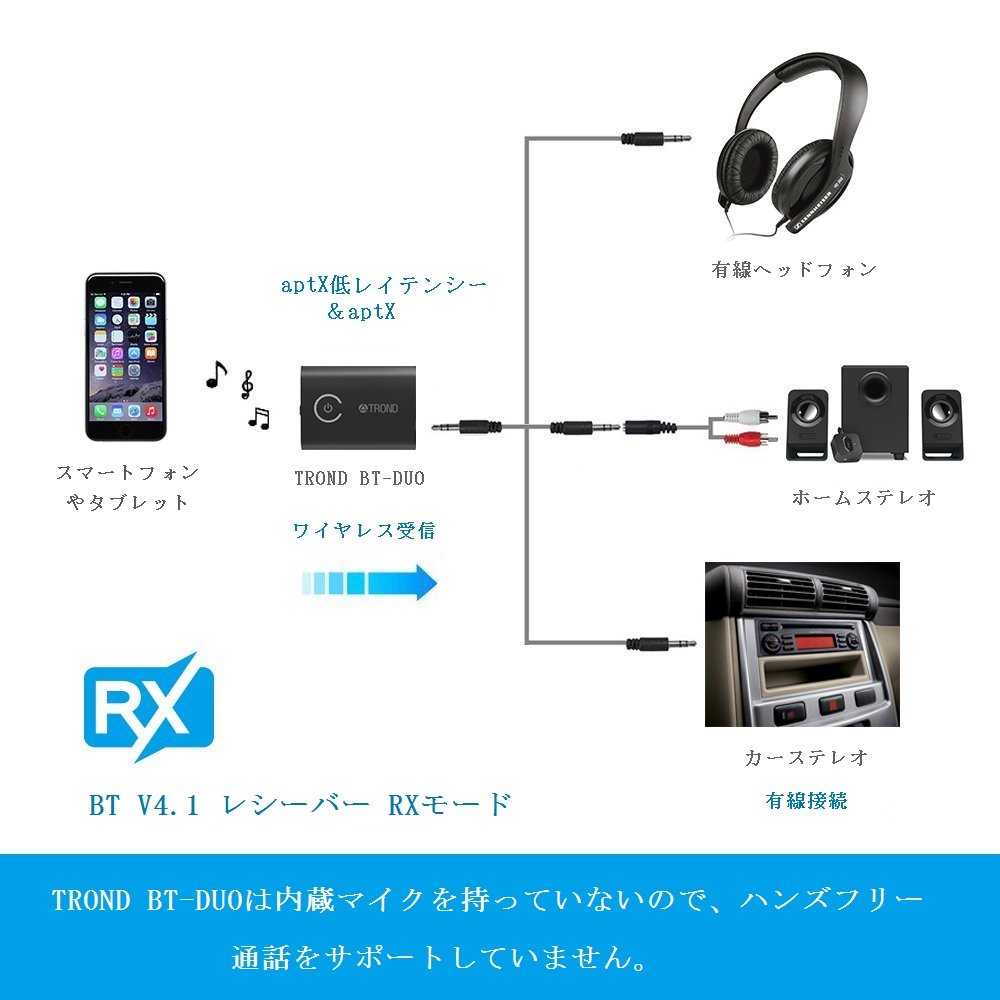

Bluetooth receiver (RX) mode

Receiver (RX) mode:

Switch the operation mode to "RX".

Connect to the audio IN port of a non-bluetooth device such as wired earphone, speaker, car stereo with 3.5 mm cable and pair with a Bluetooth compatible audio source such as smartphone or tablet.

You can enjoy high-quality music wirelessly without purchasing Bluetooth headphones or speakers.

RX mode supports AptX Low Latency

Most 2 - in - 1 transceivers do not support aptX LL & aptX in receiver mode.

TROND BT-DUO adds aptX LL & aptX to receiver mode unlike other brands.

We provide economical solutions by converting conventional wired headphones and speakers to Bluetooth headphones and speakers of aptX LL function.

Multipoint support (2 simultaneous connection possible)

Two smartphones can be connected to TROND BT - DUO at the same time, and the sound will be one of the outputs.

To play music from a single smartphone, you need to pause another music.

More product features

Compact size, powerful performance

The size of TROND BT-DUO is only 46 * 33.2 * 9.7 mm, about 14.5 g.

It does not get lost at the installation place.

Mini, easy to store with lightweight design, portable is convenient.

It can be wirelessized even outside my home.

Enjoy your favorite music wirelessly anytime!

We are equipped with the best CSR 8670 Bluetooth V 4.1 chipset, please enjoy the convenience of being freed from wired life.

Various cables included

3.5 mm AUX cable (50 cm):

Please use TROND BT-DUO with this long cable and do not let the TV cut off the Bluetooth signal.

3.5 mm aluminum adapter:

Please use this adapter to connect to iPod, e-Book reader, or car stereo to eliminate cable entanglement.

3.5 mm female · RCA male cable:

Use this cable adapter when using only white / red RCA audio output port on TV or home stereo.

DC mode & can be used while charging

- Connect TROND BT-DUO to a good quality USB charger and charge, streaming audio as much as possible.

Built-in 160 mAh Rechargeable Battery

- For first use, full charge is required.

Full charge and 8 hours playback are possible.

- Insert the USB charger when needed.

It can be fully charged for about 2 hours.

- When the LED is blinking red, it needs to be charged as soon as possible.

The LED lights up red during charging and turns off when it is fully charged.

Features:

• Please enter model number Confirm this is compatible:
• ★ 【aptX and aptX low latency adopting transmitter / receiver】 TROND BT-DUO is equipped with the premium CSR 8670 chipset and supports the latest Bluetooth V4.1.
• Easily make Bluetooth equipment not compatible with wireless!
• Corresponding to aptX Codec standard, it is possible to enjoy high-quality music wirelessly from Bluetooth connection from aptX source device such as TV, smartphone or tablet.
• The apt-X Low Latency technology can limit the audio delay to the utmost limit and can comfortably watch wireless audio and video with no delay.
• ★ 【Transmitter (Transmitter) mode】 TROND BT-DUO is not equipped with Bluetooth function TV, MP3, CD player, PC, iPod, Nintendo 3ds, PS3 / PS4, audio from old walkman and amp are Bluetooth speaker
• , Transfer to headphones, receivers, etc., you can enjoy CD sound quality wirelessly.
• It does not become a trouble of the family, it is a big success in television at night, movie appreciation, games and so on.
• ★ [Receiver (Receiver) mode] It is possible to switch from the transmitter (TX) to the receiver (RX) by switching only the switch.
• You do not have to pay high cost to use aptX low latency wireless headphones and speakers.
• By connecting TROND BT-DUO, conventional wired earphones and speakers can be easily switched to wireless audio devices with aptX low latency (aptX LL).
• ★ 【2 simultaneous connection possible】 When using as a transmitter, TROND BT-DUO can pair with two headphones and speakers, and can output audio to two Bluetooth devices at the same time.
• When used as a receiver, two Bluetooth devices can be connected at the same time, but the sound will be one of the outputs.
• By using TROND 2-in-1 Bluetooth receiver & transmitter you can enjoy twice as much music as before.
• * Note: When pairing two devices at the same time with TROND BT - DUO, the codec automatically becomes SBC.
• ★ 【High quality set contents】 Technical qualification mark acquired, TROND 18 month warranty, 30 days money back guarantee.

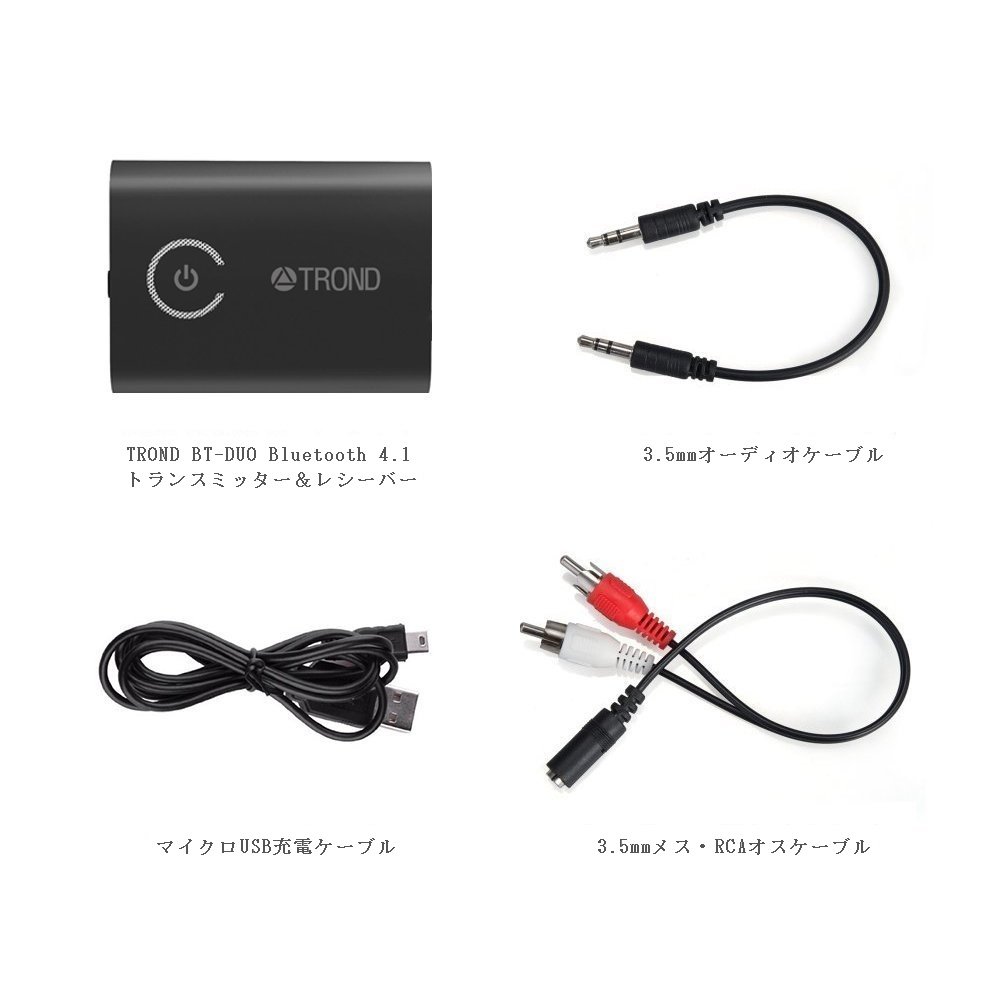

• TROND BT - DUO 2 - in - 1 Bluetooth adapter (main unit), micro USB charging cable, 3.5 mm audio cable (50 cm), 3.5 mm female · RCA male cable, 3.5 mm AUX conversion adapter for aluminum, English instruction manual, electronic version
• There is Japanese instruction manual of

Product information:

Shipping Weight: 81 g

Package Dimensions: 2.39 x 9.80 x 13.21 cm
