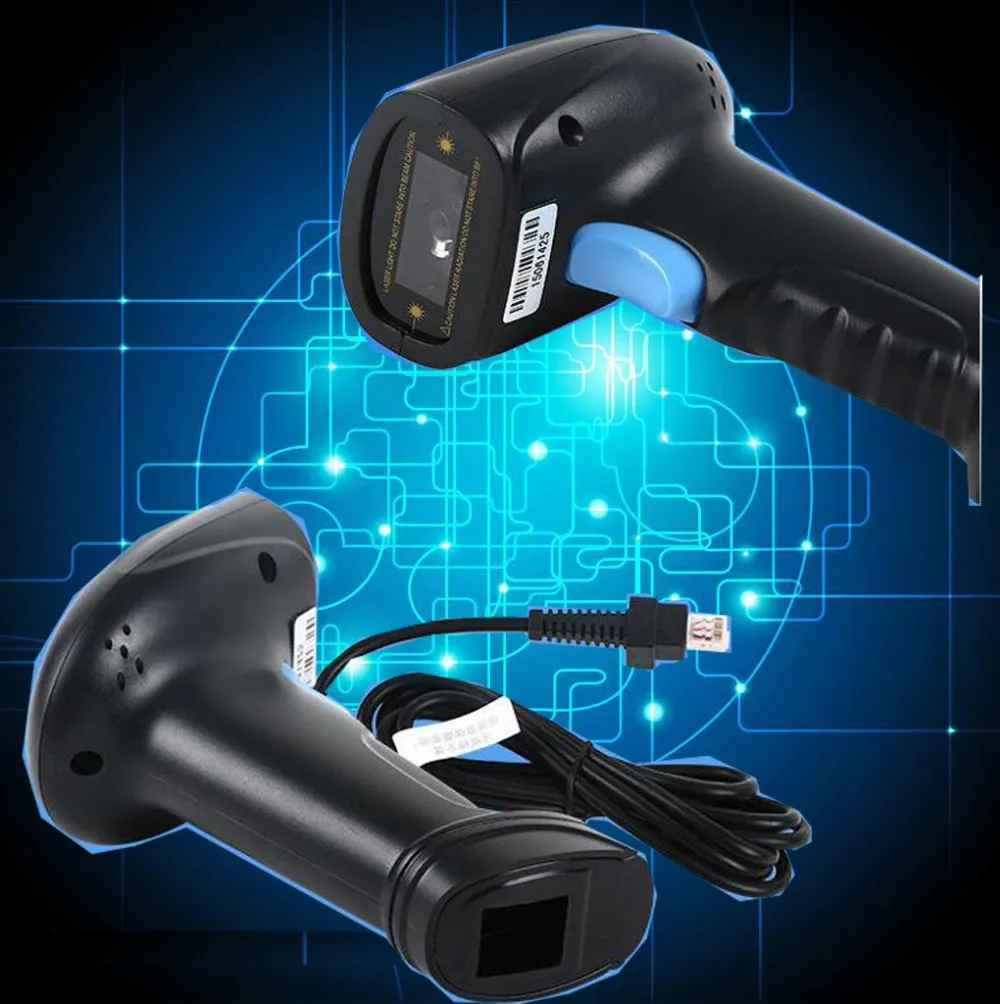

2D/QR Hand-Held Laser Barcode Scanner YK-980C(YK-M3)
?
Four-chip Dealing Technology Exclusively， The most fast speed 2D/QR barcode scanner;
?
Bifocal optical Controlled technology Exclusively，High density and wide barcodes can be decoding easily;

M3.FM3 scanner.jpgM3.HM3.G

PERFORMANCE PARAMETERS
Sensor Resolution:960*640
Decoding ?Ability:
1D:EAN- 8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codebar，industrial 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI，postal code ect.
2D:PDF417，DM，QR，Chinese-Sensible Code ect.
Light ?Source:High Brightness， Infrared LED ? ?
Speed:130?times /Sec
Host System Interface:USB2.0
Optical Coating Technique:Gold-Plated
Optical Technique Level:V-V1 (Aerial Cameras)?
LED Indicator:Buzzer and bi-color light: Red-power， Blue-decoding Successfully
ENVIRONMENTAL PATAMETER
Drop :Affordable 2M free fall drop 300 times
Environmental Sealing:IP54
Operating Temperature:-20 degrees to 55 degrees?
Storage Temperature:-40 degrees to 65 degrees
Temperature Humidity:5% to 95% Relative humidity， Non-condensing
Storage Humidity:5% to 95% Relative humidity， Non-condensing
Light Levels:0-120000LUX
PHYSICAL PARAMATERS
Weight (pcs):N.W: 157g/pcs ?G.W:349g/pcs?
Size (pcs):Host: 167mm*72mm*95mm ?Package:190mm×115mm×80mm
ELECTRICAL PARAMETERS
Operating Voltage :5V
Operating Current :280mA
Power:1.4W
Safety Standard:EN60950-1
EMC:EN55022 EN55024
M3.N

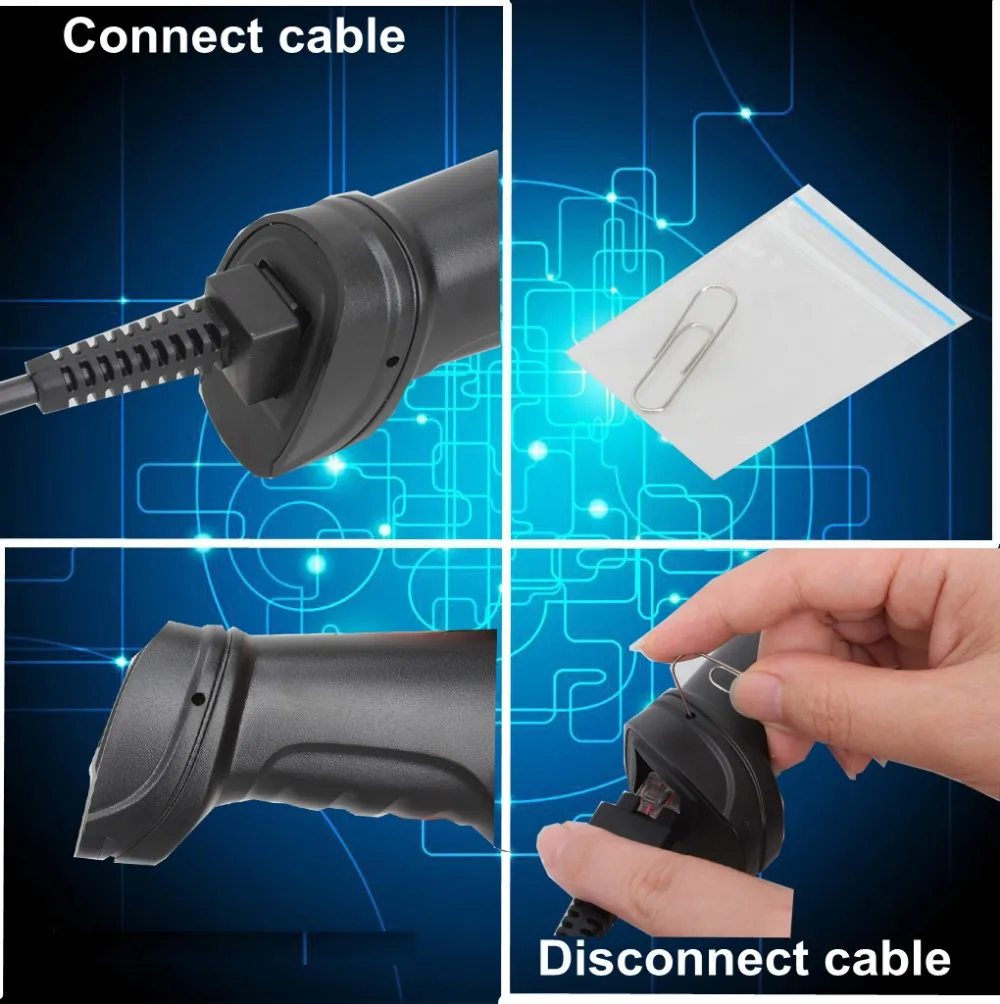

How to disconnect cable from scanner?
CHAI

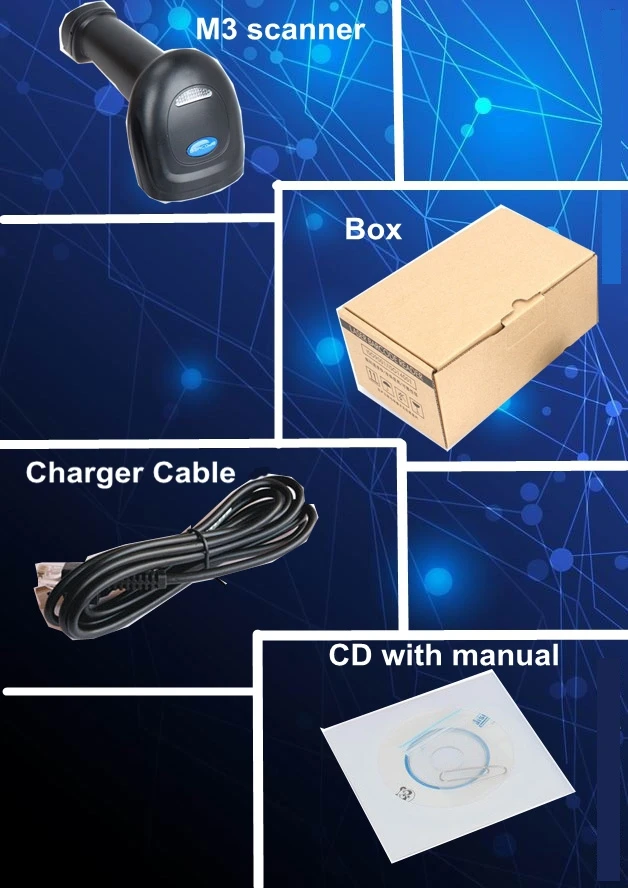

What has included in the package?
M3 scanner*1 pcs
CD(Include manual)*1 pcs
Charger cable*1 pcs
Paperclip*1pcs
Box*1 pcs
