Product Description

Parameters:
Input voltage : 5-36V
Output voltage :1.25-32V (continuously adjustable,default output 17V.)
Output Current : 5A MAX(Please use it within 4.5A)
Output Power: Max 75W (Please use it within 50W. if the pressure difference is big,please reduce power)
Operating temperature: -40 to +85 ° C
Operating frequency: 180KHz
Conversion efficiency : up to 96%
Short circuit protection: Yes
Overtemperature protection: (automatically shut off the output after overtemperature)
Input reverse polarity protection: No, (if necessary, please in input
String into high current diode)

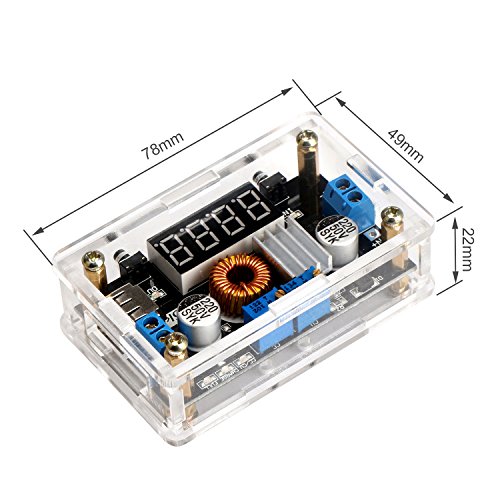

Installation: 4pcs 3mm screws

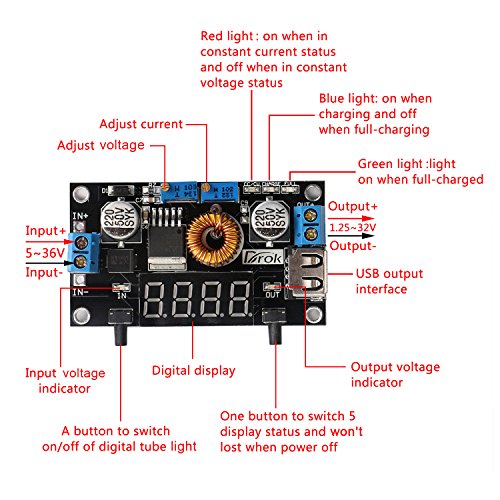

Wiring:(solder terminals) V-IN is the input, V-OUT is the output

Usage:
1. Use as an ordinary buck module with overcurrent protection capabilities;
2. Use as a battery charger;
3. Use it as a constant current LED driver module.

Note:
1. If the module can not be adjusted, the output voltage is always equal to the input voltage." When you encounter this problem, please counterclockwise rotation of the potentiometer 10 laps or more, then you can adjust the output voltage. Because the factory default output voltage is 17V.
2.Module output terminal string has a current sampling resistor, there will be 0-0.2V voltage drop after connected to the load, it is a normal phenomenon.
3.If its output is more than 3A/35W, please enhance heat dissipation!

4.This DC converter is single output, the output voltage of the USB port is the same as the output voltage of the module, if your load is USB device, please make sure the module's output voltage is set at 5V.

Package include:
1 x Buck Converter

Feature

Output voltage :1.25-32V continuously adjustable,default output 17V. Output Current : 5A MAX( Please use it within 4.5A)
Having a current limiting protection. Even if output short circuit, it will not burn module;
Use as an ordinary buck module with overcurrent protection capabilities
Use it as a constant current LED driver module or a battery charger
If its output is more than 3A/35W, please enhance heat dissipation!
Brand : DROK
MPN(PartNumber) : 091029
