Brand Name:FAT CAT
Model Number:USR-TCP232-302
is_customized:Yes
Condition:New

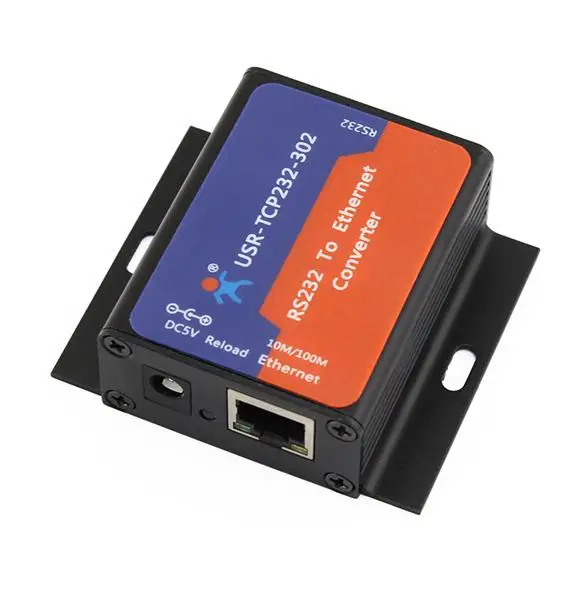

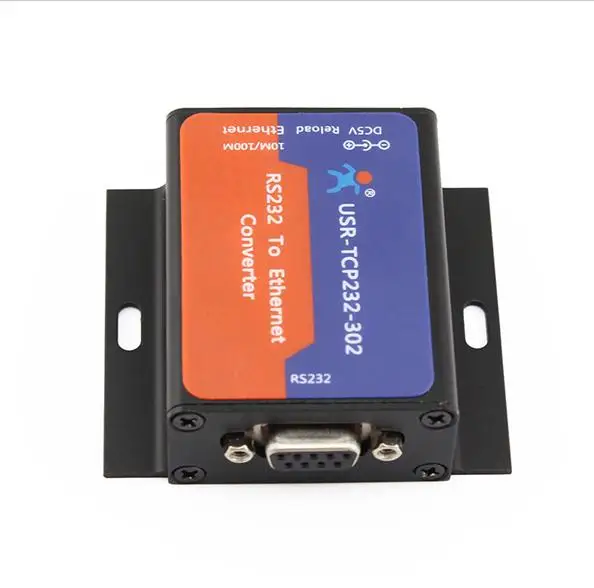

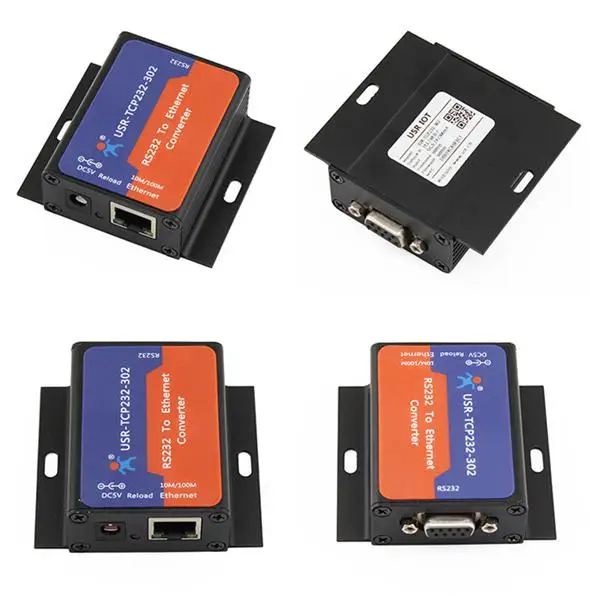

USR-TCP232-302 Tiny Size Serial RS232 to Ethernet TCP IP Server Module Ethernet Converter Support DHCP/DNS
New model [USR-TCP232-302] RS232 to Ethernet converter is upgraded version of old one [USR-TCP232-200]
USR-TCP232-302 is a low-cost serial device server,whose function is to realize bidirectional transparent transmission between RS232 and Ethernet.
Introduction of RS232 Ethernet Server
This is a serial RS232 to Ethernet server, used for data transparent transmission. USR-TCP232-302 is a low-cost serial device server,whose function is to realize bidirectional transparent transmission between RS232 and Ethernet. USR-TCP232-302 is internally integrated with TCP/IP protocol. User can apply it to device networking communication.
Features of RS232 Ethernet Server
- Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Support DNS function
- Set parameters through webpage
- Upgrade firmware via network
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
- Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
- Support virtual serial port and provide corresponding software USR-VCOM
- Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
- User-defined registration package mechanism, check connection status and use as custom packet header
- Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
- The global unique MAC address bought from IEEE, user can define MAC address
- Restore factory default
- Across the gateway, switches, routers
- Can work in LAN, also can work in the Internet (external network)
- Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
- Support customization
Application Field of RS232 Ethernet Server
- Industrial data transmission, industrial automation
- security and protection monitoring, public security
- Smart home, power control, environmental monitoring, intelligent agriculture
- Door check on work attendance system, POS system, rice selling system
- Building automation system, power monitoring, self-service banking system, telecom machine room monitoring

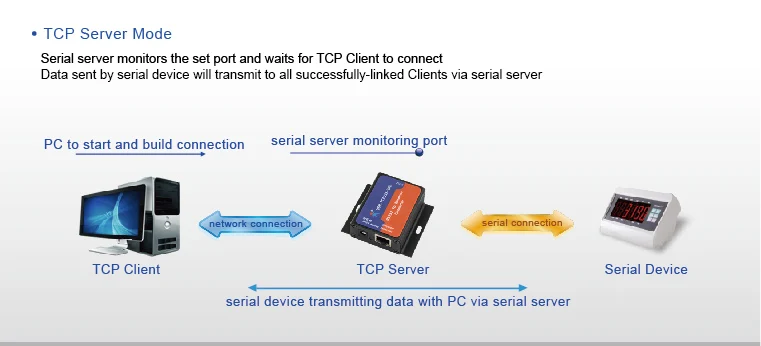

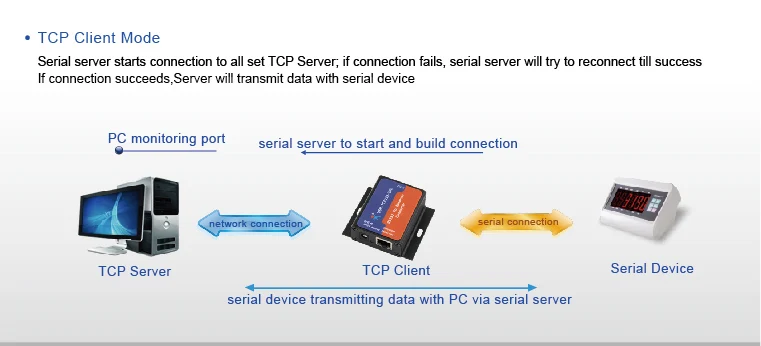

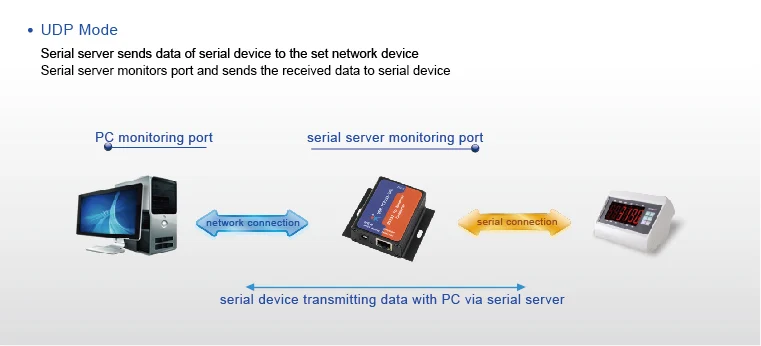

Work Mode of RS232 Ethernet Server

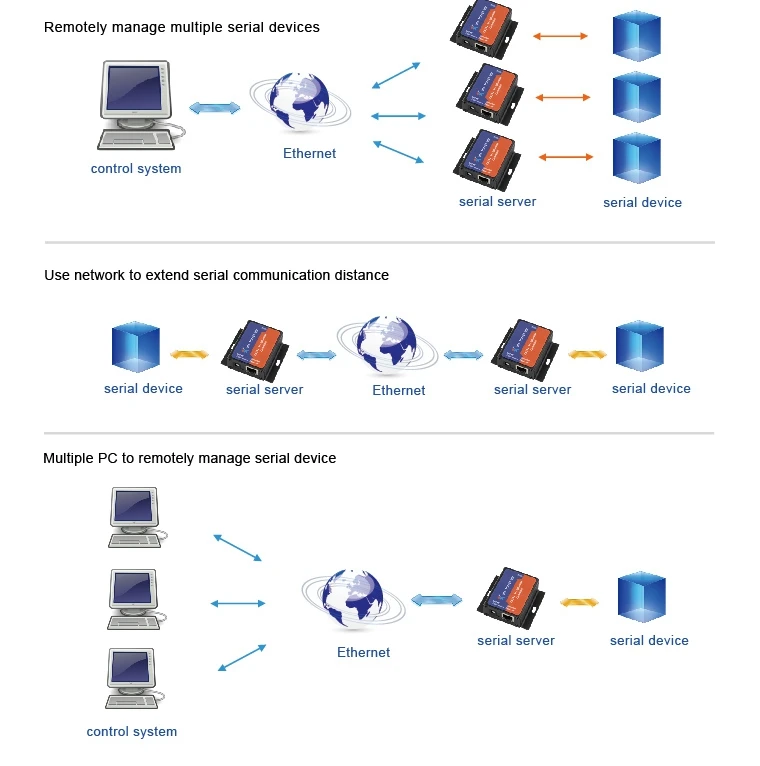

Application of RS232 Ethernet Server
