Item Descriptions:

This product is a mobile battery type video camera with the first 2.0 inch LCD monitor.

This product is aimed at crime prevention and personal security for protecting important families and property.

It is a practical tool required at the home in areas such as safety and living.

It is easy to operate, practical, convenient to carry, necessary for practical tools in the fields of home security, education, life etc, to receive the patronage of each user.

Product function】 Movie shooting · Infrared shooting ※ Invisible type · Motion detection function · Auto recording function · External power supply · Repeat recording function · Charger function.

● Innovation not ever!

Shooting while watching the screen with a monitor!

Movie playback is always available!

● Maximum operating time about 10 hours!

Long time recording possible with large capacity battery installed!

● Ultimate operability specialized in moving images!

Automatic recording starts with one power button!

● Movie size realizes high-quality recording of full Hi-Vision 1080P!

You can choose from five more sizes!

● Invisible type red infrared LED adopted!

Shooting brightly even in the dark with an irradiation distance of about 2 m!

● Enhanced crime prevention function!

Secure security measures with external power & repeat recording function!

● Secret button / memory installed microSD card insertion slot and operation button in slide cover!

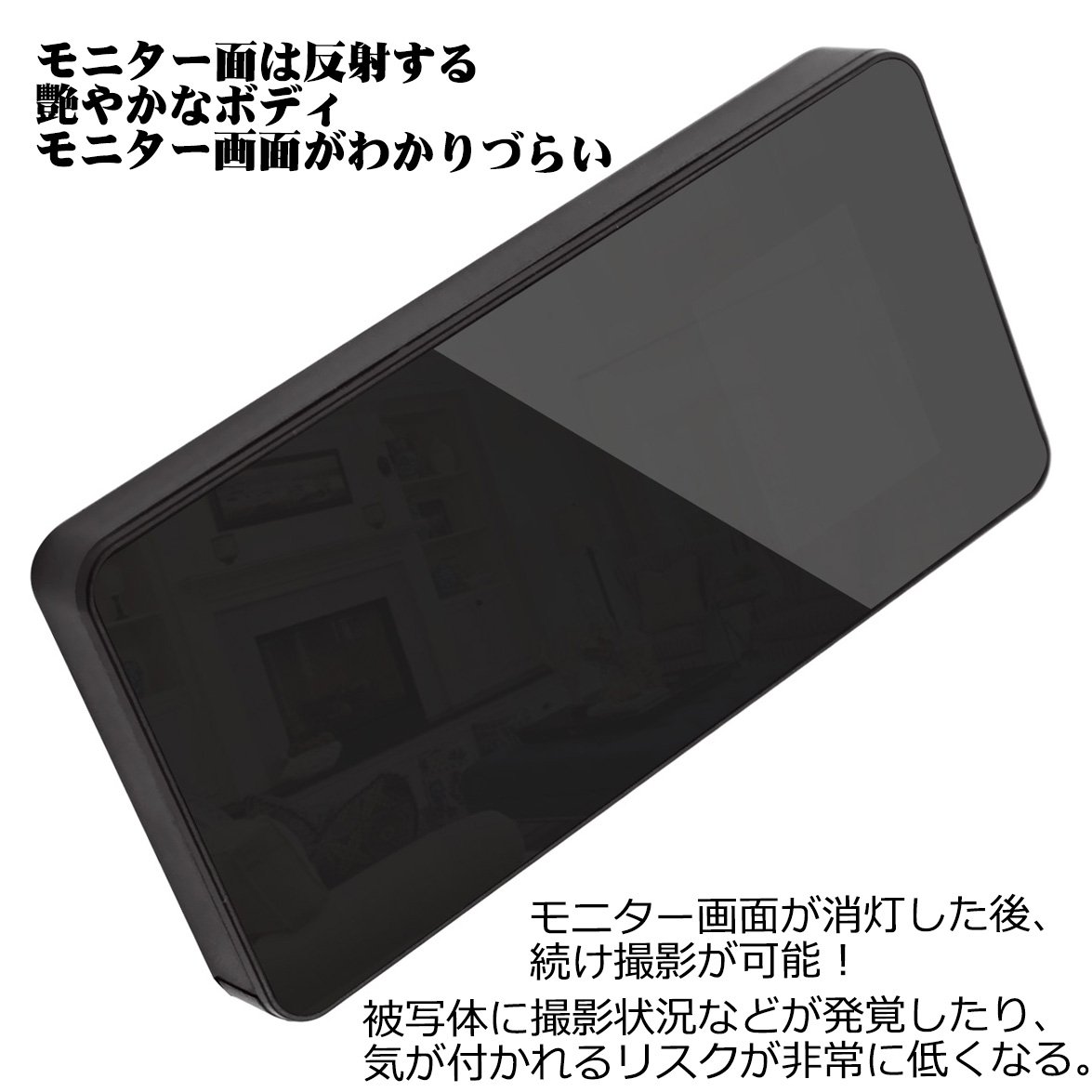

● Glossy and reflective lossless body, ultimate design that makes it difficult to understand the monitor screen!

● Popular charger type.

Actually can also charge external equipment such as smartphone and digital equipment!

【1】 Capture sharp images to details!

High-definition FullHD image quality realized!

【2】 Equipped with infrared LED with the strongest irradiation distance of about 2 m!

You can irradiate at any time with a safe manual lighting formula!

【3】 Recording while charging with a convenient external power supply function is also possible!

【4】 Overwrite the old data and leave only the latest data Repeat recording function with continuous recording support!

【5】 Easy operation by anyone!

Excellent operability!

Reliable design just push buttons according to the purpose!

【6】 Realize clear voice recording with super high performance microphone!

To proof evident with clear sound reproduction!

【7】 Easy setting of video shooting date display!

It can also be hidden.

【8】 microSD card convenient for data movement!

Up to 32GB compatible with long-term storage!

【9】 Easy custom to your specification on the monitor setting screen!

■ Film and dream high-tech items reality!

A spy item that a professional detective also practices!

■ Evidence collection item to protect yourself in daily life such as stalkers and suspicious people, DV damage!

■ To protect important people such as nursing homes and babysitters as suspected abuse.

Shooting a little in everyday life

· Videos for Web diary · Security cameras · Recordings of sudden meetings, negotiations · Accidents, records of crimes · Sports in general · Lessons and lectures

【First time use】

Please format microSD card on PC, formatted "allocated cell size"

Be sure to select 32 KB or more

Otherwise, if the microSD card shooting rate is insufficient, recording may not be done smoothly.

There is a possibility of freezing (microSD recommendation of lass 10 or more).

【Related parameters】

Screen size:

2 inches

Screen material

: LCD

Video code

: M-JPEG

Video Format

: AVI

Video Resolution

: 1080 FHD 1080 X 1080 pixel / 1080 P 1440 x 1080 pixel / 720 P 1280 x 720 pixel / WVGA 844 x 480 pixel / VGA 640 x 480 pixel

Image proportion

: 4: 3

interface

: USB 2.0

Minimum subject illuminance:

1.0 Lux (when using infrared: 0.0 Lux)

Charging voltage

: DC-5 V

Built-in microphone:

New high performance microphone

Recording time

: About 10 hours

※ Operating time with the monitor hidden, the infrared LED turned off.

* It is a standard of battery performance at the time of initial full charge.

* It will change depending on the usage environment of the customer.

* Battery running time is the theoretical value and it does not guarantee operating time.

Supported memory

: (MicroSD recommended Class 10 or better 8GB ~ 32GB compatible)

Battery type

: High capacity polymer lithium battery

Battery capacity

: 8200 mAh

Supported OS

: Windows me / xp / 2003 / vista; Mac OS; Linux

Media Player

: Operating system included, or mainstream audio / video media player

language:

There are 11 languages ​​including Japanese, English, Korean, Traditional Chinese, Simplified Chinese, and Russian

waterproof:

Non waterproof

Product size:

Approximately 145 × 71 × 15 mm (width × length × thickness)

Movie shooting:

(The microSD card has been inserted before recording) Press and hold the power button on the unit for about 2 seconds, and when switched on, recording will start automatically.

Press the OK button to stop recording.

Playback of this machine video file:

When the screen to stop recording is pressed, press the menu button twice to enter the video file, press the up button and down button to select it, confirm by pressing the OK button.

You can cancel by pressing the power button.

【Connect to PC】

With switch off, after connecting to the PC with the USB cable,

1, Can be used as a U disk: Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

Video files can be played.

2, Can be used as PC camera

Presentation:

a. If you can not recognize the PC after connecting this device to the PC, or if you do not pop up the mobile icon even after 30 seconds, insert it again.

Recommend that you use the microSD card's card reader to directly read and play back video files

.

When directly reproducing the video file stored in the internal memory of this recording device by USB connection, there is a possibility that the data quantity is excessive, the transmission speed is slow, and the reproduction can not be performed smoothly.

【About charging】

Please remove the microSD card, if you connect the 5 V USB power from the outside with the USB cable, the product will be charged.

The power indicator LED light blinks in blue. When the four lamps light, the charging is completed.

Record while charging:

If a microSD card is inserted, if you connect the 5 V USB power from the outside, recording will start directly.

Charging function for iPhone and smartphone:

You can charge it by connecting the product's USB output terminal and iPhone or smartphone with USB cable.

About inserting microSD card

First, please slide the lid of the button open, please insert the metal terminal of the microSD card into the microSD card slot on the side of the product, please push it once again when you remove it.

Screen goes off:

When the screen lights up, press the up button and the screen turns off after 5 seconds.

If the screen goes out, press one of the buttons to turn on the screen, then press the up button twice if you want to turn off the screen again, the screen will go out again after 5 seconds.

Infrared start off:

If the screen lights up, press the down button and the infrared light will be lit.

Press the down button to stop infrared rays.

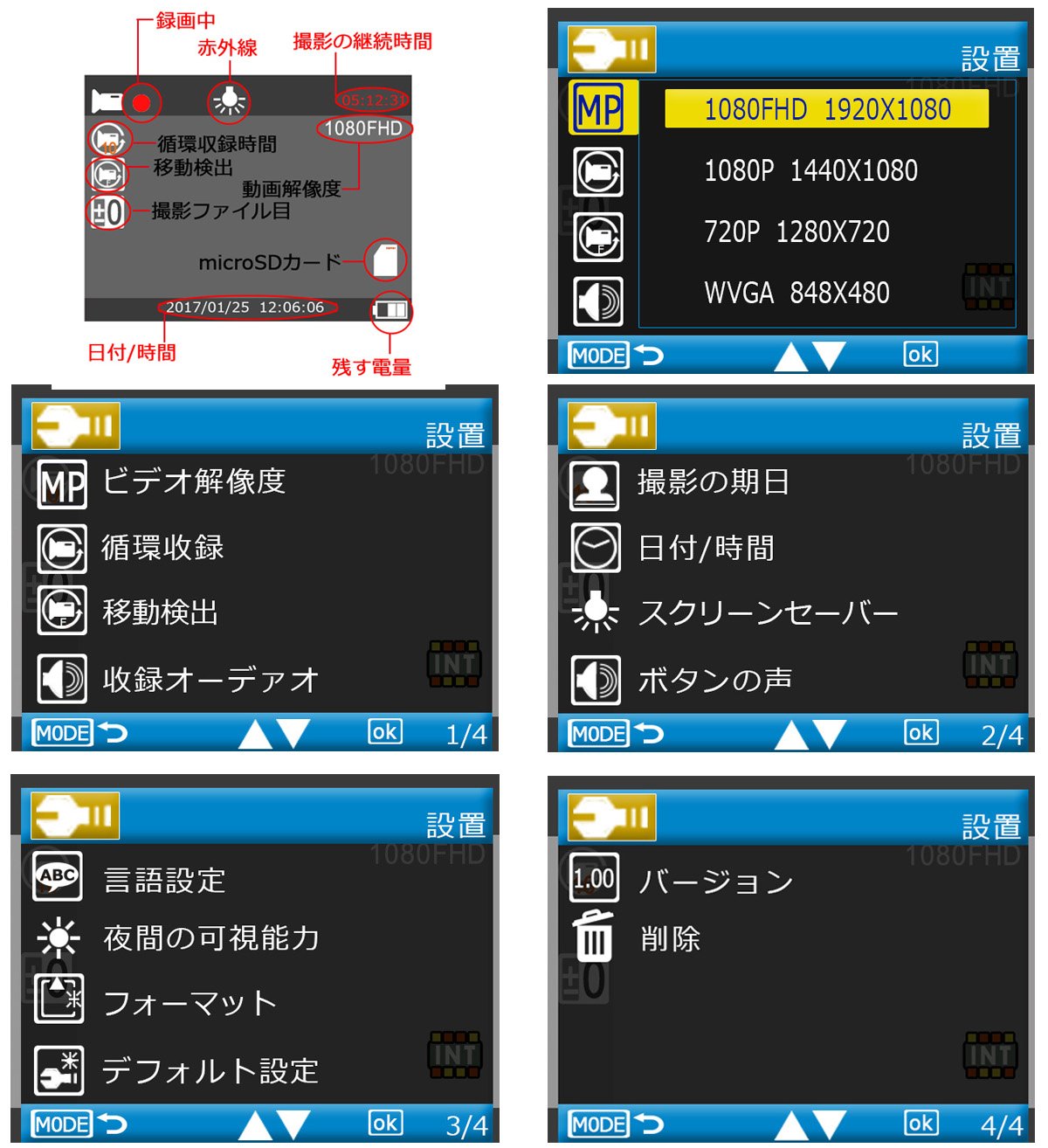

Menu setting:

When the screen to stop recording is pressed, press the menu button to enter the menu setting, select by pressing the up button and down button, confirm by pressing the OK button.

You can cancel by pressing the power button.

Remarks:

This product is equipped with a high sound quality microphone, consuming current is large during recording, there are a few noise in the photographing file, please understand.

If the recorded audio is related to this unit, there is no sound of the video file.

Protective cover is affixed on both sides of the equipment, please peel it.

【set content】

Body · USB connection cable · Japanese instruction manual ·

card reader

· Service card

【security】

SeiTang manufacturer's warranty is attached to this product.

We will exchange new items only in case of trouble based on correct use from purchase.

Please do not hesitate to contact us if you have any questions.

Features:

• Please enter model number Confirm this is compatible:

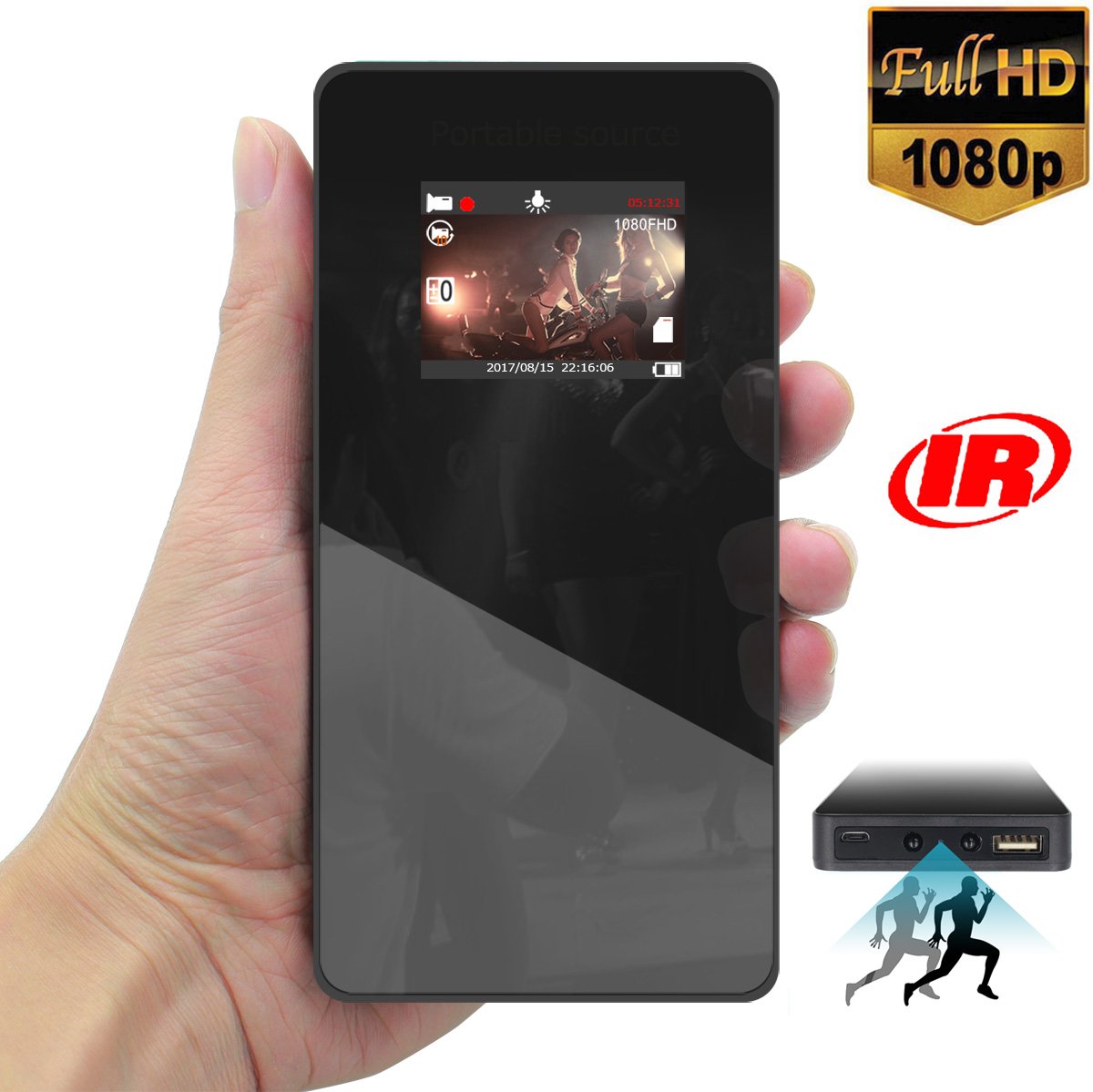

• 【New model】 New type with mobile battery type video camera, 2.0 inch monitor.

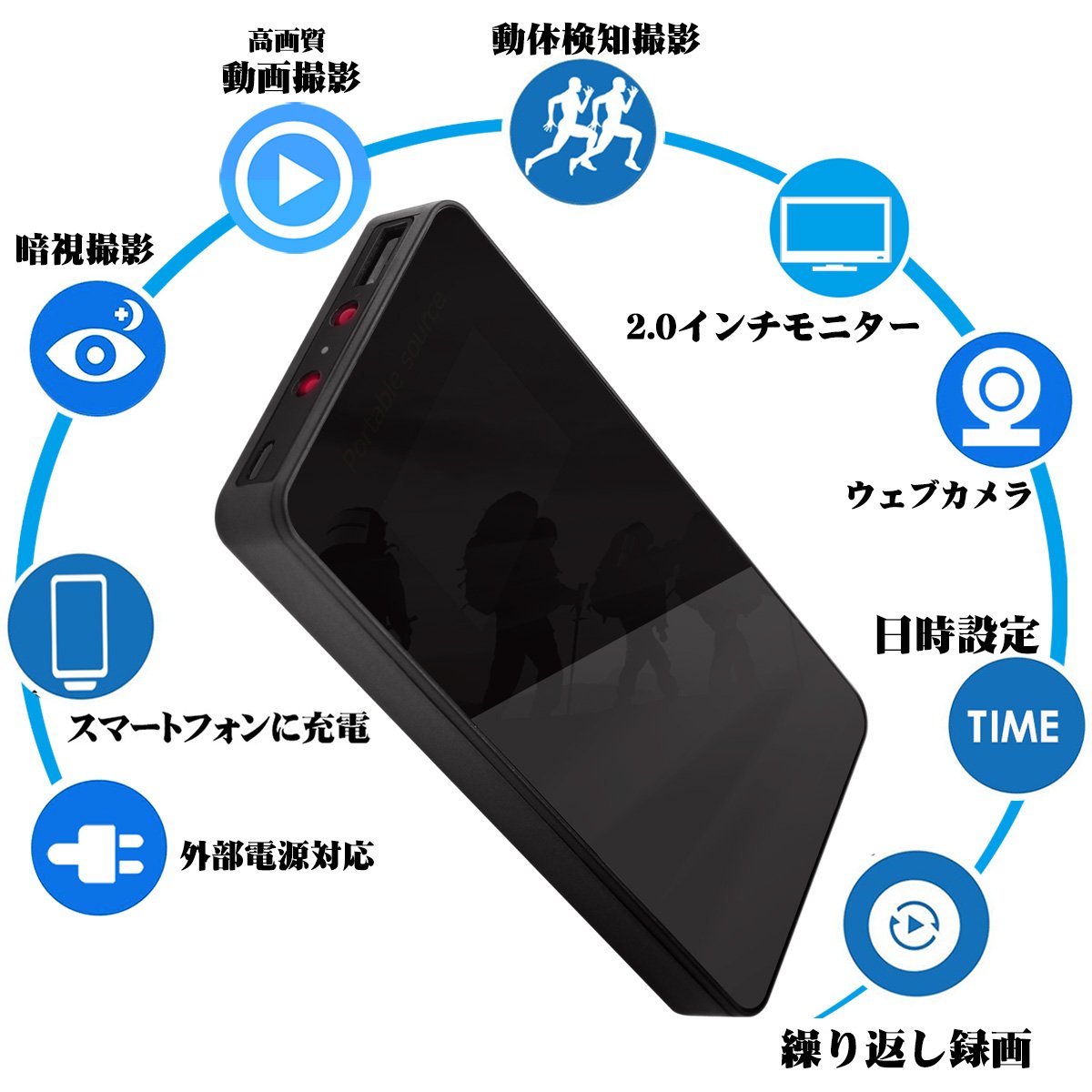

• Movie shooting · Motion detection function · Infrared light night vision function · Recording invisible function · Recurrent recording function · External power supply compatible · Date setting function · Charged on smartphone.
• 【High Quality / High Resolution】 Selectable from 5 different sizes, sharp images can be shot up to full high definition of Full HD 1920 × 1080pix, others 1440x1080pix, 1280x720pix, 844x480pix, 640x480pix.

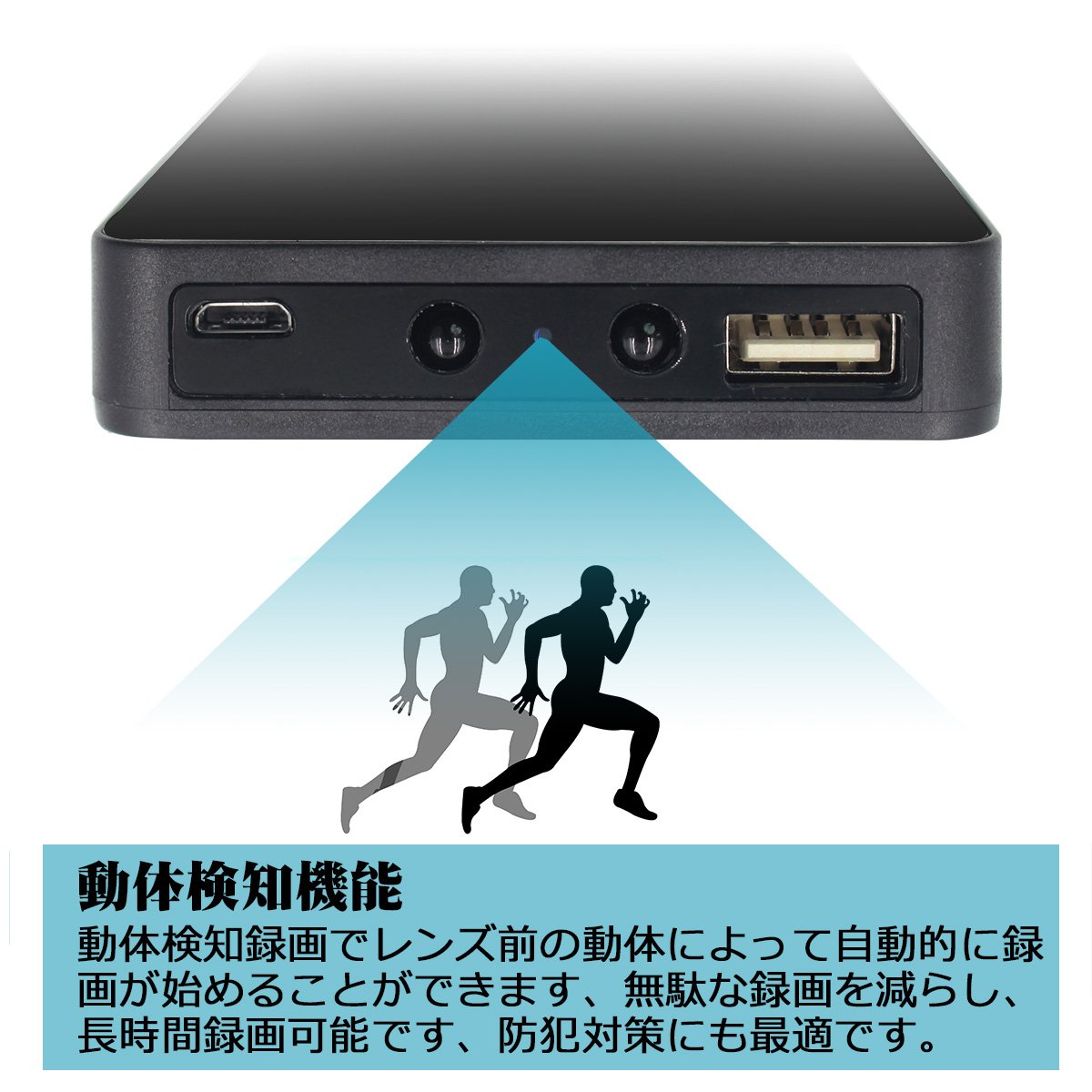

• [Motion Detection Function] It has a moving object detection function to detect movement and start shooting.
• Therefore, it can be utilized as a small camera for surveillance while you are away.
• If you turn on the motion detection function while you are away, you can start shooting by sensing suspicious movements and shoot a decisive moment pinpoint.
• Reduce useless recordings by detecting moving subject detection recording and it has become possible to use for a long time.
• 【Night vision shooting function】 With invisible type infrared light shooting with confidence in the dark, lighting the infrared light, it is possible to shoot within the illumination range even in perfect darkness, so the two lights are invisible
• You can use it.
• 【Long-time shooting】 Built-in mobile battery with a large capacity of 8200 mAh Maximum running time Approximately 10 hours, shooting is finally realized while charging, repeated recording function + maximum microSD 32 G correspondence, long time shooting without worrying about battery
• It became possible.

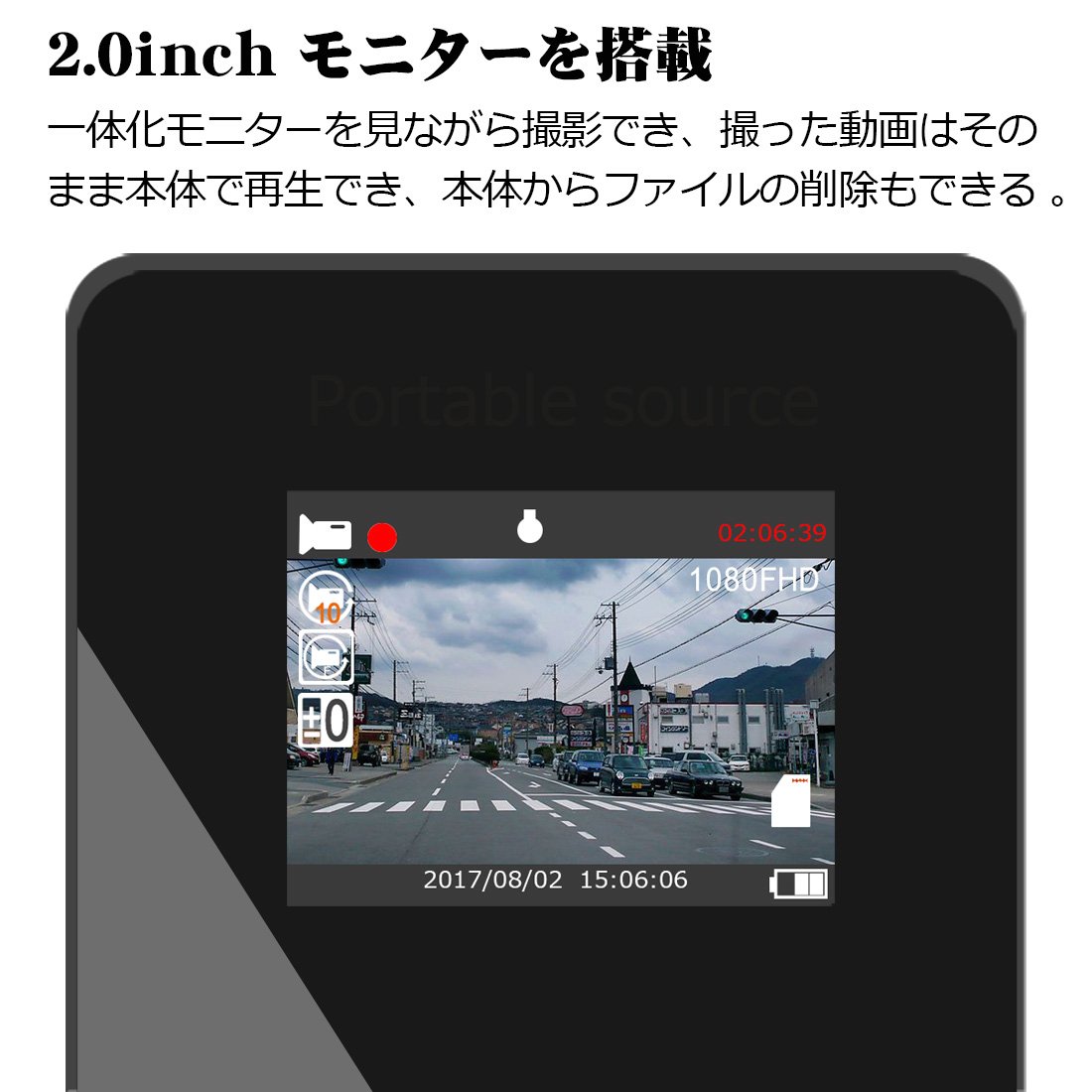

• 【Built in monitor】 You can shoot while watching the integrated monitor, you can play the movie you just shot on the main body and delete the file from the main unit.

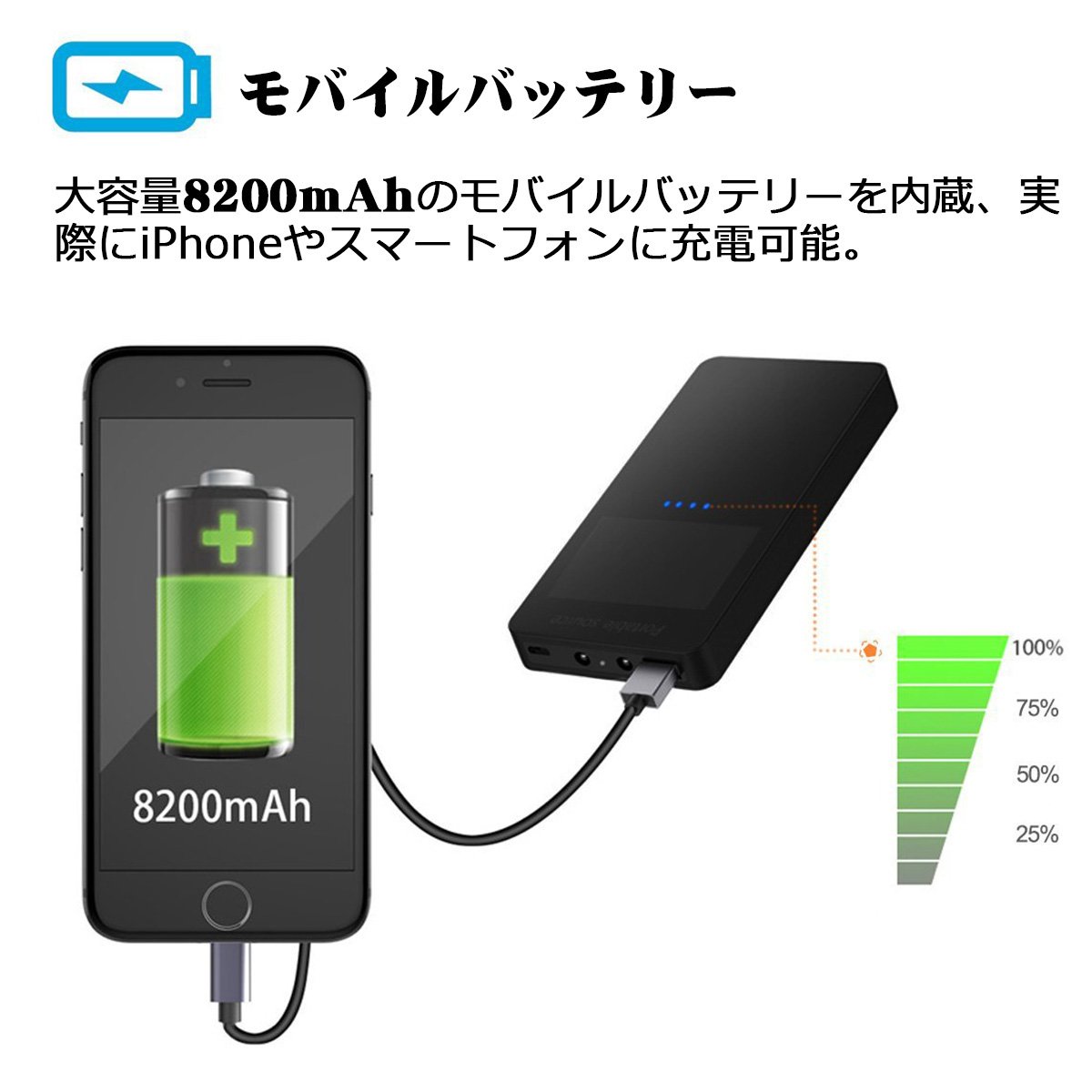

• [Actual chargeable] Actually able to charge iPhone or smartphone, you can use it as a charger with your cable.

Product information:

Shipping Weight: 231 g

Package Dimensions: 3.30 x 9.40 x 16.51 cm
