Introduction:
100% Brand NEW!!!
Feature:

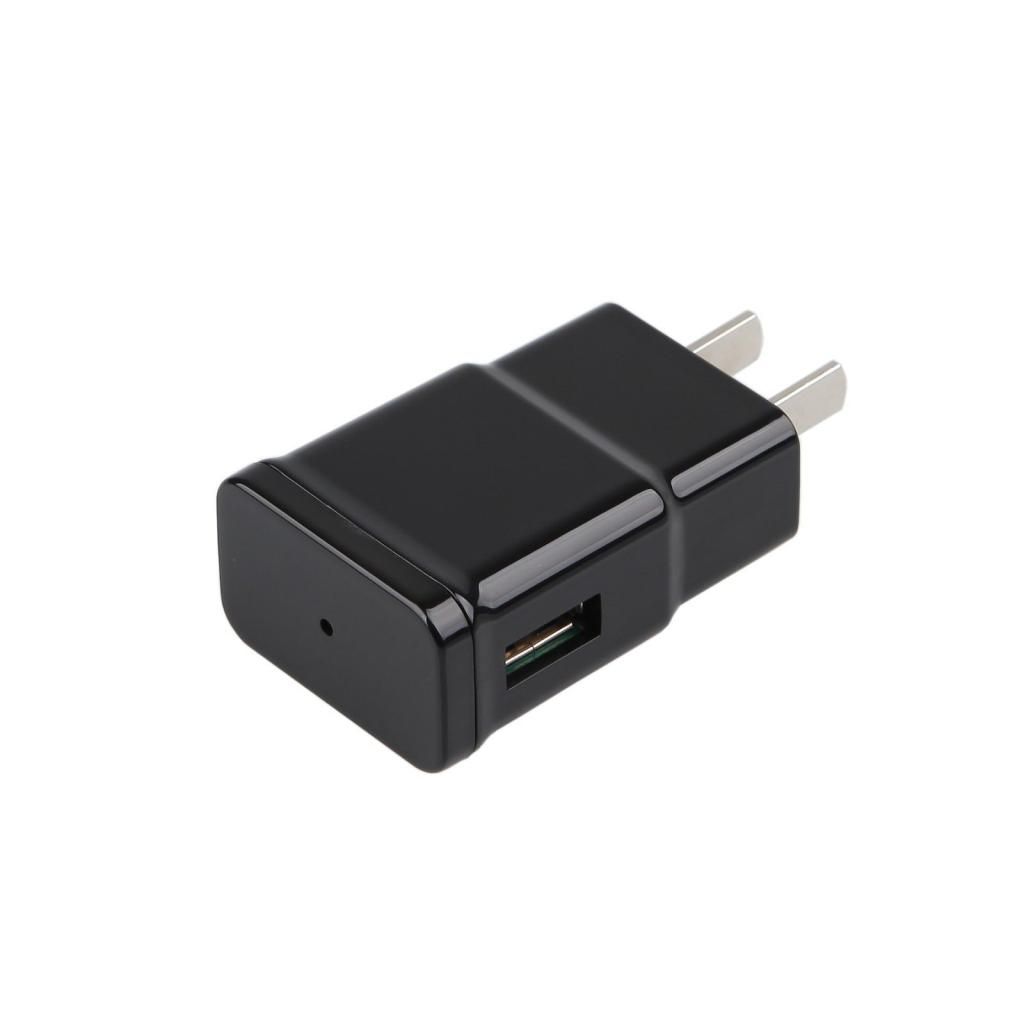

Plug adapter appearance
Support video sound recording
Support taking photos
Support motion detect video recording
Battery life recharges through any AC outlet ( USA )
It can record video when charging.
Used remote control.
Operation:
A. Turn on B.Take photo C.Record D.Motion Detection
1.Press A，blue and red lights brighten in one time and blue light will be off after 3seconds， and thedevice will be standby mode.
2.Press B to take photo and store one photo
3.Press C， the red light will flash 3times and begin to record， press C again to stop recording and store the file.
4.Press D， the blue light and red light will flash 3 times and motion detection function is on. The blue ligh turns off after the bright， begin to record. Please press D to stop recording and the red light will be on at the same time.
5.Press A to turn off the device， the red light will be off after one time flash fastly.
6.When the power low ， the device will be off automaticlly. The red light will flash slowly when the device is working with low power， store the files automaticlly and turn off.
7.Connect the device with PC via USB cable， preaa A to read files.
8.The device can be powered by power source， the battery will be full about 3hours later. The red light is on when the device is charging and off after full power.
9.Reset: Because of the wrong operation or any other unknown reasons，the device go die，please push the button to OFF and push it to ON again， to reset.
10.Open the device from computer， and create a new text file named "time. txt" in the root directory. Opening text file， according to the following format to input current date and time， such as :2011.12.01 10:10:10 (Year. Month. Day.Hour. Minute.Seconds)，save the file to finish setting.
Store and play files:
After recording， turn off the device， connect it with computer via USB，copy of delete the files into the computer to play. Or take off the TF card，read files by card-reader. Recommend: Media player/KM player.
Specification:
Pixels: 5.0 Mega CMOS OV9712
Video Resolution: 1920*1080
Video Format: AVI
FPS: 30fps
Video coding: M-JEPG
View Angle: 120°
Motion Detection Distance: Direct 6 meters
Low Illumination: 1LUX
Battery Capacity: 280MA
Recording Time: About 80 mins
Remote Control Distance: 18m
Recording Audio Area: 40㎡
Power Consumption: 150MA/3.7V
Memory: TF Card
Max.: 32GB
Software: Operation system comes with or mainstream video player software.
Data Transfer Interface: USB1.1/2.0
Operation System: 2000/XP/Visat32
Charge Time: About 4 hours
Package includes:
1 x Plug Camera
1 x USB cable
1 x Remote control
1 x User Manual
With retail packaging
(Note: It is Not a real plug adapter， but a real cam! )
