Product Description

What's in the Package

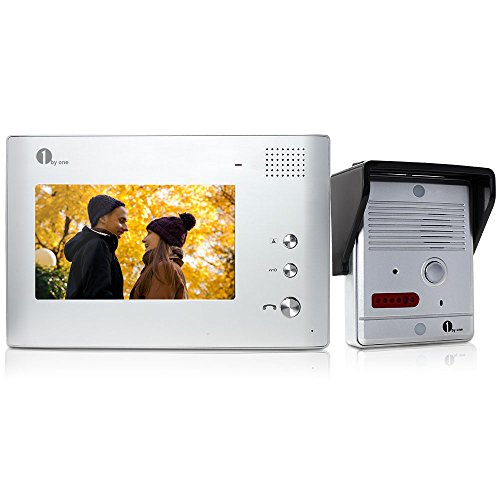

1 x Indoor monitor
1 x Outdoor camera
1 x Adapter
1 x Bracket for indoor monitor
1 x 16.4ft cable
7 x Screws (3 screws for Indoor Monitor, 4 screws for Outdoor Camera)

Product Features:
1. With slim aluminum alloy panels. Outdoor camera is waterproof, anti-oxidation and anti-vandal.
2. Maximum 3 indoor monitors can be connected with the outdoor camera.
3. 7" color TFT screen with low power consumption, no radiation and high definition.
4. Hands free communication.
5. Outdoor camera can connect with electric lock.
6. Monitoring the outside of house.
7. Fourteen polyphonic melodies.
8. Ring and talking volume adjustable.Chroma and brightness adjustable.
9. Enclosed 16.4ft cable and one adapter for DIY mark.

Outdoor Camera Performance Data:
1. Automatic gain control
3. Working temperature: -20 degree to 50 degree
4. Resolution: CMOS more than 380 TV line
5. Outdoor camera dimension: 3.74 X 4.72 X 1.02in

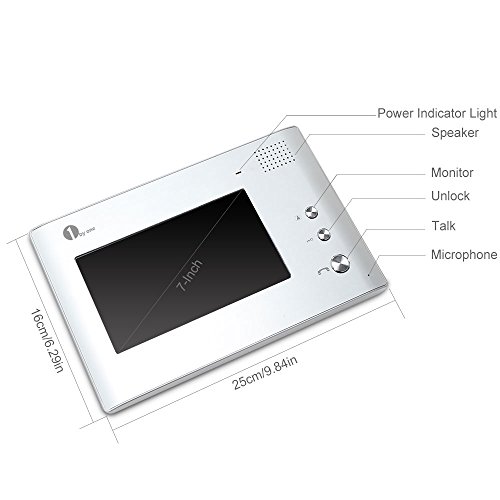

Indoor Monitor Performance Data:
1. Screen Size:7inch
2. Talking last time: about 120s
3. Monitoring last time: about 40s
4. Working distance: 164ft(0.157 x 0.0197in )
5. Power consumption: standby less than 0.5W, working less than 10W
6. Illumination intensity: 2 luces
7. Visual angle: 92 degrees wide-angle
8. Working temperature: -5degree to 40 degree
9. Relative humidity: 10-90%(RH)
10. Indoor monitor dimension: 9.13 X 5.51 X 0.827in
11. Resolution: 480 X 3 X 234 dot
12. Pixel Size: 0.00421 X 0.0145in
13. Adapter input voltage: AC1 10-240V/ 60Hz-50Hz
14. Adapter output voltage, output current: AC 13.5V 1200mA

Feature

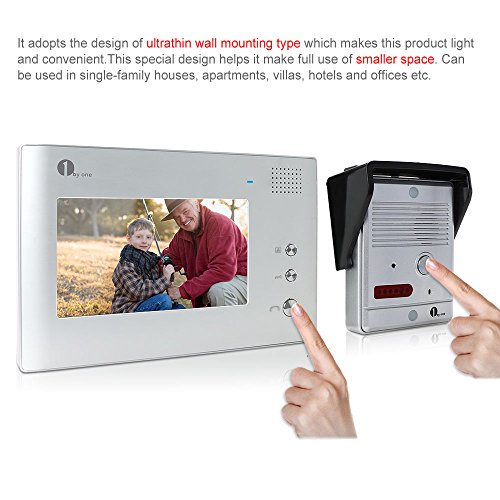

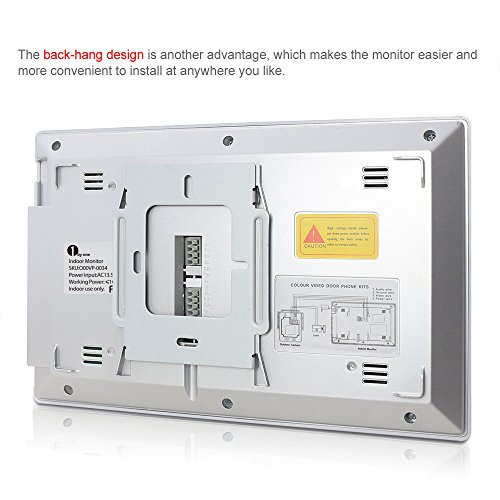

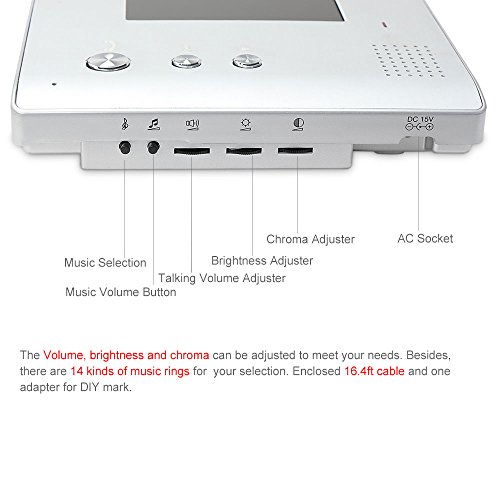

Customizable Screen Monitor ~ Includes a slim indoor design monitor which can be either wall-mounted or placed on a desk. The doorbell includes 16 different melodies and tones with adjustable bell volume, talking interface volume, chroma and brightness. There is also a 16.4ft cable and an adapter for DIY customers.

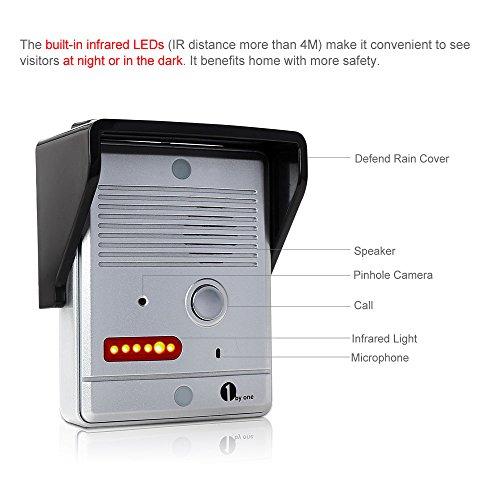

Durable Outdoor Camera ~ Rainproof and weather resistant alloy materials protect the camera from breaking, together with a rain shield for the lense. 92¡ãwide view with infrared LEDs around the camera to support night vision fucntion to capture imagines in a low illmination environmnt for up to 13ft distance.
Easy Talk and Unlock ~ Simply stay in your favorable chair and press the monitor button to check who is at your door and say "Hello". Press the unlock button on the monitor to open the door for your visitors. This is especially attractive for bigger housing complexes, old-age pensioner and disabled people. It will make your life easier!
Buyer Guarantee ~ We stand behind our products 100% with one year warranty. Please DO contact us if you have any problem using this video doorbell. We will take care of your issue immediately and help you solve any problems you come across while using our products.

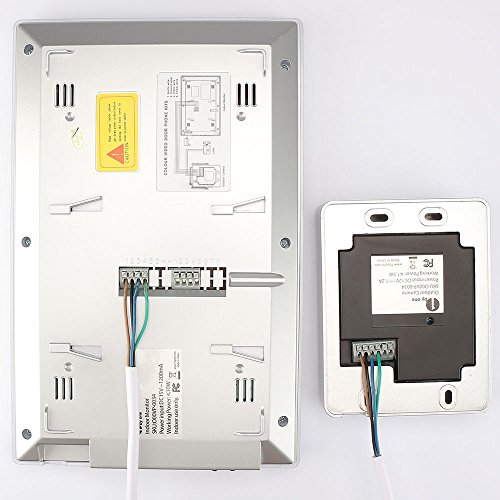

Warm Prompt ~ We provide 5M cable connectors in the package, and you can buy additional cable to extend the cable. O00VP-0402(15M/49.2Ft,4 wires),O00VP-0403(30M/98.4Ft,4 wires),O00VP-0404(15M/49.2Ft,5 wires),O00VP-0418(30M/98.4Ft,5 wires).Cable Requirements:Camera-to-monitor uses 4 core cable, Monitor-to-monitor uses 5 core cable.
Brand : 1byone
MPN(PartNumber) : O00VP-0034
EAN : 6921502905683
