Item Descriptions:

Product introduction

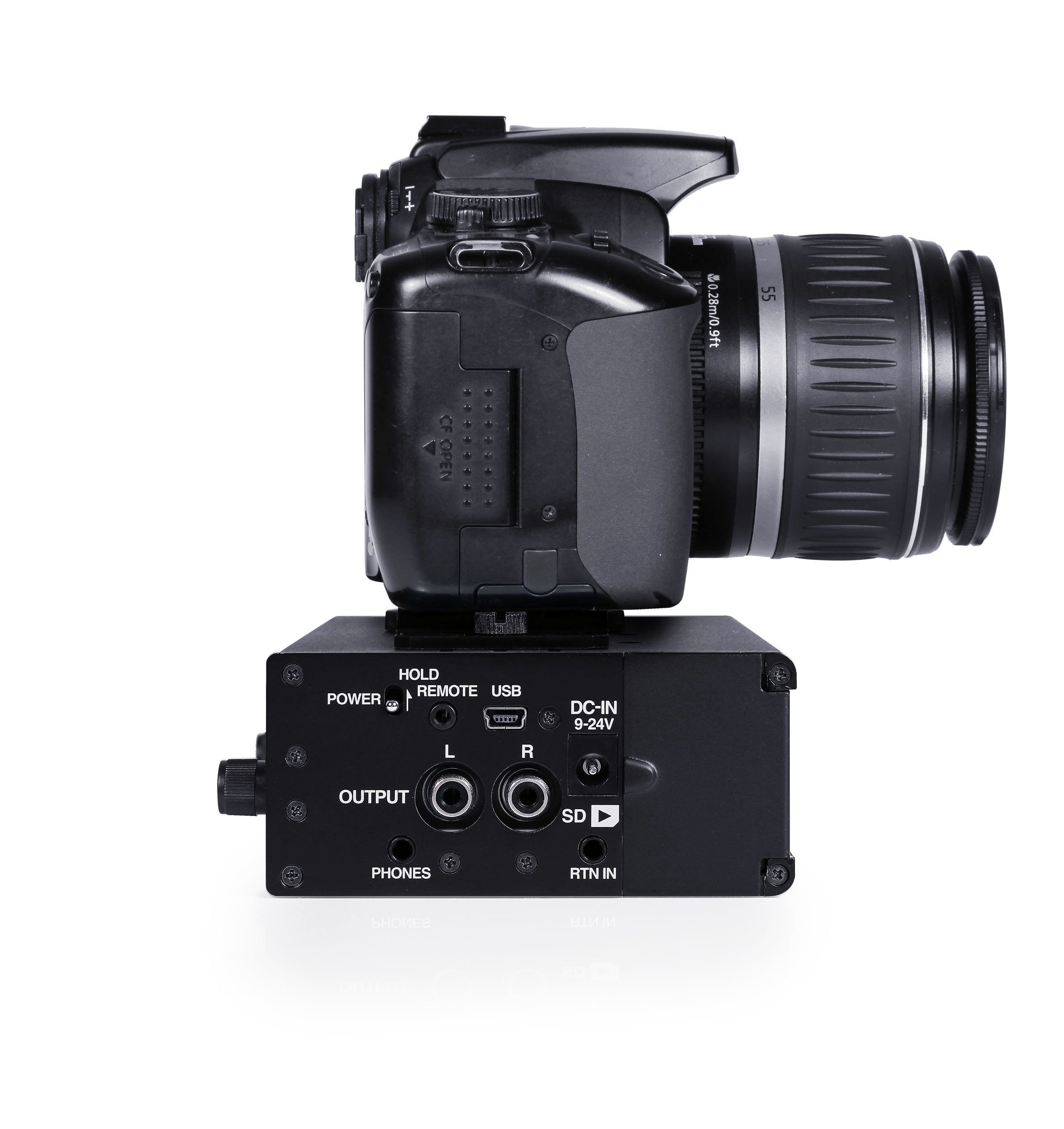

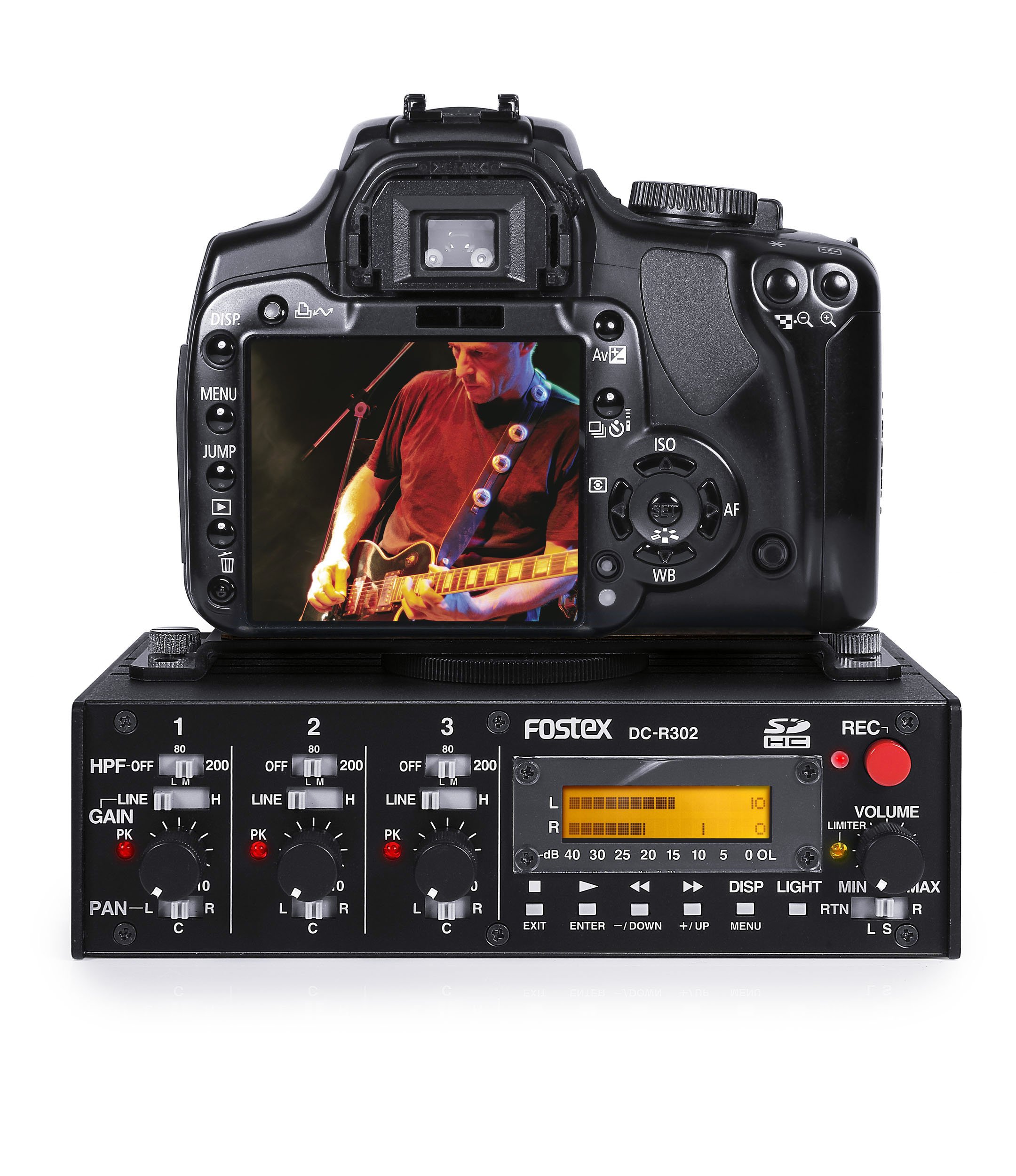

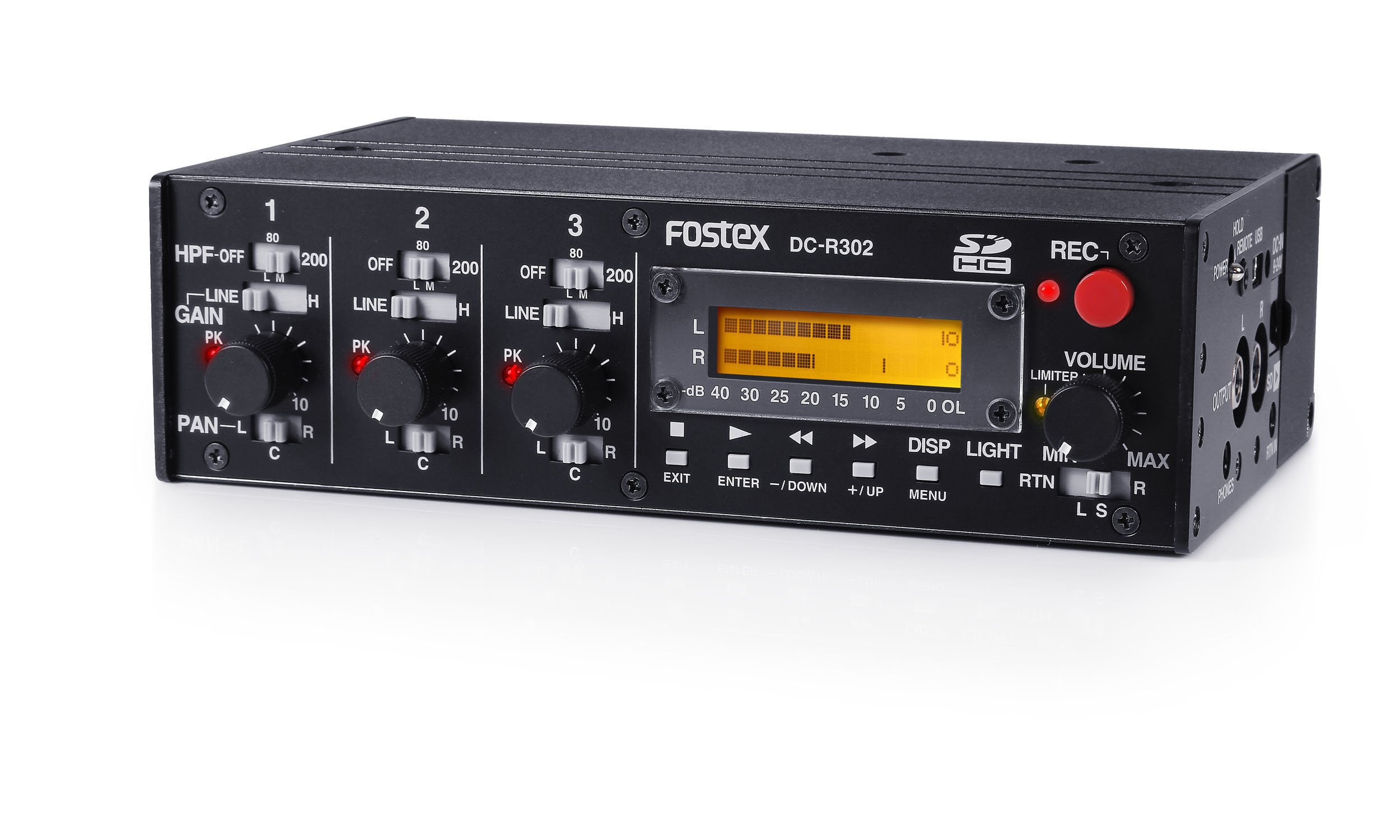

3ch audio mixer & stereo recorder best suited for taking moving pictures with camera.

With phantom power and limiter, you can record high quality sound to SD card at the same time as camera.

From Amazon

Main features

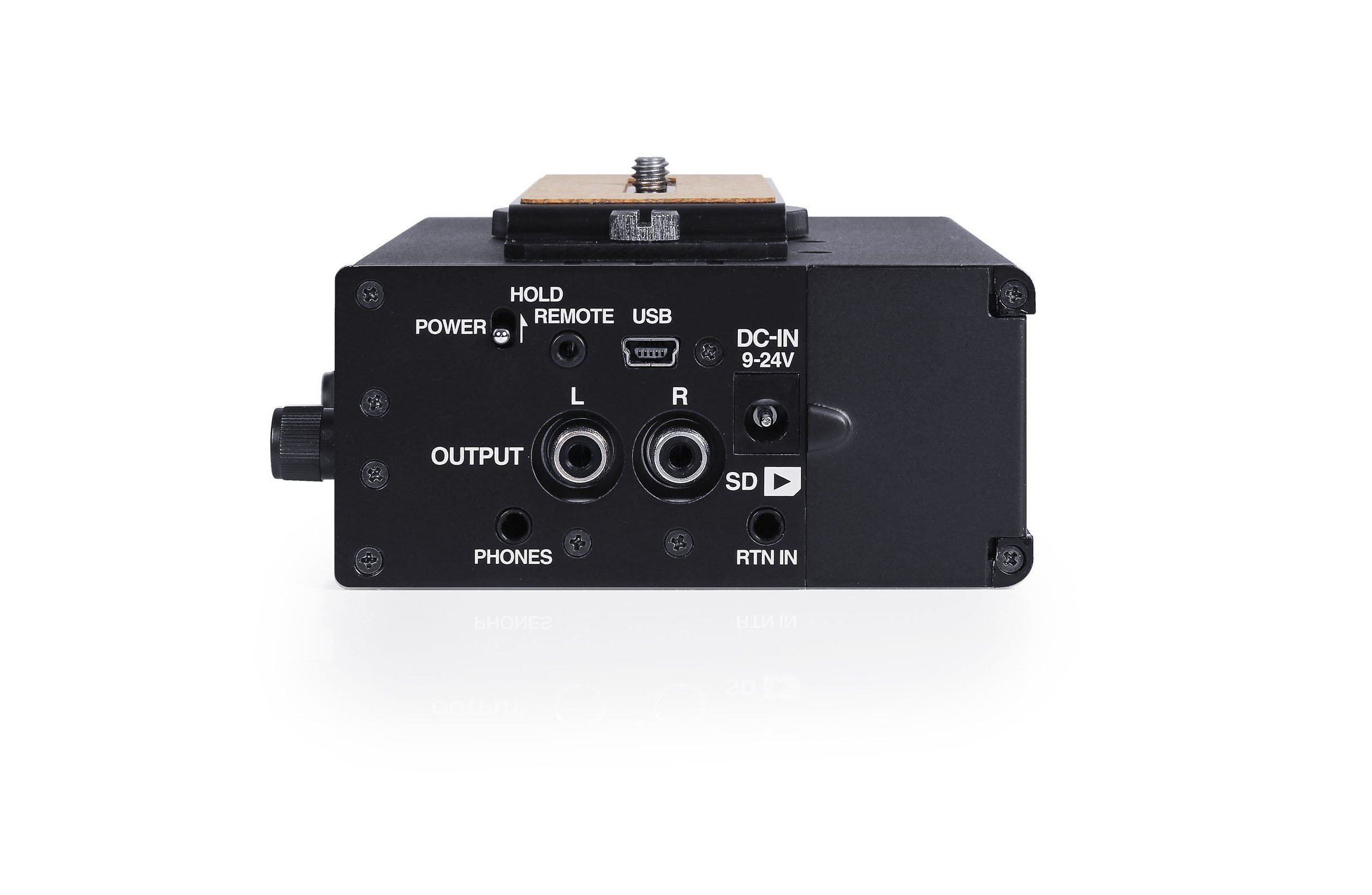

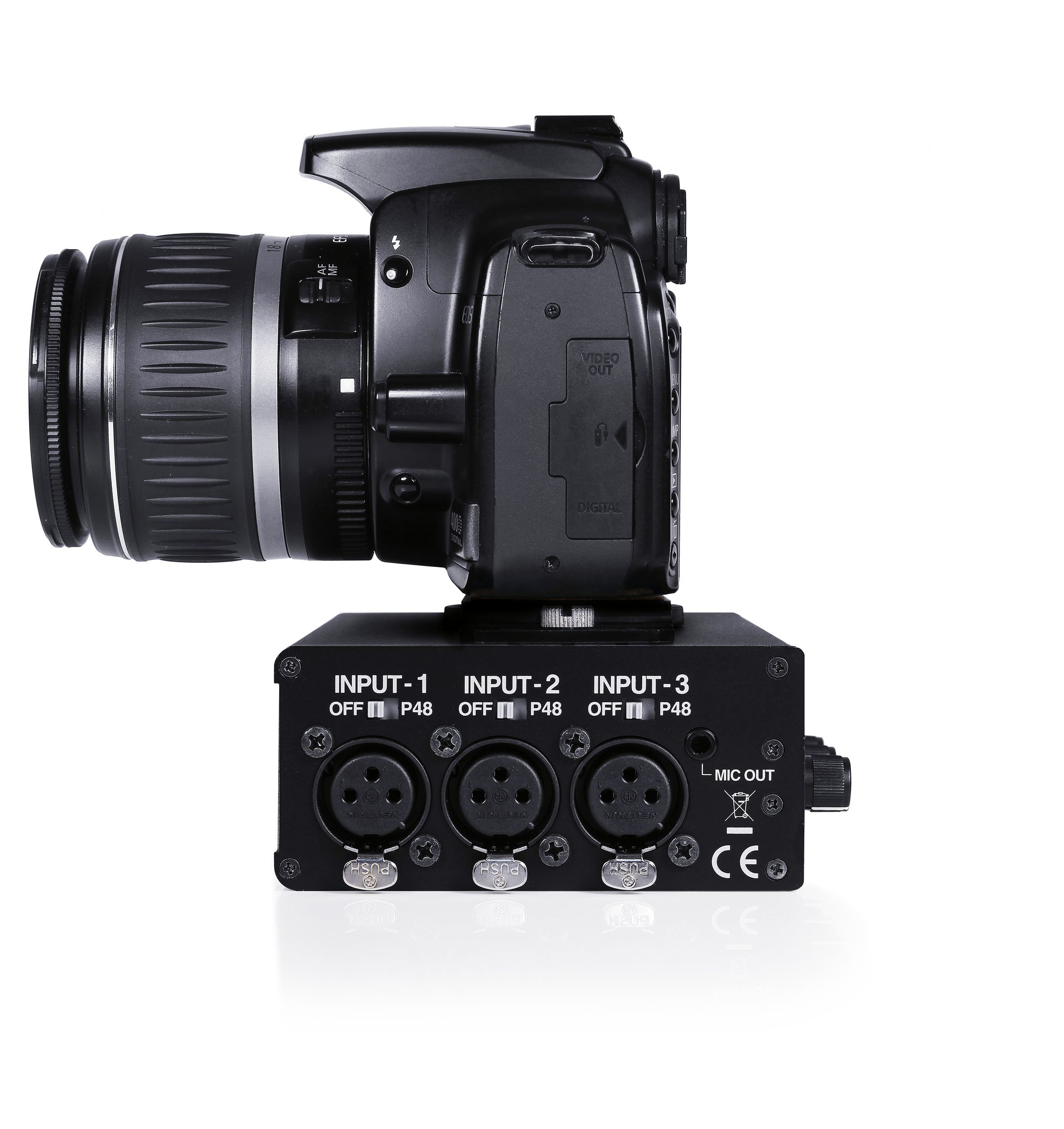

● If you remove the camera mounting bracket, it can be used as a high quality sound stand-alone portable recorder.

※ Camera and microphone and stands are not included.

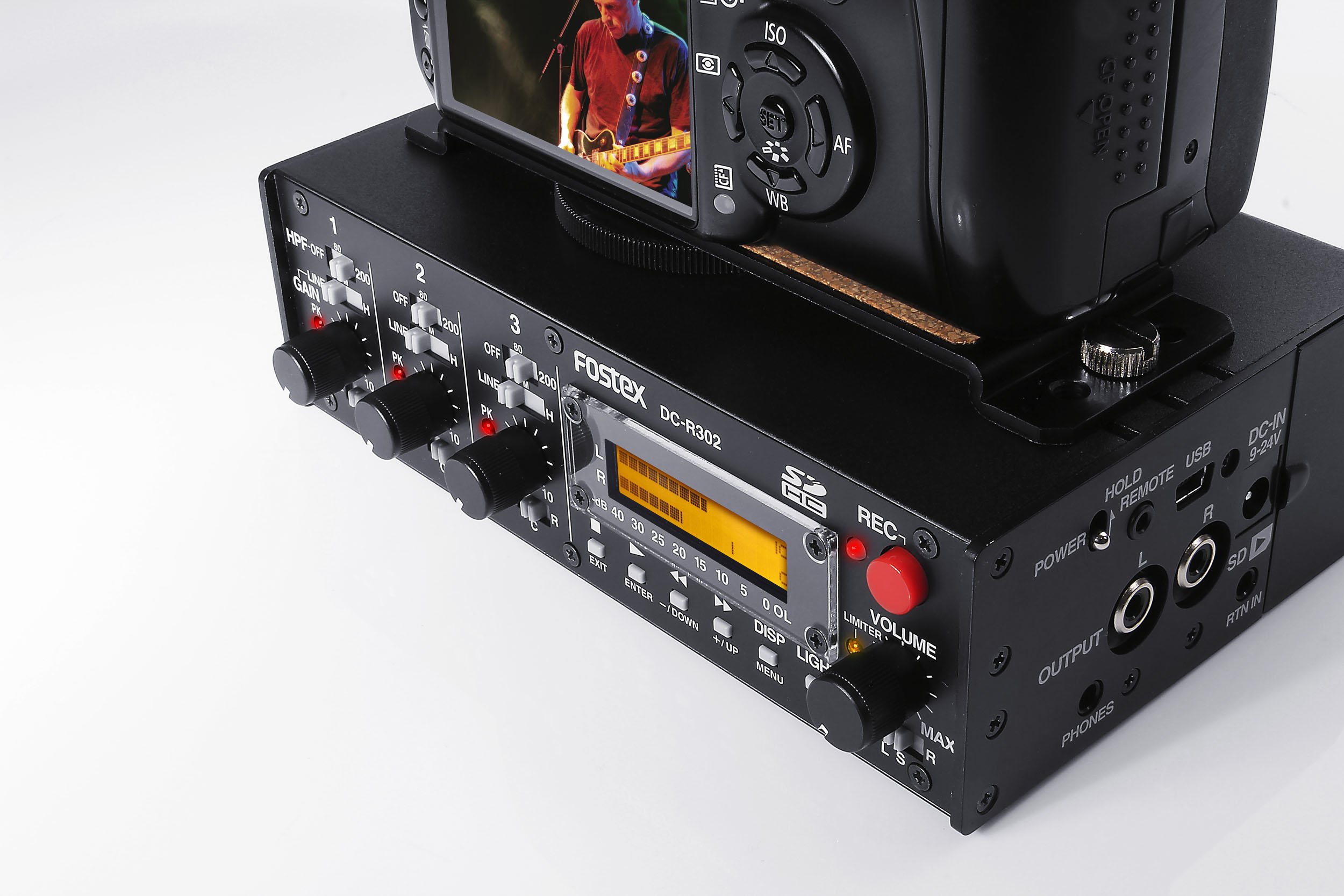

● Remote control of single lens reflex cameras supported by START / STOP recording is possible with infrared ray emission and wired recording.

* Remote by infrared is assumed to be used with the camera installed in the camera mount bracket of the DC - R 302 main unit.

* Depending on the camera used, optional EX - RT1 and ET - RT1 are required.

Remote control compatible model

■ Infrared Remote (Canon only)

· EOS 5D MK2

· EOS 5D MK3 · EOS 7D · 60D · 70D · KISS 5X

* For cameras other than EOS 5D MK2, the infrared receiver is in the recessed part of the grip, so an optional remote control unit EX - RT1 is required.

■ Wired remote * Optional remote control unit EX - RT1 and remote cable ET - RT1 series are required.

Corresponding remote cable (ET-RT1 series) and operation check model

ET-RT 1 C: Canon: EOS 5 DMK 3, EOS-1 D X

· ET-RT1N: Nikon (10 pin type): D800, D800E, D4

· ET-RT 1 N 2: Nikon (6 pin type): D 7000, D 600, D 610

· ET-RT 1 P: Panasonic: DMC-GH 2, DMC-GH 3

* Depending on the specification of the camera, when using GH1 / GH2 remote, external microphone input can not be used.

● Input corresponds to microphone to line level.

Limiter and HPF are mounted on each channel.

Reduced distortion due to excessive input and unnecessary bass components.

* Reference input level at line is -10 dBu.

It is not + 4 dBu for business standards, please be careful.

● Also supports USB AUDIO input / output.

It can also be used as an audio interface for PC.

* USB AUDIO is a function added in firmware version 1.10 of DC - R 302.

* It works with OS standard driver of Windows XP / Vista / 7 and Mac OS X 10.6 or higher.

Recordable time (SD card / stereo recording / unit: minute)

Quantization bit

16 bit

24 bit

Sampling frequency

44.1 kHz

48 kHz

44.1 kHz

48 kHz

88.2 kHz

96 kHz

2 GB

170 min.

156 min.

113 min.

104 min.

56 min.

52 min.

4 GB

340 min.

312 min.

226 min.

208 min.

113 min.

104 min.

8 GB

680 min.

625 min.

453 min.

416 min.

226 min.

208 min.

16 GB

1360 min.

1250 min.

907 min.

833 min.

453 min.

416 min.

32 GB

2721 min.

2500 min.

1814 min.

1666 min.

907 min.

833 min.

Main Specifications

* It may be changed due to product improvement or modification.

[I / O]

0 dBu = 0.775 Vrms, 0 dBV = 1.0 V rms

<Analog input>

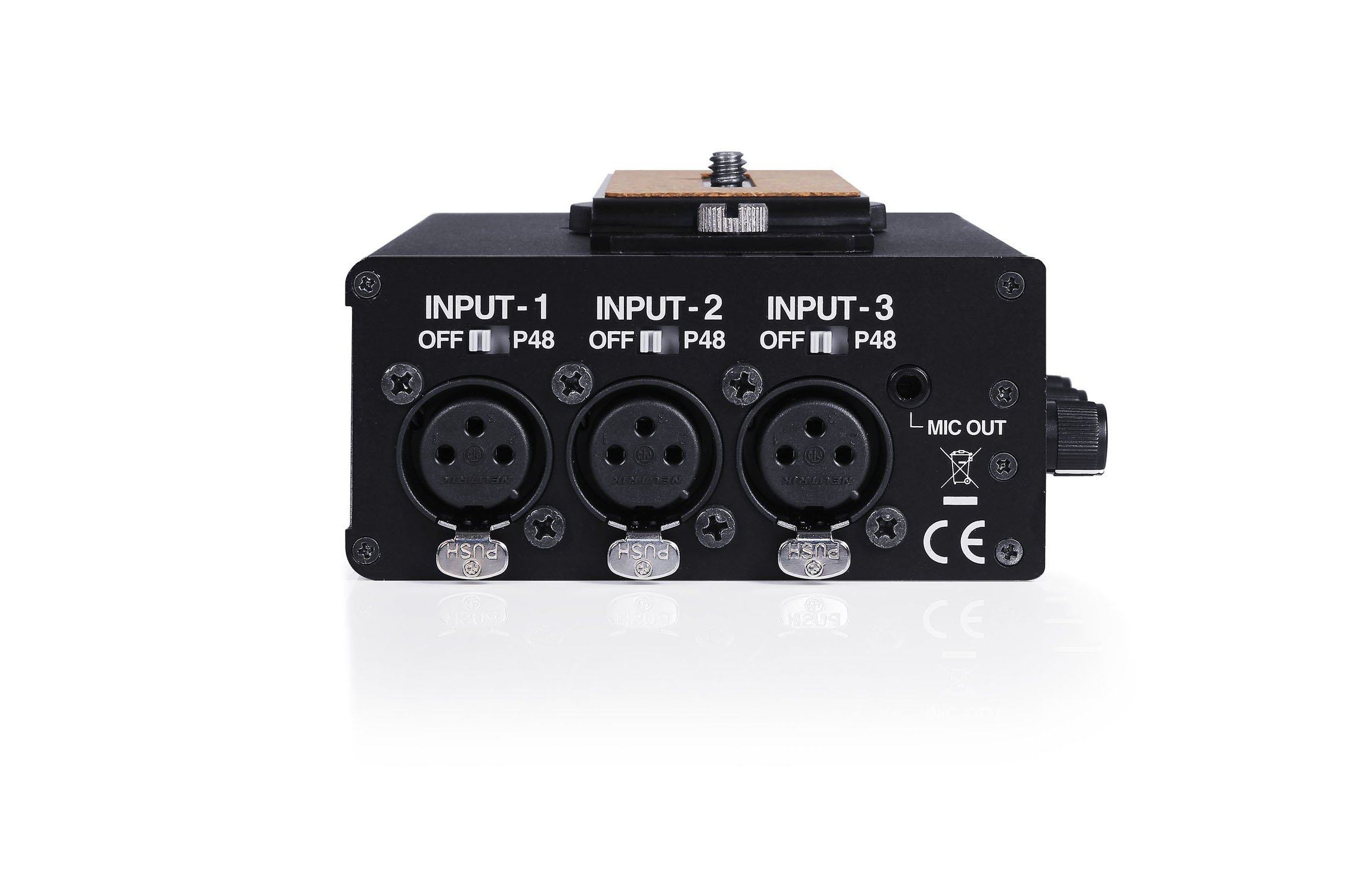

● INPUT 1 to 3

· Connector: XLR-3-31 (female) type / electronic balance type ※ 1: GND, 2: HOT, 3: COLD

■ MIC

· Reference input level (changed in July 2012): HI: -60 dBu / MID: -45 dBu / LOW: -30 dBu

※ Specification before change

※ HI: -60 dBu / MID: -55 dBu / LOW: -50 dBu

· Input impedance: 10 kΩ or more

· Phantom power supply: P - 48 V ± 4 V (10 mA / CH)

■ LINE

· Reference input level: -10 dBu

· Maximum input level: +10 dBu

· Input impedance: 10 kΩ or more

● RTN IN

· Connector: φ 3.5 mm stereo mini jack / unbalanced

• Reference input level: -10 dBV

· Maximum input level: + 2 dBV

· Input impedance: 10 kΩ or more

<Analog output>

● MAIN OUT

· Connector: RCA pin jack / unbalanced

· Reference output level: -10 dBV (at the time of reference input level and -12 dBFS signal playback)

· Maximum output level: + 2 dBV (at 0 dBFS playback)

· Applicable load impedance: 10 kΩ or more

● MIC OUT

· Connector: φ 3.5 mm stereo mini jack

· Reference output level: -50 dBV (at reference input level)

· Maximum output level: -30 dBV

· Applicable load impedance: 10 kΩ or more

· 40 kΩ at remote open / 2 kΩ at close

● PHONES

· Connector: φ 3.5 mm stereo · mini phone

· Applicable load impedance: 8 Ω or more

· Maximum output: 50 mW (at 32 Ω load, THD: 0.1% or less)

<Others>

● REMOTE ※ Panasonic DMW-RS1 compatible

· Connector connector: φ 2.5 mm 4 pole mini jack

● USB

Connector: MINI B type

● DC-IN

Connector: DC inlet (outside: φ5.5 <- pole> / center: φ2.1 <+ pole>)

【Overall characteristics】

Frequency characteristics

· LINE IN to MAIN OUT: 20 to 20,000 Hz ± 1 dB (reference level)

• MIC IN to MAIN OUT: 40 to 20,000 Hz ± 3 dB (reference level)

● S / N ratio (A - WEIGHT)

· LINE: 90 dB or more (INPUT GAIN: -10 dBV)

· MIC: 55 dB or more (INPUT GAIN maximum / 150 Ω loading / input conversion noise: -125 dBu)

● Total Harmonic Distortion Ratio

· LINE: 0.01% or less at 1 kHz (INPUT GAIN: LINE)

· MIC: 0.1% or less at 1 kHz (INPUT GAIN: HI)

【General】

● Dimensions: W152 × H45 (52.5 when bracket is installed) × D 108 mm

Weight ●: about 690 g (including bracket battery case / battery separately)

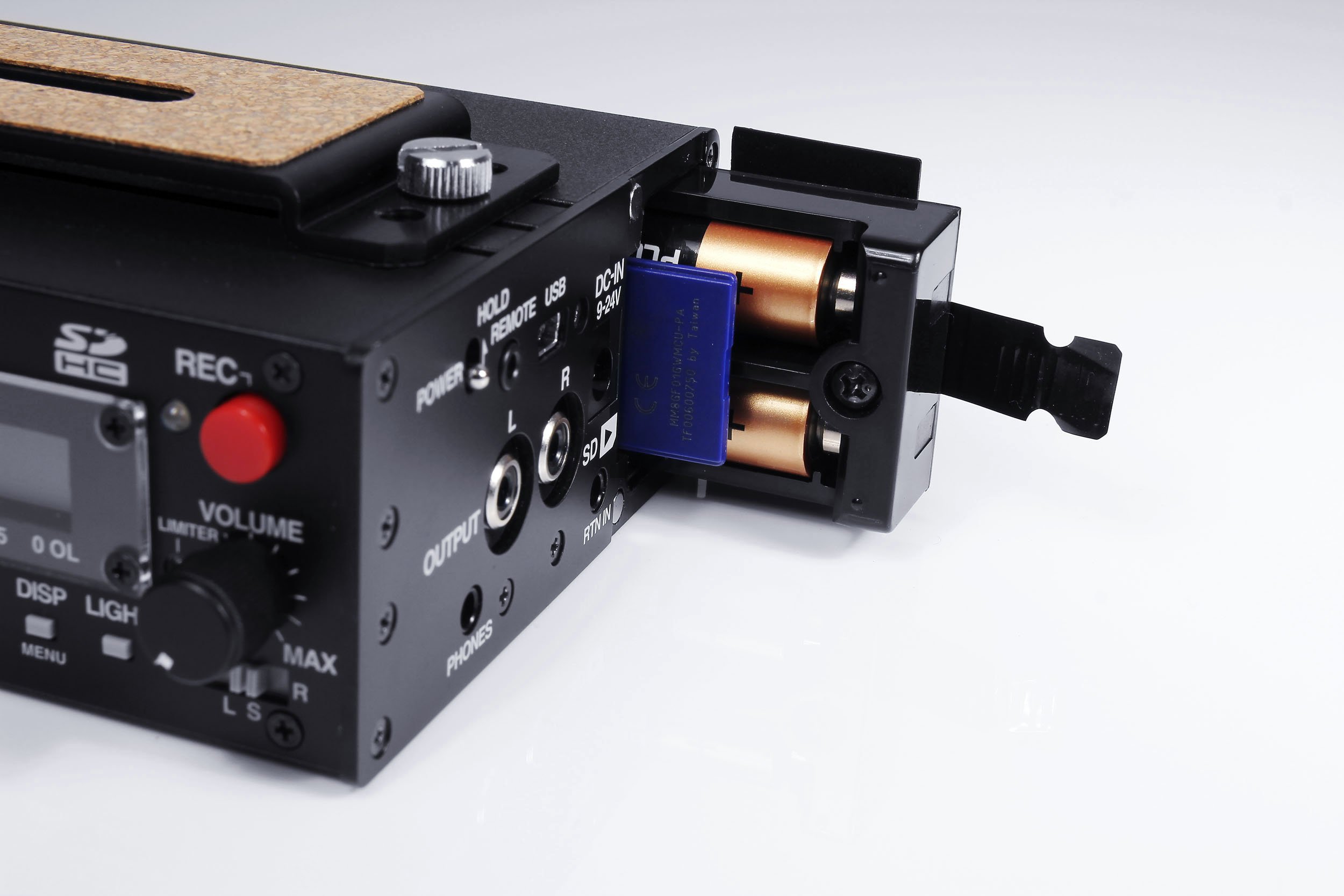

● Power supply

· Built-in battery: AA × 4 (alkali / nickel hydrogen) / rated power range: DC 4.8 to 6 V

· External power supply: AC adapter, external battery / rated power range: DC 9 ~ 24V

● Power consumption / operation time: 3 W or less / operation time alkali: about 3 hours / nickel hydrogen rechargeable battery: about 4 hours

● Accessory: Instruction manual, warranty card (printed on the instruction manual)

Features:

• Please enter model number Confirm this is compatible:

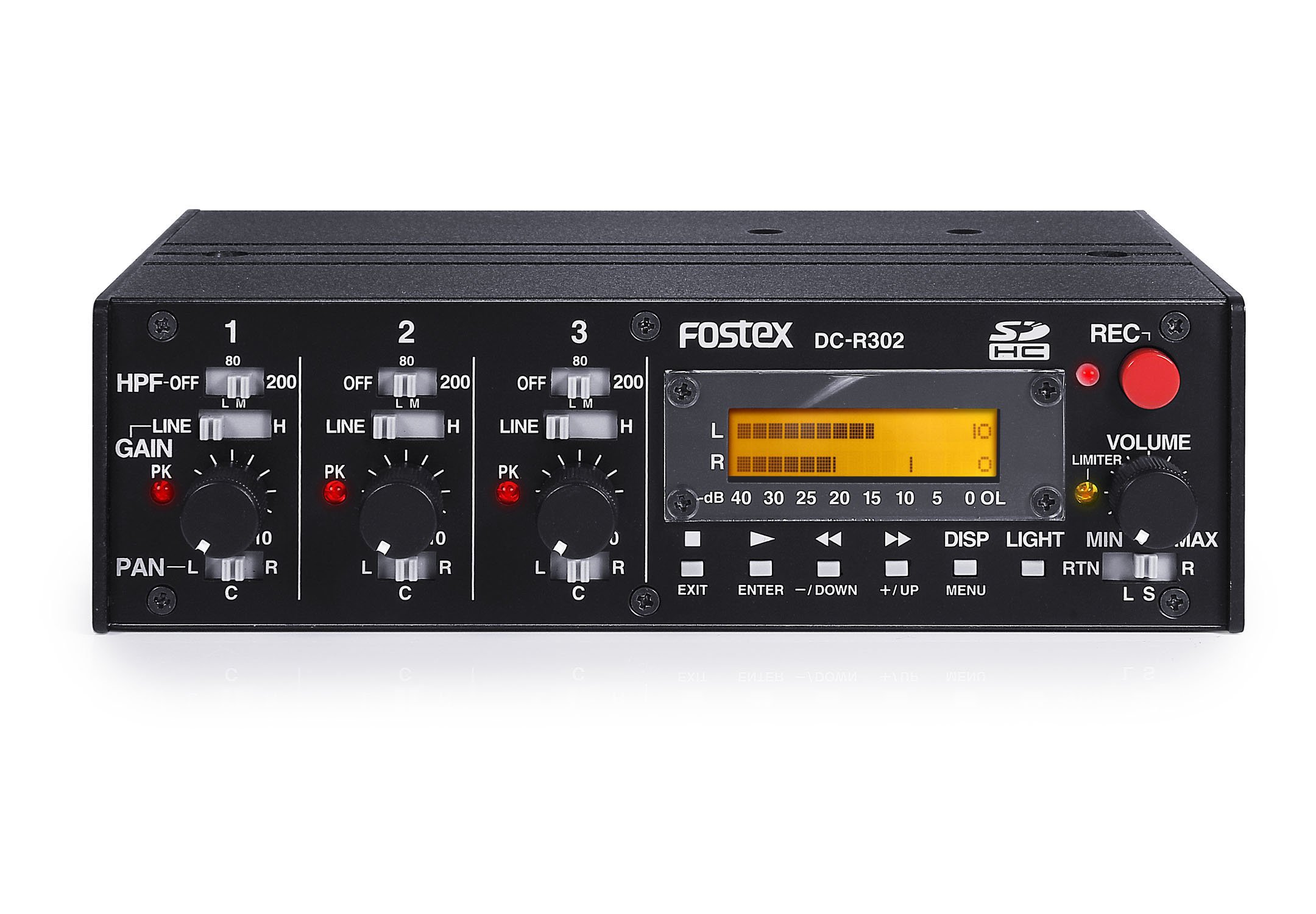

• Analog 3ch audio mixer with digital stereo recorder.
• Miniaturize the shooting system.

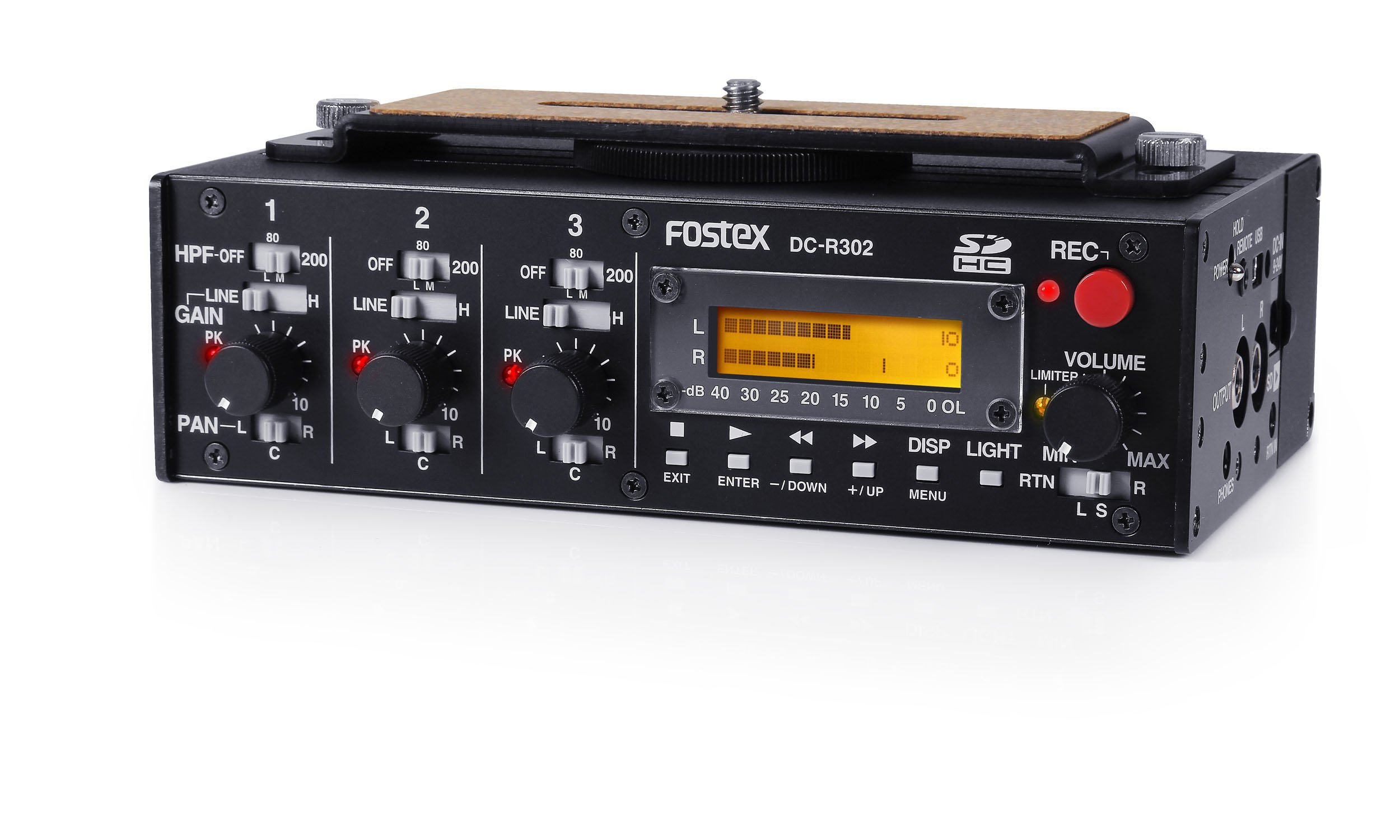

• Adopt detachable bracket that can be mounted directly to the camera.
• Adjustment of mounting position is also possible.
• A screw for attaching a tripod is also prepared at the bottom.
• Remote control of single lens reflex camera is possible with START / STOP of infrared ray emission and wired recording of this unit.
• START / STOP of recording by a commercially available wired remote control (compatible with Panasonic DMW - RS1) is possible.
• Input corresponds to microphone ~ line level.
• Limiter and HPF are mounted on each channel.
• Reduced distortion due to excessive input and unnecessary bass components.
• Phantom 48 V power supply is installed.
• High performance condenser microphone can be used.
• Equipped with line output and microphone level output.
• It is possible to send mixed audio to the audio input of the camera.
• For monitor headphone output, L / STEREO / R / RETURN can be selected.
• Equipped with automatic slate tone (1 kHz / sine wave) vocalization function convenient for editing the sound at editing.
• Stereo WAV file can be recorded on SD (SDHC) card at 16/24 bit *, Fs 44.1 ~ 96 kHz.
• * 16 bit is only 44.1 / 48 kHz.
• USB supports USB audio output in addition to file transfer.
• It can also be used for recording on PC or Live distribution.
• A dedicated battery case (4 AA batteries) and external DC (9 to 24 V) can be used for power supply.
• Lightweight and robust enclosure using extruded aluminum material.
• Maintaining toughness which does not bend even when attached to camera, tripod, rig etc.

Product information:

Shipping Weight: 1129 g

Package Dimensions: 10.21 x 20.70 x 31.70 cm
