Item Descriptions:

color:

gray

■■■ Trimec's thin dimmer LED trace stand Trobyer 500 series ■■■

Tritech's trace table is a reviewer 500 series.

It inherits the performance of the 400 series and further improved, it is a completion form of the trace base.

The main body size can be selected from A4 size, B4 size, A3 size.

Tritech's trace platform is made with thorough pursuit of all these functions, practicality, design size, quality, cost performance.

Tri-tech aims to make products that satisfy from opinions requested from customers.

TRY TEC CORPORATION is a company located in Kyoto, Japan, which processes, manufactures and sells surface emission (trace base) panels and resin nameplates of LEDs.

■■■ 7 dimming function mounted Power button and light control button are separated ■■■

The power switch and the dimming button were done with one button in the 400 series, but it was divided into two separately from this time.

Even when you repeat ON / OFF repeatedly to confirm the manuscript and trace frequently, you can confirm with one touch.

Also, unlike stepless dimming, seven steps of dimming are possible, so you can definitely return to the brightness of your choice.

Since it remembers the brightness when it is off, you can return to the previous brightness each time it lights up.

* If you unplug the AC adapter from the outlet, it will not be remembered and will start again with the MAX brightness of 7 levels.

Touch sensor system, you can operate switching with light touch.

Since the part of the button is concave, it will not malfunction even if you accidentally touch it from the top of the paper.

■■■ Light source LED Specification Lifetime up to 40,000 hours Brightness up by 30% ■■■

Since the brightness of the LED can be adjusted to seven levels, it is possible to adjust the brightness suitable for the thickness of the document by brightness suitable for the working environment as it is dark at night, bright at daytime,

The burden will be good.

The LED has a lifetime of 40,000 hours, 30% brighter than the reviewer 400 series.

We realized satisfactory transparency capability on every manuscript paper.

The transparency range of the manuscript corresponds to the full size of the manuscript.

If Toneviewer A3-500 is used, A3 original paper is perfect.

■■■ Trace platform of Tritech is packed with all the ideas of developers ■■■

For the reviewer, the place to place hands and arms is the same temperature as room temperature.

This LED adopts our own LED only at the top of the trace base, so we do not have LEDs at the bottom where the arms etc. hit.

Since the temperature does not rise at all in that part, it keeps the same temperature as room temperature, so you can trace comfortably even in the summer.

The temperature where the temperature rises is room temperature + 12 ° (40 ° in the room of 28 °).

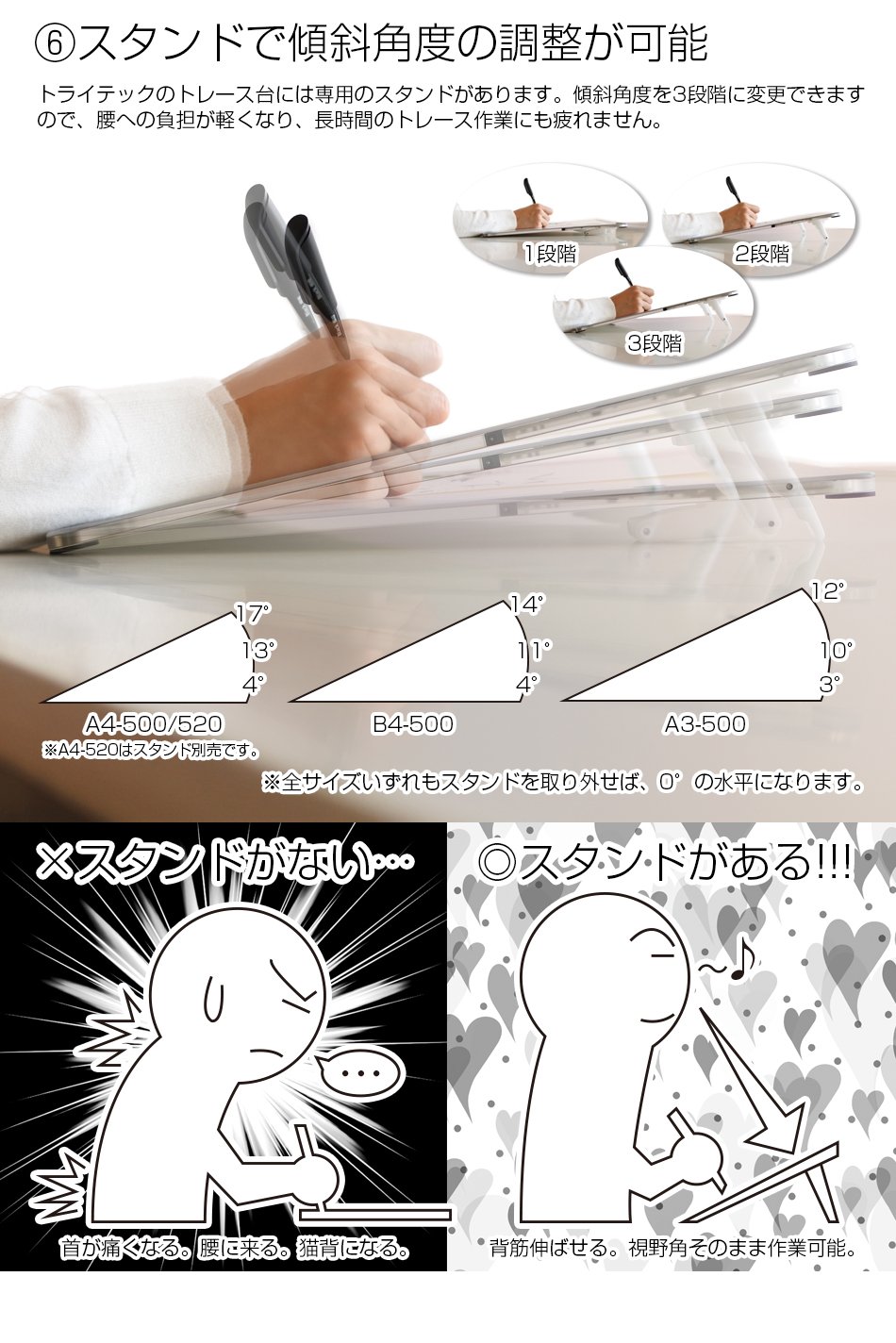

You can change the inclination angle of the trace base in three steps.

You can draw with a comfortable posture even for a long time tracing work.

The stand is foldable.

(PAT.P)

If you change the position of the stand, you can also support the vertical placement of manuscript paper.

※ For removing the stand, a screwdriver for the Phillips screwdriver is required.

Tracec trace stand is made in Japan.

And one year warranty from the date of purchase.

If something happens, we will respond promptly.

Optional items sold separately are enriched, too.

There is also a special protective seat that protects the top board from scratches, a USB power cable connected to a PC or mobile battery, a design bag carrying the trace base body / an inner bag.

Features:

• It is a thin type version 500 series of trace stand "TREVIEWER" of TRY TEC, which has gained popularity.
• Since the brightness of the LED can be adjusted in seven steps, it is possible to adjust the brightness suitable for the thickness of the manuscript, because it is bright when it is dark in the evening, bright in the day and work environment, so eye fatigue
• Can be reduced.
• The LED has a lifetime of 40,000 hours, brightness has been raised from 2000 to 4400 lux than before.
• The power switch and the dimming button had been done with one button so far, but separately from this time it was divided into two and installed on the right side which is easy to use.
• Even when you repeatedly turn ON and OFF to check the manuscript and trace frequently, you can check with one touch.
• In addition, since 7 dimming can be done unlike steplessness, you can definitely return to your favorite brightness.
• Since it remembers the brightness when it is off, you can return to the previous brightness each time it lights up.
• It is brand new · made in Japan.
• We are producing and selling at our own factory in Japan, so we will take troubleshooting in a few days.
• It has one year warranty.
• The thickness is 8 mm on the front side (excluding rubber feet) The thickness of the collapsed rear stand is 25 mm.
• It is thin and light (1.7 kg) storage and convenient for carrying.
• The board surface inclination angle can be adjusted in three stages so that it can be drawn easily even for a long time tracing work.
• Since the stand is a folding type, it can be stored in the included thick storage bag and stored compactly.
• Although it is set to put the original sideways when delivering, you can also change it to portrait place by moving the position of the stand.
• Removed, it can be used in flat.
• (PAT.P)
• Optional, a protective sheet protecting the top board from scratches, a USB power cable connecting to a PC or mobile battery, a design bag carrying the trace base body / an inner bag are available.

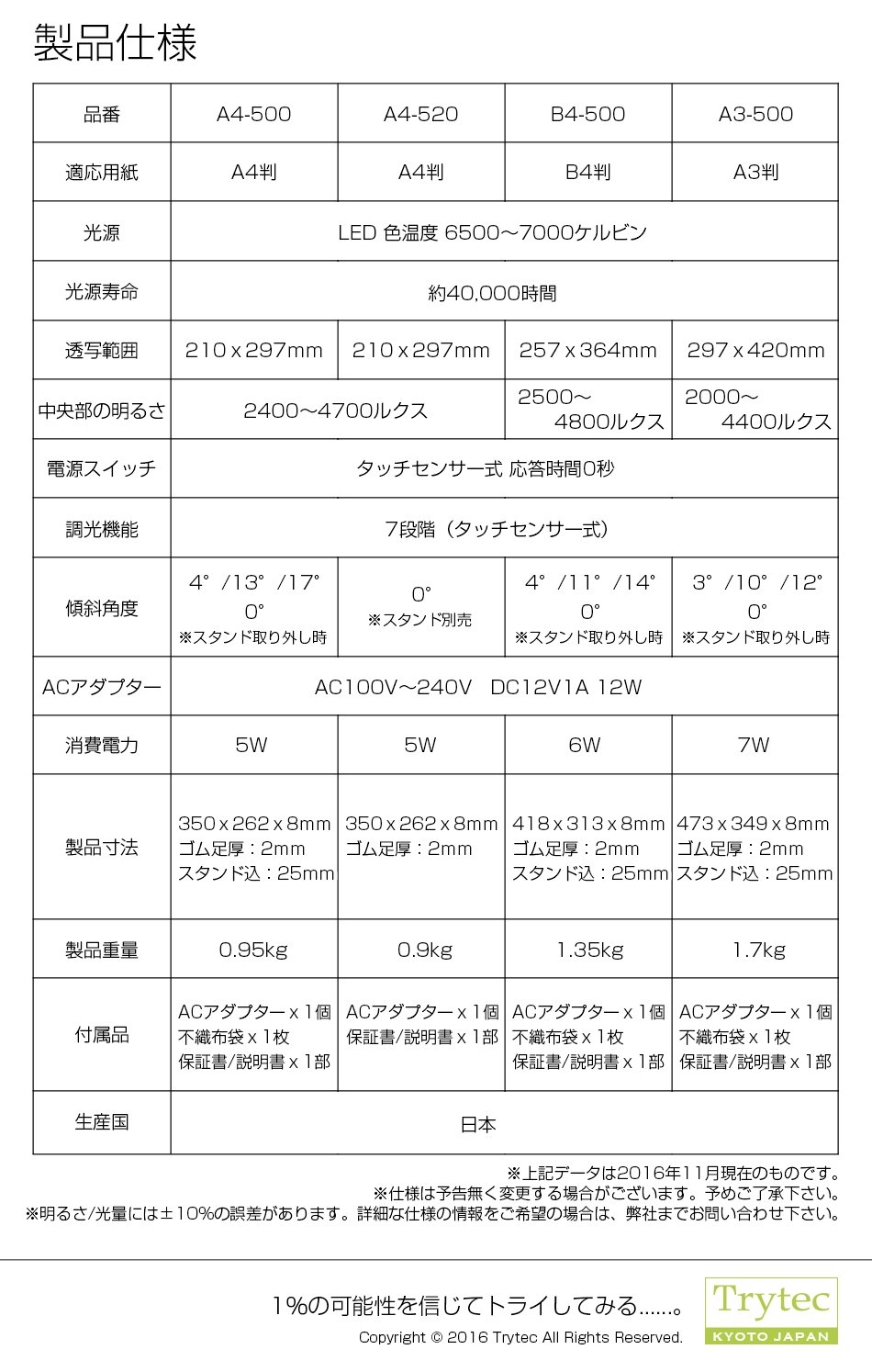

Product information:

Shipping Weight: 1982 g

Package Dimensions: 7.01 x 37.01 x 52.20 cm
