Product Description

Specifications:

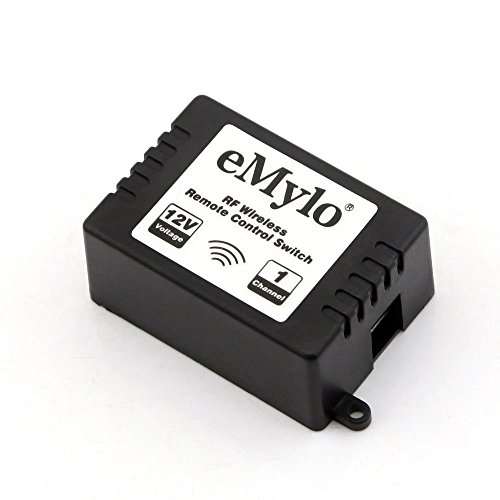

Receiver
Input Voltage: DC 12V
Operating Frequency: 433Mhz
Coding Way: Intelligent Learning
Output Type: Active output
Max load: 10A
Ambient TEMP: -30oC -70oC, Humidity<95%
Factory Default: Self-locking
Board DIM: 45x30.5x17mm
Case DIM: 60x38x13mm

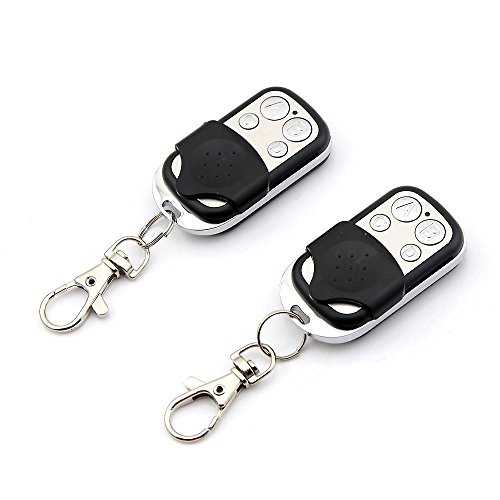

Transmitter
Operating Voltage: 12V
Operating Frequency: 433Mhz
Vibration Resistance: 126
Chip Type: 2260/1527
Modulation: ASK (Stable, less interference)
Encode Type: Bonding pad welding code/group code
Battery Type: 12V 27A(not included)
Remote Distance: 20m (Theoretical value)
Ambient TEMP: -30oC -70oC, Humidity<95%
Product DIM: 54x30x13mm

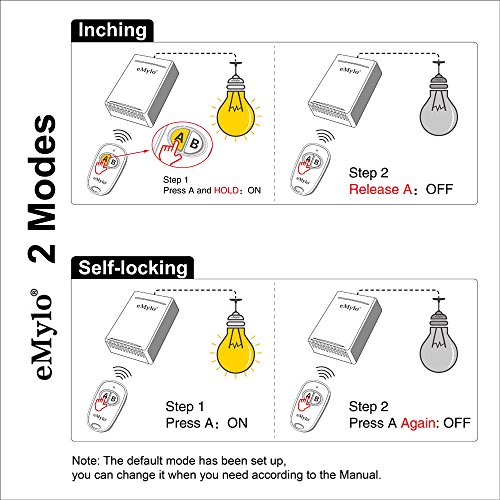

Three modes:
Inching: press&hold one button, the reply turns on, release the button, the reply turns off.
Self-lock: press the one button, the reply turns on, press the button again, the reply turns off.

Steps:
Clear:
Press&hold the program button on the receiver, the red light will turn on and stay on for about 5 seconds.


Choose the mode:
inching:release the button after the light flashes once.
Self-lock:release the button after the light flashes twice.
Inter-lock:release the button after the light flashes three times.

Link the remote control:
Press the program button on the receiver until the red light turns on, and then release the program button, the red light will stay on.
Press a transmitter button, and the red light will flash, at this time, it means finished linking.

Package Includes:
1X Transmitter (Battery is not included)
4X Receivers

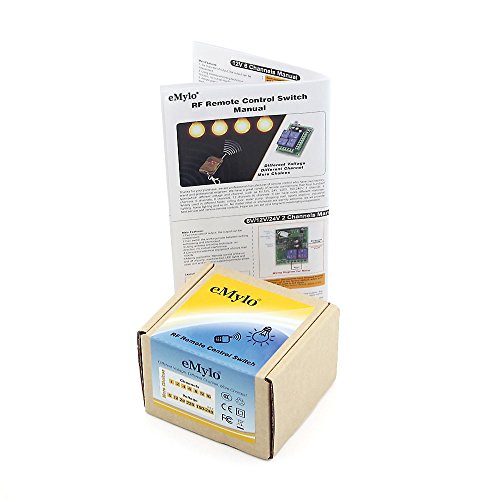

1X English manual

Feature

Applies To: Remote Control Electric Doors, Windows, Switches, Door Control Led Lamps, Motors
Wireless Coding Technology, No Direction, Switch Without Disturbing Each Other
Using Large-Capacity Relay, Can Control Appliances And Equipment On The Kw
Upgrade New High-Speed Diode, More Stable And Durable.
It Uses Fixed Coding, Stable And Reliable
Brand : eMylo®
Item model num : EBM114B3E
MPN(PartNumber) : EBM114B3E
EAN : 0707581725239
