RobotDyn - 3 PCS - LM2596 DC-DC Step-down buck Adjustable Power Supply Module, VIn: 3~36V, Vout: 1.5~34V.

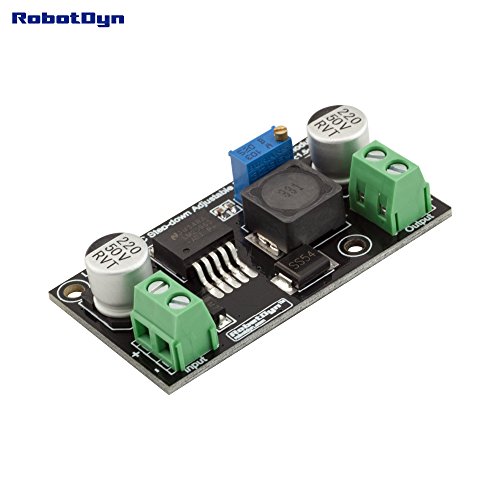

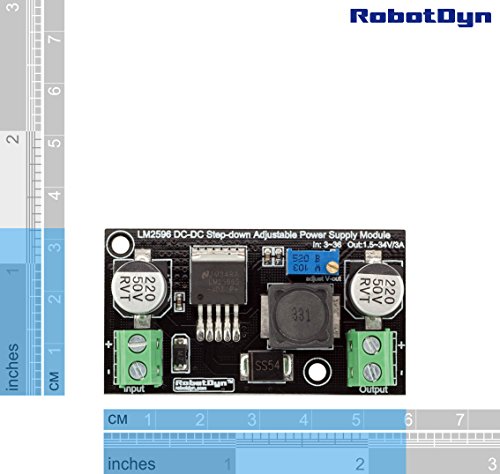

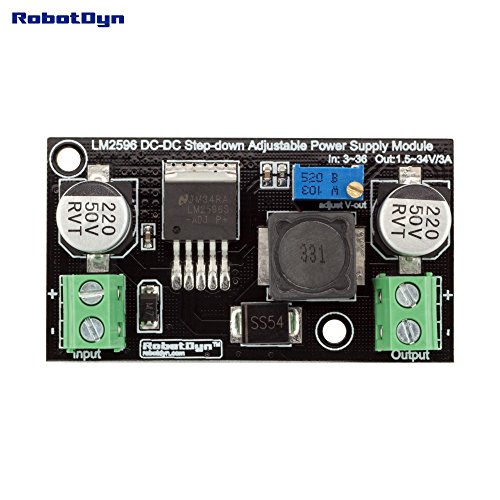

1 PC - DC-DC LM2596


1 PC - DC-DC LM2596 + LED display

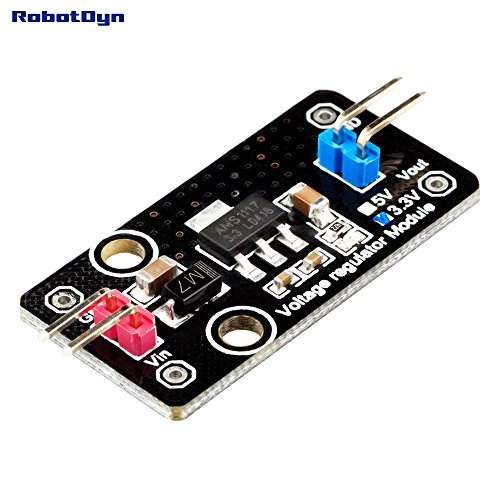

1 PC - Voltage regulator 3.3V

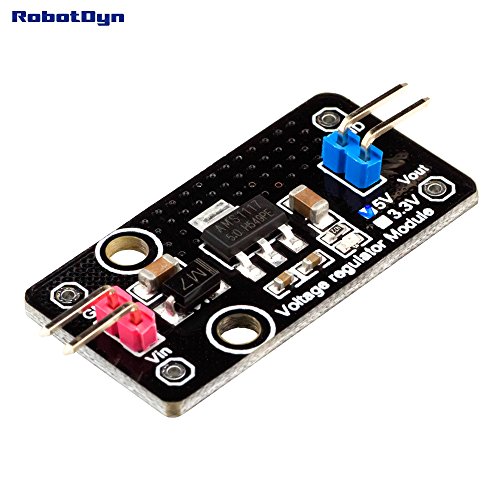

1 PC - Voltage regulator 5V

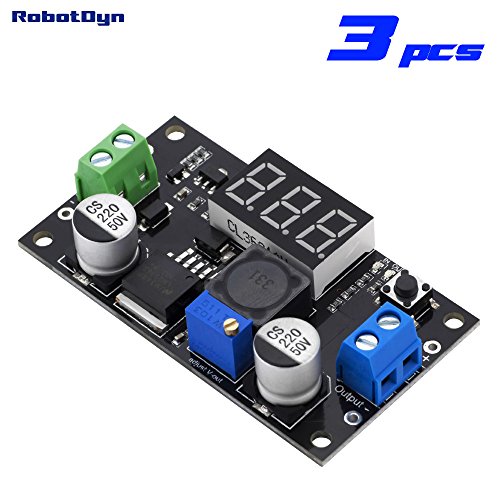

3 PCS - DC-DC LM2596 + LED display

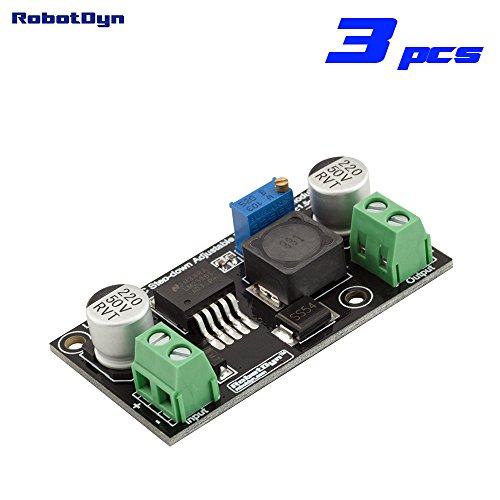

3 PCS - DC-DC LM2596

Product Description

Bulk packing. Included 3 units. Inside: Each one unit in an independent anti-static bag with label.

The DC-DC Step-down Adjustable Power Supply Module is based on monolithic integrated circuit LM2596, ideally suited for easy and convenient design of a step-down switching regulator (buck converter). It is capable of driving a 3.0A load with excellent line and load regulation. This device is available in adjustable output version and it is internally compensated to minimize the number of external components to simplify the power supply design.

Easy to connecting of power wires.

Technical characteristics:
- Vin DC 3~36V
- Vout DC 1.5~34V
- Iout 3.0A (Max)
- Regulation Analog, Step-down (Non Isolated)
- Switching Frequency 150 kHz
- Protection Short circuit current limiting

Feature:
- Control: adjust the analog potentiometer for increase or decrease the output voltage.
- Stable output, the output range is DC DC 1.5~34V, * note the input voltage should be higher than output voltage ~ 2V.


Product official page:
http://robotdyn.com/catalog/adaptors/lm2596_dc_dc_step_down_adjustable_power_supply_module_in_3_36_out_1_5_34v_3a/
* For get a detail information of product, instruction, schematic diagram, dimension diagram, guide and software, Pls visit to official page of product.

RobotDyn(R) - registered trademark in USA.
Zhuhai RobotDyn Technology Co.,Ltd - Developer and manufacture.

Feature

Control: adjust the analog potentiometer for increase or decrease the output voltage.
Stable output, the output range is DC DC 1.5~34V, * note the input voltage should be higher than output voltage ~ 2V.
Easy to connecting of power wires.
Brand : RobotDyn
MPN(PartNumber) : Power converter
EAN : 6970622935650
Product Dimensions(LxWxH) : 9x4x1cm ; 68 g
Package Dimensions(LxWxH) : 18x11x1cm ; 68 g
