Cleaning steps:

1: Remove the accessories on the top of the mobile phone motherboard (such as speakers, LCD screen, ringer, microphone and other accessories removed)

2: Put the removed motherboard on the ultrasonic cleaner

3: Pour water on the plate, submerge the motherboard high point

4: Start the ultrasonic cleaner

5: Dry the motherboard after cleaning
effect:

1: Cleaning dirt, dust, in addition to all kinds of grease, in addition to carbon deposition.

2: decomposition emulsification: drugs, pharmaceuticals, etc. can accelerate the chemical reaction under ultrasound, shorten the glycolysis, emulsification, compounding time.

use:

1: Communication equipment, telecommunications maintenance, mobile phones, PHS, Walkman and other electrical precision circuit board, spare parts use ultrasonic cleaner combined with anhydrous alcohol cleaning, there is an excellent non-polluting thorough cleaning effect.

2: Watches, precision instruments, with ultrasonic cleaners, clocks, precision instruments eliminate the need to remove screws, gears, winding springs, watch keys, and other troubles one by one, only need to remove the shell, the entire into the corresponding cleaning agent In the cleaning tank (such as gasoline), you can get a lot of cleaning results.

parameter:

Power supply 220V-50HZ

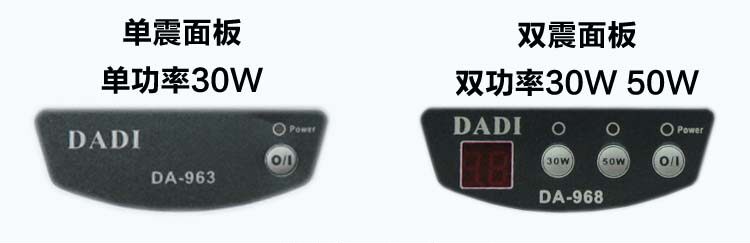

Power: single shock: single power 30W, double shock: 2 power 30W/50W dual power

Operating frequency 40KHZ

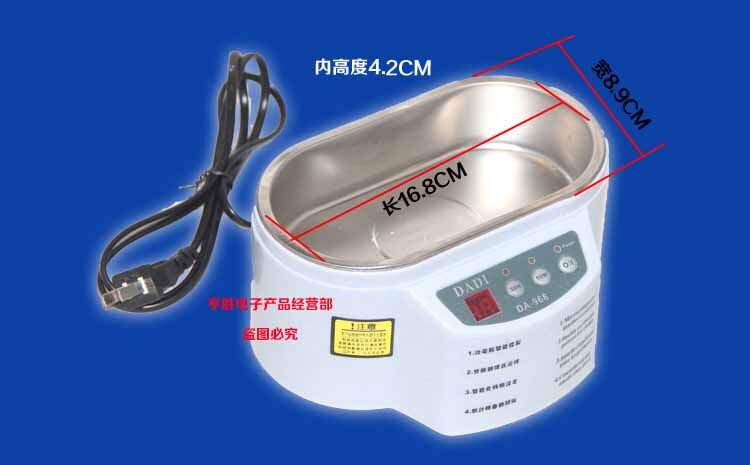

Dimensions Length 170MM Width 90mm Depth: 40MM
