Item Descriptions:

size:

720 P million pixels

| Color:

White 720P

SMONET 1 million pixels 720P type network camera

【point】

★ It can support only 2.4 GHz network.

In case

★ Wimax's WiFi mobile router can not support.

★ When connecting, please operate next to the router as much as possible.

★ SD card capacity support is up to 64 GB, so there is a possibility that it will not recognize beyond this limit.

★ If you need backup, you must use software called Sdtool.

[Connectable with both wired Lan and WiFi]

①, wired Lan connection procedure:

Open MIPC from smartphone> Login> Check + on camera list screen> Scan QR code and register> Select Ethernet connection> Turn on camera>

With Lan cable Camera and router connection> Password change> WiFi input> Connection is completed.

②, WiFi connection procedure:

Open MIPC from smartphone> Login> Check + on camera list screen> Scan QR code and register> Select Ethernet connection> Turn on camera>

With Lan cable Camera and Router connection> Reset button Press for 1 second> Enter WiFI> Connect when connecting, Loud voice is connected> Connection is complete.

※ From wired to WiFi Recy change mode Procedure:

Installation> Network> Wi-Fi> Add to Wi-Fi list and select> Enter password> When "Connected" appears in the network state, connect the Lan cable

Pull out, close MIPC and restart after a few minutes.

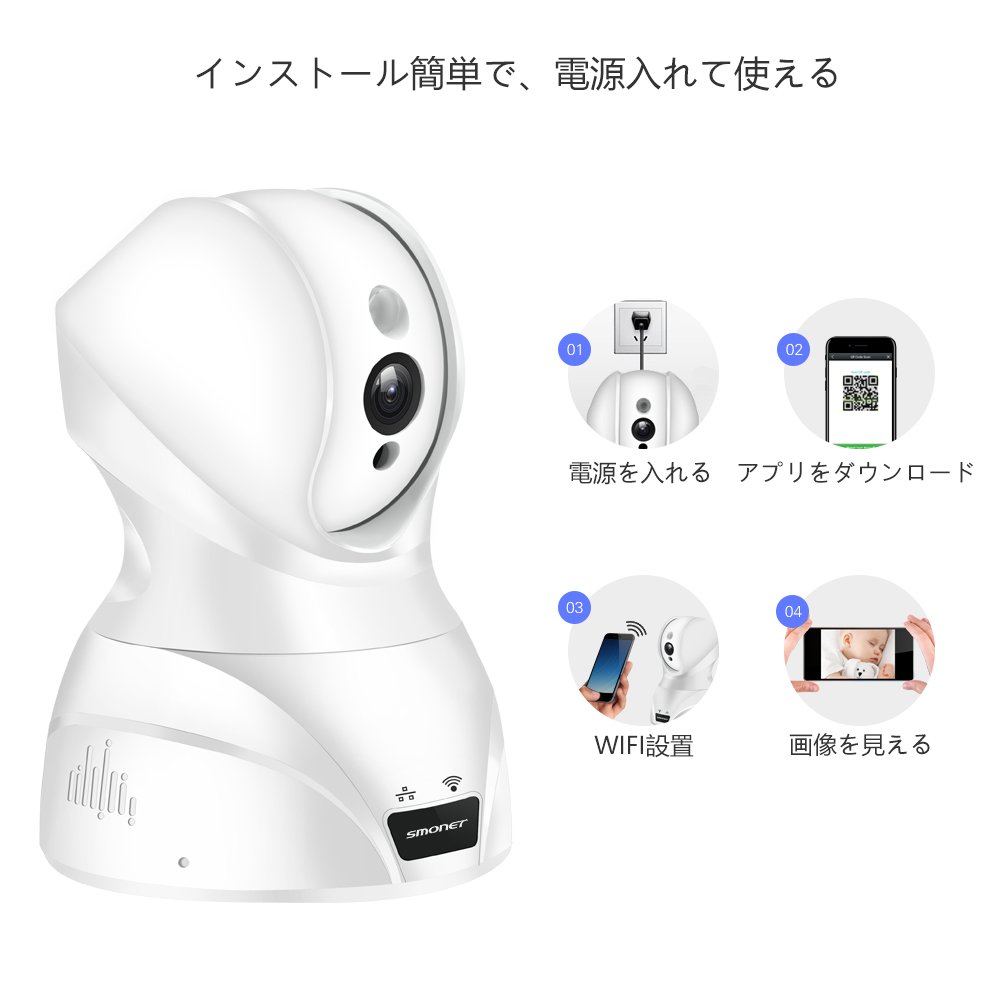

Easy to connect - detailed method explanation, 1 million pixels, remote monitoring / real time etc.

【Pan / Tilt】

It swings by 100 ° up and down & 350 ° left and right, it can cover a wide area.

【24/7 field monitoring, anytime anywhere】

- With stable power supply and WIFI, you can work without taking the camera break.

- 24 hours a day, 7 days in a week, you can easily feel free to watch.

[Interactive voice communication function]

Built-in speaker & microphone, realizing that voice can be exchanged bi-directionally!

You can make calls and communicate by using a network camera installed at a remote place.

For example:

- Watch over children and old people in your house-hold, watching pets (cats, dogs, hamsters, etc.)

- For the management of the store, feel free to check the site information

- Video call with parents at home

【Remote monitoring, real time etc】

Remote monitoring from the smartphone, real time can also be realized with the camera connected to the network.

【Recording / Playback】

If you set up the SD card on the camera, recording is of course available.

Saved video can also be played.

point:

- When inserting an SD card, it may not recognize otherwise as if the camera was turned off first.

- After inserting the SD card, format it.

【backup】

If you need backup, you must use software called Sdtool "www.mipcm.com"

Like registering and installing the net.

point:

- For route selection of backups, file names must be exactly aliased.

[Use territory]

It can be used for various scenes such as pet rooms, convenience stores, offices, rooms, hospitals, children's rooms etc.

Motion Detection and Alarm Function

Motion inspection and intelligent alarm can be announced immediately, and the acquired video is also sent to equipment such as a smartphone or laptop computer in real time.

Besides, if thieves break into the house, you can also threaten the police will come here soon.

After installing the alarm, you can record it on the snapshot, and items such as motion detection sensitivity, recording progress, alarm warning can be adjusted freely.

Hi-Vision 720 video, day and night monitoring

Clear images are displayed and 1280 * 720 (1.0 MP) images.

Because the camera has installed infrared light, you can see vivid images clearly at night.

The night vision distance is delivered up to 15 meters.

8 times HDTV digital zoom expansion

The zoom lens can expand the screen / image freely up to 8 times.

Or you can expand the location a little far away so that you can see it more closely.

Product specification

- Weight: 574 g

- Dimension: 85 x 85 x 120 mm

- Power supply: DC 5 V / 2A

- Main processor: GM 8136S

- Image sensor: AR0237

- Resolution: 1280 × 720 (1.0 MP)

- Viewing angle: H: 60.5 ° V: 37 ° D: 72 °

- Min light intensity: 0.01 lumen

- Audio input / output: Built-in microphone and speaker

- Audio compression: AAC

- Video compression: H.264

- Write frequency: 50 Hz, 60 Hz

- Image frame: limit 30 fps

- Certification: Rohs, CE, FCC, NCC

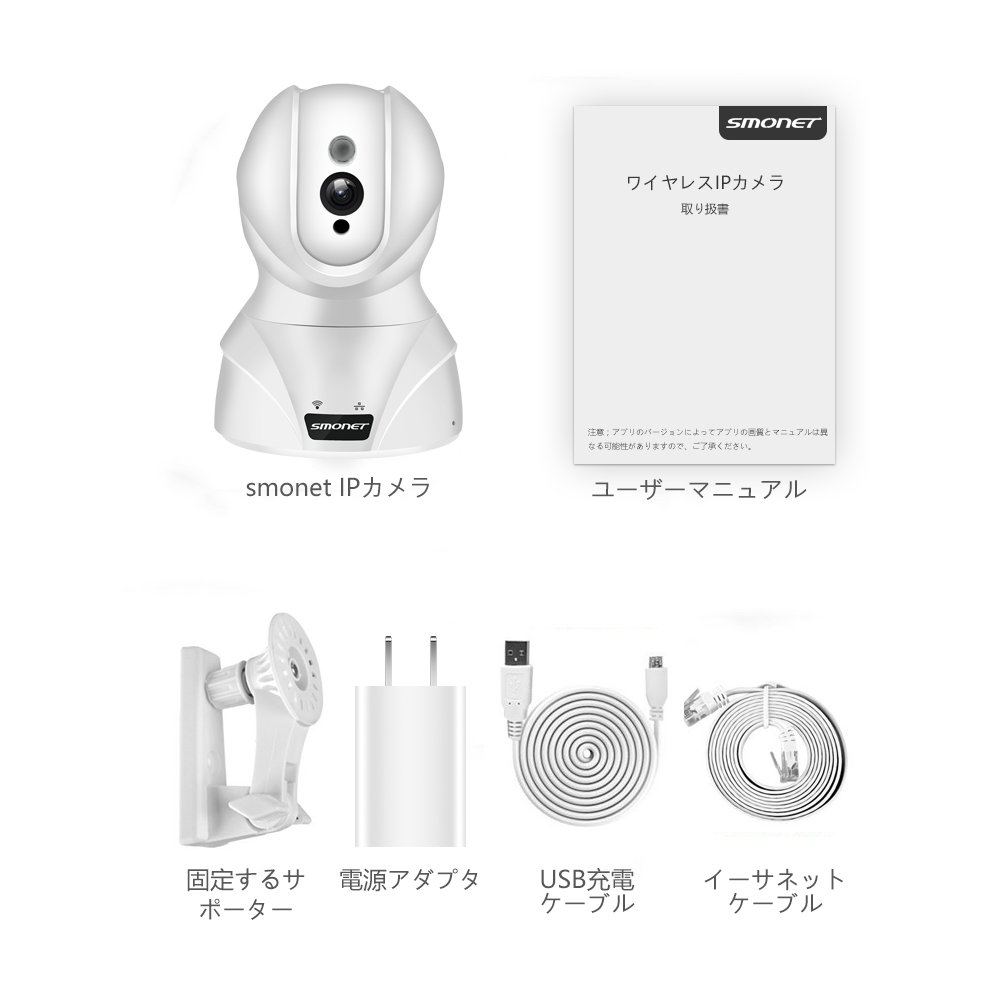

Package Contents

- 1 x Wireless Security Camera

- 1 x USB charging cable

- 1 x Power Adapter

- 1 x Ethernet cable

- 1 x supporter to fix

- 2 x screw cap

- 2 x screw

- 1 x Japanese Instruction Manual

usage environment

- Working temperature: -10 ° C to 55 ° C (14 ° F to 131 ° F)

- Operating humidity: 10% to 80% (when water puddling does not occur)

- Storage temperature: -10 ° C to 60 ° C (14 ° F to 140 ° F)

- Storage temperature: 0% to 90% (when water puddling does not occur)

Features:

• Please enter model number Confirm this is compatible:

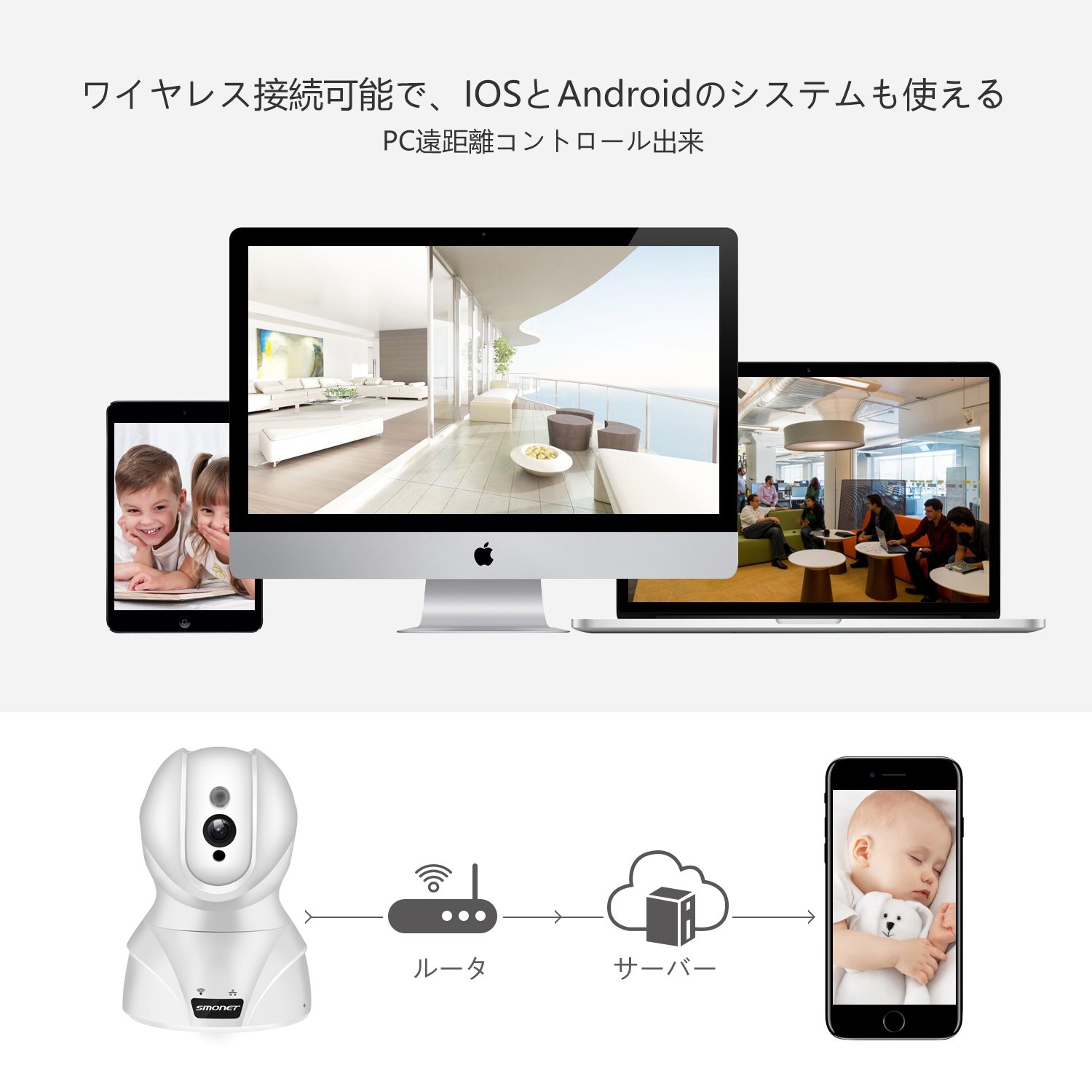

• 📷 A network camera is a network that can be easily remotely monitored, real time, etc. with a smartphone or PC.
• A perfect image is displayed with a wide field of view but "vertical 100 ° horizontal 350 °"
• ★ Easy to set up, support is available for both WiFi and wired.
• When connecting for the first time, connect with wires.
• "Points: ①, I can only support 2.4 GHz network ② Wimax's WiFI mobile router can not support.The details of the connection can be found on the following page and I am grateful."
• 🏠 It can be used in various places such as use area, pets of answering machine / child / watching over of old people, surveillance protection of home, situation check of office etc.
• Because built-in microphone and rydeviska are set up, both conversations are of course.
• "Because it does not have a waterproof function, it is better to avoid outdoor use"
• ★ How to back up the data saved on the SD card: How to back up the data saved on the SD card: Register the net "www.mipcm.com" on the PC and use SDTOOL.
• "SD card capacity up to 64GB, there is a possibility that you can not recognize using more than this"
• ☎ Warranty customer, 12 months warranty period provided, free technical support for your life.
• If you have any doubt, or questions during use, please do contact us by all means.
• "E-mail address: [email protected], contact address: 00816-4560-4452".

Product information:

Shipping Weight: 580 g

Package Dimensions: 9.60 x 16.10 x 18.29 cm
