Product Description

Feature:

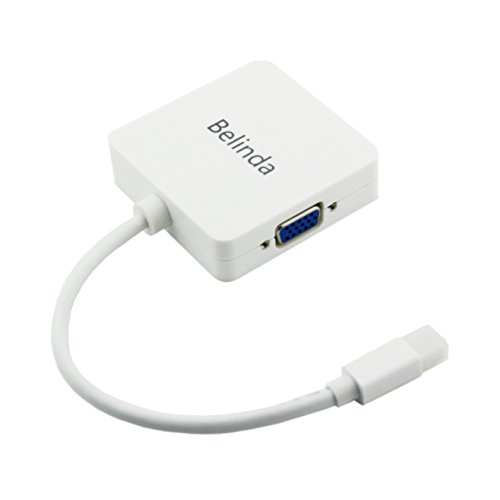

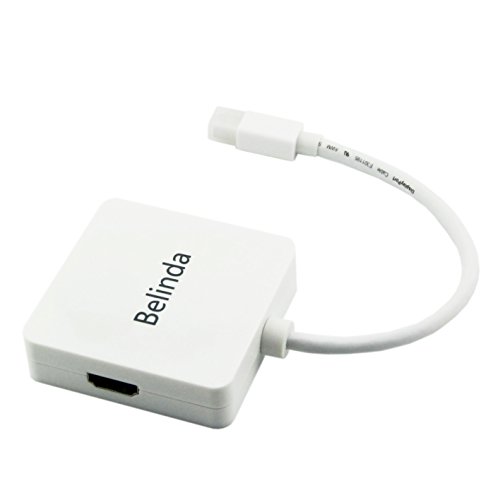

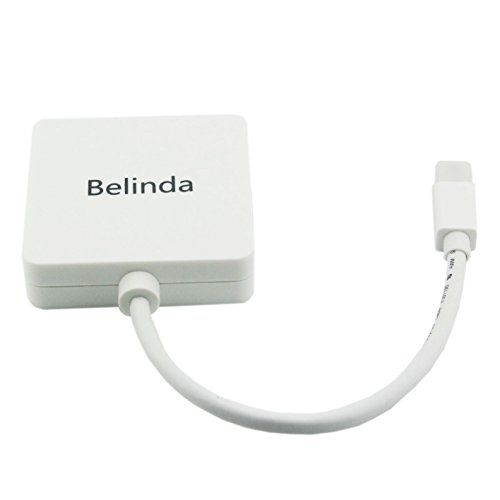

•The mini DisplayPort to DVI +HDMI+VGA Adapter lets you connect a high definition monitor， projector， or LCD that uses a DVI / HDMI/ VGA connector or cable to a MacBook， MacBook Pro， or MacBook Air with a mini DisplayPort. Full one year warranty， you can buy with confidence
• NOTE:User can only use one output port at one time
•Support Mini DisplayPort 1.1a input and DVI-D/HDMI/VGA output
• Support DisplayPort highest video resolution 1920*1200
• Support HDMI/DVI-D highest video resolution 1920*1080p
• Support HDMI/DVI-D 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
• Support HDMI/DVI-D 12bit per channel (36bit all channel) deep color
• Powered from Mini DisplayPort source
Specifications:
• Input Video Signal 5 Volts p-p (TTL)
• HDMI/DVI Maximum Single Link
Range:1920x1080P@60Hz
• DisplayPort Maximum Single Link Range:1920*1200@60Hz
• HDMI/DVI Video Amplifier Bandwidth:2.25Gbps/225MHz
• HDMI/DVI Resolution 480i， 480p， 576i， 576p， 720p， 1080i， 1080p
• HDMI/DVI Resolution 1280*1024， 1360*768， 1920*1080， 1920*1200
• Operating Humidity:10% to 85 % RH (Non Condensing )
• Input Interface Mini DisplayPort Male 20pin

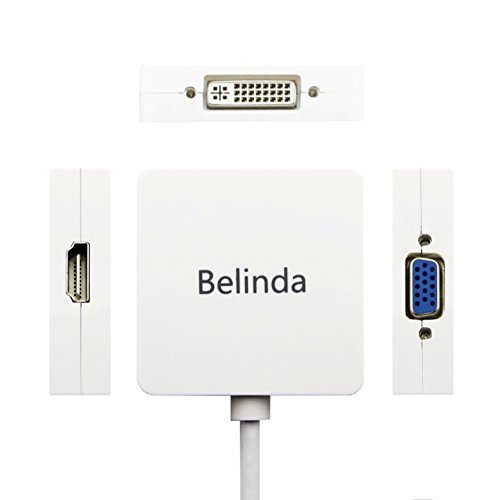

• Output Interface:HDMI Female 19Pin and DVI-D (24+1) and VGA 15Pin.
• Transmits Video & Audio for the newest 2010 Apple MacBook Pro
• Audio function is NOT supported on all models released before April 2010!!!
• Color: White
• Cable length: Approx. 15cm
Compatible With:
Apple: iMac， Mac Mini， Mac Pro， MacBook Air， MacBook Pro 13 inch， MacBook Pro 15 inch， MacBook Pro 17 inch And all thunderbolt port
Package include:
•1 x Mini Display Port to DVI-D HDMI VGA Adapter For APPLE MAC

Feature

Support Mini Display Port 1.1a Dual-mode input.
The HDMI can support audio output for iMac (Late 2009) and Mac Book Pro (Mid 2010)
Support HDMI/DVI/VGA output with the max resolution of 1920x1080p@60Hz， 225MHz/2.25Gbps per channel (6.75Gbps all channel)， 12bit per channel (36bit all channel) deep color.
Automatic detect the display by plugging and unplugging it.
Powered from Mini Display Port source
