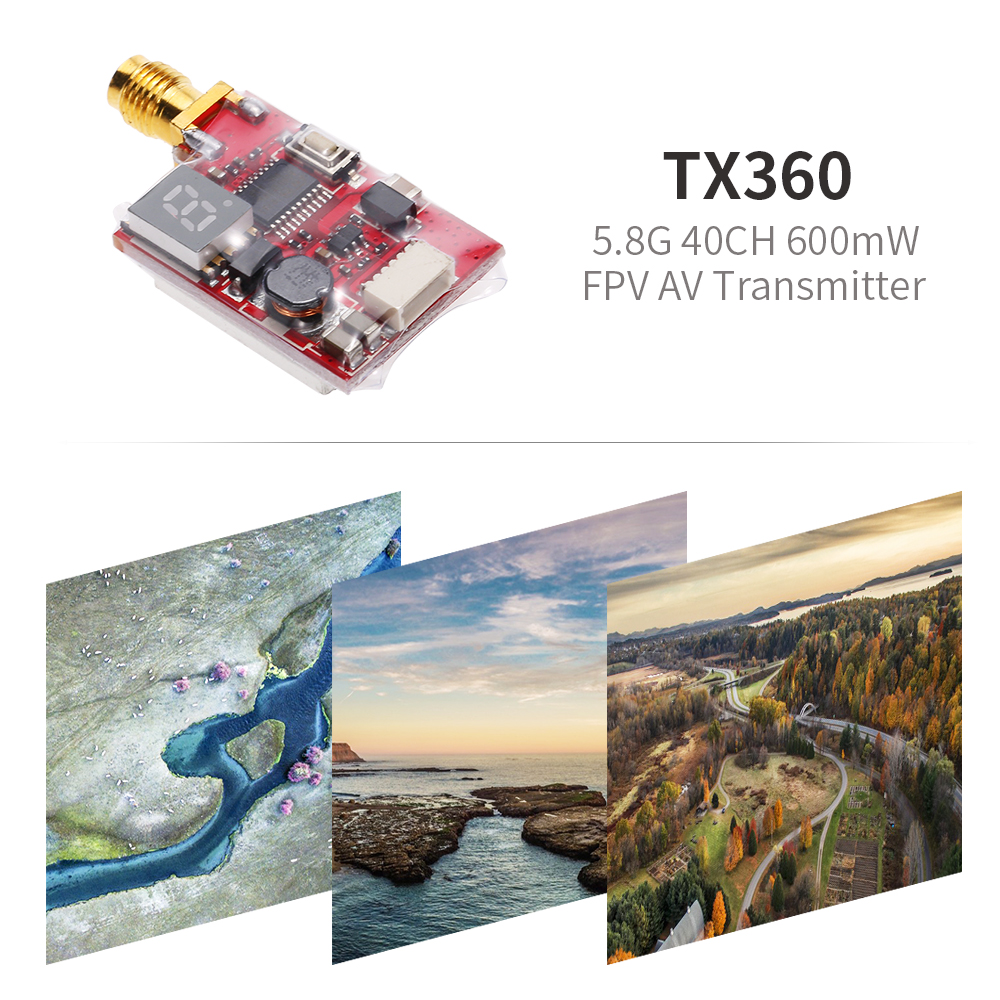

Are you're looking for an audio/video transmitter device for your FPV? This is your answer， a Big power 5.8GHz transmitter in a small package! This 600mW 5.8GHz transmitter puts out very little heat， keeping the heatsink and overall size/weight very small.
Features:
Bulid-in microphone
Wide input voltage， 7V-20V
Super mini， light weight only 8g
Five bands 40 channels with raceband
RP-SMA-K antenna connector， with 5.8GHz antenna
Button control instead of switch， LEDs for frequency selection
Single push to change CH， push and hold for 2 or 3 seconds to change FR
Specifications:
Item NO: TX360
Modulate: Wideband FM modulate
Video format: NTSC/PAL
Output impedance: 50 Ohm
Output power: 26-28dBm
Frequency range: 5645-5945Mhz
Channel: 40CH
Transmitter power: 600mW
Operating voltage: 7V-20V
Output voltage: 5V
Supply current: 260mA at 12V
Video band width: 8.0MHz
Audio carrier frequency: 6.5MHz
Video input level: 0.8-1.2Vp-p
Video input impedance: 75 Ohm
Audio input level: 0.5-2.0Vp-p
Audio input impedance: 10K Ohm
Antenna connector: RP-SMA-K connector
Frequency range:
FR1: 5865Mhz， 5845Mhz， 5825Mhz， 5805Mhz， 5785Mhz， 5765Mhz， 5745Mhz， 5725Mhz
FR2: 5733Mhz， 5752Mhz， 5771Mhz， 5790Mhz， 5809Mhz， 5828Mhz， 5847Mhz， 5866Mhz
FR3: 5705Mhz， 5685Mhz， 5665Mhz， 5645Mhz， 5885Mhz， 5905Mhz， 5925Mhz， 5945Mhz
FR4: 5740Mhz， 5760Mhz， 5780Mhz， 5800Mhz， 5820Mhz， 5840Mhz， 5860Mhz， 5880Mhz
FR5: 5658Mhz， 5659Mhz， 5732Mhz， 5769Mhz， 5806Mhz， 5843Mhz， 5880Mhz， 5917Mhz
Package Information:
Package size: 9.5 * 8 * 1cm / 3.7 * 3.1 * 0.4in
Package weight: 27g / 0.9oz
Adhesive tape package
Package List:
1 * TX360 5.8G Transmitter
2 * Connecting Cable
1 * Antenna
1 * English Manual
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
