Product Description

VeLLBox HDBaseT 5 Play Extend to 100m Support resolution up to 1080p
This HDBaseT HDMI Extender extends an HD source with multi-channel digital audio, video and IR to the display ,also extends Ethernet
Support POE (Power Over Ethernet) function that makes customer only require one 48V/1A power supply for the sender
Built-in IR extender function that means using the remote-controller of the source to control IR from the display side
And the transmission distance between the source and display can be up to 100m over one CAT6 cable
Easily controls the source by IR extender function when the display is away from the source

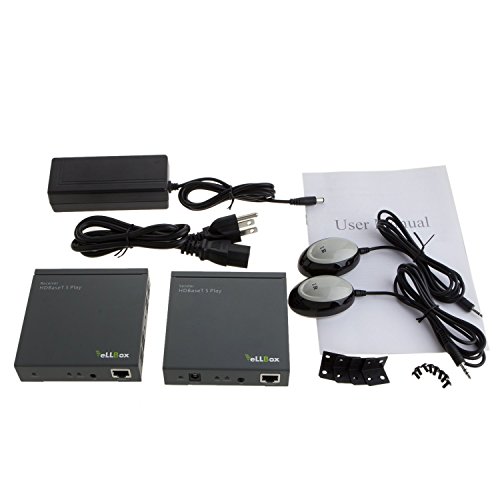

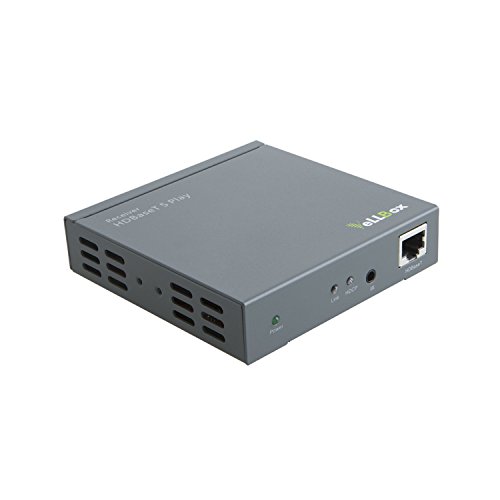

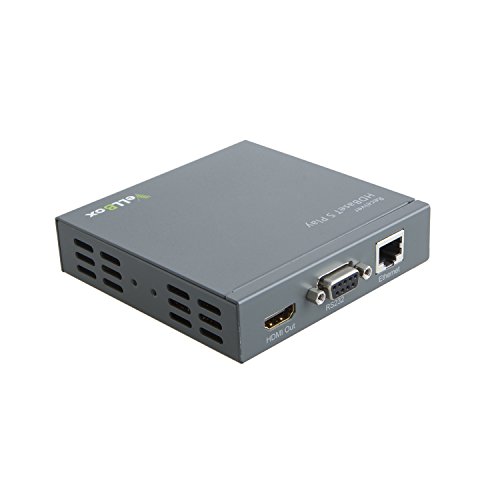

The main unit consists of one sender and one receiver, and they are small in size101x101x25mm
When you need to extend the transmission distance up to 100m (approximate328ft),please better choose CAT 6 cable

Feature
Supports POE
Supports HDCP
Supports 3D pass-through
Supports CEC pass-through
Supports 1080p@60Hz@48bit pixels
Supports uncompressed HDMI signal
Supports uncompressed audio such as LPCM
CAT5e/6 cable follows the standard of IEEE-568B
Enables HDMI 10.2Gbps over a single 100m Cat5e/6 cable
Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth
Supports compressed audio such as DTS Digital, Dolby Digital including DTS-HD and Dolby True HD

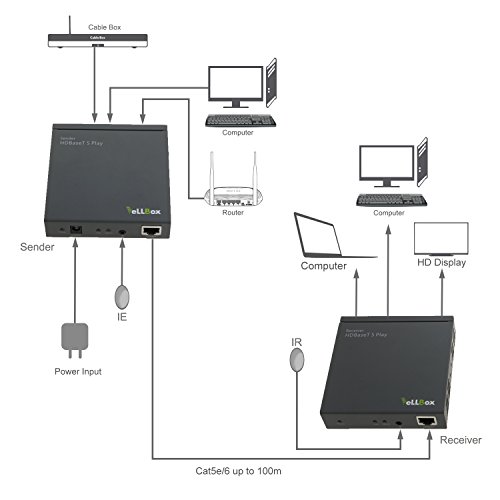

Operation
Connect the HDMI source (such as DVD, PS3, STB ) to the input of Sender
Connect the output of Receiver to HDTV display
Use a Cat5e/6 cable up to 100m to connect the Sender and Receiver
Plug one power supply into the Sender and the other into the Receiver

Free Warranty
VeLLBox provides 1 year free warranty with high quality after-sales service
