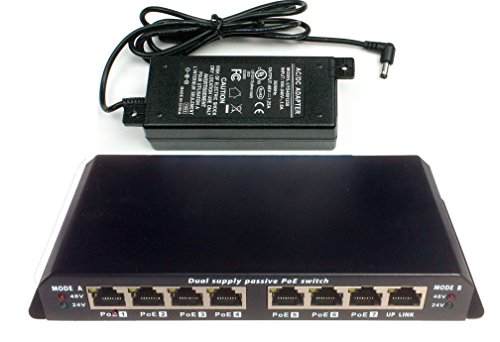

8 port Ethernet switch with Passive PoE on 7 ports -WS-POES-8-7-48v60w - power over ethernet for 802.3af with 48 volt 60 watt supply







Product Description

Specifications
• 8 switch ports with 10/100 auto detect operation, with status LED
• 100 to 240 volt AC input
• 50 or 60 hz high efficiency operation
• 7 always on PoE outputs to power 802.3af devices

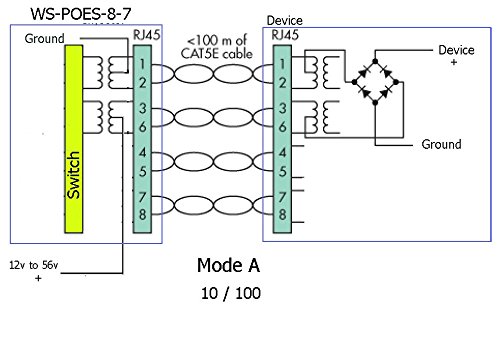

• Power and Data on pins 1,2 and 3,6 of the ethernet PoE connectors
• Self Resetting fuse on each PoE output port
• Green operation - low power- under 3 watts
• Dual Power supply operation for redundancy - add a second power supply
• Uplink port 10/100 mb
• No PoE voltage out, Passive PoE in
• Power 802.3af with always on power, (no autonegotiation)
• PoE repeating is possible- power this switch and attached devices remotely via Ethernet using our WS-POE-1-WM injector
• 195mm x 82mm x 26mm W x H x D for the switch
• 120mm x 52mm x 32mm W x H x D for the 60 watt power supply

Includes

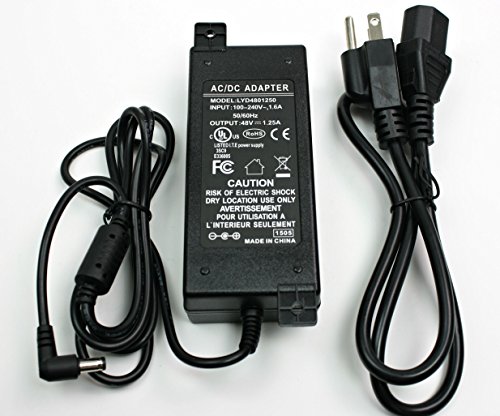

• 60 watt power supply

Other Options
• Upgradeable to 90, 120 or 180 watts

Feature

8 port switch with 7 passive PoE ports, 1 uplink port, 17 watts per port

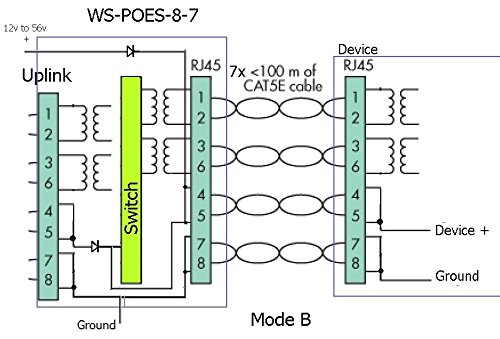

PoE Repeater function through uplink. Power through uplink port with passive PoE.
Power 802.3af and 802.3at devices like Phones, PoE Cameras, Access Points
Always On Power over Ethernet
Expert USA Tech Support - call 512 479 0317
Brand : WiFi-Texas
Item model num : WS-POES-8-7-48v60w
MPN(PartNumber) : WS-POES-8-7-48v60w
EAN : 0752423138234
Product Dimensions(LxWxH) : 20x3x9cm ; 839 g
Package Dimensions(LxWxH) : 25x14x9cm ; 839 g
