Features:

100% Brand new and high quality!

Plug and play， easy to use. Compatible with the mainstream 2.54 interfaces and 4-Pin Grove interfaces in the market.

With use of M4 standard fixed holes， compatible with M4-standard kits.

Specifications:

PCB Size: 38.0mm x 24.0mm x 1.6mm

Working voltage: 3.3 or 5V DC

Operating voltage: 3.3 or 5V DC

Compatible interfaces: 2.54 3-pin interface and 4-pin Grove interface

Color: Blue

Electrical characteristics

Supply voltage: Min.2， Typical 3， Max. 5.5， Unit VDC

Working current(VCC=5V): Typical 18， Unit uA

Digital output voltage(VCC=5V): Min. 0， Max. 5， Unit V

Package includes:

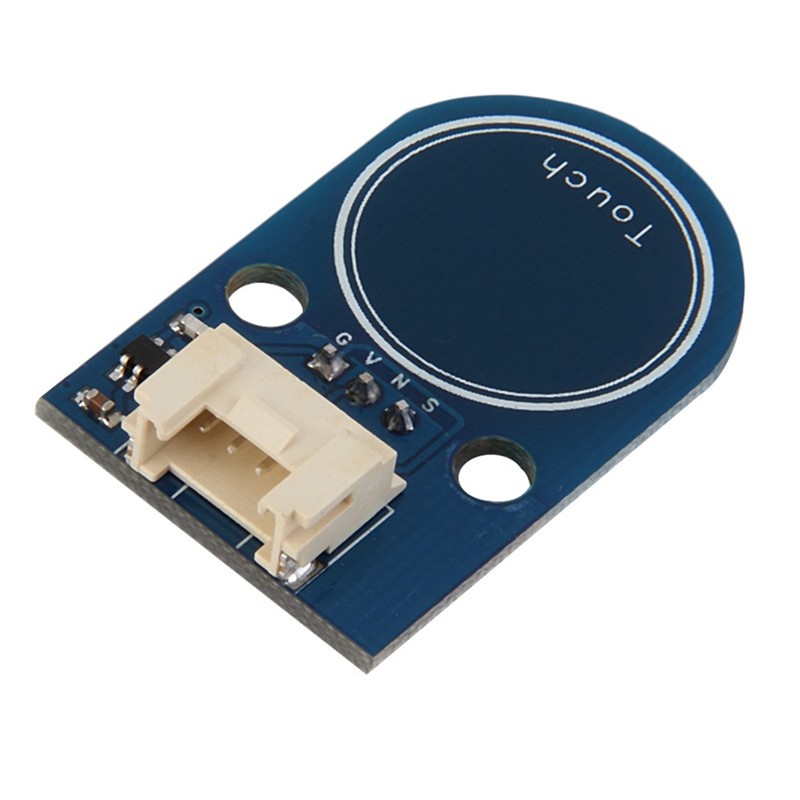

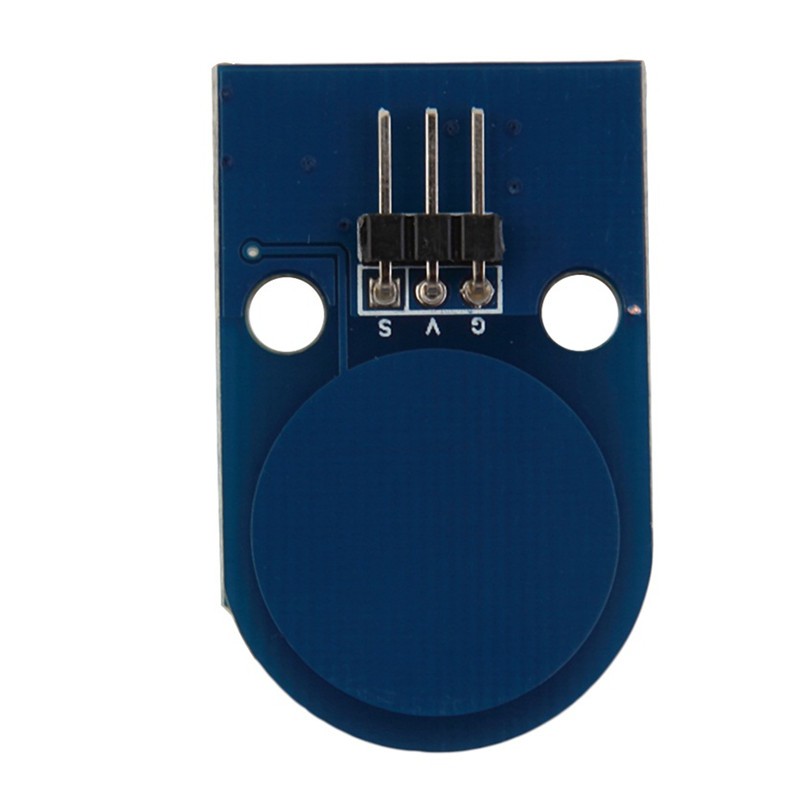

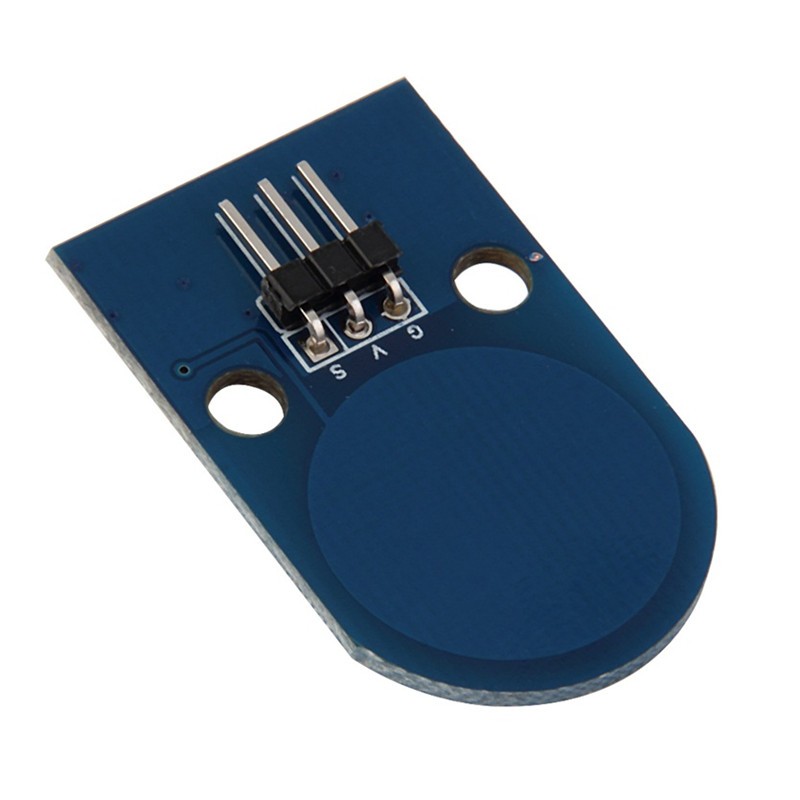

1pc 3P/4P Electronic Brick Double Side Touch Pad Button Switch Sensor Module
