Product Description

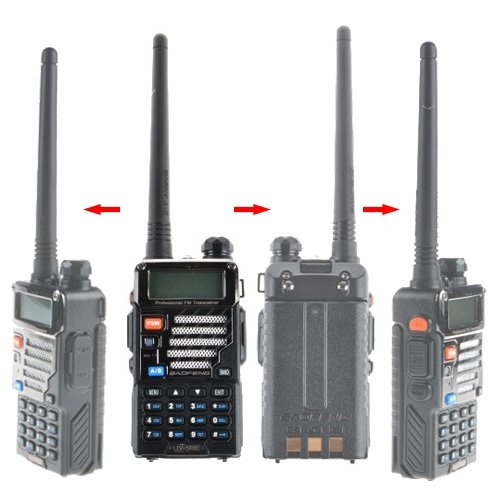

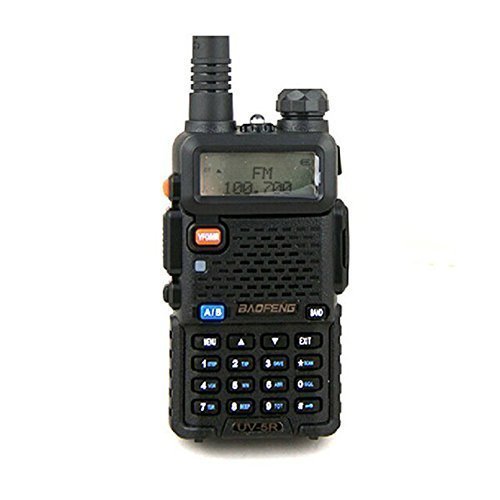

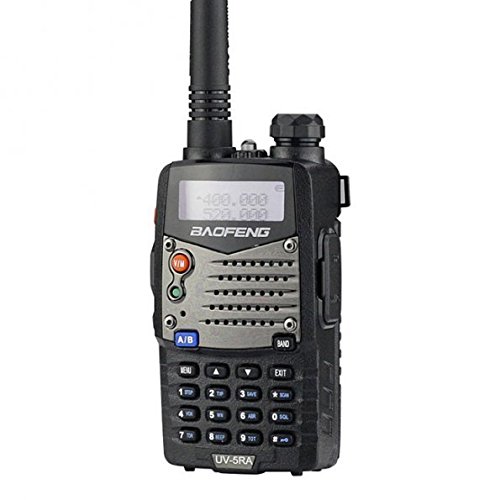

The BaoFeng UV-5RA is a compact hand held transceiver providing 4 watts in the frequency range of 136-174 MHz and 400-480 MHz. It is a compact, economical HT that includes a special VHF receive band from 65 - 108 MHz which includes the regular FM broadcast band. Dual watch and dual reception is supported. You get up to 128 memories. Other features include: selectable wide/narrow, battery save function, VOX, DCS/CTCSS encode, key lock and built in flashlight. Selectable frequency steps include: 2.5, 5, 6.25, 10, 12.5 and 25 kHz. RF power may be selected at 4 or 1 watts. This radio comes with an SMA-Female antenna, flexible antenna, BL-5 Li-ion battery (7.4V 1500 mAh), belt clip, wrist strap, AC adapter (8.4V 600ma) and drop-in charging tray. This radio requires the PC03 FTDI programming cable.

Computer Programming:

A Separate (Not Included) Programming Cable is Required for PC Programming (PC03 FTDI Recommended)

Specification:

Memory Channel: Up to 128 channels
Frequency Stability: 2.5ppm
Frequency Step: 2.5/5/6.25/10/12.5/20/25kHz
Antenna Impedance: 50 Ohm
Supply Voltage: Rechargeable Lithium-Ion 7.4V/3000mAh
Consumption in Standby: 380mA
Consumption in Transmission: <=1.4A
Mode of Operation： Simple or semi-duplex
Duty cycle: 03/03/54 min (Rx/Tx Standby)

Transmitter:
RF power: 5W / 1W
Type of Modulation: FM
Modulation Mode: 16kF3E / 11kF3E(W/N)
Maximum Deviation: <=5kHz / <=2.5kHz(W/N)
Spurious emissions: <-60dB.

Receiver:
Receiver Sensitivity: 0.2uV(at 12dB SINAD)
Intermodulation: 60dB.
Audio Output: 1W
Maximum Deviation: <=5kHz / <=2.5kHz(W/N)
Spurious emissions: <-60dB.

What's in the Box?:
1x Baofeng UV-82 Two way Radio
1x 7.4V 1800mAh Li-ion Battery
1x 18cm Dual Band Antenna
1x Power Adapter
1x Cable
1x Speaker
1x Belt Clip
1x Hand Strap
1x Battery Charger
1x User Manual

Other UV-82 Radios may Claim Higher Battery Capacity (UV-82L); but they all are the same capacity of 1800mAh

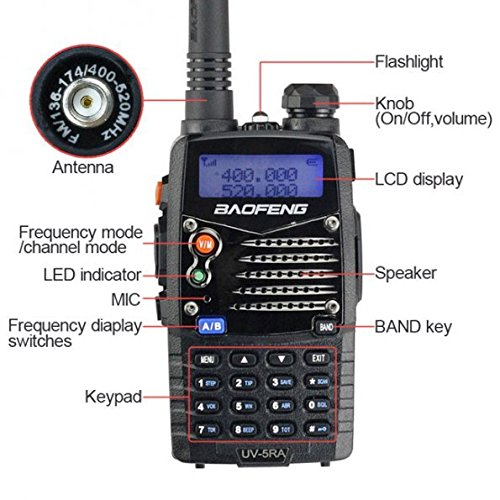

Feature

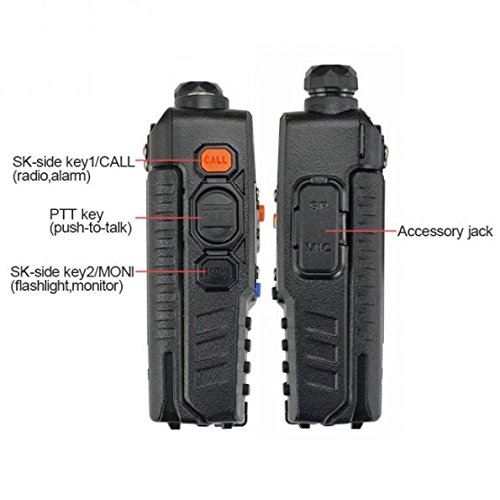

Dual PTT keys; A/B band independent operation
Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable
CTCSS & DCS Scanning/ CTCSS & DCS Direct input
Emergency Alarm; LED Flashlight; Built-in key lock
Tri-color background light selectable; 0~9 grades VOX selectable
Brand : BaoFeng
Item model num : UV-5RA
MPN(PartNumber) : UV-5RA
EAN : 0608939749535
