Item Descriptions:

Color:

Bordeaux Pink

High resolution sound source compatible.

Full digital amplifier "S - Master HX" faithfully reproduces the high - resolution sound source, "DSEE HX" upscaling compressed sound source to high resolution equivalent of high res.

"High resolution correspondence digital noise canceling function" is carried and attached headphones are included.

It corresponds to microSD memory card.

Bluetooth equipped.

memory

capacity:

16 GB

Basic information

Playback:

Music, video, photo, FM radio, podcast

Signal compression format (speech compression format):

3 * / AAC * 4 / HE - AAC * 5 / FLAC * 3 / Apple Lossless * 3 / AIFF * 3 * 1 / WMA * 2 / ATRAC / ATRAC Advanced Lossless / Linear PCM (WAV)

Signal compression format (video compression format):

Video: AVC * 6 (H.264 / AVC), MPEG - 4 * 7, Windows Media Video 9 * 8 Audio: AAC - LC * 9 (for AVC, MPEG - 4), WMA * 2 (for Windows Media Video 9

Signal compression format (still picture compression format):

JPEG (Baseline) Number of pixels: Up to 4,096 x 4,096 pixels (16 million pixels)

display:

2.2 type, TFT color liquid crystal, QVGA (320 × 240 dots)

Bluetooth function:

· Communication method: Bluetooth standard standard Ver 3.0

· Used frequency band: 2.4 GHz band (2.4000 GHz - 2.4835 GHz)

Modulation method: FHSS

· Supported Bluetooth profile * 10 * 11

- A2DP (Advanced Audio Distribution Profile)

- AVRCP (Audio Video Remote Control Profile)

- OPP (Object Push Profile)

· Supported codecs * 12: SBC * 13 / LDAC / aptX

FM radio:

● * 14

Direct encoding:

● * 15

Video / still image / One Seg display direction:

Horizontal display for right hand operation (fixed)

Theme / wallpaper:

- / ● ●

Enclosed application software:

"Media Go"

Body operation supported OS:

Windows (R) 8, Windows (R) 8, Windows (R) 10, Mac OS X v 10.6 or later (Windows Vista), Windows 7 (Service Pack 1 or later)

* Japanese version standard installation OS only supported * Not compatible with "XP compatibility mode" of Windows Vista and Windows (R) 7

Lyrics Pita:

Karaoke mode:

Language learning function (reproduction speed control):

Language learning function (A - B repeat):

Language learning function (Quick Replay):

Dance mode:

retrieval method

List display search:

● All song / album / artist / genre / release year / recently transferred album / playlist / bookmark / folder / recorded song / received song

Sort order by syllabary:

● All songs / albums / artists

Jacket search:

Play mode

Random channel:

repeat:

shuffle:

Sound quality

Digital amplifier:

S-Master HX

High resolution sound source correspondence:

DSEE:

● DSEE HX * 16

Noise canceling function:

● Digital noise canceling function compatible

Environment selection: full auto / train / bus / aircraft / interior

Clear Phase:

● * 16

Clear Audio Plus:

● * 16

Attached headphones:

Digital noise canceling headphone for high resolution

Clear stereo:

● * 16

Clear base:

● * 16

equalizer:

● Off / Lock / Pops / Jazz / Dance / Soul / Relax / Bass Booth / Treble Booth / Custom 1 / Custom 2 * 16

VPT Acoustic Engine:

● Off / Studio / Live / Club / Concert Hall / Matrix * 16

Dynamic normalizer:

● * 16

Power supply relationship

Rechargeable battery:

Built-in lithium ion

USB charging charge time (approx / hour):

Four

Rechargeable battery duration (about / hour):

[During music playback]

● MP3 128 kbps: digital noise canceling function ON 43, digital noise canceling function OFF 50

● FLAC 96 kHz / 24 bit: digital noise canceling function ON 35, digital noise canceling function OFF 40

● FLAC 192 kHz / 24 bit: digital noise canceling function ON 27, digital noise canceling function OFF 30

[When playing Bluetooth]

SBC (connection priority) MP3 128 kbps 23, LDAC (standard) FLAC 96 kHz / 24 bit 16

[During video playback]

● MPEG-4 384 kbps: Digital Noise Canceling Function ON 13, Digital Noise Canceling Function OFF 14

Input / output terminal

Headphone output:

Headphone practical maximum output (JEITA 16 Ω / mW):

10 mW + 10 mW

Connection with personal computer / Shape of main unit terminal:

Hi-Speed ​​USB / WM-PORT

microSD memory card:

microSD (~ 2GB) * 17, microSDHC (~ 32GB) * 17, microSDXC (64GB or more) * 17

Dimension / mass

Maximum external dimension [JEITA] (width × height × depth / mm):

About 44.4 x about 109.1 x about 9.1 mm

Dimensions [JEITA] (width × height × depth / mm):

About 43.6 × about 109 × about 8.7 mm

Including rechargeable battery [JEITA] (g):

Approximately 66 g (body only)

Recording time by bit rate * 18

Maximum number of recorded songs (music) * 19:

● MP3 128 kbps 3,600 songs, ● FLAC 192 kHz / 24 bit 50 songs

※ The number of songs converted into 4 songs per song is approximate

Maximum recording time (music):

● MP3 128 kbps approximately 213 hours 20 minutes, ● FLAC 192 kHz / 24 bit about 2 hours 40 minutes

Maximum recording time (video):

Video bit rate: 384 kbps Approximately 49 hours 00 minutes

Other

accessories:

Walkman body (1), earpieces (each size 2 pairs), USB cable (1), WM - PORT cap (1) (1), instruction manual (1), enjoy transferring music from your computer

1), recording from audio equipment etc. (1), warranty card (1), product registration request (1), headphone (1) (* 2), clip (for headphone) (1)

* 1 It is attached to the Walkman body at the time of purchase

* 2 MDR-NW 750N (Noise canceling function loaded high-resolution audio compatible headphone for walkman) included

※ This product, microSD card is not included in the package

* 1

MPEG-1 Audio Layer 3, bit rate: 32-320 kbps (VBR), sampling frequency: 32 / 44.1 / 48 kHz

* 2

Copyright protected files can not be played.

WMA file format that can be played on the main body Format: WMA, bit rate: 32-192 kbps (VBR), sampling frequency: 44.1 kHz

* 3

Sampling frequency: 8/11. 025/12/16/22. It corresponds to 05/24/32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz, the number of quantization bits: 16/24 bits

*Four

Copyright protected files can not be played.

AAC file format that can be reproduced on the main body Format: AAC-LC, bit rate: 16-320 kbps (VBR) (including sampling and non-standard values ​​depending on sampling frequency), sampling frequency: 8 / 11.025 / 12/16

/ 22.05 / 24/32 / 44.1 / 48 kHz

*Five

Copy protected files can not be transferred to the microSD card.

HE-AAC file format that can be played on the main body Format: HE-AAC, bit rate: 32-144 kbps (VBR) (including sampling and non-standard values ​​depending on sampling frequency), sampling frequency: 8 / 11.025 / 12

/ 16 / 22.05 / 24/32 / 44.1 / 48 kHz

* 6

Baseline Profile / Up to 10 Mbps 720 x 480 pixels (320 x 240 is displayed on the main unit display)

* 7

Simple Profile / Up to 6 Mbps 720 x 480 pixels (320 x 240 is displayed on the main unit display)

* 8

Copyright protected files can not be played.

Up to 6 Mbps 720 x 480 pixels (320 x 240 is displayed on the main body display)

* 9

Up to 2 channels, bit rate: up to 288 kbps per channel, sampling frequency: 24/32 / 44.1 / 48 kHz

*Ten

The Bluetooth profile is a standardized function for each characteristic of a Bluetooth device

* 11

To check the version of the Bluetooth profile supported by your walkman, select Home menu → ■ (various settings) → [Bluetooth settings] → [Bluetooth information]

* 12

Speech compression conversion method

*13

Abbreviation of Subband Codec

*14

Reception frequency FM: 76.0 - 108 MHz

* 15

Optional recording cable WMC-NWR1 is required

* 16

Valid only for music playback

* 17

It does not guarantee correspondence to all microSD memory cards.

It does not correspond to the transfer of copyright protected contents and the going out transfer function.

Depending on the number of saved songs, it may take time to load the microSD memory card.

If you want to transfer playlist information containing high res content to the walkman, please use Media Go.

Please use Media Go if you want to download direct recording or microSD card received content to your computer

* 18

Charging is necessary on the way in case of continuous playback for a long period of time exceeding the rechargeable battery duration

* 19

In this product, a total of 20,000 songs are transferred to the main memory and the microSD card, and it is confirmed that it operates normally

Features:

• Please enter model number Confirm this is compatible:
• It does not compress, this pleasant feeling.
• Walkman high resolution sound source compatible A 20 series [16 GB / NW - A 25 HN]
• "Hi-res compatible digital noise canceling function" that can reduce surrounding noise while reproducing the high-res sound source.
• Corresponds to the high resolution sound source where the amount of sound information is about 6.5 times the CD.
• Full digital amplifier "S - Master HX" with enhanced noise removal performance in high frequency range playing is installed.

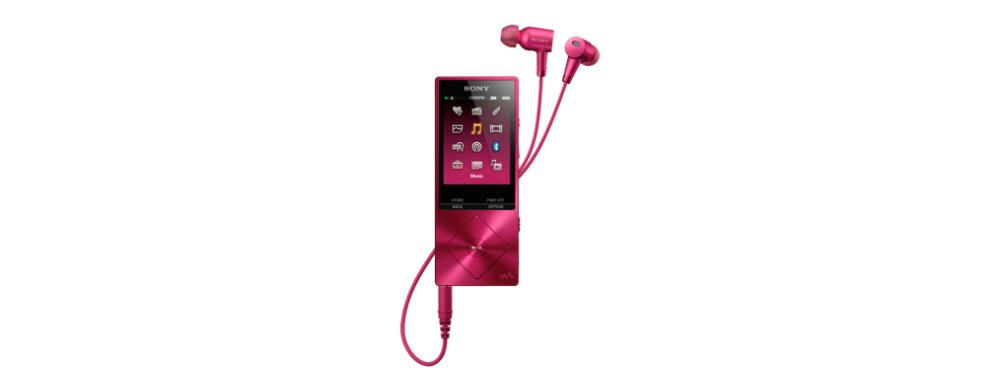

• Earphones of the same color as the main body color that corresponded to "high resolution correspondence digital noise canceling function" attached.
• Size (width x height x depth x weight): about 43.6 x about 109 x about 8.7 mm x about 66 g (body only)

Product information:

Shipping Weight: 258 g

Package Dimensions: 6.20 x 8.99 x 16.51 cm
