Item Descriptions:

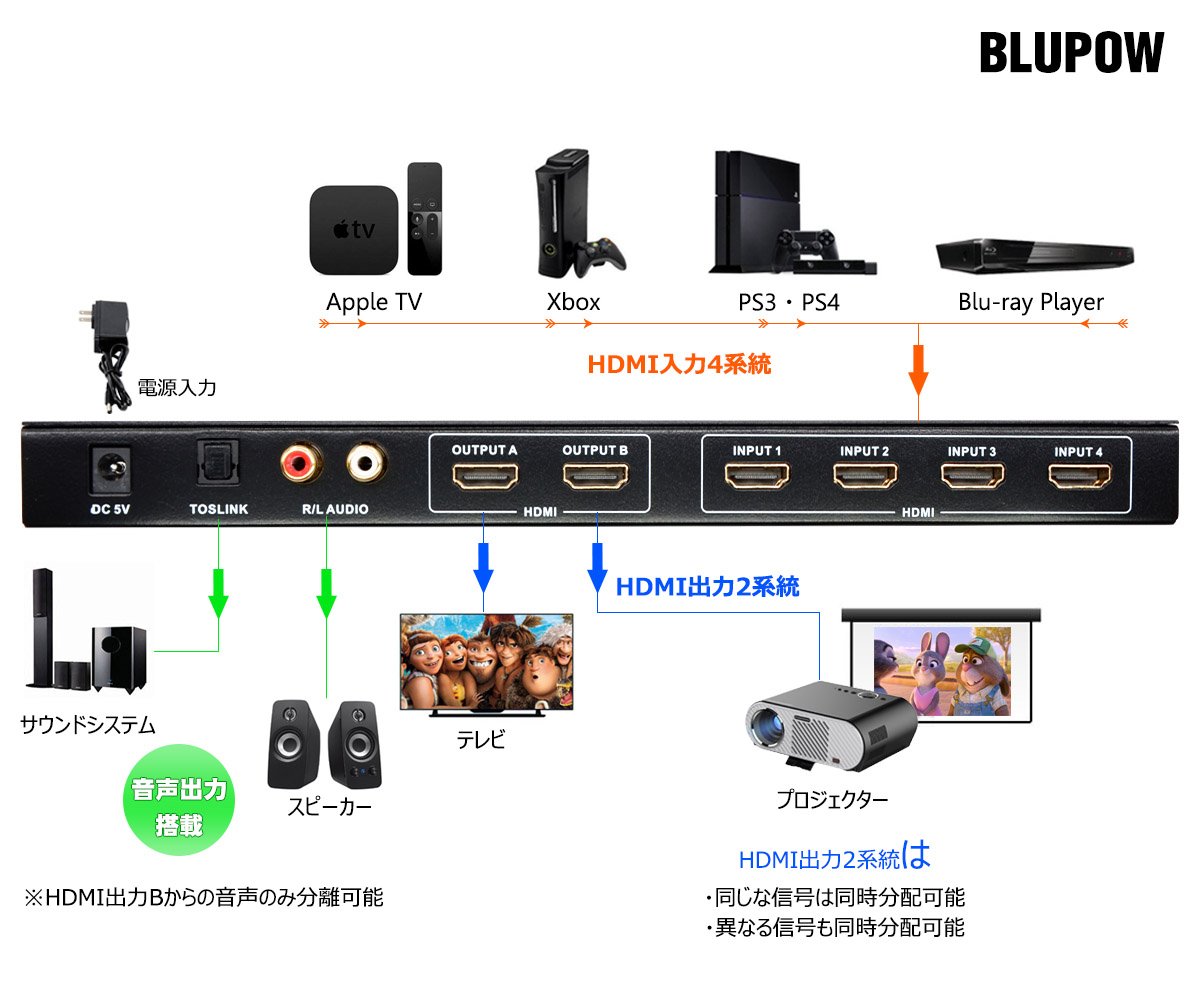

The BLUPOW HDMI matrix freely switches and outputs up to four HDMI devices to two televisions!

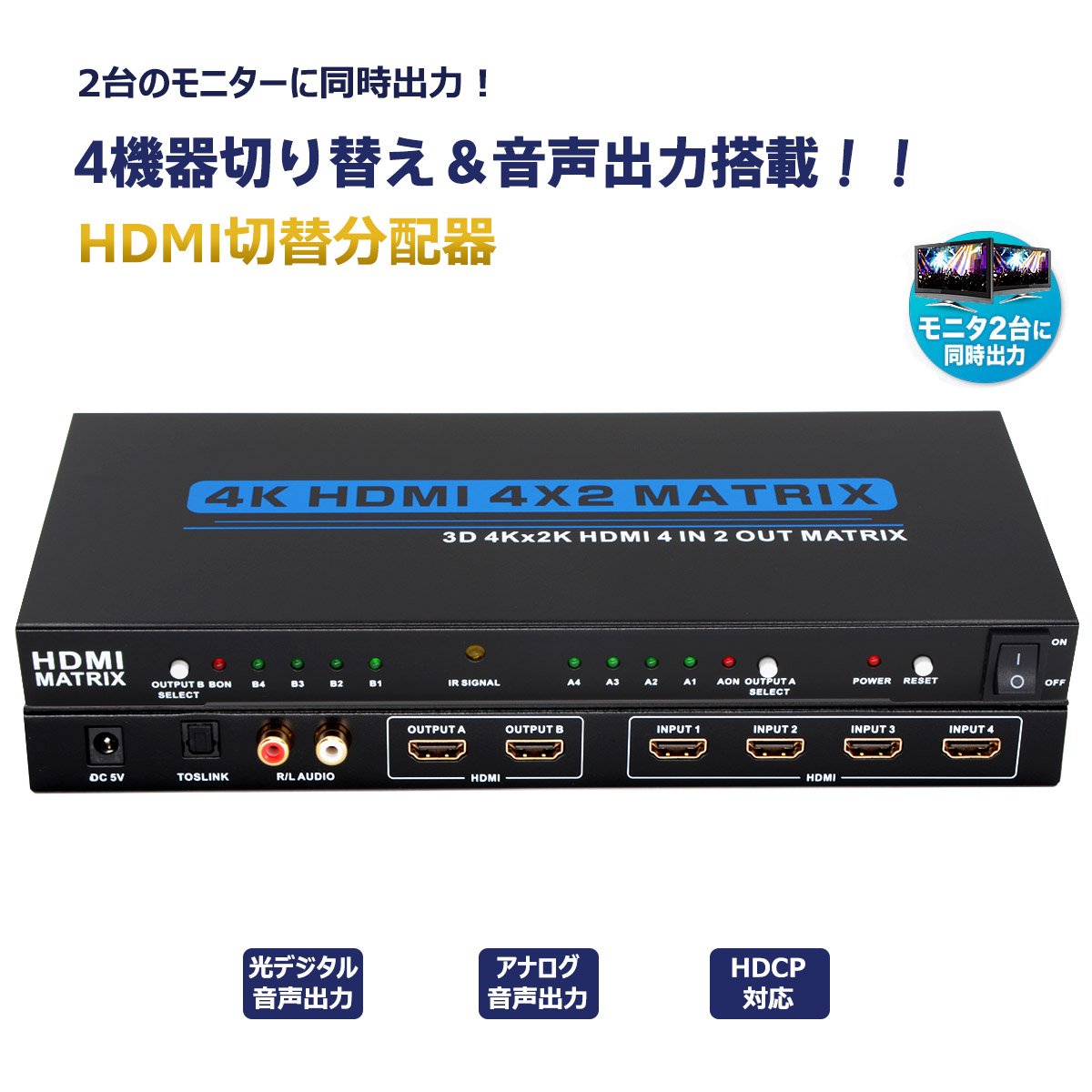

This machine is an HDMI matrix that switches 4 video / audio and outputs the beauty of high definition 4K video as it is to 2 televisions, displays, projectors and so on.

● The HDMI matrix switch can construct free routing, HDMI outputs A and B can be output simultaneously with the same signal, but simultaneous distribution output can be performed even for different signals.

You can change the HDMI input device wirelessly with a remote control.

● SPDIF / optical digital · RCA analog audio output allows you to extract the audio signal included in the HDMI signal from the optical digital or analog R / L terminal, output only the audio from your favorite speaker set or AV amplifier

I can do it.

HDMI output B

Sound can only be separated from!

● 4K × 2K · 3D video and full Hi-vision high image quality movies are supported, you can enjoy with high image quality.

● It also supports input of HDCP equipment, so you can also output HDCP protected video source.

● All the HDMI terminals are adopting gold plating, strong against rust preventing signal degradation.

● HDMI output such as HDD recorder, Blu-ray player, projector, TV BOX, PC, HD DVD, PS4 · PS3, XBOX, Apple TV etc Suitable for switching distribution and audio separation of certain equipment.

● It is easy to construct a video switching system such as a home theater at home or a classroom / conference room.

■ Corresponding input device: Video equipment with HDMI output terminal as standard equipment · Household game machine · Personal computer

■ Supported output devices: TV and PC display standard equipped with HDMI input terminal etc.

※please note※

* When connecting to the DVI interface source or display device, a DVI to HDMI conversion adapter is required separately.

Audio function is not supported when using the DVI to HDMI conversion adapter.

※ CEC non-compliant

* Depending on the specification of HDCP, the output may be re-recognized when the device is switched, so the video may be interrupted for several seconds.

* Be sure to turn off the power when connecting or disconnecting the HDMI device (plugging / unplugging the cable).

There is a risk of recognition failure, poor output setting, or damage to the equipment.

* Depending on the HDMI device, it may be necessary to recognize the display at startup.

In that case, it is necessary to start the HDMI device after switching the port.

※ Depending on the resolution and setting of the video output of the HDMI output device, it may not be output normally.

Please confirm the setting of the video output of each device and set it so that resolution and video settings suitable for the output destination TV · projector and monitor are set.

※ HDMI cable for connection and optical / coaxial digital cable are not included.

Please prepare separately HDMI cable, optical / coaxial digital cable.

* It does not guarantee that it will operate normally with all equipment.

Switching pattern - 1 -

★ Product specification ★

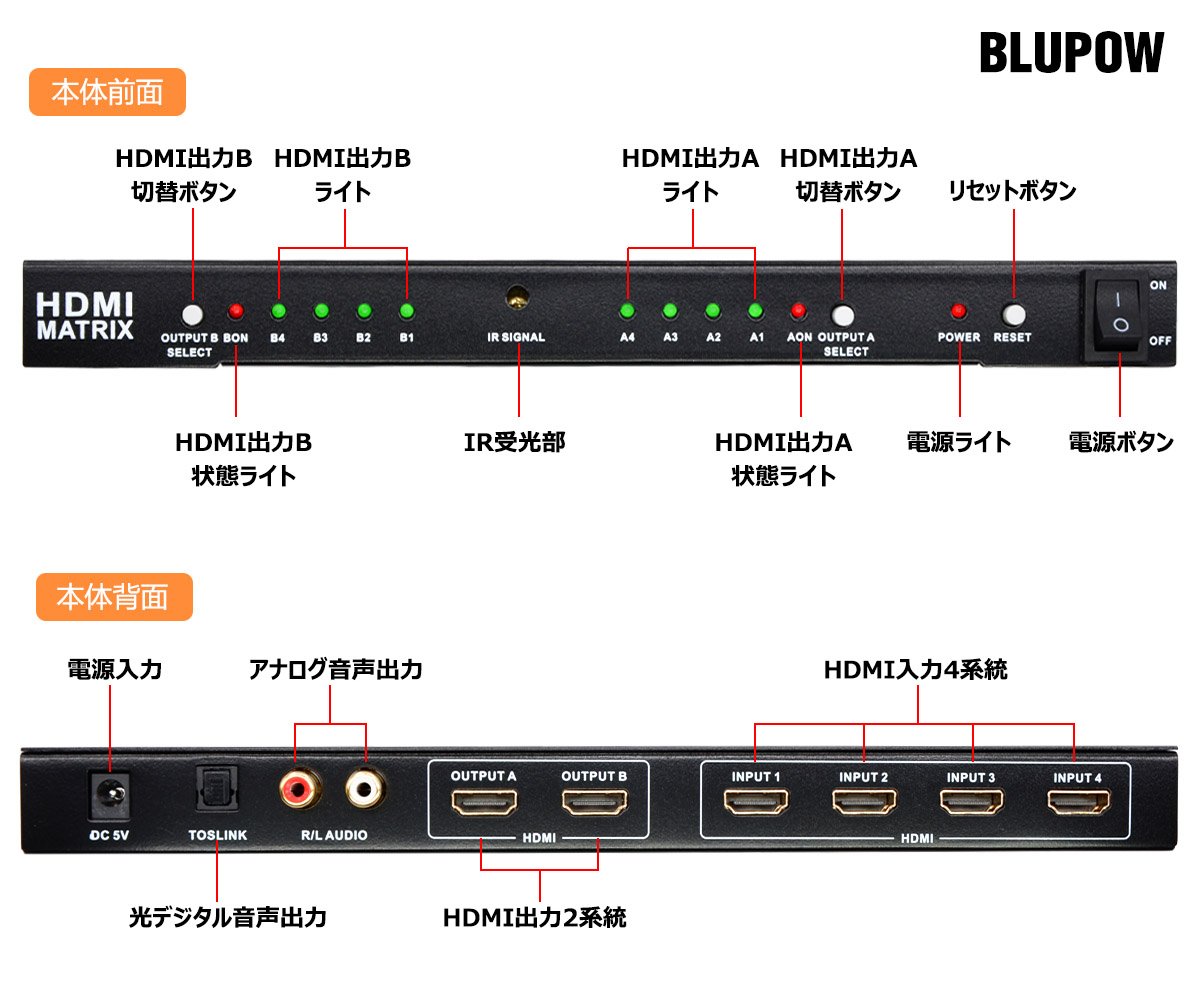

input:

HDMI type A × 4

output:

HDMI type A × 2, optical digital (SPDIF / Toslink) × 1, RCA (R / L) audio output × 1

HDMI resolution:

4 K × 2 K @ 25/30 Hz, 1080 P / 1080 i / 720 P / 576 P / 576 i / 480 P / 480 i

HDMI standard:

HDMI 1.4 compatible, backward compatible

HDCP standard:

HDCP 1.4 compatible, backward compatible

Supported video color format:

24bit / deep color 30bit, 36bit

Supported digital audio format:

PCM / DTS / Dolby-AC 3 / DSD / HD (HBR)

Transmission bandwidth / speed:

340 MHz (10.2 Gbps)

Input cable distance:

≤ 15 m AWG 26 HDMI 1.4 standard cable

Output cable distance:

≤ 25 m AWG 26 HDMI 1.4 standard cable

Power supply:

Input AC 100 V to 240 V (50/60 Hz) Output DC 5 V / 2A

Body size (approx):

270 × 130 × 20 mm

Body weight (approx):

730 g

❶ Display image from game machine (input 2) on output A

For output B, it is possible to output different images, such as displaying the strategy of the game searched for the net with the personal computer (input 3).

Switching pattern - 2

❷ By outputting the video from the player (input 1) at the same time from output A · B (split [distribute]), you can watch it even if you can not take your hands off, such as projector output on one side in the living room and TV output on the other side in the kitchen

You can watch it without missing the picture you want.

For example:

It can be displayed simultaneously on the display of the computer for the teacher to confirm and the projector to show to the students.

You can also use it for signage in a public place such as a shop front or an event venue if you want to connect to this product from a PC and distribute it to multiple monitors.

set content

1 x body

1 x PSE certified power adapter

1 x remote control (with 1 button battery)

1 x User Manual (English)

Features:

• Please enter model number Confirm this is compatible:

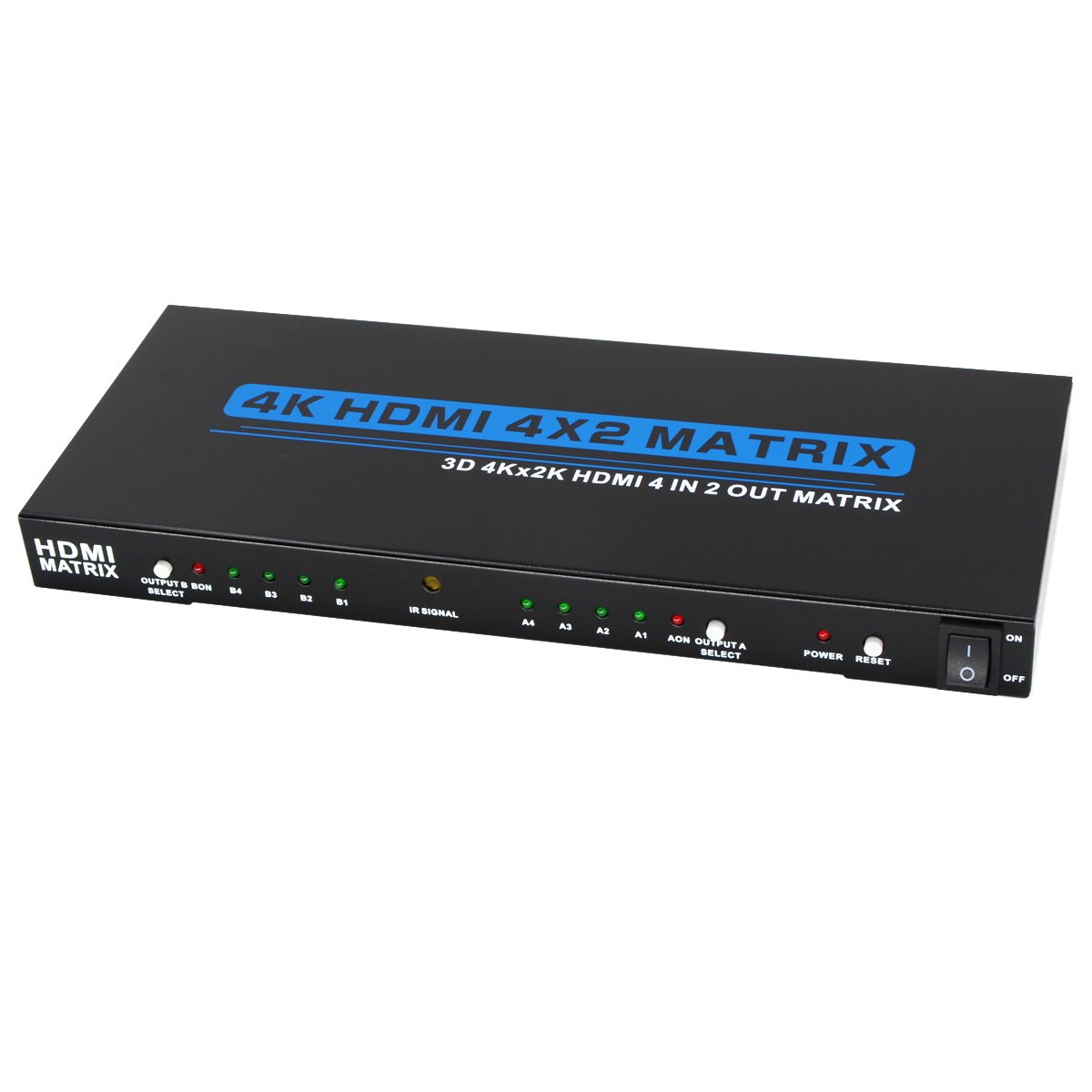

• 【BLUPOW】 This is an HDMI switching distributor that switches 4 video / audio and outputs the beauty of high definition 4K video as it is to 2 televisions, displays, projectors and so on.
• At the same time, since it has SPDIF / optical digital / RCA analog audio output, it is possible to separate the HDMI audio signal into an audio system such as an amplifier.
• ※ Only audio from HDMI output B can be separated!
• The HDMI matrix switch can build free routing, HDMI outputs A and B can be output simultaneously with the same signal output, but different signals can also be output.
• You can change the HDMI input device wirelessly with a remote control.
• It is also active in equipment systems such as home theaters in general homes, exhibition halls and conference systems.
• 4K × 2K @ 25 / 30Hz, HDMI 1.4, HDCP 1.4 compatible.
• Compatible with 3D · 4K × 2K · 1080P resolution, it can output beautifully high definition HDMI signal.
• It also supports input of HDCP equipment, so you can also output HDCP protected video source.
• Gold plating process is adopted for all HDMI terminals.
• It is strong against rust and prevents signal deterioration.
• Easy connection to dual channel audio receiver device.
• Supported digital audio format: PCM / DTS / Dolby-AC3 / DSD / HD (HBR); compatible video color format: 24 bits, Deep color 30 bits, 36 bits
• It is ideal for switching distribution and audio separation of HDMI output devices such as HDD recorder, Blu-ray player, projector, TV BOX, PC, HD DVD, PS4 / PS3, XBOX, Apple TV etc.
• [Set contents] Main unit × 1, remote control × 1, PSE approved power adapter × 1, English manual × 1

Product information:

Shipping Weight: 1011 g

Package Dimensions: 5.31 x 23.70 x 31.60 cm
