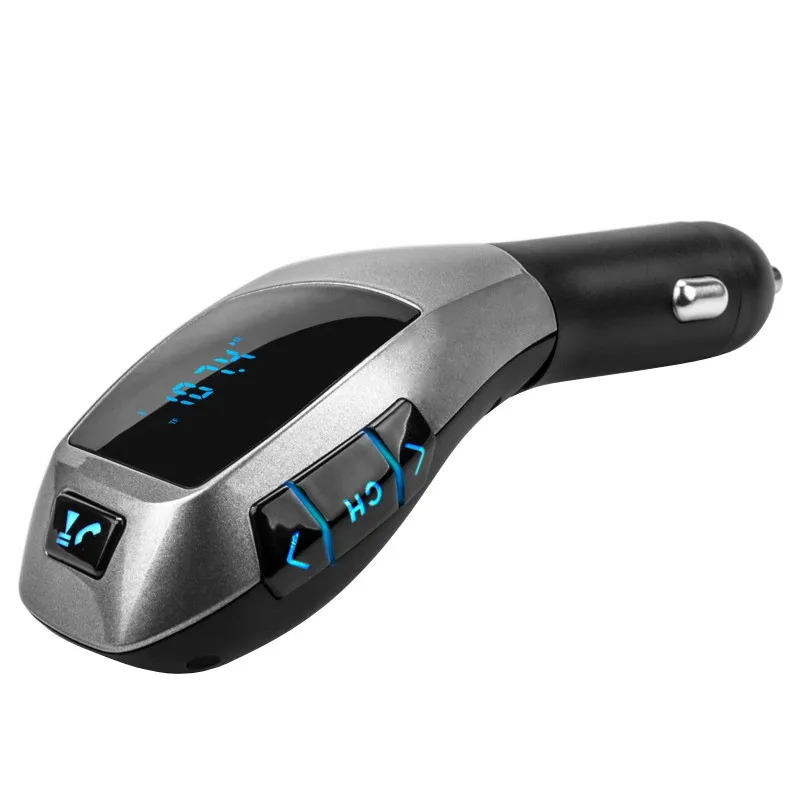

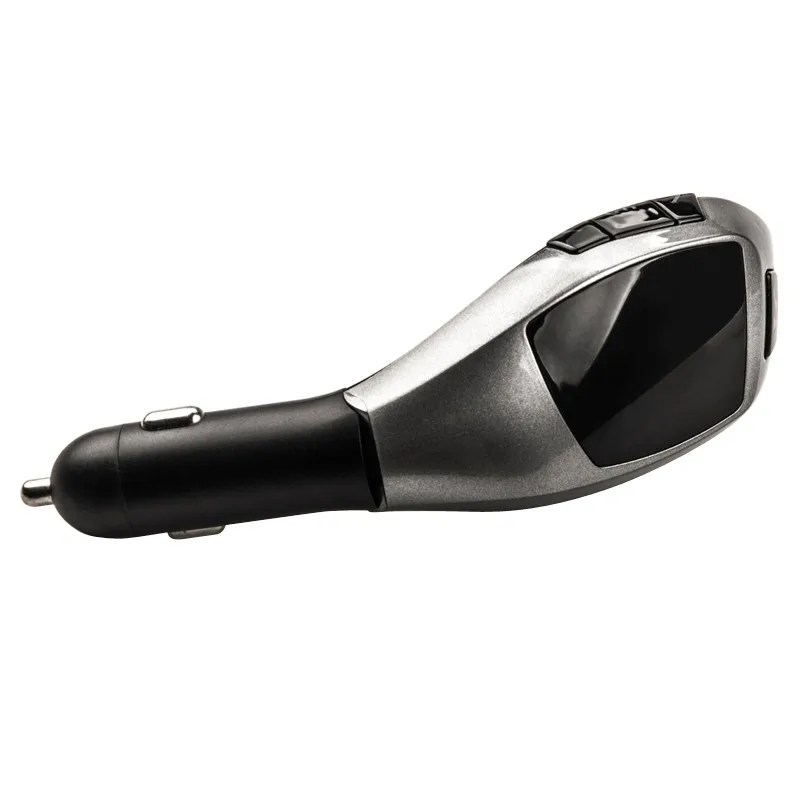

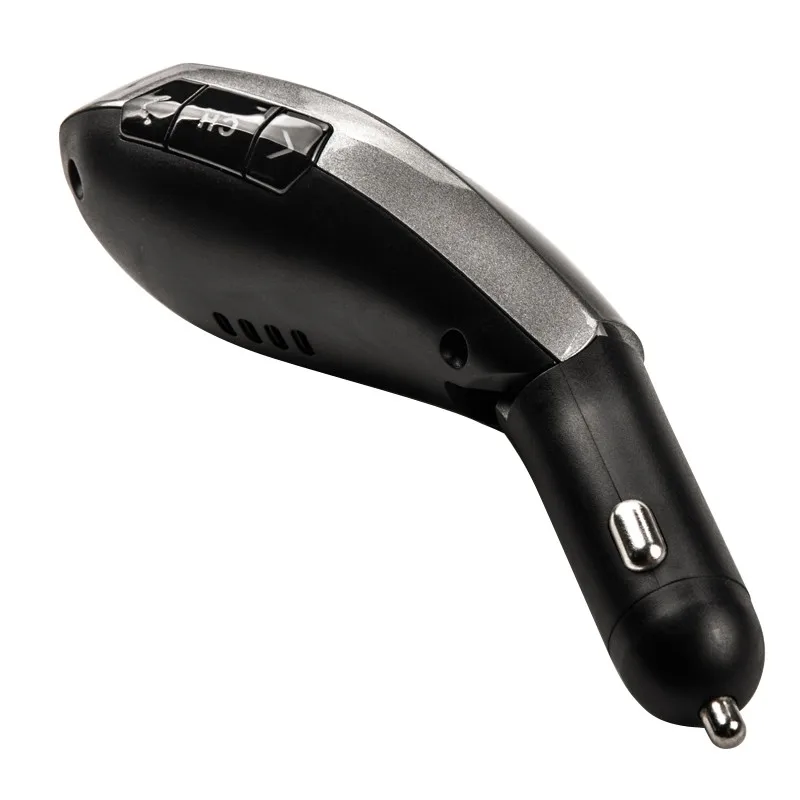

Bluetooth Car Kit Wireless Fm Transmitter Radio Adapter FM Modulator Handsfree Music Mp3 Usb Player Audio For Smartphone
This device is a Bluetooth Mp3 player for car-used, whichu0026nbsp;u0026nbsp;equipped with professional high-performance Bluetooth module and Mp3u0026nbsp;u0026nbsp;decoder chip.
It can transmit the music from TF card to car stereo via FM radio signal.
It can transmit your mobile phone's music to car stereo via Bluetooth.
It can also be used as a hands-free car kit during driving.
This device transmits signal by wireless method, no need to modifyu0026nbsp;u0026nbsp;anything in car. It can be used both as the music player in entertainmentu0026nbsp;u0026nbsp;purpose or hands-free car kit safety purpose during driving.
u0026nbsp;
Product Introduction
1. Support Bluetooth hands-free phone calling via its build-in microphone.
2. Noise and wind suppressed by CVC technology to create full duplex soundu0026nbsp;u0026nbsp;quality.
3. Support mobile's A2DP function. Music will be played directly while theu0026nbsp;u0026nbsp;mobile phone is connected.
4. Mobile phone can be connected automatically when the device turns on.
5. Support an external TF card, can play music files in Mp3/WMA format.
6. Integrated car charger of output 5V-1500mA, is available for chargingu0026nbsp;u0026nbsp;handheld devices in car.
u0026nbsp;

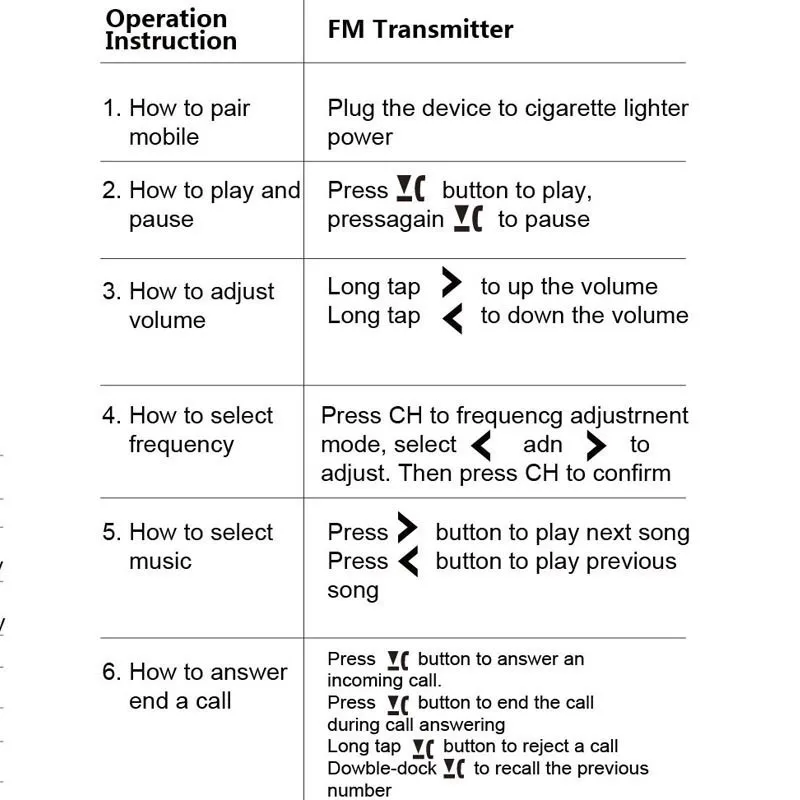

Operation Instructions:
1. Device Power-on
(1). Device will turns on automatically when plug its integrated caru0026nbsp;u0026nbsp;charger to car cigarette lighter power.
(2).Select any of a frequency.
(3).Turn on car FM stereo and select the frequency same as that of theu0026nbsp;u0026nbsp;device.
u0026nbsp;

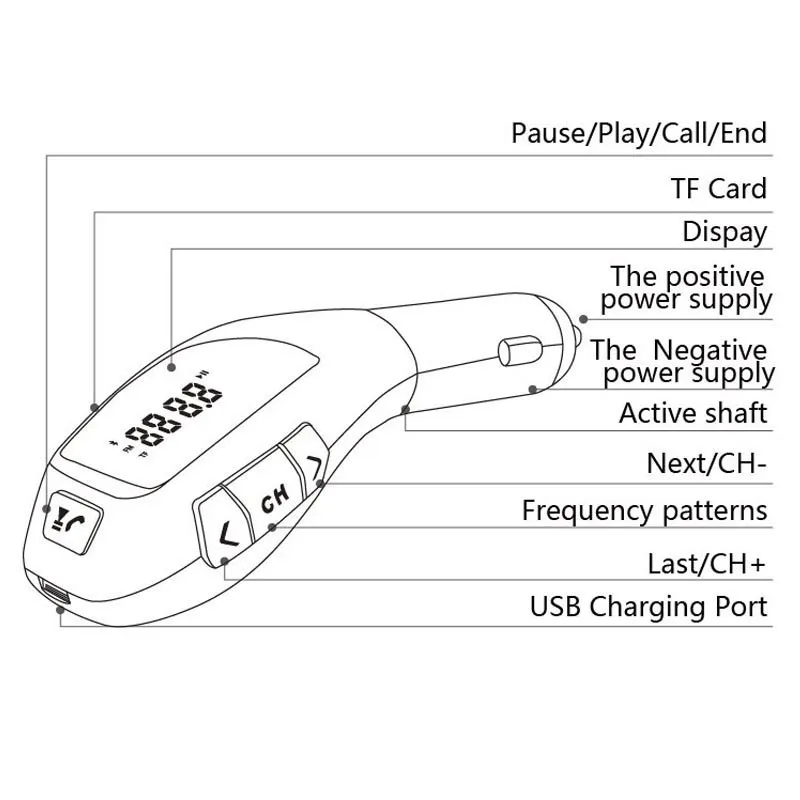

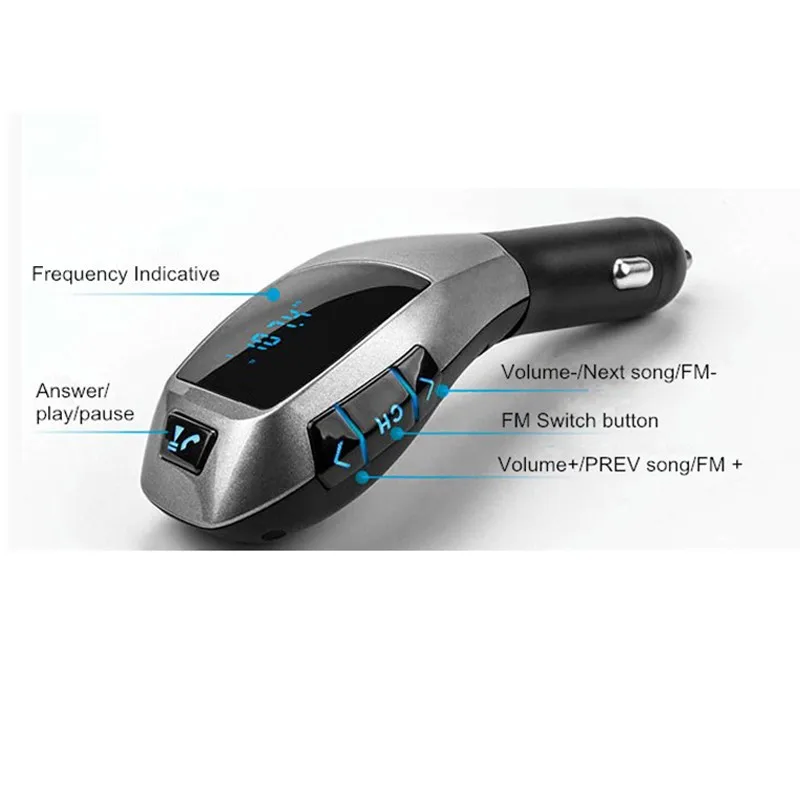

2.u0026nbsp;Frequency and Volume Adjustment
(1). This device support frequency of 87.5-108.0MHz which can be adjustedu0026nbsp;u0026nbsp;by rotating button. Which can enter frequency adjustment mode by key ofu0026nbsp;'CH'.
(2). Adjust the volume by the key of u0026lt;andu0026gt;.
u0026nbsp;

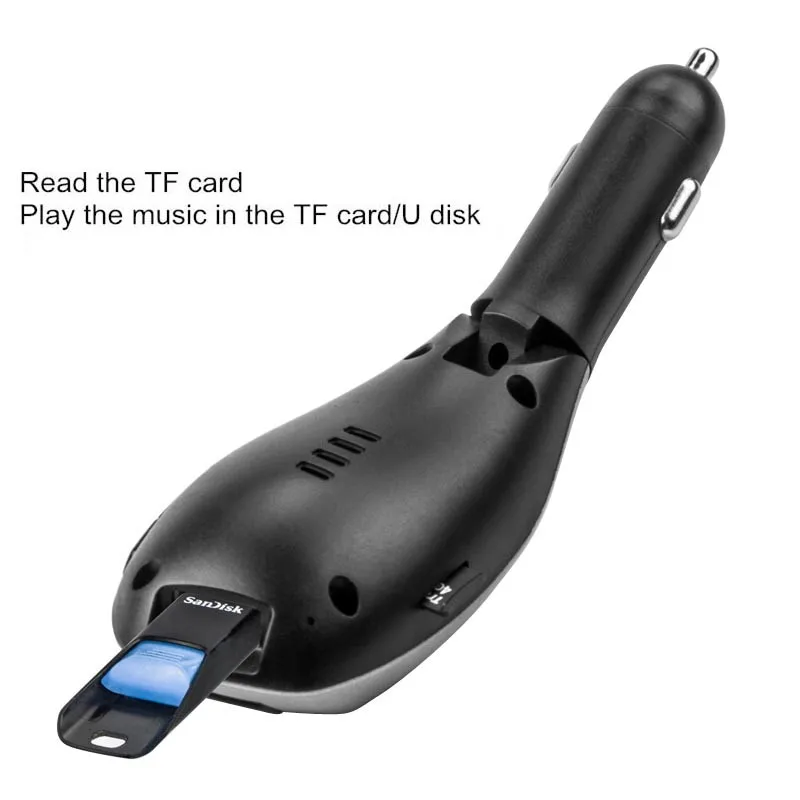

3. Playing Music from TF card
(1). Insert the TF card into the device, it will aUtomatically detect andu0026nbsp;u0026nbsp;play the MP3/WAM/WAV format music in the TF card.
(2). Music selection: Press the button of u0026lt;andu0026gt; to select your favouriteu0026nbsp;u0026nbsp;songs.
u0026nbsp;

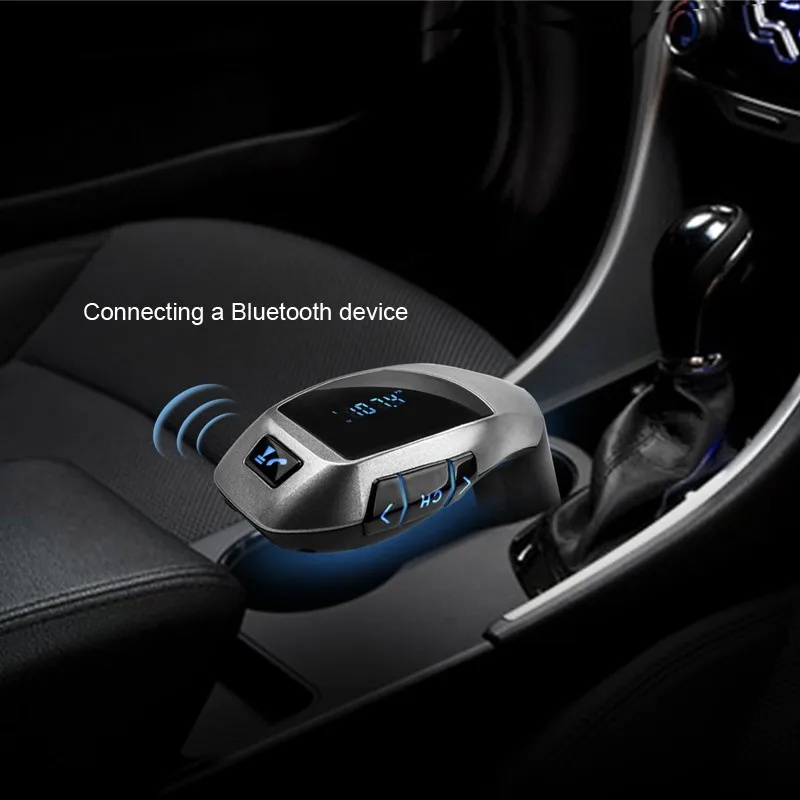

4. Connection to Bluetooth Devices:
(1). This device equipped with build-in Bluetooth chip, can connect tou0026nbsp;u0026nbsp;other handheld Bluetooth devices.
(2). This pairing function will be activated automatically when the deviceu0026nbsp;u0026nbsp;is power on. With the LED indicator's 1 time/second blinking, search thisu0026nbsp;u0026nbsp;device with the name of "X5", and then connect it.
(3). This device has memory function. It will automatically connect to itsu0026nbsp;u0026nbsp;memorized paired Bluetooth devices when power on.
(4). If you want to remove the memorized devices, please press and holdu0026nbsp;u0026nbsp;the Frequency button to remove.
u0026nbsp;

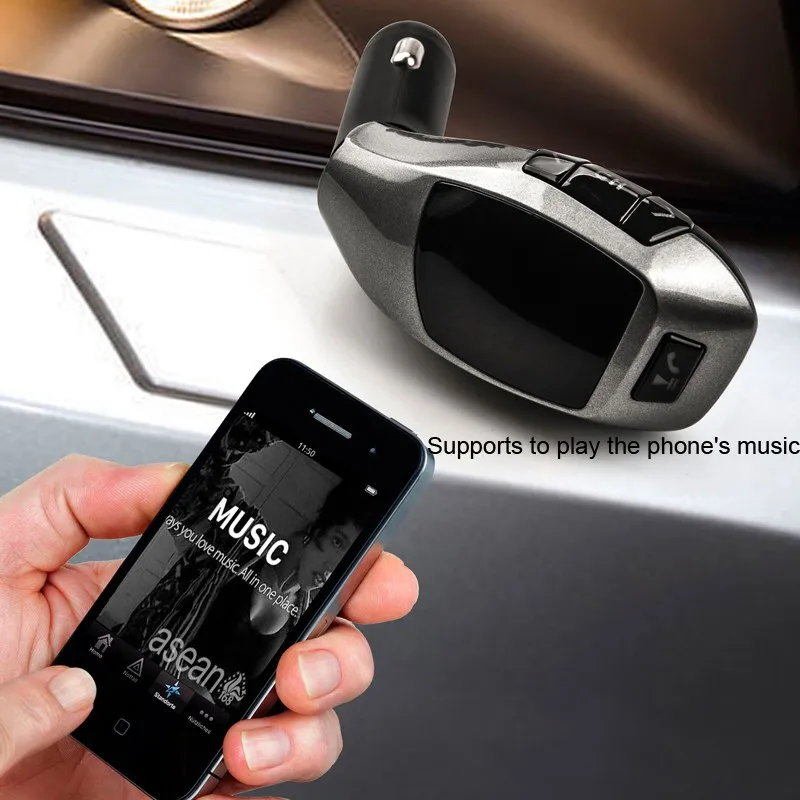

5. Playing Music from Mobile Phone:
(1). After successfully connecting mobile phone to the device viau0026nbsp;u0026nbsp;Bluetooth, play music from mobile phone, the device will wirelesslyu0026nbsp;u0026nbsp;transmit the signal to car stereo.
(2). You can operate music playing of Volume/Play/Pause/Previous/Next onu0026nbsp;u0026nbsp;mobile phone, or on the device.
u0026nbsp;
6. Switching Music File Sources
(1). It can play the music from TF card and the device with bluetoothu0026nbsp;u0026nbsp;function, you can switch the file source among any of them by the long tapu0026nbsp;u0026nbsp;of CH by the long tap the button on side of X5.
u0026nbsp;
7. Make/Answer a Call:
(1). This device can make or answer a call when successfully connecting tou0026nbsp;u0026nbsp;mobile phone via Bluetooth.
(2). Double-click button to activate redialing of a last number.
(3). Reject call: When an incoming call, please press button 5 second.
u0026nbsp;
1. FM transmitter technology

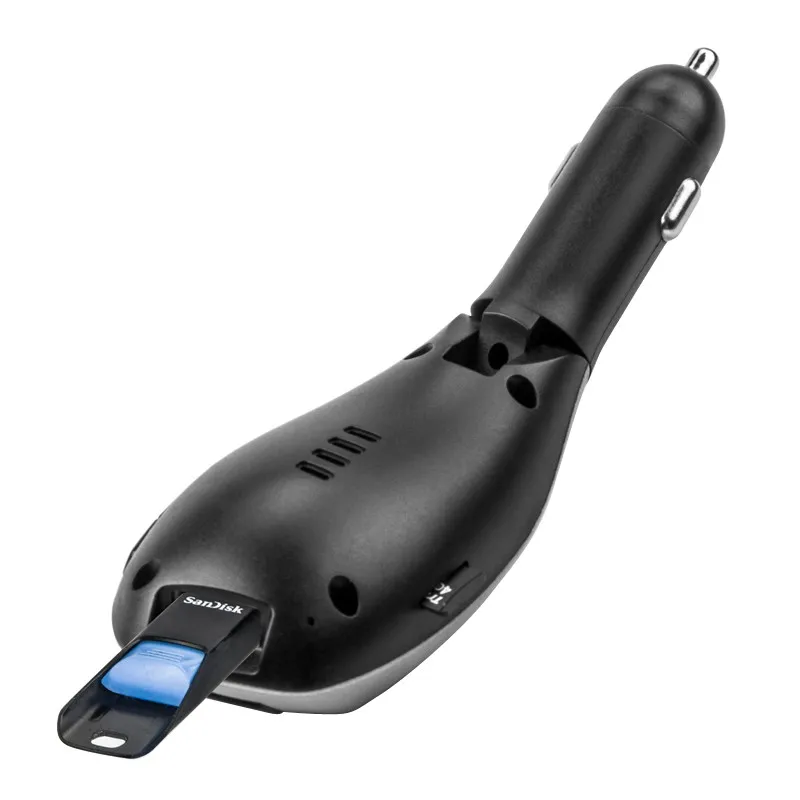

2. Support play the music in the TF card / U disk
3. Support play the music of the phoneu0026nbsp;
4. Support mobile phone charging
5. Auto power-off memory function
6. Bluetooth Handsfree
u0026nbsp;
Technology Parameter: u0026nbsp; u0026nbsp; u0026nbsp; u0026nbsp; u0026nbsp; u0026nbsp; u0026nbsp; u0026nbsp;
u0026nbsp;
Type: FM Transmitter
Input Voltage: 12-24V
Output Voltage: 5V +/- 0.25
Output Current: 1000mA (Max)
Power consumption: 1W
Operating temperature: 0-50 degrees
Support playback format: MP3 WMA (option)
u0026nbsp;
Bluetooth:
Bluetooth Version: V3.0 + EDR
Frequency: 20HZ- 15KHZ
Sensitivity: -42db +/ 3 db 360
Voltage: 5V +/- 0.5
Working Current: 45mA (Max)
Stand-by Current: 25mA (Max)
Frequency: 2.402 - 2.480ghz
Effective Range: 5meters
Sensitivity: -92dBm
RF Output: 4dBm
u0026nbsp;
Frequencies:
FM: 87.5MHZ - 108.0MHZ
Transmitted Power: 87dBuv / 107dBuv
Effective Range: 2meters
u0026nbsp;
Package Includes:
1 x FM Transmitter
1 x English/Chinese User Manual
