Item specifics

Frames Per Second:30
Assembly Mode:Portable Recorder
Battery:Built-in
Interface:SD/MMC,USB2.0
GPS logger:External
OSD Language:Chinese (Simplified),Chinese (Traditional),English,French,German,Italian,Japanese,Portuguese,Russia,Russian,Spanish
Pixels:1200Mega
Number Of Lenses:1
Max External Memory:32G
Special Features:G-sensor,SD/MMC Card,Night Vision,Dual Lens
Video Format:AVI
Video Code:MJPG
Camera Resolution:1920x1080
View angle:170°
Touch Screen:No
Original Package:Yes
Item Type:Car DVR
Chipset Manufacturer:Other

Display Size:4

Product Description

Specification

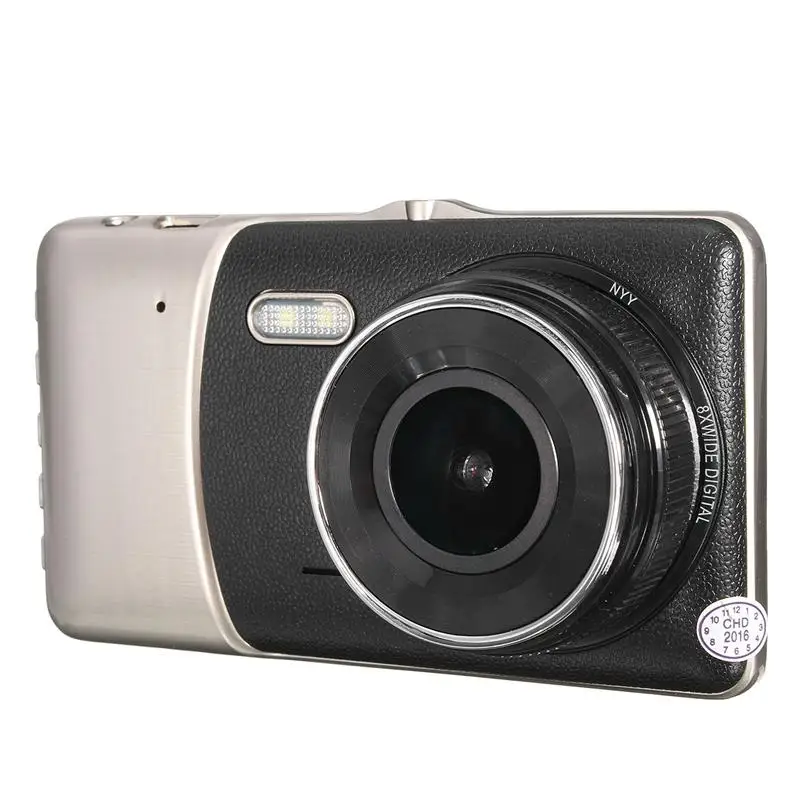

Name: Car Dash Camera
Model: SKU518116
Material: Metal fuselage
LCD screen size: 4.0 inch IPS full-screen high-definition screen
Memory card: TF card（Recommend the use of class 10 TF card for video）
Data storage capacity: maximum support 32G
Shooting angle: 170 °
Pixels: 12 million
Data storage time: Cycles
Data transfer interface: USB 2.0 5Pin
Transmission rate: 5W
Power supply: DC5V 1.5A
Frequency: 50hz / 60hz
Battery: 400mAh 3.7V polymer lithium battery
Video resolution: 1080P 30FPS
Photo resolution: 1M 2M 300cm
Microphone / Speaker: Support
Storage temperature: -30 ℃ -80 ℃
Operating temperature: 0 ℃ -50 ℃
Language settings: Simplified Chinese, Traditional Chinese, English, German, Japanese

Features

1. Design beautiful alloy shell body, while easy camera, take pictures.
2. High sensitivity motion detection. Night Vision.
3. You can immediately see the scene shot of the screen, in the event of an accident scene can be broadcast immediately, Li Qing responsibility to reduce disputes.
4. Easy to install.
5. Gravity sensing, can clearly grasp the impact force of the vehicle, when sensing the impact, the gravity sensor automatically starts this paragraph important video save. (The video saved in this section will not be overwritten by the loop)

Instructions

1. Manual: Press and hold the ON / OFF key for 3 seconds to turn on and off
2. Auto: When there is an external power input automatically boot, external power off for a period of time after the shutdown and automatically save the video
3. Take a picture: Press the mode key to enter the camera mode, press the OK button to take the picture and save it.
4. Cycle recording: set the cycle in the video menu, such as set to 2 minutes, then every 2 minutes to save a video, when the card is full according to the principle of FIFO, the unprotected file coverage.
5. Lock function: In the normal recording state, click the M key to save the current file and a key lock is not covered, then the middle of the road recorder recorder screen will appear a lock tag.

Note:

When using this product caused by improper operation of the phenomenon of death, can use a small hard object press the reset button and then boot the machine can be restored to normal.

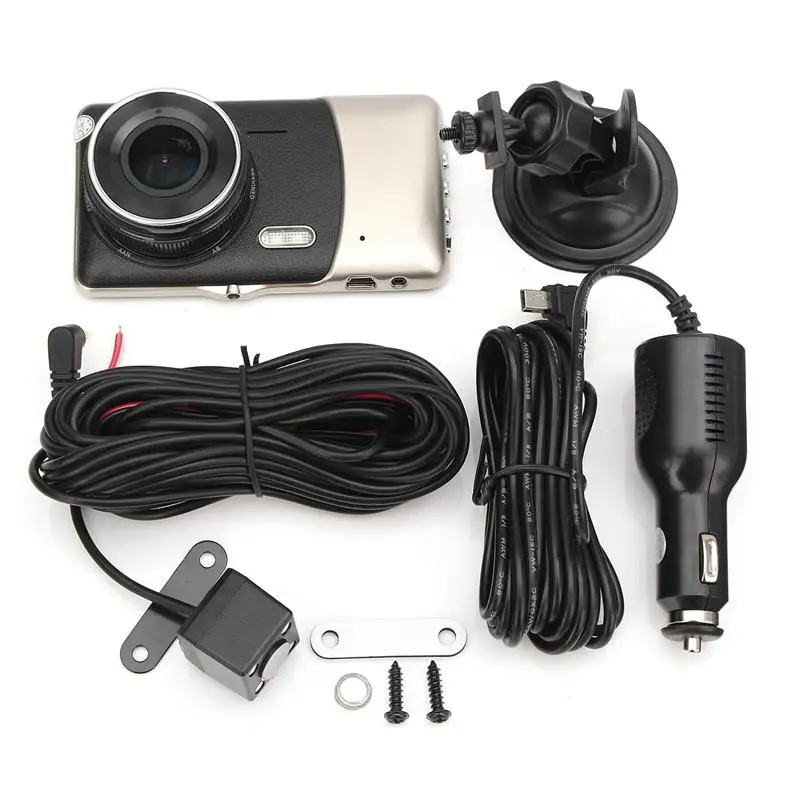

Package Included
