Item Descriptions:
Wiringless wiring type.
Video check with a smartphone from the place
Wiring between monitor and camera is unnecessary

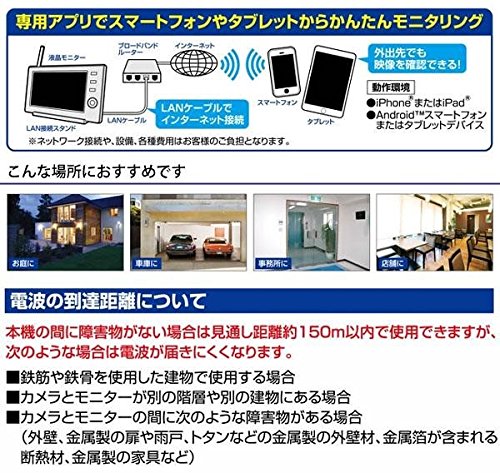

Easy monitoring from a smartphone or tablet with a special application
It is also possible to wirelessly transmit images (2.4 GHz digital)
Video can be recorded on media (SD card / HDD), up to 4 simultaneous recording is possible
Automatic recording and alarm also
You can also charge and carry
【Camera CMS - C 71】
Operating temperature range: -10 to + 50 degrees (camera body)
Power consumption (night vision / normal time): about 4.0 W / 2.1 W
Camera image resolution: 640 × 480
Sensor type: 1 / 5inch CMOS
Number of effective pixels: 656 × 488
Lens focal distance: 3.6 mm
Minimum subject illuminance: 2 lx (IR ON: 0 lx)
Field of view / H: 50 degrees · V: 40 degrees
Protection grade: IP66
Infrared projection distance: Approximately 15 m
Sound collection microphone: ○
【LCD monitor CMS-M71】
Operating temperature range: 0 to + 40 degrees
Power consumption (maximum / normal) / LCD monitor alone: approx. 8.5 W / 7.0 W, LAN connection stand
Connection time: Approximately 9.0 W / 7.5 W
Monitor resolution: 800 × 480
Number of cameras received: Up to 4
Output frame rate: Up to 30 fps
Recording resolution: CIF / VGA
Recording storage medium (maximum): 32 GB SD / 1 TB HDD
File format: avi
Monitor size: 7 inches
Battery charging time: about 3.5 hours
When fully charged Usage time: About 2 hours
Camera image brightness adjustment: 4 steps
External connection terminal: monitor (TV output), USB, charging base (RJ45)
【Wireless Communication Section】
Wireless communication system: 2400 MHz · 2483.5 MHz
Spread Spectrum: FHSS
Data rate: Max 4.4 Mbps
Visualization method: MPEG-4
Audio compression method: PCM
Communication distance: Approximately 150 m
Features:
- Camera: Approximately 164 × height 81 × depth 172 mm, LCD monitor: approximately 212 × height 122 × depth 26 mm
- Weight / camera: about 650 g, liquid crystal monitor: about 365 g
Product information:
Shipping Weight: 2109 g
Package Dimensions: 11.61 x 29.39 x 43.99 cm
