Product Description

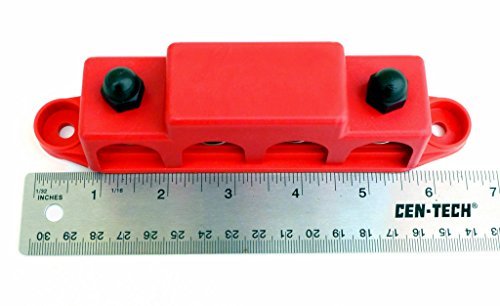

High quality positive ground 4 Point Busbar with cover.

These hefty 4-post 5/16" studs busbars have 3 additional #8-32 screws for small connections, and come with a matching protective cover. These systems allow for multiple connections to positive and negative systems. Each connection post can maintain multiple connections, making them flexible and robust.

Features:
? Nickel Plated Brass contact plate: high current anti-corrosive
? Max Amperage: 250 Amps at 12VDC per connection
? Max Voltage: 48VDC
? Stainless steel hex nuts and washers
? Base Material: Glass-Filled Nylon (Black)
? Mounting screws: #10 (not included)
? Mounting center: 5.7 inch
? Model with cover includes appropriate cover (723 Series) and retaining nuts
? To meet some safety guidelines, protective heat shrink tubing must be used on terminal barrel to insulate against accidental shorts.
