• After successfully expanding and leading SFF(small form factor) cases and SFX PSU into the DIY (do it yourself) market, SilverStone engineers have continued their push for advancement in these categories by releasing a true upgrade-worthy small form factor power supply, the ST45SF-G. Despite being half the size of a regular ATX power supply, the ST45SF-G can still produce continuous power output of 450W. Its 80 PLUS Gold level efficiency is a great leap from the previous SFX best of 80 PLUS Bronze and the full modular cables is also the first of its kind for this form factor. To enable users to easily take advantage of this excellent SFX power supply, an adapter is included to convert ST45SF-G to mount in any ATX case in addition to ones that fit only SFX. For SFF users and for SilverStone, the ST45SF-G is more than just an upgrade, it is an important milestone for DIY desktop computer.


    Remark

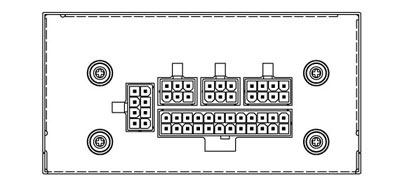

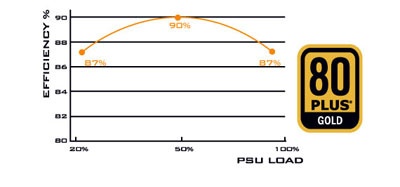

    Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.   100% moudlar cable design for easy removal in a case with cable routed and tied down.

    Powerful single +12V rail design, perfect for future high-end component upgrade.   ±3% regulation and low ripple & noise performance for high stability

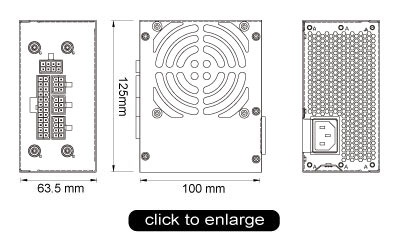

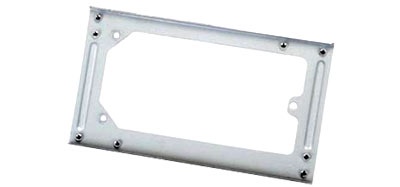

    Included SFX to ATX bracket for use in ATX case.   Standard 125mm(W) x 63.5mm(H) x 100mm(D) SFX Form-Factor size take up less space for easier installation.

    Fan speed curve difference between V1.0 and V2.0
    Model No.

    SST-ST45SF-G
    Max. DC Output

    450W
    Power density

    567W per liter

    Load Range



    		 +3.3V +5V +12V +5VSB -12V

    Max.(Amps)

    		 19A 14A 37A 2.5A 0.3A

    Peak (Amps)

    		 / / / / /

    Min.(Amps)

    		 0A 0A 0A 0A 0A

    Range (%)

    		 ±3% ±3% ±3% ±5% ±10%

    Line Reg.(%)

    		 ±1% ±1% ±1% ±1% ±1%

    Ripple(mVp-p)

    		 50mA 50mA 120mV 50mA 120mV
    Color

    Black（Lead-Free Paint）
    combined +3.3, +5V

    90W
    Combined +12V

    444W / 37A
    Input Voltage

    90V ~ 264V
    Input Frequency Range

    47Hz ~ 63Hz
    PFC

    Active PFC（PF>0.90 at full load）
    Efficiency

    87%~90%（20% to 100% loading）
    MTBF

    100,000 hours at 25°C, full load
    Operating temperature

    0°C ~ 40°C
    Protection

    Over current protection
    Over power protection
    Over voltage protection
    Over Temperature Protection
    Under voltage protection
    Short circuit protection
    No Load Operation
    Connectors

    1 x 24 / 20-Pin motherboard connector（300mm）
    1 x 8 / 4-Pin EPS / ATX 12V connector（400mm）
    1 x 8/6-Pin PCIE connector（400mm）
    1 x 6-Pin PCIE connector（400mm / 150mm）
    3 x SATA connector（300mm / 200mm / 100mm）
    2 x 4-Pin Peripheral connector （300mm / 200mm）
    1 x 4-Pin Floppy connector（300mm / 200mm / 200mm）
    Cooling System

    Single 80mm silent fan
    Form factor

    SFX
    Noise Level

    18dBA minimum

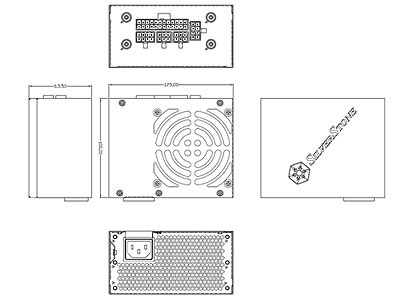

    Dimension

    125 mm (W) x 63.5 mm(H) x 100 mm(D)
    4.92" (W) x 2.5" (H) x 3.94" (D)
    Weight

    1.45 Kg
    Certification

    80 PLUS Gold
    Other

    Includes SFX to ATX bracket for use in ATX case
    Compatible with ATX12V v2.4
