Item Descriptions:

size:

2 units 1080P with 1 TB monitor

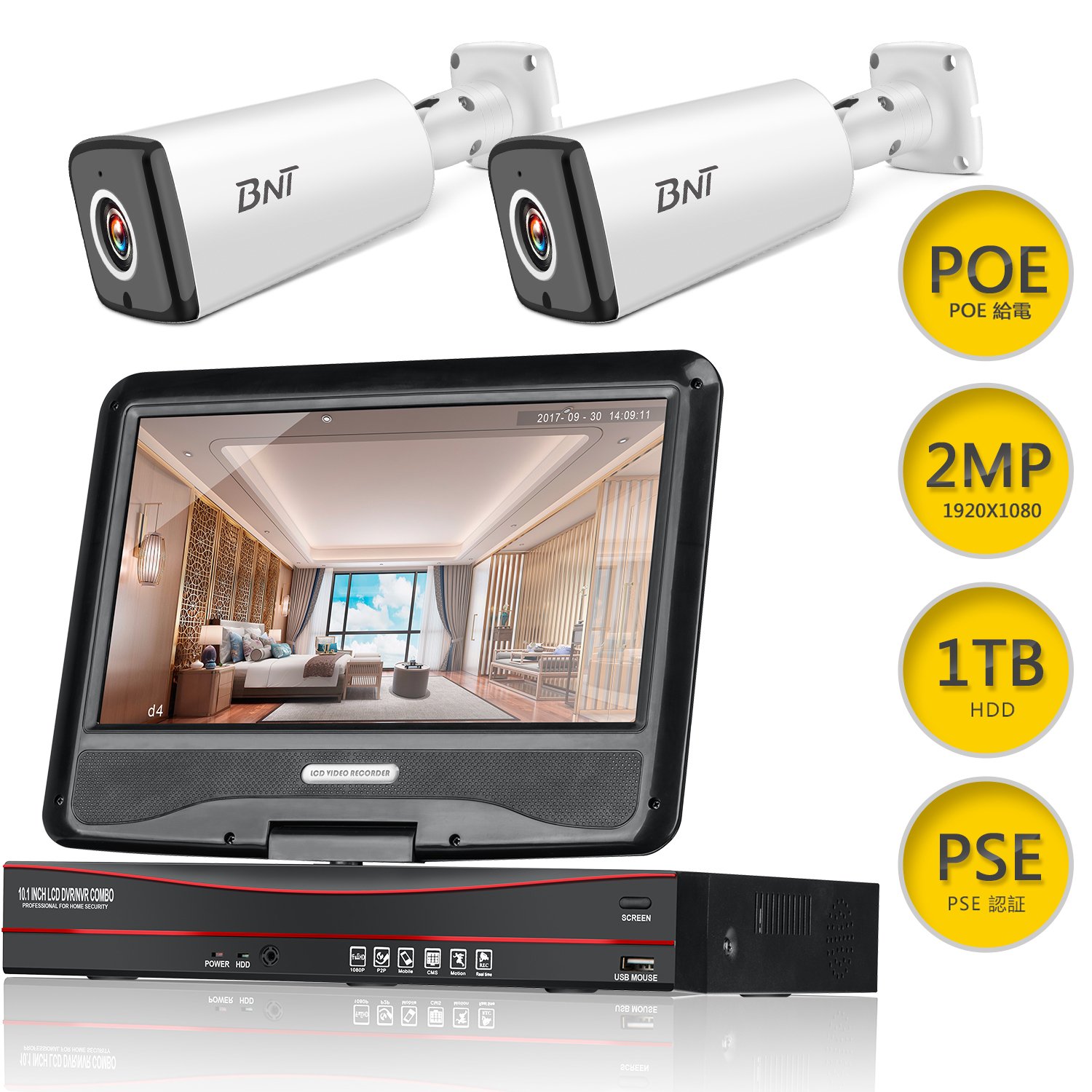

New type POE power supply type It is a set of 10.1 inch LCD monitor integrated recorder (NVR) + 2 million high-quality security camera 2 sets.

【Camera specification】 【NVR specification】

Number of pixels: 2 million pixels Monitor resolution: 1920 × 1080

Lens: f = 3.6 MM Video input / output: HDMI output

Waterproof: IP 67 Compression method: H.264

Infrared LED: 4 pieces (Infrared irradiation distance: 20 meters) Playback: 4CH & 30fps

Motion detection: Compatible HDD: Including 1 TB HDD (6 TBHDD supported)

Operating temperature: -20 ℃ -50 ℃ Operating temperature: -10 ℃ -55 ℃

Day and night switching: Double filter automatic power supply: 48 V / 1.5 A

Size: about 6.5 x 23 x 6.5 cm Size: about 28 x 23 x 7 cm

Weight: about 0.5 KG Weight: about 3.5 KG

[Effort easy & with monitor

】:

Let c

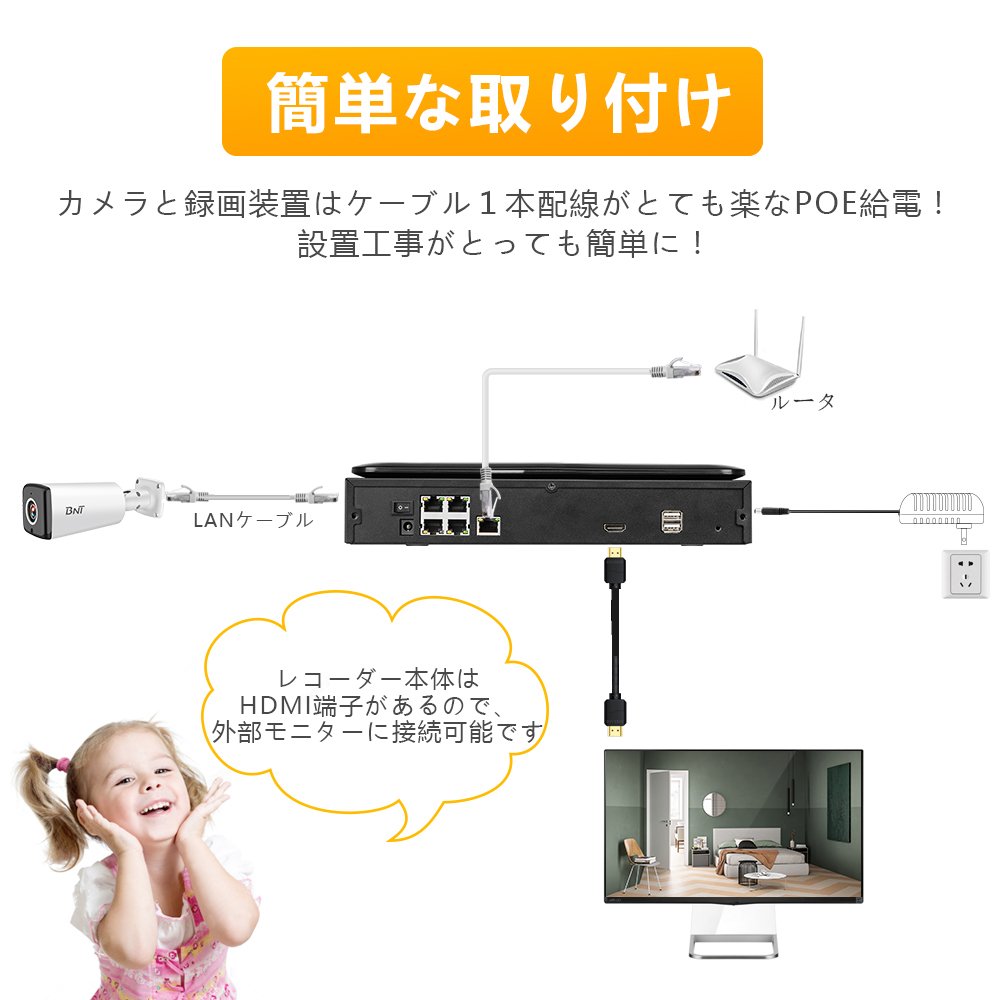

Camera and recording device are very easy to wire POE power supply wiring of one cable!

Installation work is very easy!

Just plug the device into an outlet, turn on the power, and the camera and the recording device (NVR) will automatically synchronize.

You can use it as soon as you connect!

And digital POE is more stable communication with wired LAN cable unlike analog system!

Let c

Since 10.1-inch LCD monitor is installed, you do not need to purchase a separate monitor separately, so you can use it immediately after purchasing this set.

A monitor integrated type recorder that can be used as a notebook PC (HDMI can be connected to an external monitor).

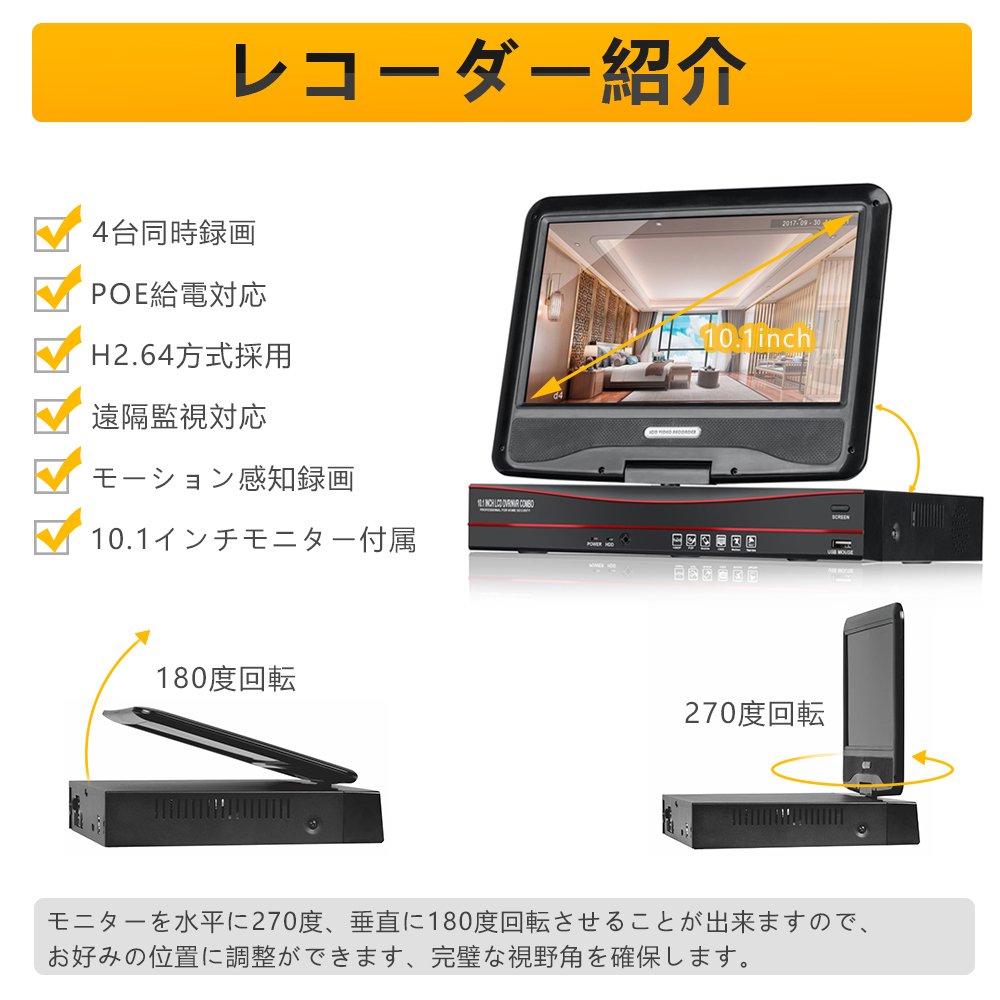

Since you can rotate the monitor horizontally by 270 degrees and vertically by 180 degrees, you can adjust the position to your preference, securing a perfect viewing angle.

Let c

The recorder menu corresponds to easy-to-understand Japanese, moreover, detailed English and Japanese instructions and CD are attached, so we are doing the operation.

If you have any questions about operation, please do not hesitate to contact us at any time.

【Various recording systems

】:

✿ Always recording:

With recorded data overwriting function, keep recording continuously 24 hours a day, 365 days, always ensuring safety.

✿ Motion Detection Recording (Motion Recording):

Set sensitivity, area, date and time freely via NVR.

Recording will be done only when there is movement in preset range.

If there is a problem, the camera will take automatic recording and take pictures.

You can send an email immediately and issue an alarm.

✿ Schedule recording:

Set the recording time according to your demand.

It will be the setting method to record only on the day of the week, time zone decided according to the life style.

You can set the recording start time and end time.

It will save HDD.

Remote monitoring:

Connect the LAN cable to the router,

APP (free)

Download and install it easily.

Monitor anytime, anywhere in real time, crime prevention, watching over the house possible.

When remotely controlled movement is detected, snapshot and email alert will be announced immediately.

[High pixel correspondence

】:

Full 1080P 2 million pixels

The high quality camera set of the shoot clearly to the detail, until we record it!

We will record clear evidence!

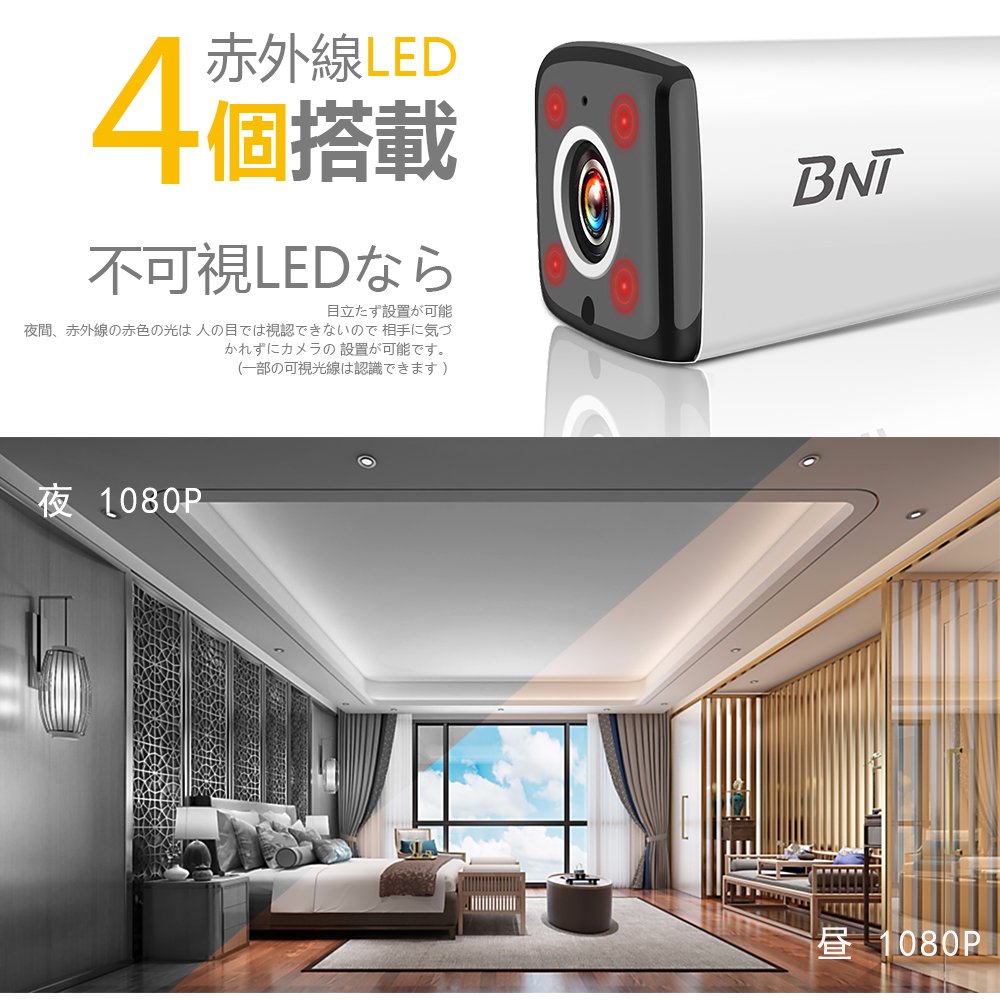

IR cutting and night vision photography

(25 m) can be taken without regard to day and night.

3D noise reduction:

Perform digital image processing with 3D noise filter to reduce noise.

Clear and sharp image quality can be obtained under low light conditions.

【IP67 Dustproof Waterproof

】:

It is stronger than IP66.

Since the dustproof performance is "6", dust does not enter inside.

Since the waterproof performance "7" has a performance that is not adversely affected by immersion in water, it can be temporarily used underwater.

The outside can be used for high-quality metal covers, weather conditions, parking lots where outdoor or dust flees.

【set content】:

Recorder with monitor (with NVR power supply)

1080P camera * 2 units

15 m cable * 2

English and Japanese handling documents * one volume

Screw bag (for camera installation)

Security sticker * 1 sheet

Remote control + USB mouse

Features:

• Please enter model number Confirm this is compatible:
• 【Wiring music & with monitor】 New type POE power supply camera is easily connected, complicated wiring unnecessary (Camera main body power wiring is unnecessary).
• You can save high quality digital images that are more stable than conventional analog methods on the recording device.
• And since the NVR main body is equipped with a 10.1-inch LCD monitor, you do not need to purchase a separate monitor separately, so you can use it immediately after purchasing this set.
• A monitor integrated type recorder that can be used as a notebook PC (HDMI can be connected to an external monitor).
• 【High image quality & Night vision shooting & water proofing】 With 2 megapixel high definition camera set, clear detail can be realized, real time video surveillance and playback are possible.
• Four infrared LED lights Automatic switching of infrared mounted, vivid recordings day and night!
• IP 67 Dustproof Waterproof, resistant to aged deterioration, effectively preventing dust and rain, can be used outdoors.
• [Omit capacity and cloud function] Advanced H.264, 1 TB hard disk drive (expandable up to 6 TB) in order to save capacity By combining the recorded data overwrite function, automatically delete the old data and keep recording
• .
• It supports P2P (cloud), so you can comfortably monitor anytime and anywhere, and the cost will be greatly reduced.
• 【Multifunction & Remote Monitoring】 Motion Detection · Recording (Always Recording · Motion Detection Recording · Schedule Recording) · Alarm Warning · Backup · Play Function · Sensitivity · Area · Date and Time etc in Japanese Instruction Book + Japanese System
• It can be set easily.
• Download APP (free) and install it easily.
• Easy to remote viewing via the Internet.
• 【Ease of operation & quality assurance】 Since the recorder menu corresponds to easy-to-understand Japanese, and detailed English and Japanese instructions and CD are attached, it is easy to install and set even the beginner.
• And all products are guaranteed within 45 days + 2 years warranty + free technical support.
• If you have any questions, please do not hesitate to contact us at any time.

Product information:

Shipping Weight: 5411 g

Package Dimensions: 20.09 x 35.00 x 36.70 cm
