Item Descriptions:

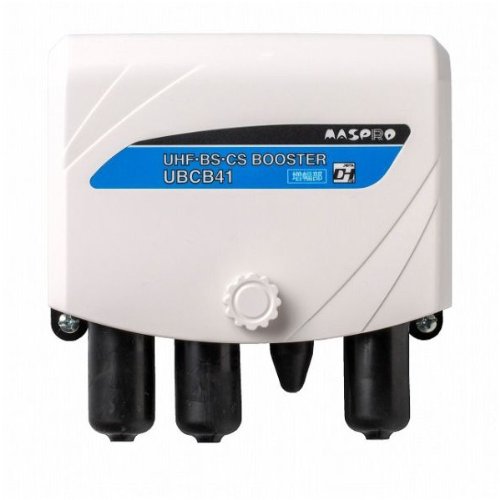

High output of 105 dB μV while compact model
◆ Small size, low power consumption, low noise, high output
Although it is a compact model, it realized high output of 105 dBμV and high performance of UHF noise figure (NF) 1.5 or less.
In addition, the power consumption is 2.8 W low power consumption type.
◆ Various mast mounting methods (amplification section)
In addition to attaching to the conventional vertical mast, by replacing the mast mounting bracket, it is now possible to mount it on a horizontal mast such as the arm of the side base.
◆ Wall mounting of the power supply unit
In addition to wall mounting with conventional wood screws, you can hook the power supply to commercially available hooks etc. mounted on the wall with hook mounting plate on the back side.
◆ Abnormality Announcement Function
If short circuit or disconnection occurs between the amplification part and the power supply part, inform the color of the power supply part operation indicator lamp.
Confirmation at the time of reception malfunction becomes easy.
◆ Compatible with terrestrial digital broadcasting (470 to 710 MHz)
It corresponds to transmission frequency band 470 ~ 710 MHz (ch. 13 ~ 52).
We can suppress the impact of new services in the future 700 MHz band.
◆ Scissors-free waterproof cap
◆ Complies with RoHS Directive
Gain: (UHF) 38 to 43 dB / (BS) 26 to 35 dB n Transmission frequency band: (UHF) 470 to 710 MHz (UHF ch. 13 to 52)
Features:
- Please enter model number Confirm this is compatible:
- Gain: (UHF) 38 to 43 dB / (BS) 26 to 35 dB n Transmission frequency band: (UHF) 470 to 710 MHz (UHF ch. 13 to 52)
- Input level adjustment: 0, -10 dB switching ■ Gain adjustment range: 0 to -10 dB or more (continuously variable)
- Input / output impedance: 75 Ω (F type connector) Power supply: DC 15 V
- Accessories: F type connector (for 5C cable) 5 pieces, waterproof cap (large) 3 pieces
- Appearance dimension: 87 (H) × 113 (W) × 54 (D) mm Weight ■: Approx. 320 g
Product information:
Shipping Weight: 639 g
Package Dimensions: 6.20 x 13.00 x 21.41 cm
