Product Description

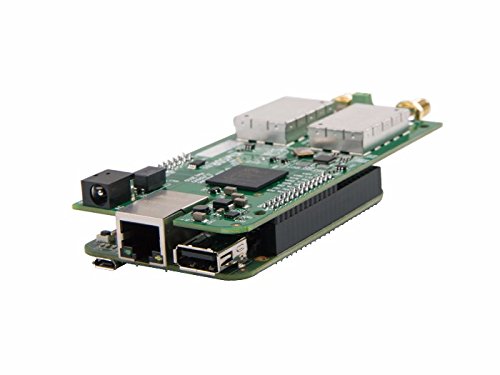

KiwiSDR is a software-defined radio (SDR) covering shortwave, the longwave & AM broadcast bands, various utility stations, and amateur radio transmissions, world-wide, in the spectrum from 10 kHz to 30 MHz. The KiwiSDR is a custom circuit board (cape) you connect to the BeagleBone GreenorBeagleBone Black computer. You simply add an antenna, power supply and network connection. Software supplied on a micro-SD card.

An HTML5-capable browser and internet connection will let you listen to a public KiwiSDR anywhere in the world. Up to four people can listen simultaneously to one radio - each listener tunes independently.

Features:
Browser-based interface four simultaneous user connections.
Each connection tunes an independent receiver channel over the entire spectrum.
Waterfall tunes independently of audio and includes zooming and panning.
Multi-channel, parallel DDC design using bit-width optimized CIC filters.
Good performance at VLF/LF since we personally spend time monitoring those frequencies.
Automatic frequency calibration via received GPS timing.
Extension interface for adding decoders and utilities.

Specification:
Extensions: WSPR viewer/decoder, IQ display, Loran-C viewer.
Integrated software-defined GPS receiver from Andrew Holme's Homemade GPS Receiver.
GPS antenna connector: SMA, 3.3V powered for active antennas.
Voltage: +5V DC, 2.1mm jack, center pin positive.
Current: 1.5A including Beagle, KiwiSDR powers Beagle through header connectors.

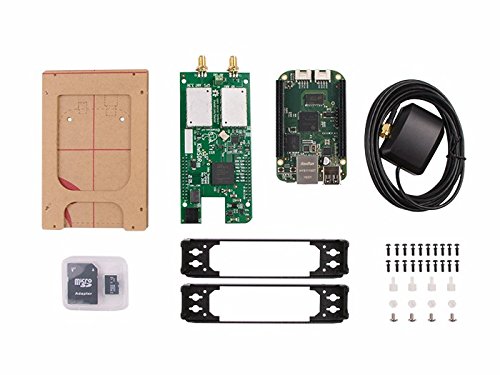

Part List
KiwiSDR Board
Beaglebone Green
Unassembled enclosure
Skyworks SE4150L GPS front-end antenna
Micro-SD Card

Feature

SDR covers the 10 kHz to 30 MHz (VLF-HF) spectrum.
Web interface based on OpenWebRX from András Retzler, HA7ILM.
Demodulation modes: AM, AMN, LSB, USB, CW, CWN, NBFM.
RF antenna connector: SMA and terminal block.
GPS receives the Navstar system on L1 frequency 1575.42 MHz.
Brand : Seeedstudio
EAN : 0717520031161
Product Dimensions(LxWxH) : 8x6x3cm ; 313 g
Package Dimensions(LxWxH) : 21x14x5cm ; 313 g
