Item Descriptions:

There is no button on the exterior!

It is a product hard to notice that it is a camera even more.

No complicated operation is required, recording starts automatically when connected to the power supply.

It is only to detach the recording end from the power supply.

It can also be used as a USB charger, plugging into a power outlet, you can charge devices such as smartphones while recording.

★ ★ ★ During shooting, the LED lamp goes off

This product is a practical tool necessary in the fields of security, education, life etc. at home for the purpose of crime prevention and security for protecting important families and property.

【Free change of SD card】

(★ ★ ★ microSD card is not attached).

Please select a genuine SD card, please format the SD card before use, please insert the SD card correctly.

Approximate with memory 32 GB: Shoot from 480 minutes to 500 minutes ※ It will change depending on the usage environment.

【Video mode】

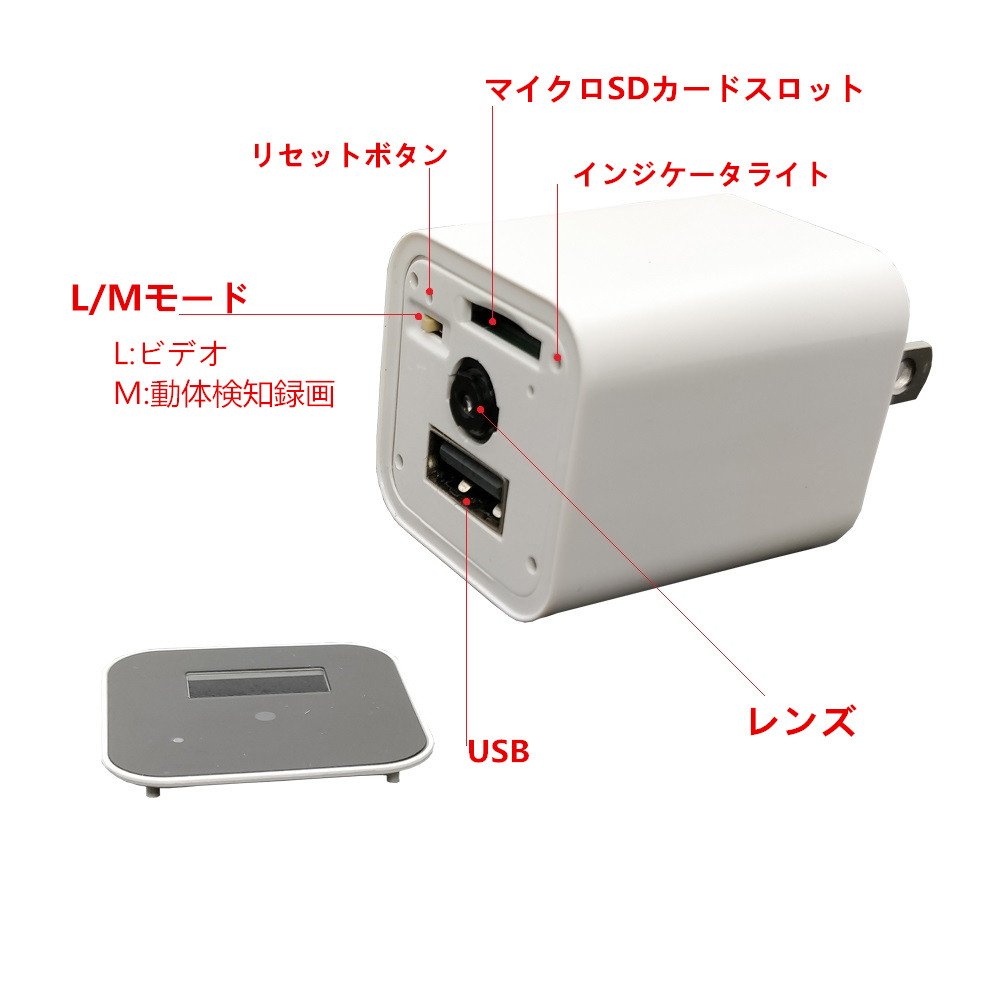

<1> Record: Switch to the L button.

The machine is connected to the power supply, recording can start when the red and blue lamp blink three times and then disappear.

Video and sound are synchronized video to shoot.

If the machine is disconnected from the power source and the blue lamp flashes once and then disappears, stop recording and save the video.

Save 5 minutes for each video file.

<2> Motion Detection Record: Switch to M button.

The machine is connected to the power supply, recording can start when the red and blue lamp blink three times and then disappear.

Video and sound are synchronized video to shoot.

If the machine is disconnected from the power source and the blue lamp flashes once and then disappears, stop recording and save the video.

Save 2 minutes for each video file.

In motion detection recording mode, it detects at 2 minute intervals.

Note: Just setting the motion detection function, the detection of objects directly recorded 5 minutes of video, then started to run the motion detection task.

This is not the case when the motion detection function does not work.

Please wait 5 minutes.

【Playing Video】

For playback, please connect to the PC (PC) with the included USB cable

When inserting this device into the PC, the PC pops up a mobile disk icon after a few seconds.

USB equipment is recognized and data can be transmitted.

Copy of files, cut and paste, delete, etc. can be operated freely.

【Time set function also included】

Machine provides display of video file recording time function, you can set the time according to the actual needs.

If you connect to a PC without being disconnected, open the "Time" folder that can be used as a U disk. The format of the content is as follows: For example: "2017-

03-20 09: 10: 05 "Then save the file.

After restarting, setting the time, the time of the video file became the same as the set time.

Recommendation: Unplug the power plug from the outlet when not in use.

【accessories】

1 x body

1 x USB cable

1 x Reset needle

1 x Japanese Instruction Manual

【★ ★ ★】: It is better not to open the lid without permission.

If you do not care, wiring is likely to be damaged.

This product is HD 1080P, it is a normal phenomenon when consumed current is large and it gets in a state of heat generation during use and charging.

Do not worry.

Features:

• Please enter model number Confirm this is compatible:
• 【Easy operation】 There is no need for complicated operation, recording starts automatically when connected to the power supply.
• L switch is continuous recording mode.
• M switch is motion detection recording mode.
• It is only to detach the recording end from the power supply.
• To play the recorded video, connect it to the PC (PC) with the included USB cable.
• 【Long Time Recording】 It will be turned on automatically when plugged into the outlet.
• Recording will also start automatically.
• Continue shooting while connecting to an outlet.
• Even if the memory becomes full, it will automatically delete from the old data (microSD card is not attached).
• [Motion detection recording] Press motion mode button to position M. Motion detection recording mode It automatically starts and stops recording in response to surrounding movement, Reduces useless recording in motion detection recording,, long
• It can be used in time.
• It is also ideal for crime prevention measures at home / office.

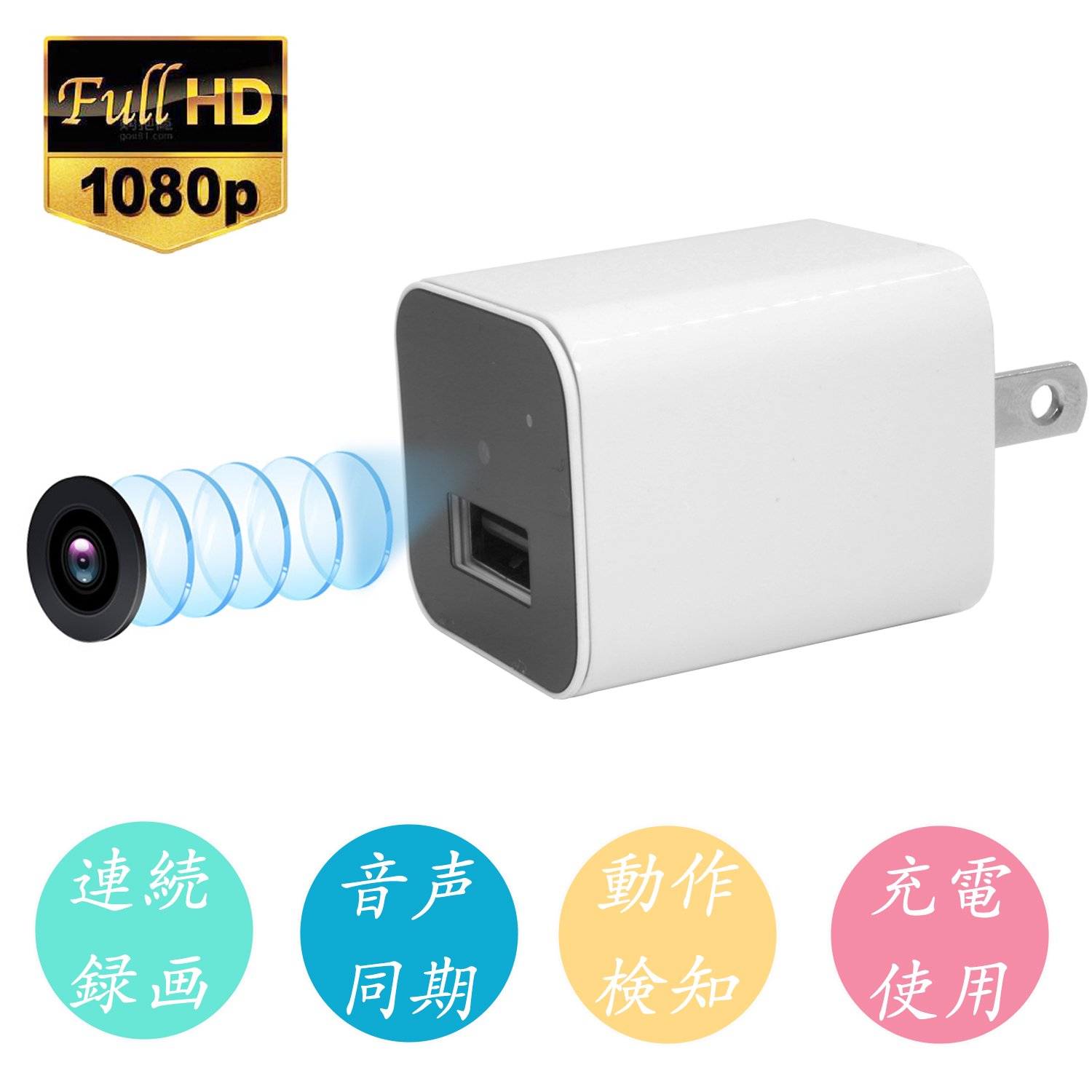

• 【High Resolution】 High resolution FullHD 1080P Movie resolution "1920 × 1080pix" and image frame rate of 30 fps are realized, enabling sharp detail shooting.
• 【Special design】 It can also be used as a hidden video recorder, allowing charging of outlets of smartphones, such as various iPhones and iPods.
• This product is intended for crime prevention and security to protect important families and property.

Product information:

Shipping Weight: 149 g

Package Dimensions: 6.20 x 8.10 x 11.10 cm
