Item Descriptions:

◎ It is natural that it does not work at first at first as it is used,

Please make round circle like photo and test how we can weld first,

◎ I am serving PP band 15 m for testing

You can test over 100 times with 15 m tape

◎ If I know that it can be easily welded like this, I will get used to it later,

At first it will be reluctant, since the pp band melts as it can not be done well, please test this way and get used to it.

◎ In this era, it seems necessary for us to test first and get used to it because there are many people who only operate the keyboard and only press the switch.

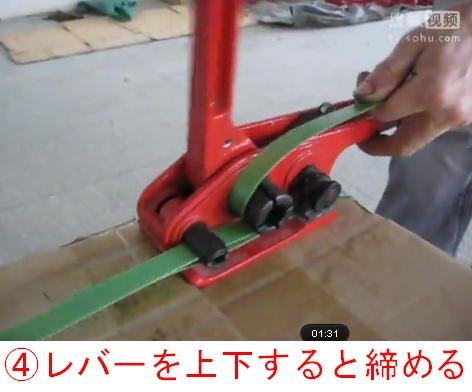

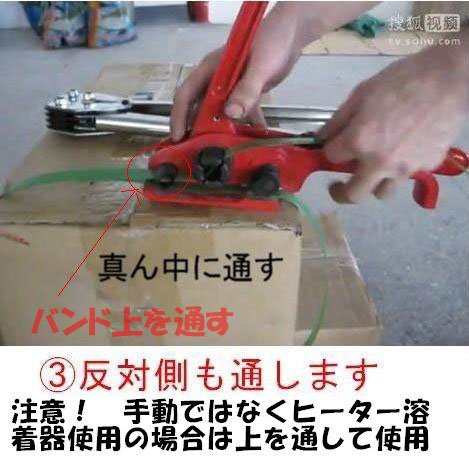

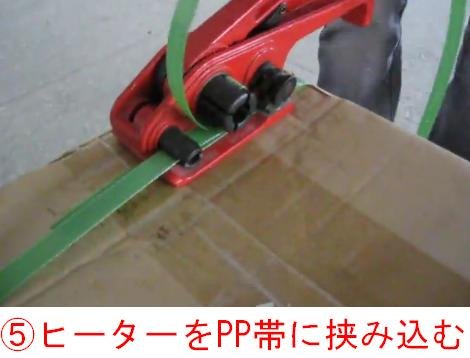

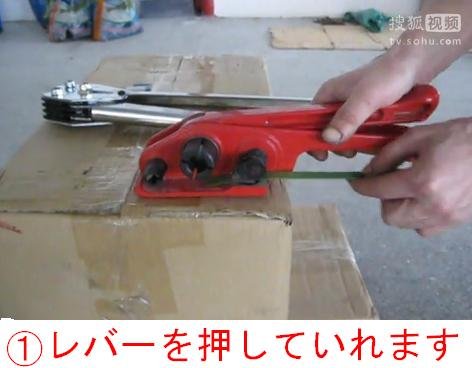

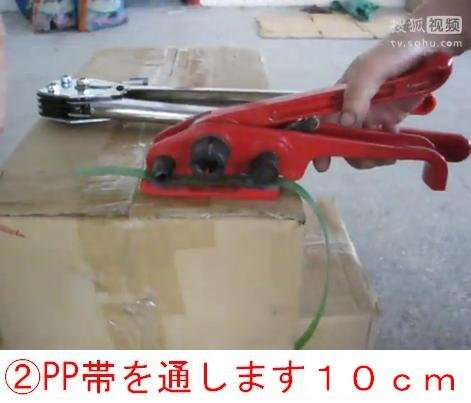

Instructions Newly created,

By 2 photos on the picture ① ~ ⑬ and anyone in any order as ⑬

I made it easy for you.

Even photograph alone can understand, but if there is no explanation

Because there is someone who does not understand

I also created a new one.

Since I am writing in more detail from ① to ⑬

Getting used

The explanation is four pieces,

Those who are struggling with packing work so far,

Please try it once,

Moreover, those who can not do this well will inform you of the phone of the professional person in charge, so please listen directly.

This item is original product of PC studio.

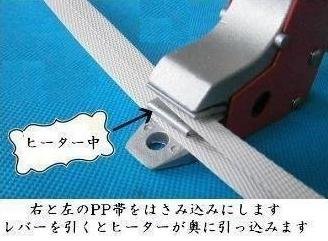

◎ Tapes above and below the heater as shown in the above picture

can enter

Since it is hot, tape will melt if it is reached

One second is enough to set the tape, weld by squeezing the handle

◎ You will soon get accustomed by testing it five or six times

If you do not need to pack large quantities like supermarkets, this heater weld packaging will be useful,

Please try once.

If you have any improvement points you can email us

We will correspond.

Thank you

<< Improvement >>

Since 2017 - December we had a complaint when the handle lever was stiff, so we improved it

The current situation now began to move very lightly

It is safe to crimp the handle lever for about 2 seconds to 3 seconds that it can be welded in 1 second

Specifications vary depending on the PP band type

Class A PP band

Regarding the PP band, we are using Class A PP band to fix heavy objects from overseas by ship

Thickness: 0, 9 mm, width: 16 mm

Rupture limit: 470 kg, use capacity: 300 kg

Class B PP band

Thickness: 0.7 mm, Width: 16 mm

Rupture limit: 200 kg, capacity to use: 100 kg

It is used in supermarkets, Takkyubin, etc. It is used most for work and business,

Since it is for automatic packing machines, the minimum number of turns is 1000 m

It has become from

Class C PP band

Thickness: 0, 4 mm, width: 15 mm.

Break limit: 100 kg, use capacity: 50 kg

For home use newspaper, packing of magazines, etc. We use it for relatively light luggage packing,

It can not be used for work, problems such as loosening the band are occurring when the band can not be cut off with the conventional fastening tool or tightened strongly.

In case

Please use C class band only for home use (there is description for hand tightening)

All items sold on the market at 100 m or 200 m are all class C bands.

Since class B band is used for work, 1000 windings

Is the minimum number of turns.

It is not possible to cut with an old packing machine in the class C band

Because it is thin, it is supposed to cut with a cutter.

Also, if you tighten it strongly, the band will slip,

It is a band that is to be tightened by hand.

<< Scheduled release >>

◎ We will also sell a small amount of Class B band next time at PC Studio

I will do.

For those who want to use a sturdy Class B band even with a small amount

Will be

◎ If you use a manual packing machine from the past and weak in the C class band and the band can not be cut

Please try

Features:

• Since the hand tightening tape is used instead of the cord made later, the tape is thin and it can not be cut with the conventional fastening tool,
• It is small and light, easy for women just by connecting the power supply, it is a new type fastening tool that can cut a thin hand tightening tape
• It corresponds to PP band of 6 m to 19 m
• AC 100 V use, welding in 1 second OK

Product information:

Shipping Weight: 1923 g

Package Dimensions: 9.60 x 23.70 x 33.70 cm
