Product Description

This is the minor upgrade version of NS-LED-02 (ASIN: B00OLRBUG6).

Demo clips:
https://www.youtube.com/watch?v=96-y19RIc5U
https://www.youtube.com/watch?v=qMI50lqgp_0
https://www.youtube.com/watch?v=Rf7J5tjl71Y

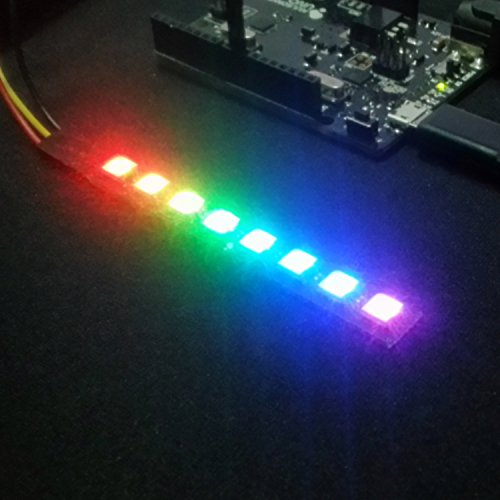

This is the easiest way possible to add small and ultra bright RGB LEDs to your project.
Each pixel of the three primary color can archive 256 brightness display， completed 16，777，216 color display.
Power the whole thing with 5VDC ( 3.5V ~ 5.5V works)
The sticks are chainable - so you only need 1 pin/wire to control as many LEDs.
These pixels have full 24-bit color ability by the built-in controller chip. Since the LED is so bright and compact， you need less current/power/space to get the effects you want.

Libraries:
for Arduino - http://nulsom.com/source/NS_Rainbow.zip
for ATmega328 - http://www.nulsom.com/source/NS_Rainbow_for_ATmega328P.zip
for ATmega128 - http://www.nulsom.com/source/NS_Rainbow_for_ATmega128.zip
for ATmega8 - http://www.nulsom.com/source/NS_Rainbow_for_ATmega8A.zip

Feature

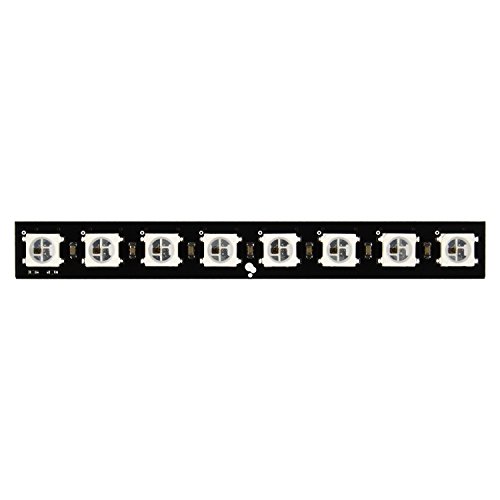

NS-LED-02 (v1.2)， 1x8 ultra bright and colorful WS2812B RGB LED's
Easy and fun Arduino project (Not include Arduino)
256 brightness display and full 24-bit (16，777，216) color display
Sticks are chainable， Compatible with the Neopixel Arduino library
Need to use a high speed level converter (74AHCT245， etc.) or 3.7~4.2V power supply instead of 5V when a signal level is 3.3V from Naze32/Teensy
Item model num : NS-LED-02
