Control video and audio with a single unit.

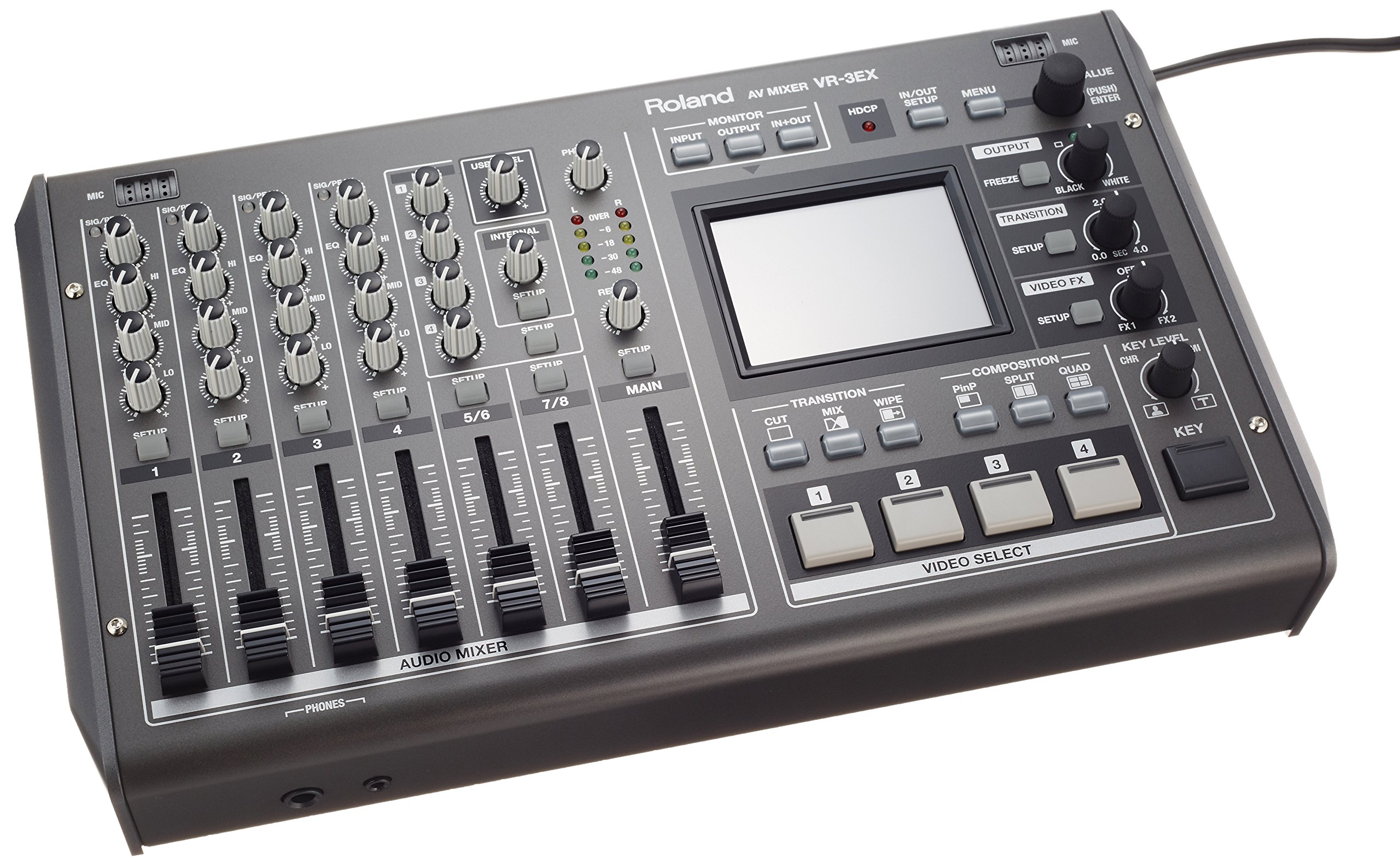

Intuitive operation HDMI compatible AV mixer with touch monitor

From Amazon

Simple operation of all the scenes that need video and sound

VR-3EX is ideal for the field of events such as classes, conferences, concerts, etc. that progress in real time.

Adopted an operation panel with a video switcher on the right and an audio mixer on the left.

Design that can intuitively grasp video and audio.

Touch the screen to switch the output video while checking the video with the touch monitor, or you can adjust and set it directly with buttons and knobs.

These operations are okay even if you do not have special knowledge for video switching and audio mixing.

While judging the situation at a glance, simple and intuitive operation is possible.

Any connection, all-in-one

Various equipment is active at the event site.

Video camera, Blu-ray player, computer and tablet.

Audio is microphone or audio player.

The VR-3EX has a video switcher and an audio mixer, and it has HDMI, RGB, and audio input terminals, so it can be connected to various video equipment and audio equipment.

It is possible to respond widely to requests of on-site occurrence in real time.

* Please refer to "main specifications" for the corresponding signal of each terminal.

Recording on PC, Internet live broadcasting to web meeting

If you connect the VR-3EX to a personal computer via USB, you can record video / audio with the dedicated software "Video Capture for VR".

Recorded files can be uploaded to the Internet and edited.

Also, if you use software for live distribution, you can also deliver Internet live such as Ustream and Nico Nico Live.

Ideal for controlling video and sound of web conference.

Video Switcher

Video processing engine of VR - 3EX is full digital, 480p processing.

Even if various effects are applied to images, images can be processed with progressive image quality with sharp colors and edges.

Up to 9 inputs 4 outputs

Up to 9 inputs of HDMI / RGB, component, and composite.

Four of them can be used for video sources.

I / O can be switched intuitively with touch monitor.

Intuitive operation with touch monitor

Equipped with a touch monitor that can switch images and make various settings by touching.

The display of the screen can be switched between "4 input divided", "output video", "simultaneous display of input and output".

Also it is possible to output to an external monitor.

Simple to split screens and split screens

You can also operate the screen compositing function to combine multiple videos such as PinP, left and right, split up and down, and "QUAD" in quadrant into a single screen.

Video switching time

You can add effects such as mix and wipe to switch images.

Equipped with a transition knob that allows you to adjust the switching time up to 4 seconds.

With slow video switching, you can produce emotional richness.

Various video effect

Change video according to the scene, equipped with video effect.

The image of a simple camera also changes dramatically when twisting the knob.

Synthesis of subtitles and people

Combination of subtitles is also one touch with the KEY button.

Because it corresponds to chroma key composition, it is also possible to create a picture that synthesizes people.

Audio Mixer

Equipped with 18 channel digital audio mixer.

Equipped with effects corresponding to various scenes.

Intuitive panel layout

Intuitive volume control is possible with knob and fader.

If you press the SETUP button of each channel, you can perform further tuning with the touch panel.

Various audio effects

Equalizer, gate, compressor, high pass filter are installed on 1 to 4 channels.

In addition, you can apply delay and reverb to all channels.

Supports HDMI audio

You can use the sound of the video camera connected with HDMI.

HDMI's digital clear sound can be operated in the same sense as analog sound.

Built-in stereo microphone

Equipped with a stereo microphone on top of the main unit.

The operator can superimpose his / her voice as a narration, add cheers and applause to the audience, and give a realistic feeling.

Two systems of audio mixing panels

It is possible to create and output a mix (AUX) different from the main sound.

It is possible to perform recording simultaneously with PA.

USB output

Video / audio to PC via USB

It corresponds to USB video / audio class.

Connect with USB like a web camera, easily realize live distribution.

Video recording on PC

If you download and use the dedicated software Video Capture for VR (Windows / Mac compatible), you can record video and audio on a PC connected via USB.

VR-3 EXRCS

Free application software that allows you to back up and remotely control VR - 3EX settings on a PC connected via USB to VR - 3EX.

System example

Main Specifications

Video processing

4: 2: 2 (Y / Pb / Pr), 8 bits (internal processing: 480 / 59.94 p for NTSC setting and 576/50 p for PAL setting)

Audio processing

24 bits / 48 kHz

Input format

HDMI image input (VIDEO IN 1 to 3)

480 / 59.94 p (when NTSC is set) 576/50 p (when PAL is set)

HDMI image input (VIDEO IN 4)

(At NTSC setting), 576 / 50i, 576 / 50p, 720 / 50p, 1080 / 50i, 1080 / 50p (

PAL setting)

HDMI audio input (VIDEO IN 1 to 4)

Linear PCM, 24 bits / 48 kHz, 2 ch

RGB / component video input (VIDEO IN 4)

1280 × 1024/60 Hz, 1366 × 768/60 Hz, 1400 × 1050/60 Hz, 1600 × 1200/60 Hz, 1920 ×

1200/60 Hz

* Refresh rate is the maximum value of each resolution.

※ Compliant with VESA DMT Version 1.0 Revision 11

※ 1920 × 1200/60 Hz: Reduced blanking

Composite video input (VIDEO IN 1 to 4)

NTSC, PAL

Output format

HDMI and RGB / component video output (VIDEO OUT)

480 / 59.94i, 576 / 50i, 480 / 59.94p, 576 / 50p, 720 / 59.94p, 720 / 50p, 1080 / 59.94i, 1080 / 50i, 1080 / 59.94p, 1080 / 50p640x480, 800x600

, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200

* HDMI and RGB / components always have the same format.

When selecting the interlaced format, the component signal is output from the RGB / component end.

When other than interlaced is selected, RGB signal is output from RGB / component terminal.

* The refresh rate of the RGB format is 60 Hz at NTSC setting, 1600 × 1200 at PAL setting, 50 Hz at 1920 × 1200, and 75 Hz otherwise.

※ RGB format: VESA DMT

※ 1920 × 1200/60 Hz: Reduced blanking

HDMI audio output (VIDEO OUT)

Linear PCM, 24 bits / 48 kHz, 2 ch

Preview audio output (PVW OUT)

Linear PCM, 24 bits / 48 kHz, 2 ch

Composite video output (VIDEO OUT)

NTSC, PAL

USB image output

720 × 480 (at NTSC setting), 720 × 576 (at PAL setting) Motion JPEG

Preview video output (PVW OUT)

480 / 59.94 p (when NTSC is set), 576/50 p (when PAL is set)

USB audio output

Linear PCM, 16 bits / 48 kHz, 2 ch

Input terminal

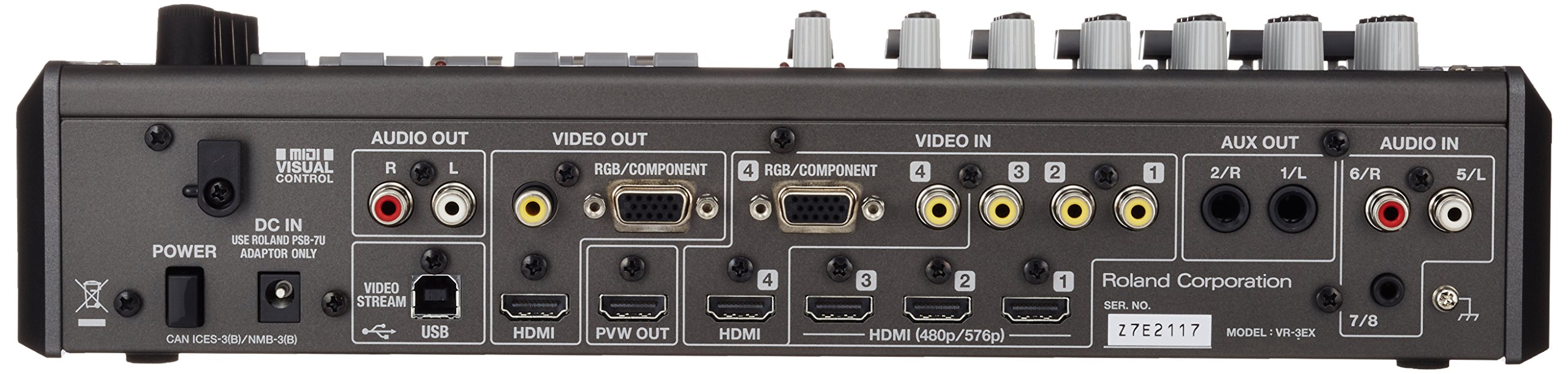

VIDEO IN 1 to 4 (HDMI: Type A 19 pin)

VIDEO IN 4 (RGB / Component: 15 pin mini D-sub type)

VIDEO IN 1 - 4 (Composite: RCA pin type)

voice

AUDIO IN 1-4 terminals (XLR / TRS combo type, phantom power supply)

AUDIO IN 5-6 terminals (RCA pin type)

AUDIO IN 7/8 jack (stereo mini type)

MIC (built-in stereo · microphone)

Phantom Power

DC 48 V (maximum when no load), 10 mA (maximum load)

※ Current value per channel

Other terminals

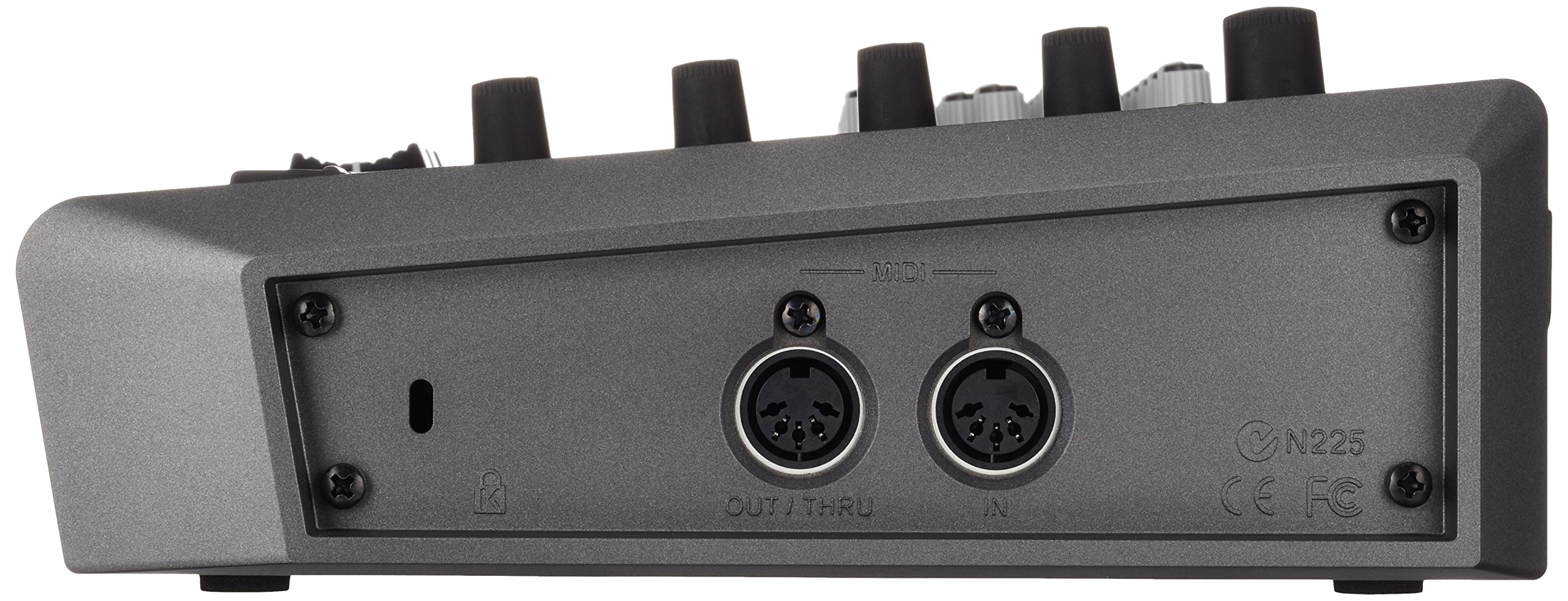

MIDI

5 pin DIN type × 2 (IN, OUT / THRU)

USB

B type × 1 (for streaming, remote control)

Signal level and impedance

RGB / Component

Input / output level: 1.0 Vp-p (luminance signal)

0.7 Vp-p (color difference signal)

Input / output impedance: 75 Ω

Composite

Input / output level: 1.0 Vp-p

Input / output impedance: 75 Ω

XLR / TRS combo type

Input level: -60 to + 4 dBu

(Maximum input level: + 22 dBu) Input impedance: 10 kΩ (GAIN 0 to 23 dB)

5 kΩ (GAIN 24 to 64 dB)

Standard type, RCA pin type

Input level: -10 dBu (maximum input level: + 8 dBu)

Input impedance: 15 kΩ

Output level: -10 dBu (maximum output level: + 8 dBu)

Output impedance: 1 kΩ

Mini type

Input level: -15 dBu (maximum input level: + 3 dBu)

Input impedance: 15 kΩ

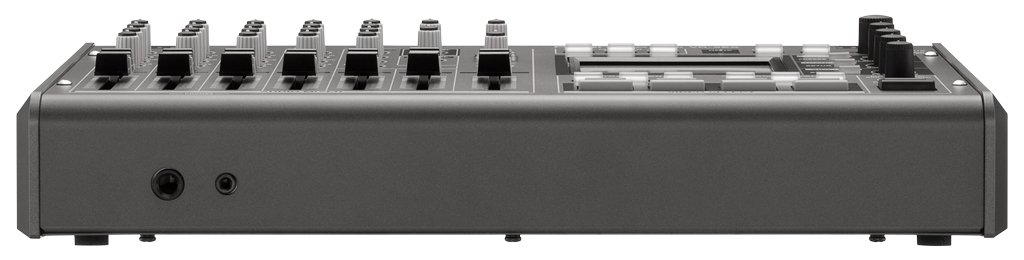

Headphone

Output level: 30 mW + 30 mW (at 32 Ω load)

Output impedance: 10 Ω

Image effect

switching

Cut, mix (3 types), wipe (250 types)

Effect

Strobe, negative, colorization, find edge, silhouette, monochrome, sepia, emboss, posterize, color pass, multi (11 kinds)

Synthesis

Picture in picture, split, quad, luminance key, chroma key

Other

Output fade, freeze

Other

display

Graphic color LCD, 320 x 240 dots, touch panel

Power supply

AC adapter (DC 12V)

Current consumption

2.3 A

accessories

AC adapter, power cord, instruction manual, Roland user registration card, warranty * 0 dBu = 0.775 Vrms

External dimensions / mass

Width (W)

345 mm

Depth (D)

203 mm

Height (H)

80 mm

mass

2.3 kg

Features:

• Please enter model number Confirm this is compatible:
• 【Video】 Input: HDMI × 4 / RGB × 1 / Composite × 4, Output: HDMI × 1 / PVW HDMI × 1 / RGB × 1 / Composite × 1
• 480p digital processing, video switching effect / screen synthesizing function such as PinP, KEY
• 【Audio】 Input: XLR × 4 / RCA × 1 / Stereo mini × 1 / HDMI × 4 / Built-in microphone,
• Output: MAIN RCA × 1 / AUX TRS × 1 / HDMI × 2 / Headphone × 2, EQ / GATE / COMP / HPF / DELAY installed
• [Other features] intuitive operation with touch monitor, output video / sound to PC via USB

Product information:

Shipping Weight: 3460 g

Package Dimensions: 16.00 x 28.19 x 45.01 cm
