Product Description

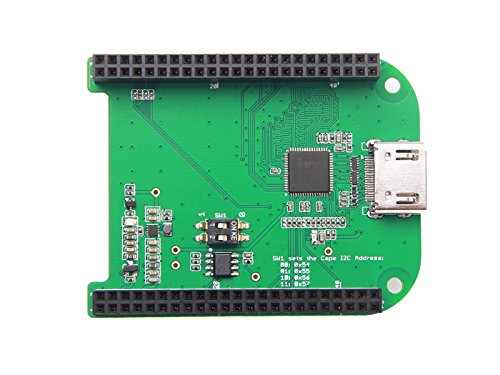

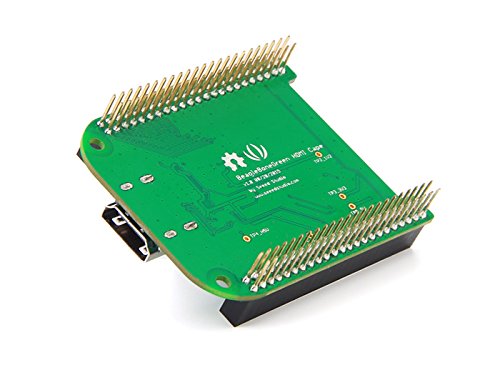

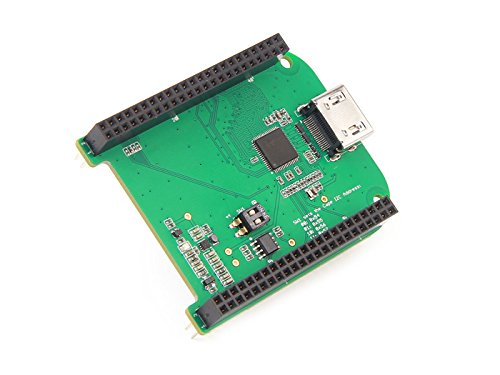

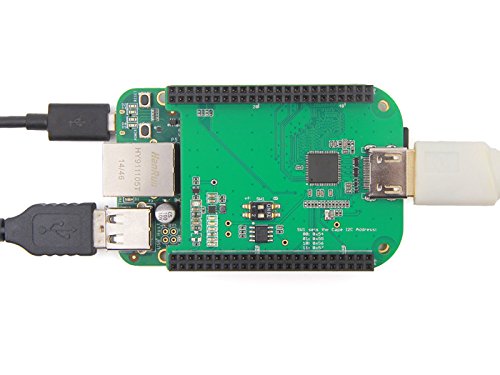

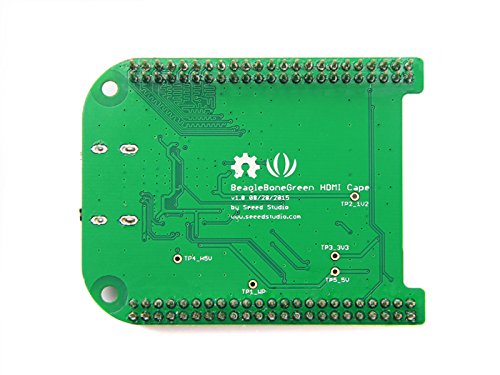

BeagleBone Green HDMI Cape is a general integrated HDMI connector for expanding your BeagleBone to a rich variety of peripherals such as computer monitor, video projector, digital television, or digital audio device. This board features a standard HDMI receptacle that can be connected to a monitor with a standard HDMI-to-HDMI cable. All HD signals are supported, and the output resolution is 1280×720. It also can be used to transmit audio information. This product will make your applications based on BeagleBone board more versatile for different occasions.

Features

Plug and play.

Adapter to different input signal.

720P(1280×720) output resolution.

Specification

Input voltage: 5V/3.3V

Maxium operating current: 80 mA

HDMI version: Version 1.2

Maxium Output resolution: 1280x720 @60Hz

Audio transmission: Available

Chip: IT66121 HDMI Framer

Note: Please update firmware if your current one doesn't support this BeagleBone Green HDMI Cape. Visit seeedstudio BeagleBone Green web page.

Feature

HDMI cap for BeagleBone Green
IT66121 HDMI framer ship
1280x720 @ 60Hz
May require firmware update on the BeagleBone Green board.
Brand : seeed studio
Item model num : 103030034
MPN(PartNumber) : 103030034
EAN : 0720405662916
Product Dimensions(LxWxH) : 6x3x3cm ; 41 g
Package Dimensions(LxWxH) : 13x7x4cm ; 41 g
