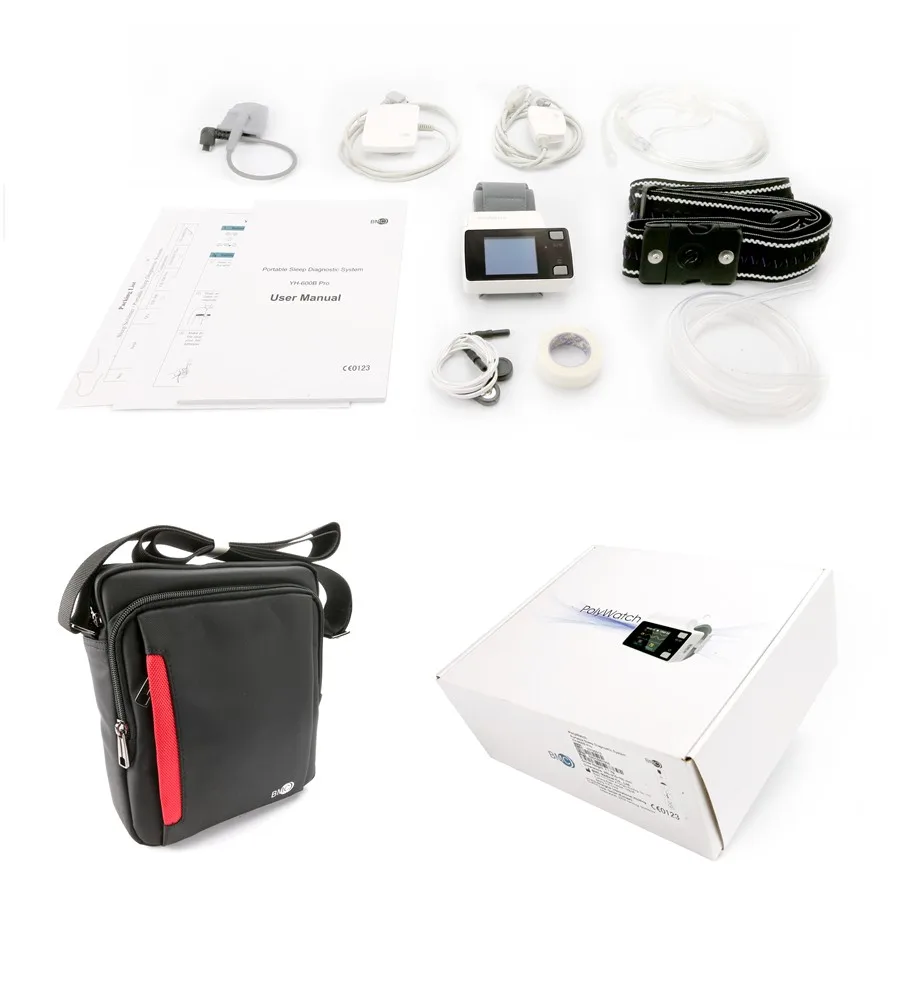

YH-600B:
1 x PolyWatch Main Device
1 x Wrist Belt
1 x Pulse Oximeter Sensor

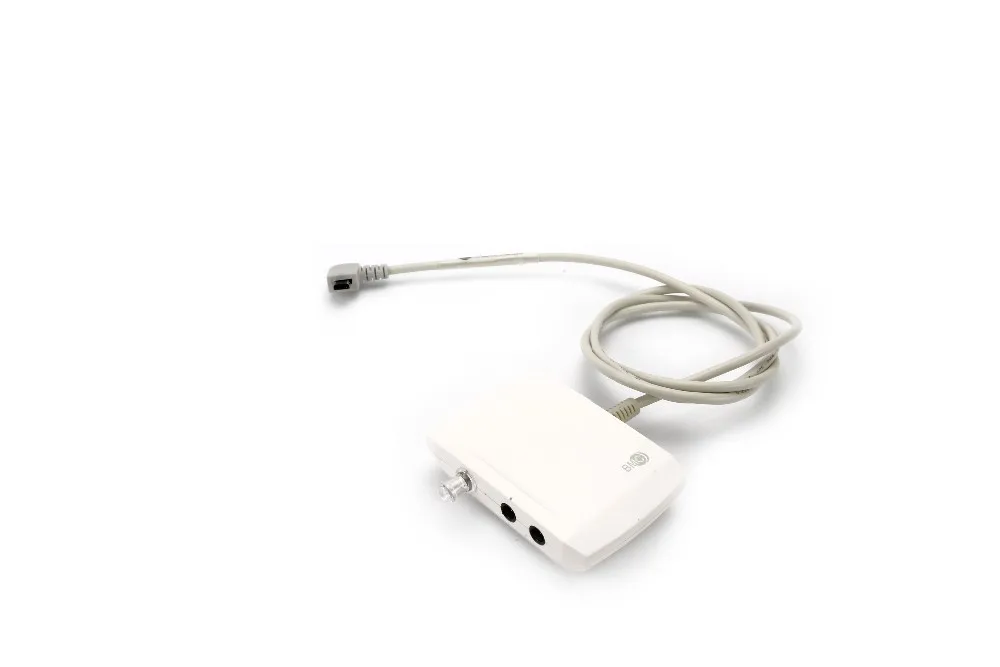

1 x Respiration Kit
1 x Airflow Cannula
1 x CPAP Pressure Tube
1 x Respiration Effort Belt
1 x Effort Lead Cable
1 x TF Card
1 x USB Data Cable
1 x PolyLogic Sleep Analysis Software CD
1 x User Manual
1 x Quick Operation Manual
1 x Carrying Case
Parameters Monitoring:
SpO2, Pulse Rate, Airflow Waveform, Snore, CPAP Pressure,
Wrist Movement (Sleep / Awake), Thoracic / Abdominal Respiratory Effort,
Body Position
Technical Specifications
SpO2
Range 0%~100%
Pulse rate
Range 30~250 bpm
Wavelengths
Red 663 nanometers
Infrared 890 nanometers
Maximal Optical Output Power Less than 1.5 mw maximum average
Airflow waveform
Frequency 10~40 times per minute
CPAP pressure
Rang 4~20 hPa
Snore 150~300 Hz
Thorax/Abdomen effort (For YH-600B Pro)
Range 10~40 times per minute
Body position (For YH-600B Pro)
Supine position, sleep on left or right side, and prone positions can be detected
Wrist movement (sleep/wake)
Automatic sleep-awake identification from wrist movement
Temperature
Operation 5 °C~35 °C
Storage/Transportation -20 °C~55 °C
Humidity
Operation ⤠80% (non-condensing)
Storage/Transportation ⤠93% (non-condensing)
Atmospheric pressure
Operation 860~1060 hPa
Storage/Transportation 700~1060 hPa
Power supply DC 1.5V ± 0.15V (1×1.5V R6 AA)
Minimum record duration No less than 8 hours
Data storage 64 records can be stored on TF card
Dimensions 78 mm × 60 mm × 21 mm (main device)
Weight 75g (main device without battery)
Type of protection against electrical shocks
Internal power supply
Classification of protection against electrical shocks
Type BF applied part
Waterproof rating IP22
Working mode Continuous operation
