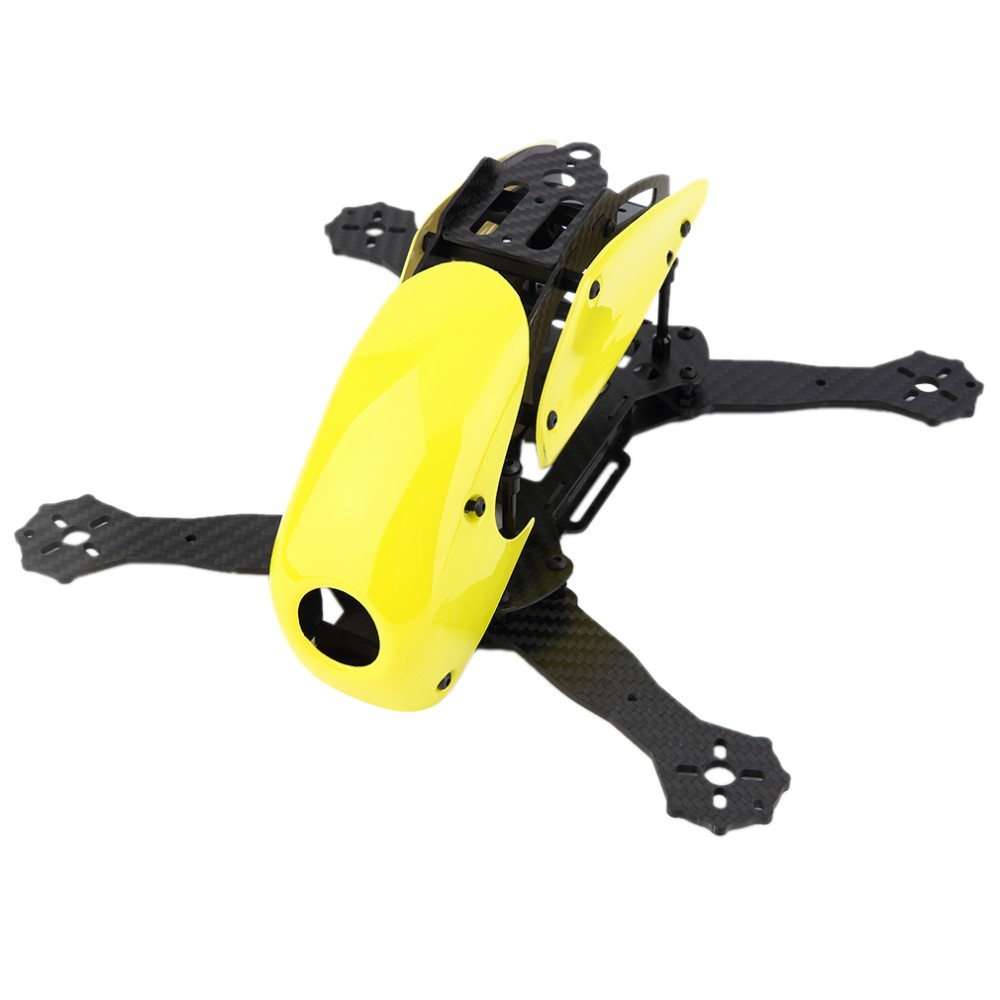

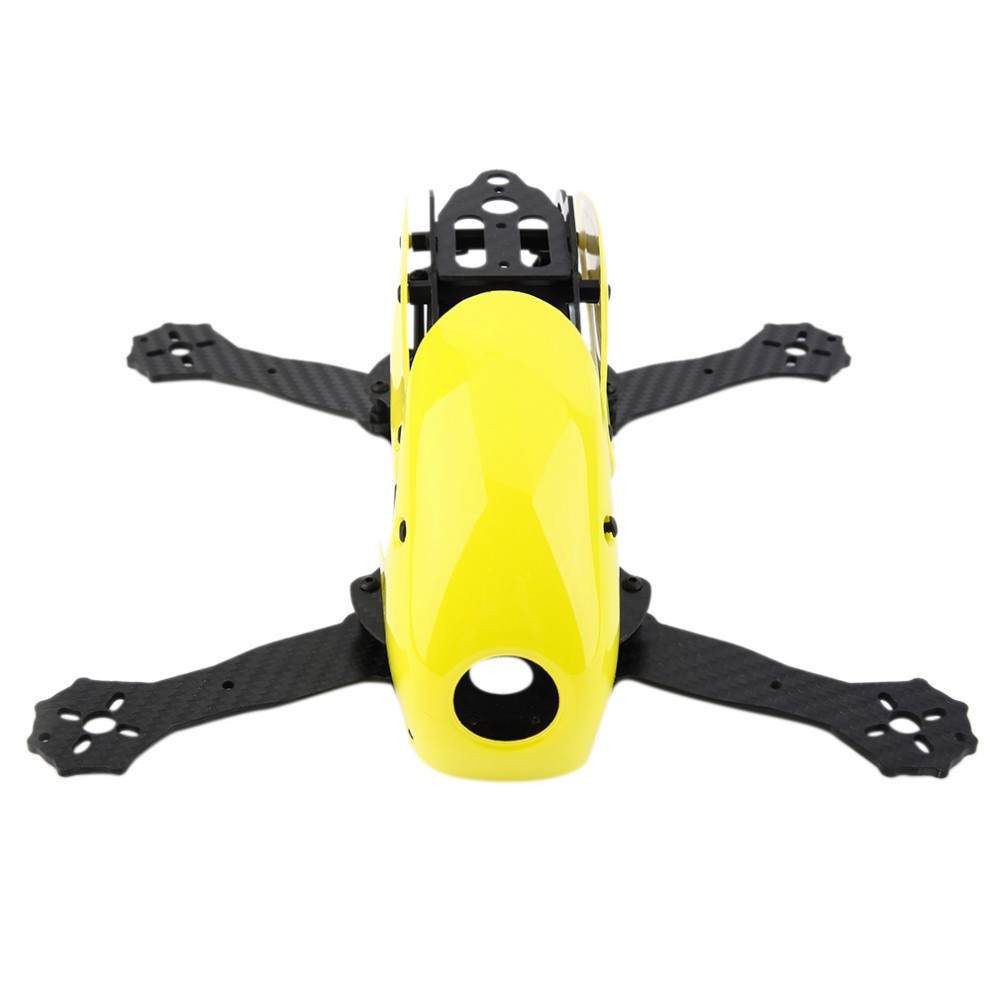

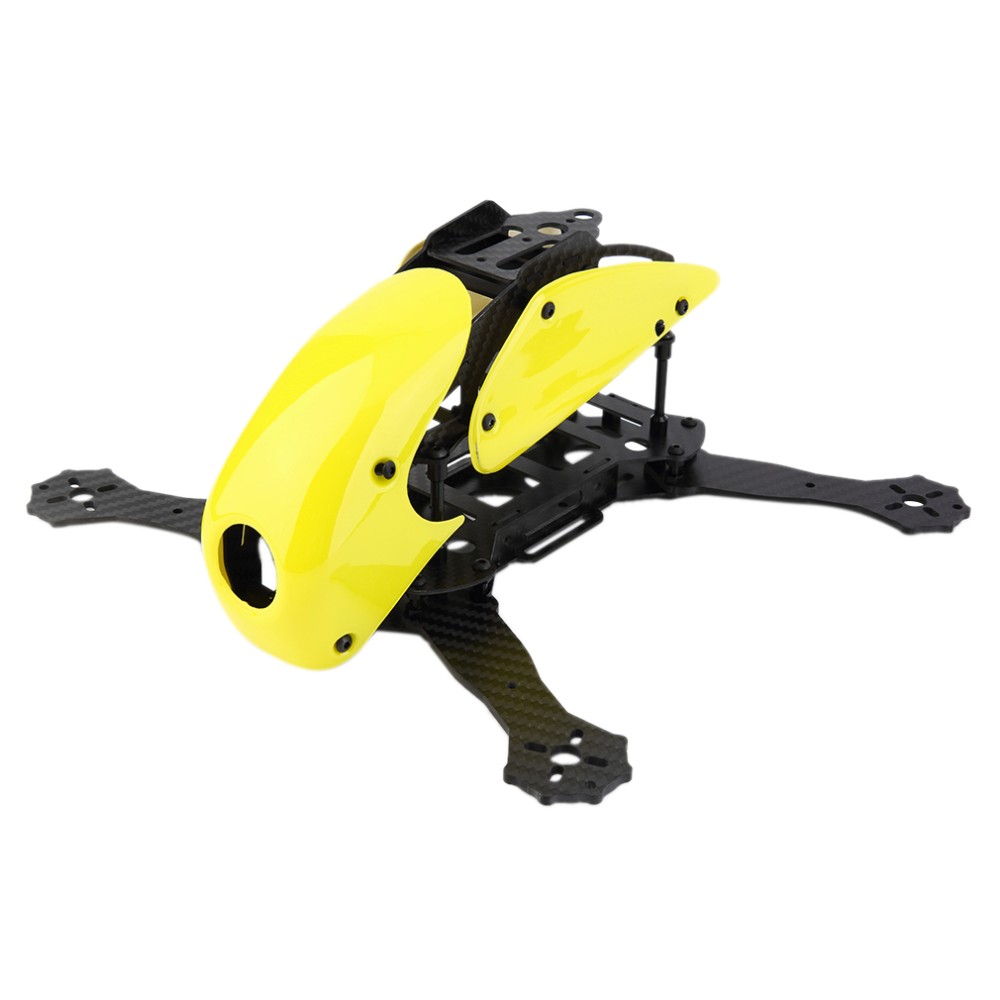

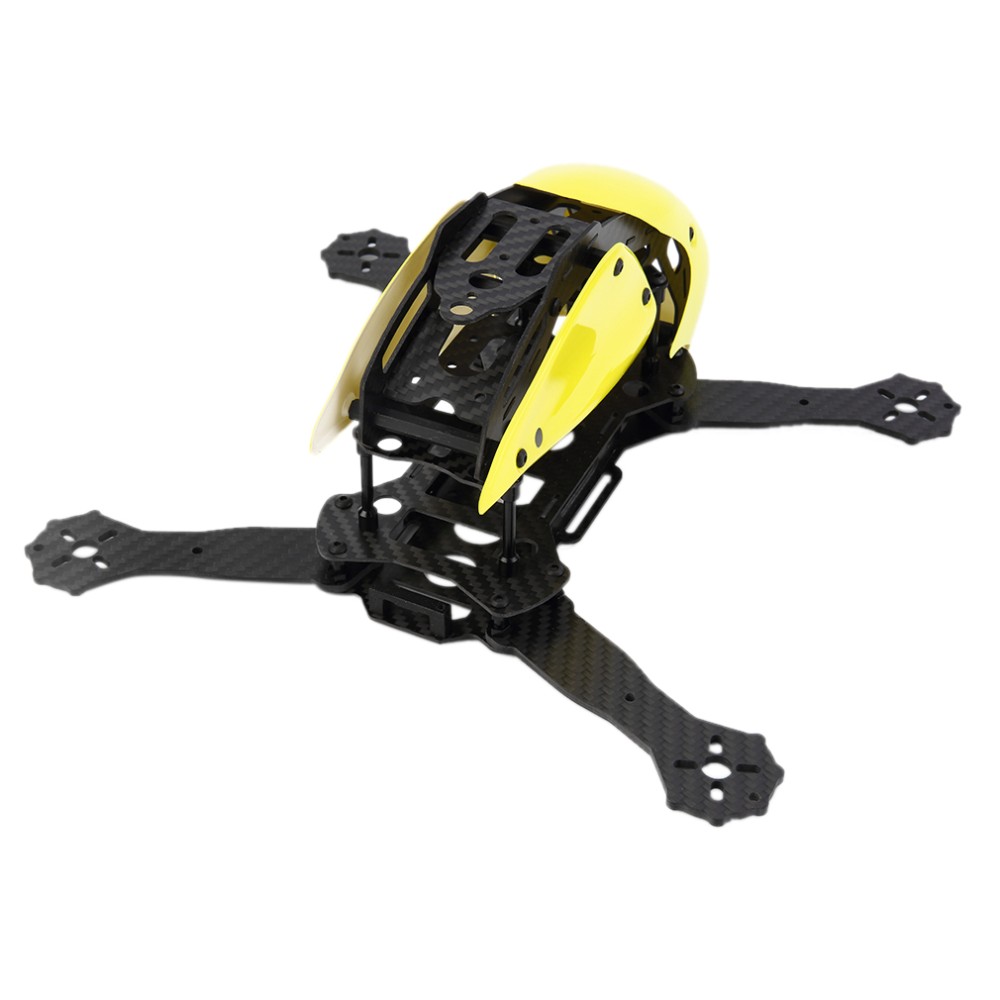

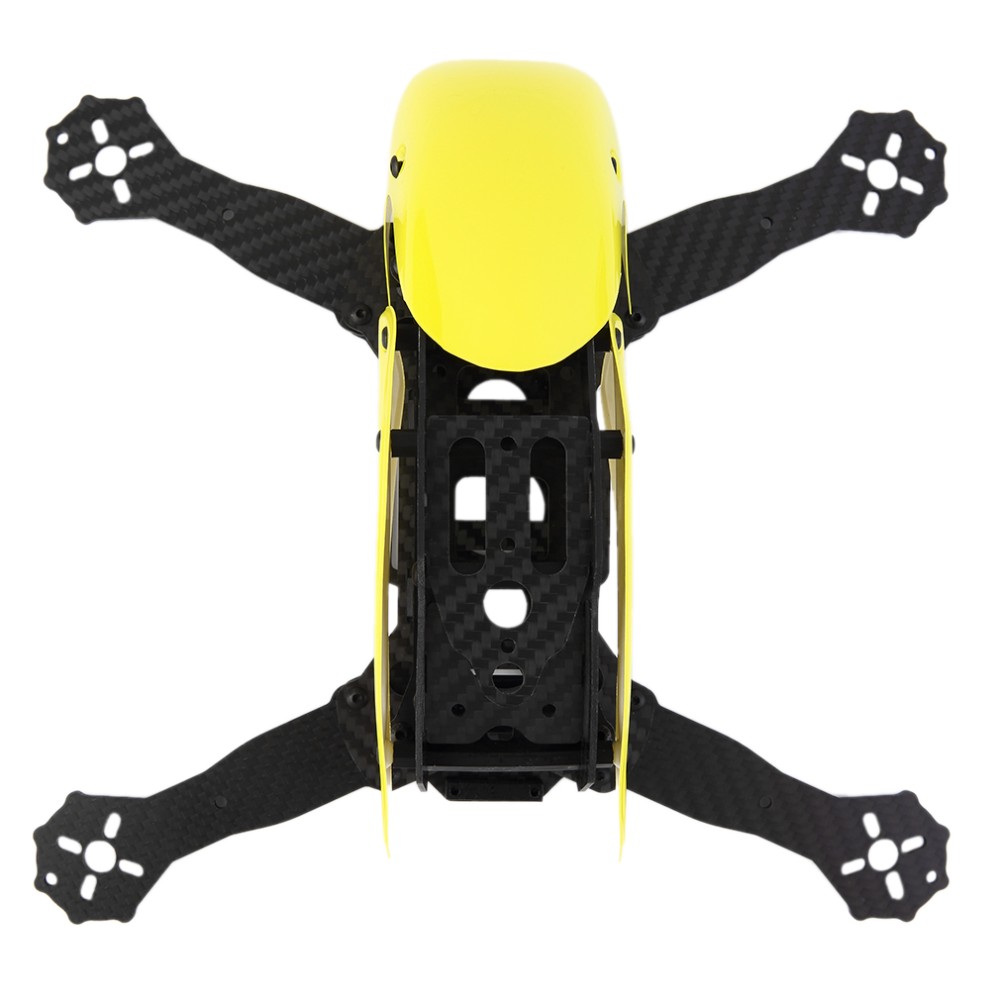

Robocat 270mm 4-Axes Carbon Fiber FPV-Racing Mini Quadcopter Frame Kit Yellow



Features:

100% Brand new and high quality!!
The carbon fiber we use allows us to create a sturdy but lightweight structure .
For the Canopy we took into account the ease of maintenance. The design incorpo-rates a hinge feature allowing for easy access to the electronic insides.
An eye-catching form paired with a streamlined canopy, high speeds are achievable due to the low drag. The Canopy comes in different colors suitable for various situations.
The Canopy is made from shock-absorbing PC material.

Specification:
Approx 270mm motor to motor
Material: Carbon Fiber
Removable canopy made from shock-absorbing PC material

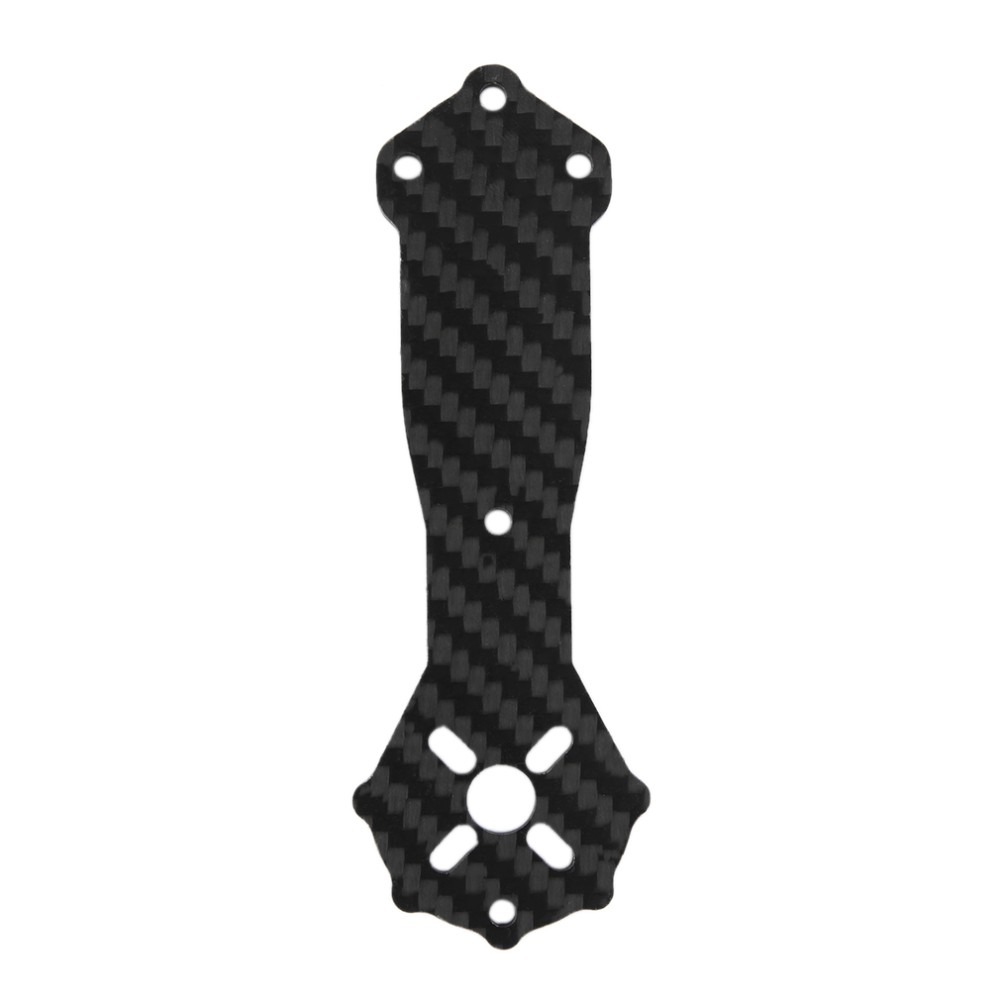

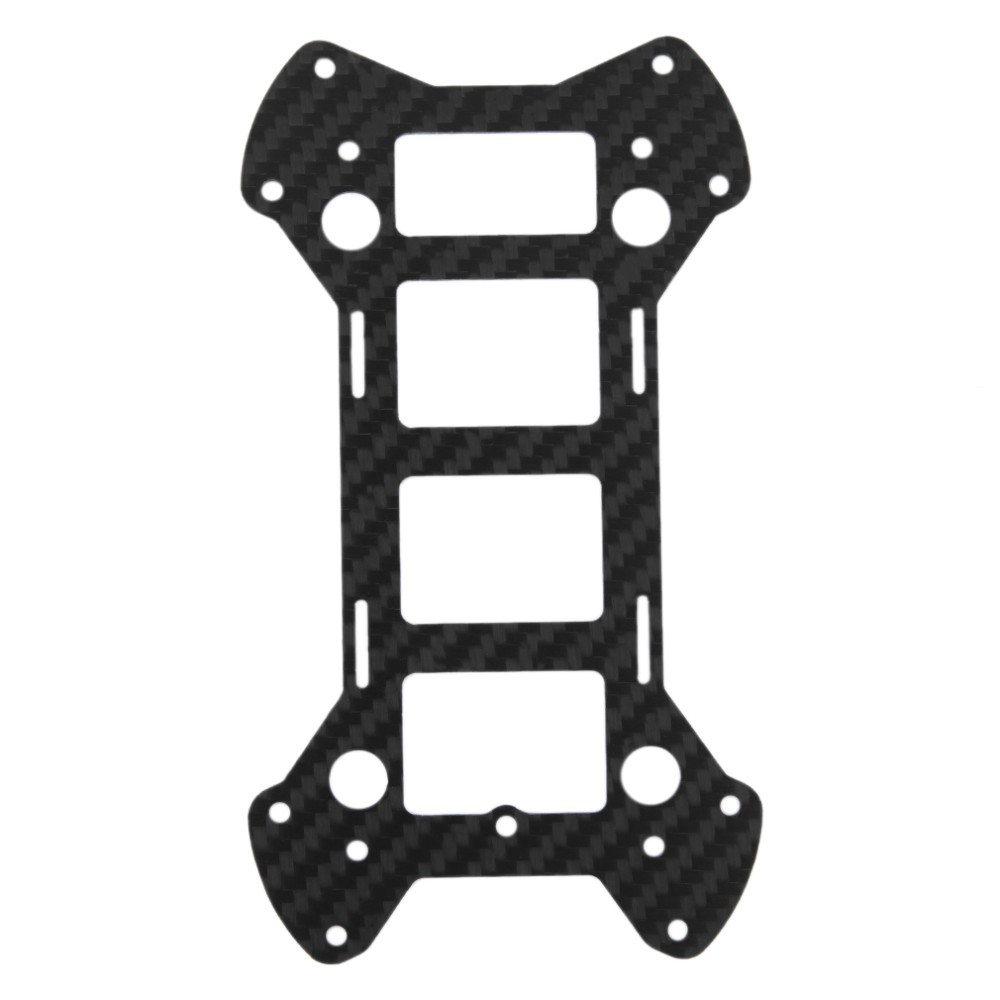

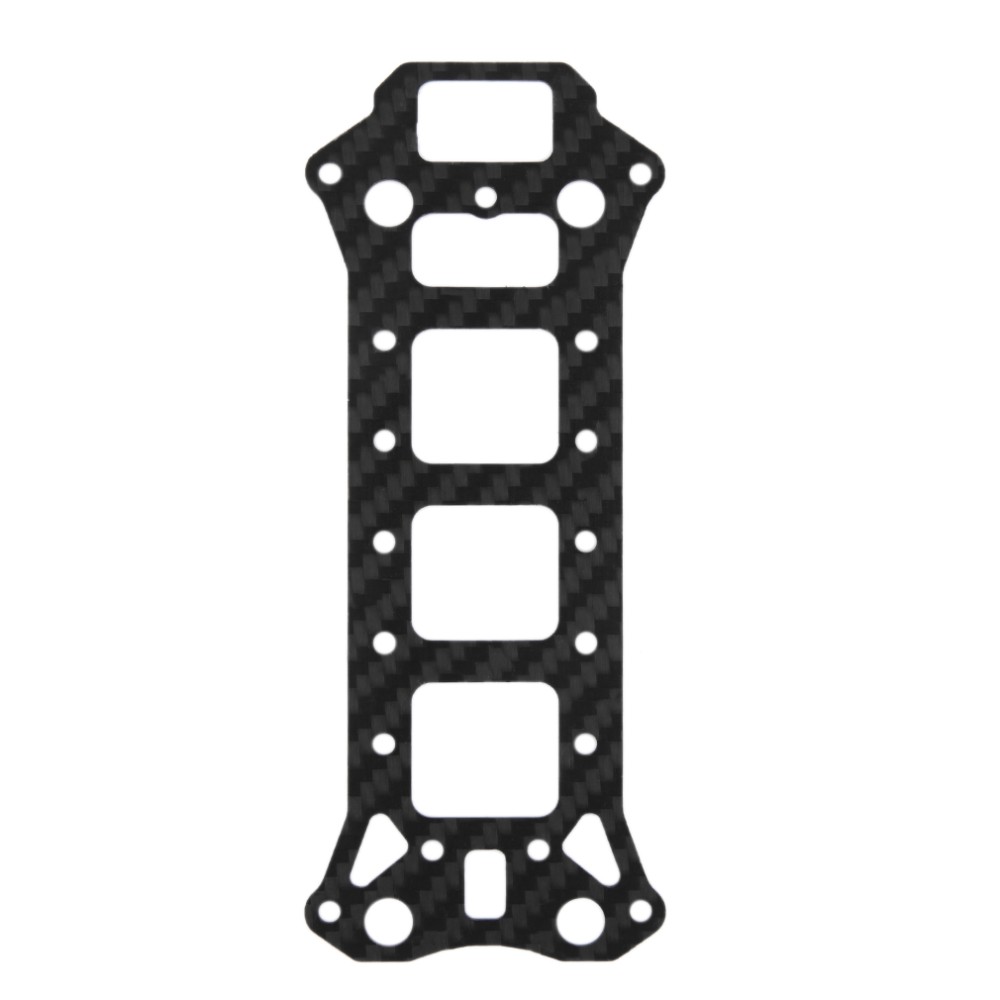

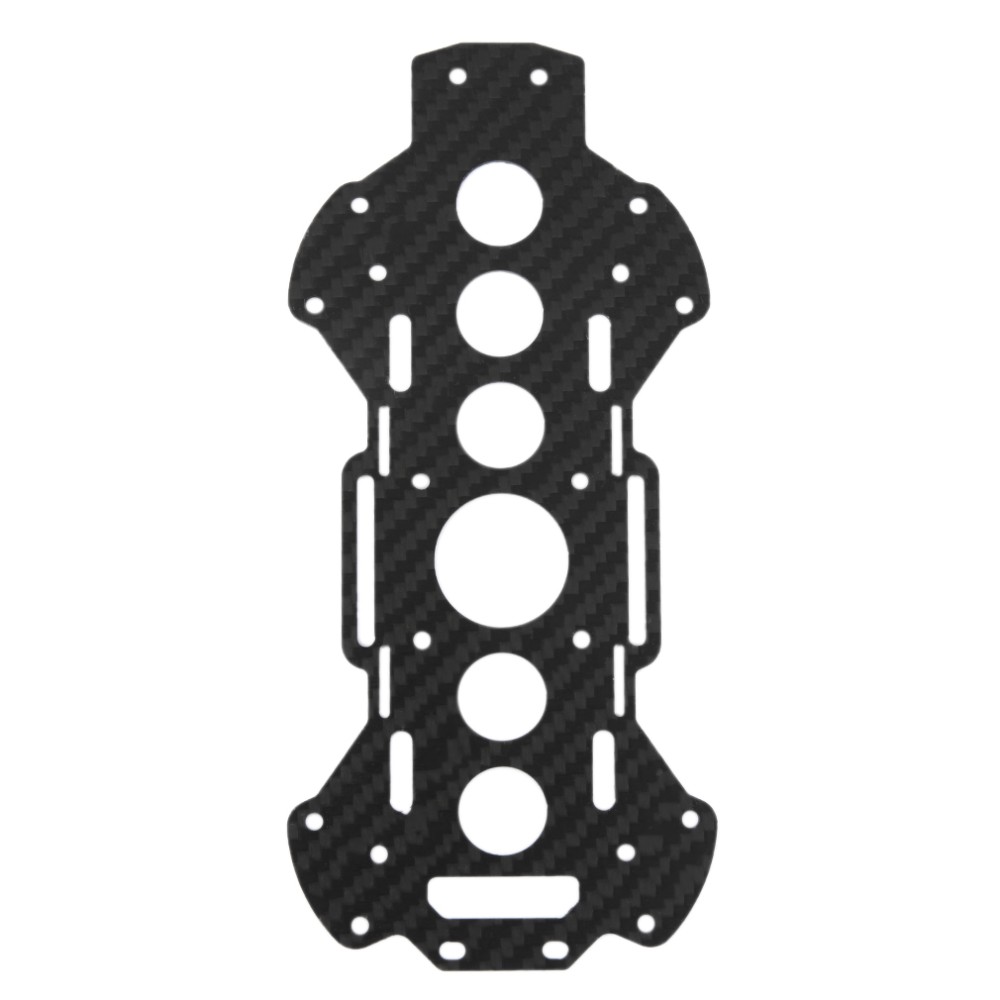

Version: Pure carbon fibre, 1.5mm thick fuselage & 3mm thick arms
Empty Net weight: 190g
Hood Color: Yellow
Empty rack height / assembly height: 100mm
Empty frame length / Total Length: 216mm
Empty frame width / assembly width: 240mm

Recommand Configuration(NOT included):
1806 to 2206 sized motors
12A speed controller
CC3D & Mini KK2.1 Flight controller
3 to 4S 1500mah Lipo battery
32mm CCTV Camera
5.8G video Transmitter
5-6 inches propeller

Package includes:

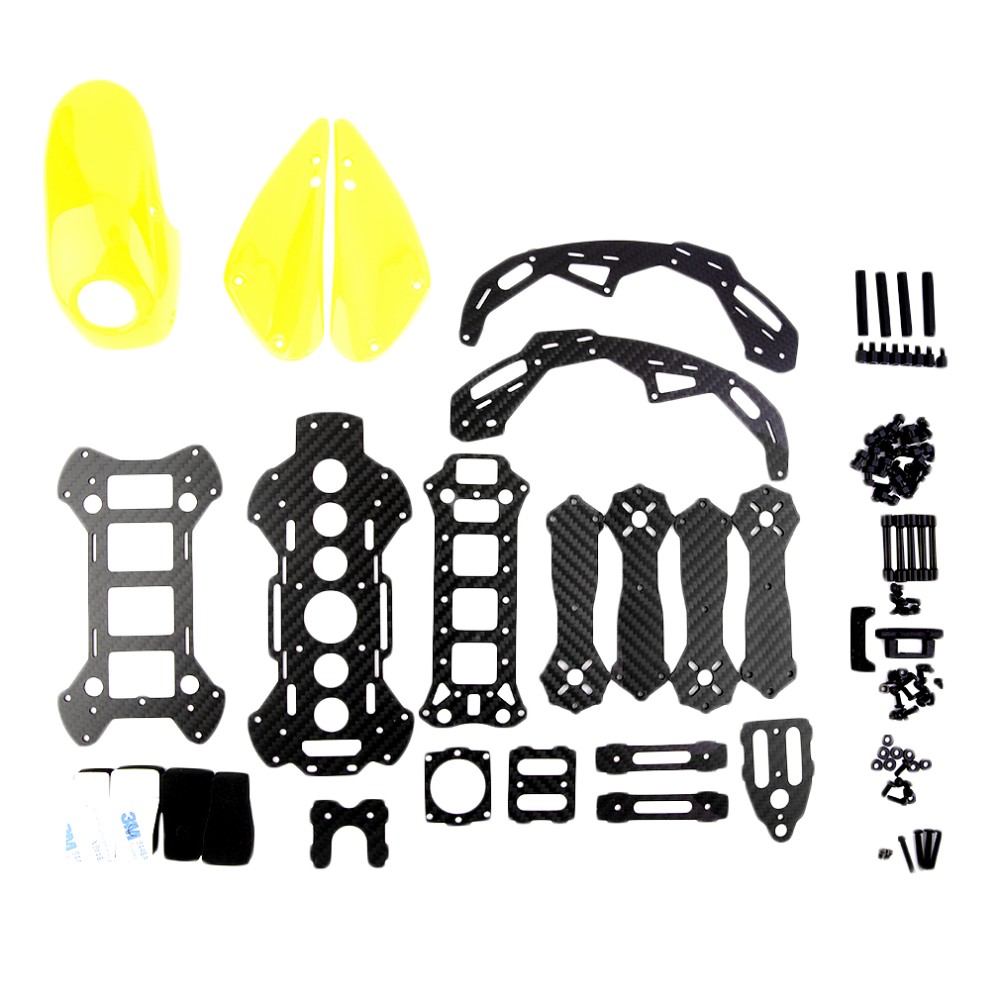

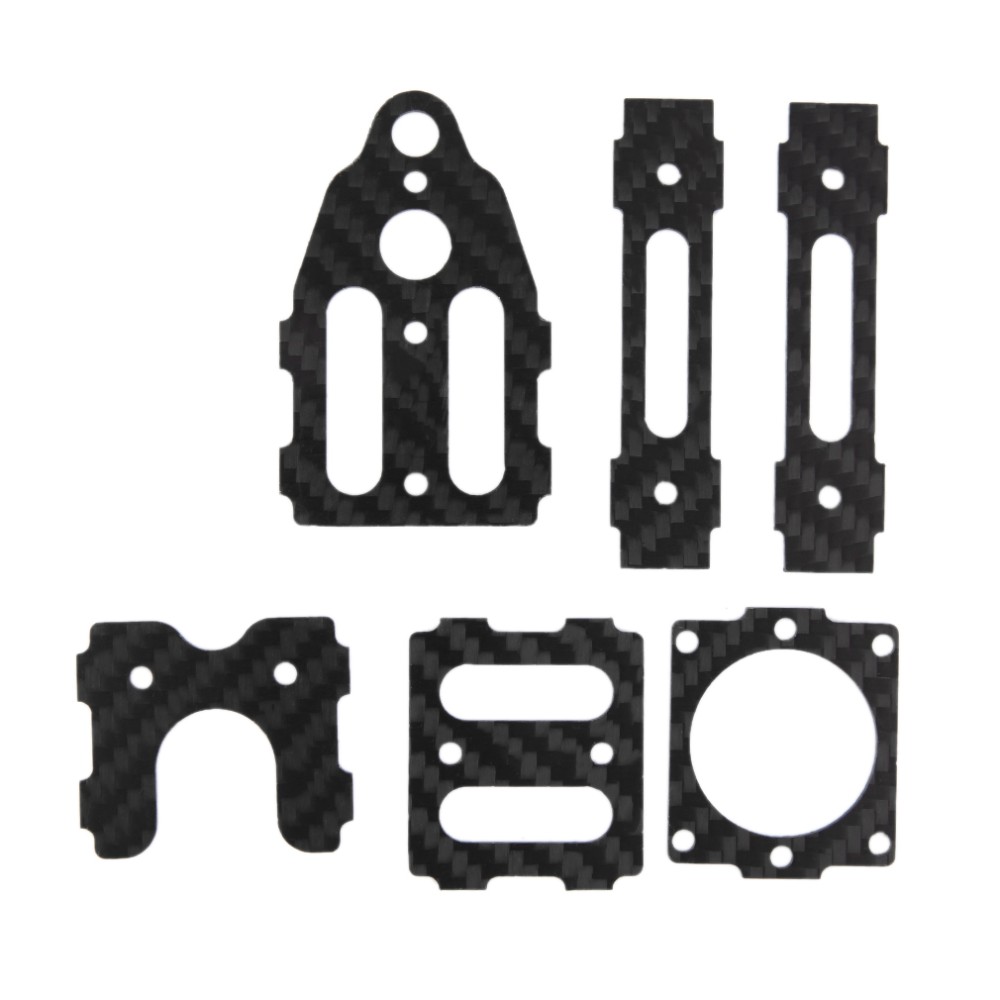

1 x RoboCat Carbon Fiber Frame Kit
