Item Descriptions:
KTC DigiRache series (ratchet type) series lineup
Part number
GEK 030 - R2
GEK 030 - C 3 A
GEK 030 - C 3
GEK 060 - R 3
GEK 085 - R 3
GEK 085 - R 4
GEK 135 - R 4
GEK 200 - R 4
Insertion angle
1/4 sq.
(6.3 mm)
3/8 sq.
(9.5 mm)
1/2 sq.
(12.7 mm)
Measurement range
(N · m)
6 to 30
2 to 30
6 to 30
12 to 60
17 - 85
17 - 85
27 to 135
40 to 200
Measurement accuracy
(Torque measurement
within)
Right screw,
Left Screw
± 4% + 1 digit
2 to 2.98 N · m:
Right screw,
Left Screw
± 12% + 1 digit
3 to 5.98 N · m:
Right screw,
Left Screw
± 8% + 1 digit
6 to 30 N · m:
Right screw,
Left Screw
± 4% + 1 digit
Right screw,
Left Screw
± 4% + 1 digit
Right screw, left screw ± 3% + 1 digit
Set torque number
Preset mode 5 cases / pass / fail judgment mode 1 case
Minimum display
(N · m)
0.02
0.05
0.1
0.2
Overall body length
(mm)
211
217
271
274
380
580
Weight of body (g)
330
400
440
590
700
990
Case size
(mm)
268 × 107 × 57
322 × 107 × 57
428 × 107 × 57
628 × 107 × 57
■ DIGILACE Series Ratchet Type Common Functions
Common specification
Measurement direction
Right and Left Screw
Setting unit
N · m (Conversion feasible in switching kgf · m, lbf · in, lbf · ft)
Measurement mode
· Measurement mode (Digital display of tightening torque)
· Preset mode (Notify by reaching the set target torque with LED and buzzer)
· Pass / fail judgment mode (upper limit and lower limit of target torque can be set, pass / fail judgment and pass number can be counted)
In measurement value display mode
switching
· Peak hold mode (Display maximum value of measurement result)
· Auto clear mode (Reset peak hold display to zero display in a fixed time)
· Track mode (display the torque value in real time without holding the maximum value)
Buzzer sound
ON / OFF switchable
Power supply
Coin type lithium battery CR2354 × 1
Battery life
Approximately 3 months with 100 times a day use
Number of ratchet gears
36
Auto off
If there is no operation for about 2 minutes, the power will be turned off automatically.
※ The image is KTC digitachie driver type GLK 500.
■ Digiratch series Other types are here
Product name
type
KTC DIGILACHE head exchange type GEK 040 - X 13
Head exchange type
KTC DIGILACHE head exchange type GEK 085 - X 13
KTC DigiRachet Monkey Type GEK 085 - W 36
Monkey type
KTC DigiRachet Monkey Type GEK 135 - W 36
KTC Digiculat Monkey Type GEK 200 - W 36
KTC digitachie driver type GLK 060
Driver type
KTC digitachie driver type GLK 250
KTC digitachie driver type GLK 500
Features:
- Setting range: 2 to 30 N · m

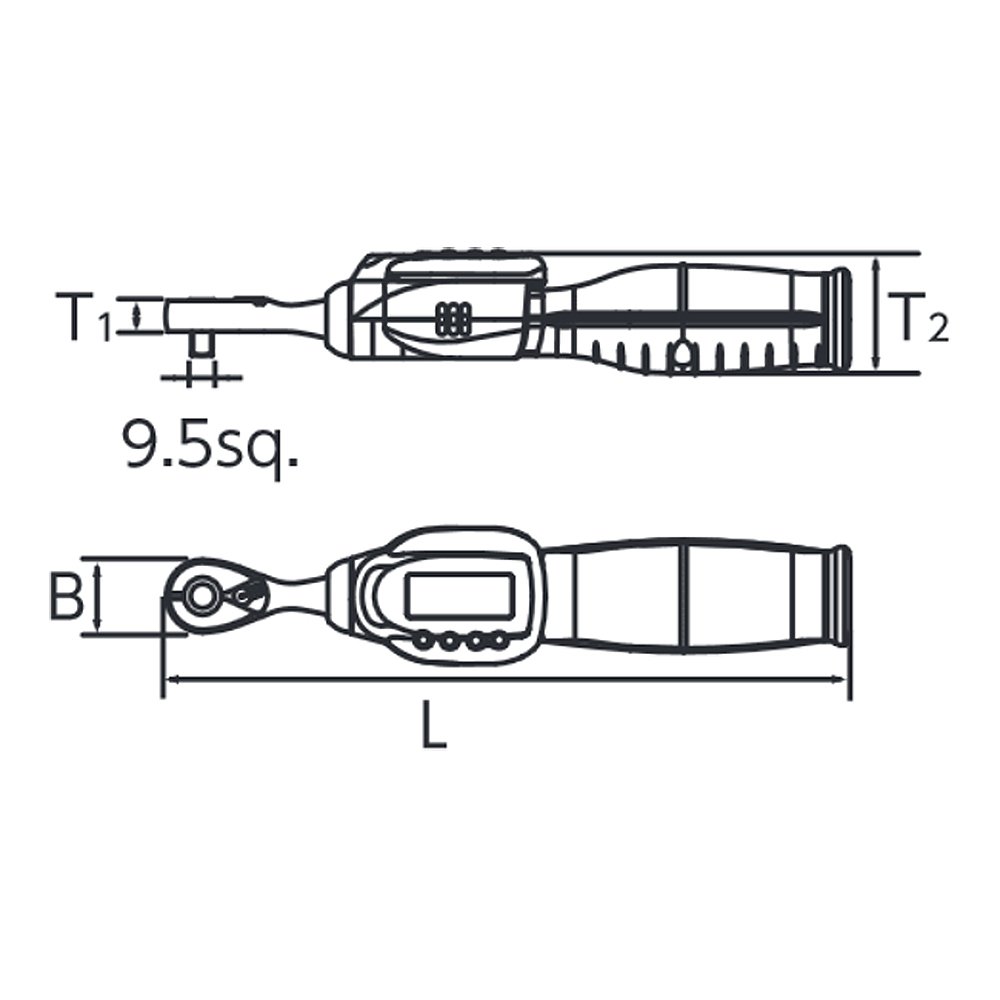

- Digital type: 9.5 sq. Drive
- Function: Adopting free grip with power sensor
- Function: With torque unit conversion function
- Material: Special tool steel
- Grip: Resin
- Accessory: With exclusive resin case (small)
- Application: Normal bolt M 5 - 10
Product information:
Shipping Weight: 662 g
Package Dimensions: 6.40 x 11.20 x 27.71 cm
